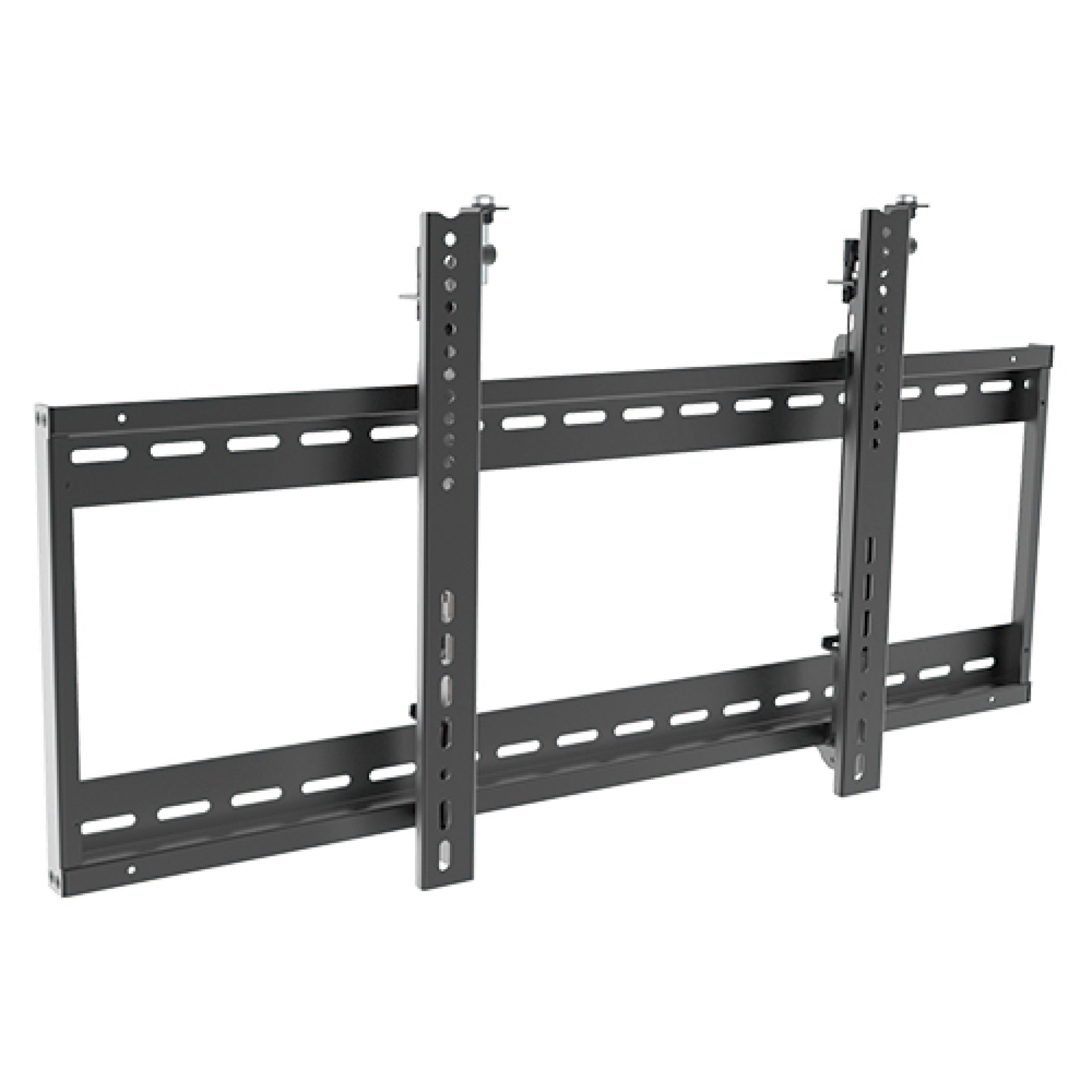

Wall support for 1 LCD TV LED 45"-70", wall distance: 76mm, black
Priser kun synlige for indloggede brugere
Wall support for 1 LCD TV LED 45"-70", wall distance: 76mm, black
Varenummer:
ICA-PLB-046F
EAN nr.:
8054529028160
Produktinformation für Wall support for 1 LCD TV LED 45"-70", wall distance: 76mm, black
• Provides a professional video wall solution while offering the ultimate in versatility and universal compatibility with load capacity of 70kg/154lbs and max. VESA 600x400 hole pattern

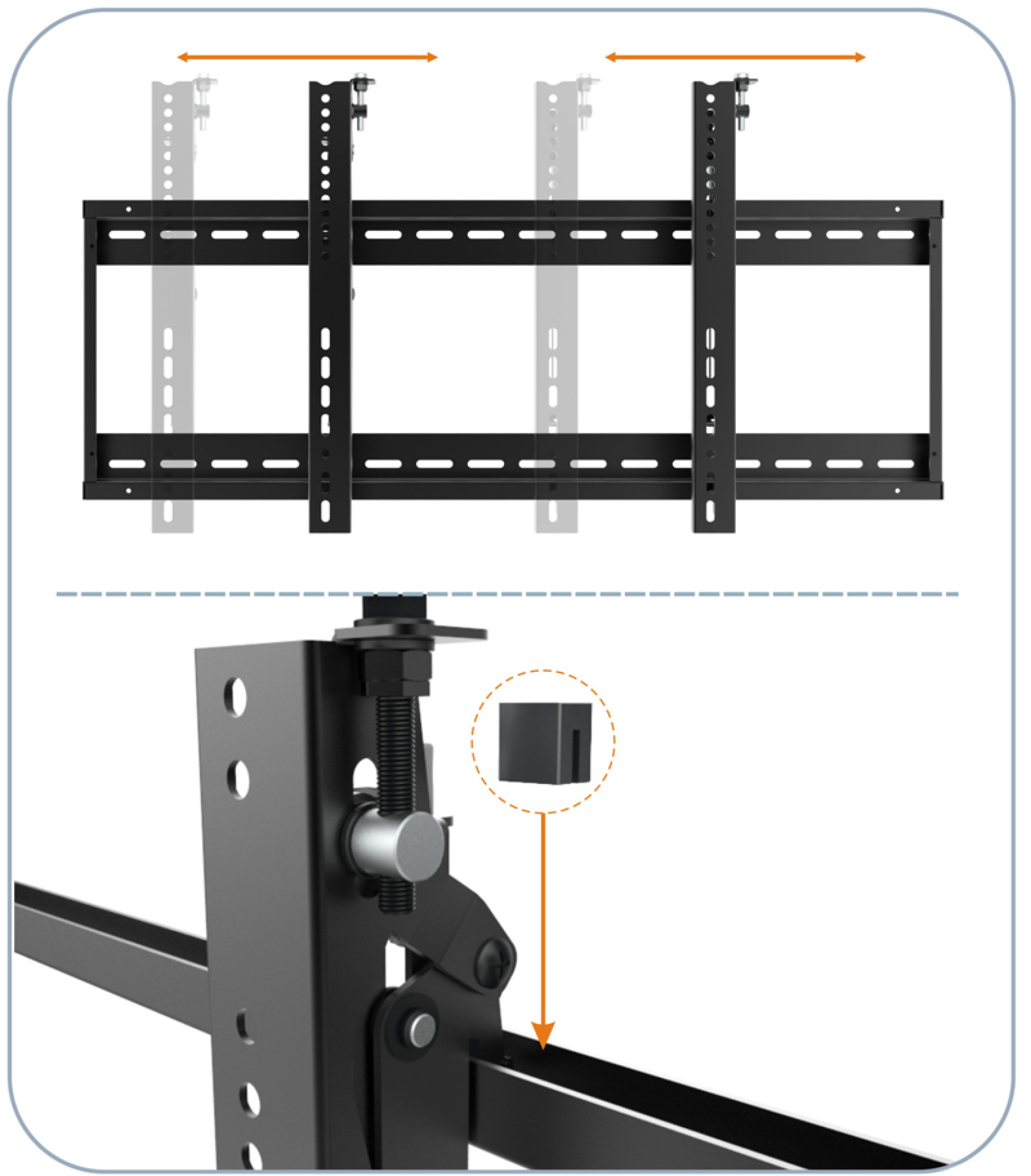

• Post-installation lateral shift allows screens to slide apart and back together to simplify installation and maintenance
• Micro-adjustment at 6 points for seamless display alignment and level
• Lock & unlock switch knob help to lock/release display out of the pop-out module

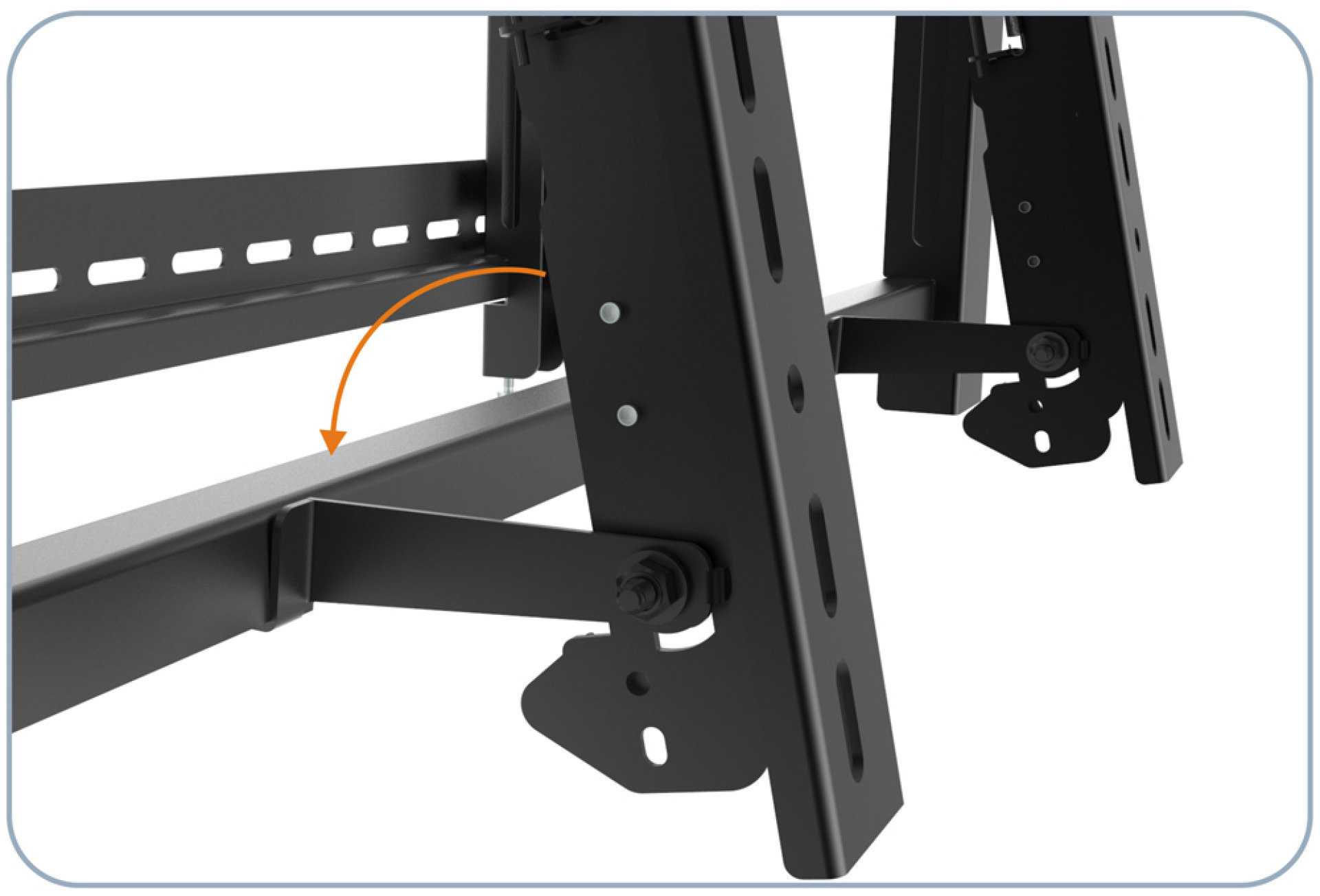

• Kickstand provides 12°of tilt for easy cable management and maintenance

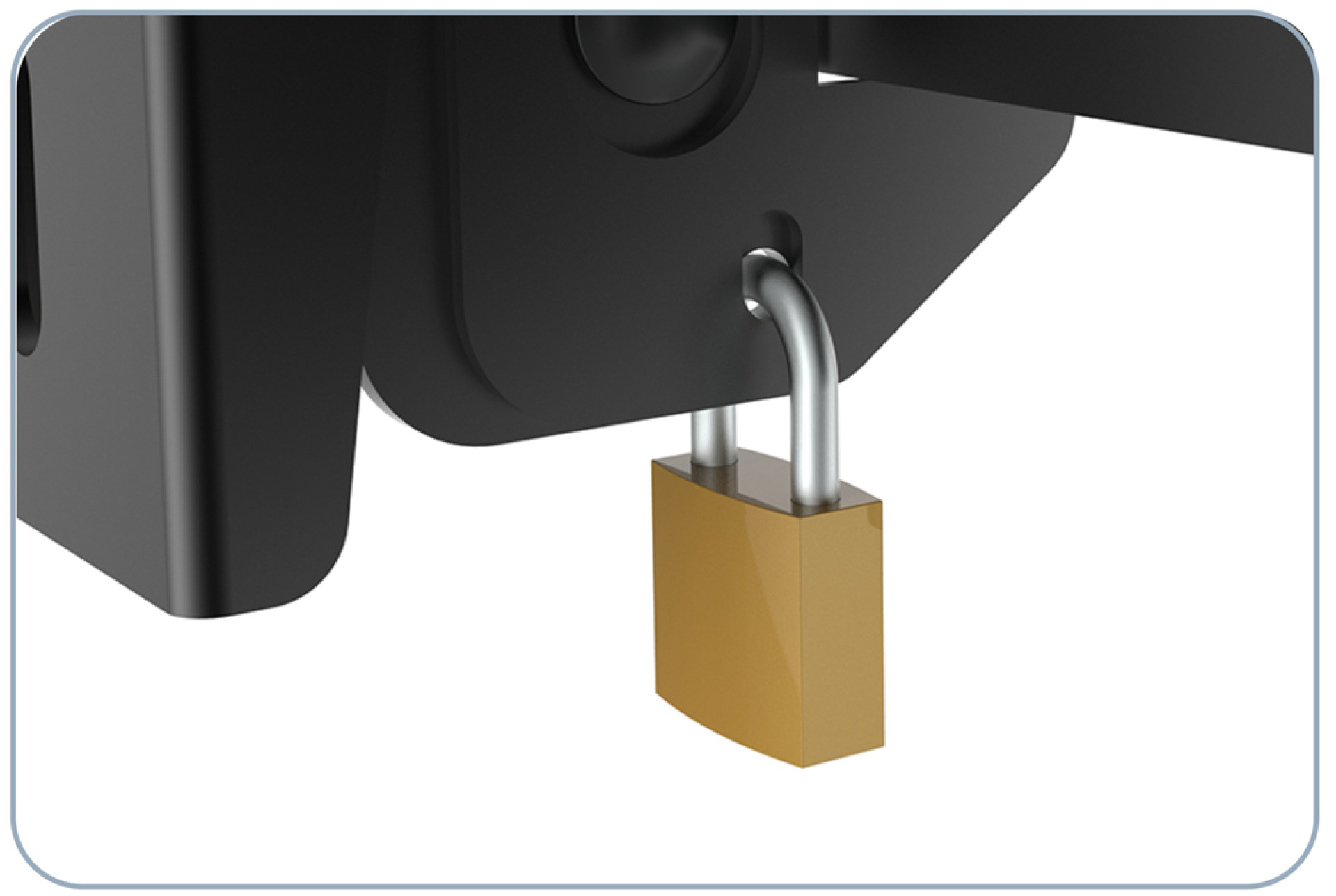

• It is the perfect solution for public and commercial displays with anti-theft design (require for a padlock)
Specification
• Material: Steel
• Surface Finish: powder coating
• Suggested Screen Size: 45"-70"
• Installation: solid wall
• Rated load: 70 kg
• VESA: 200x200,400x200,300x300,400x400,600x400
• Tilt: -5 ° ~ + 3 °
• Level adjustment: +/- 3 °
• Profile: 76 mm
• Bubble level: No
• Anti-theft: yes
• Cable management: No
Pacakge contents
• 45"-70" Wall Bracket for LED TV LCD for VideoWall application
• Hardware for installation and user's manual
• Post-installation lateral shift allows screens to slide apart and back together to simplify installation and maintenance
• Micro-adjustment at 6 points for seamless display alignment and level
• Lock & unlock switch knob help to lock/release display out of the pop-out module
• Kickstand provides 12°of tilt for easy cable management and maintenance
• It is the perfect solution for public and commercial displays with anti-theft design (require for a padlock)
Specification
• Material: Steel
• Surface Finish: powder coating
• Suggested Screen Size: 45"-70"
• Installation: solid wall
• Rated load: 70 kg
• VESA: 200x200,400x200,300x300,400x400,600x400
• Tilt: -5 ° ~ + 3 °
• Level adjustment: +/- 3 °
• Profile: 76 mm
• Bubble level: No
• Anti-theft: yes
• Cable management: No
Pacakge contents
• 45"-70" Wall Bracket for LED TV LCD for VideoWall application
• Hardware for installation and user's manual

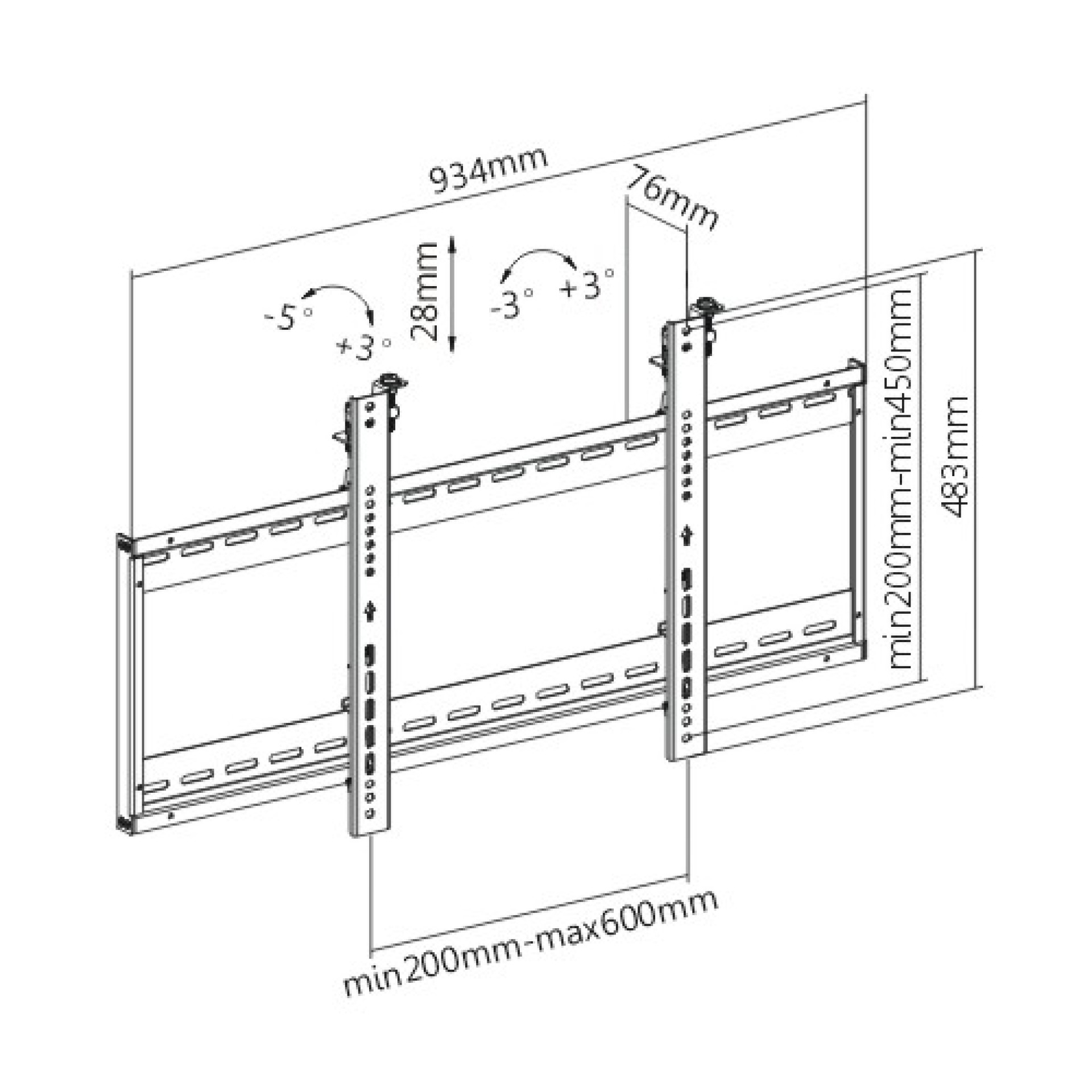

Tekniske egenskaber
| Colour: | black |
|---|---|
| Depth: | 76.0 mm |
| Height: | 483.0 mm |
| Lifting capacity: | 70.0 kg |
| Mounting method: | Wall |
| Suitable for: | Television set |
| Width: | 934.0 mm |
