Wall support for LCD TV LED 13" - 30"
Wall support for LCD TV LED 13" - 30" full motion White
Varenummer:
ICA-LCD-201WH
EAN Nr.:
8054529023868
Produktinformation til Wall support for LCD TV LED 13" - 30" full motion White
• Universal bracket for fixing a LED / LCD TV on the wall; easy and quick to install, it is ideal for home, office and commercial applications
Features
• Bracket suitable for LCD LED 13"-30"
• Supports VESA 75x75 mm and 100x100 mm
• Maximum weight supported: 23 kg
Specifications

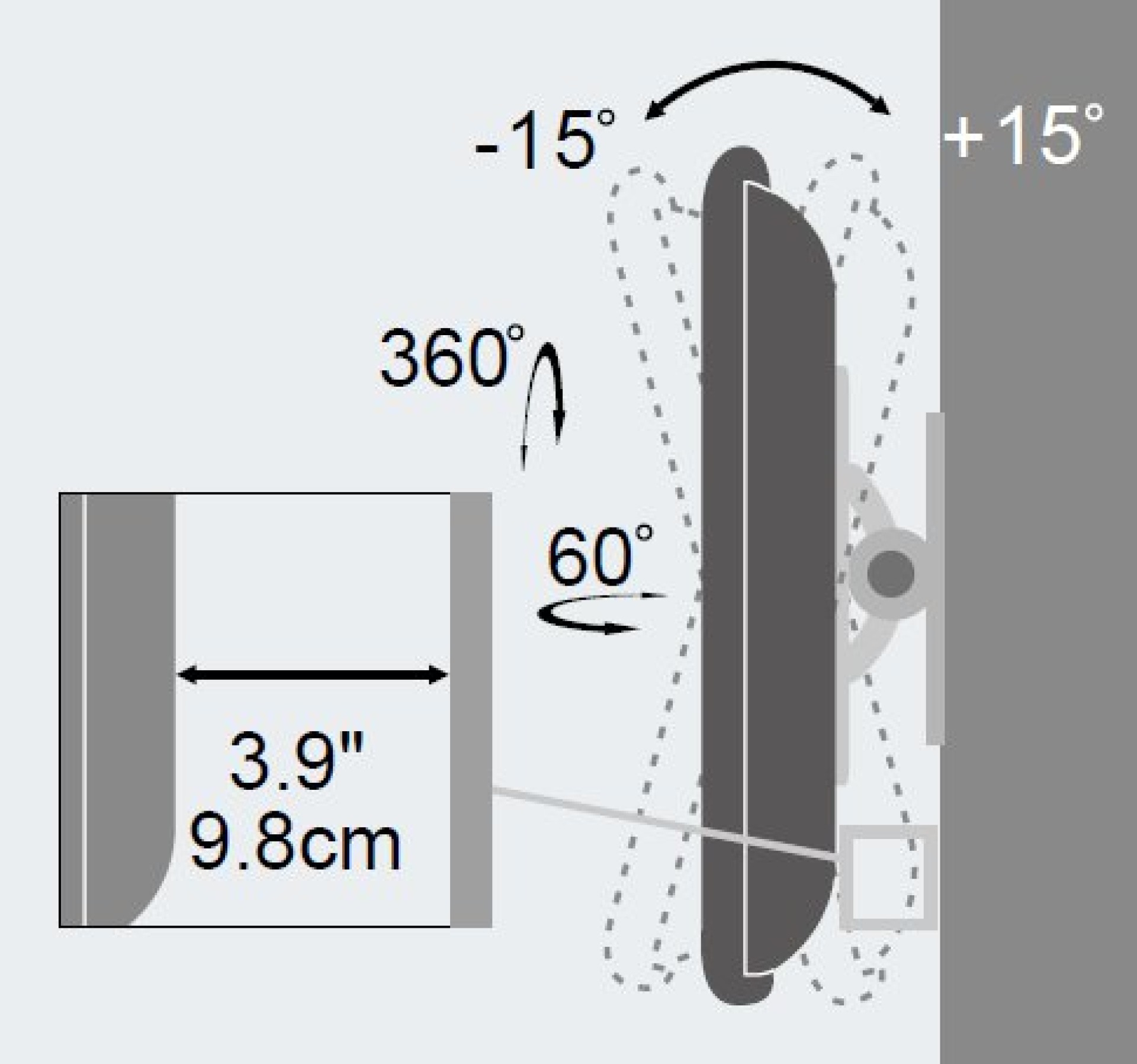

• Tilt +/- 15°
• Horizontal direction: 60°
• 360° TV rotatable
• Distance from wall: 98 mm

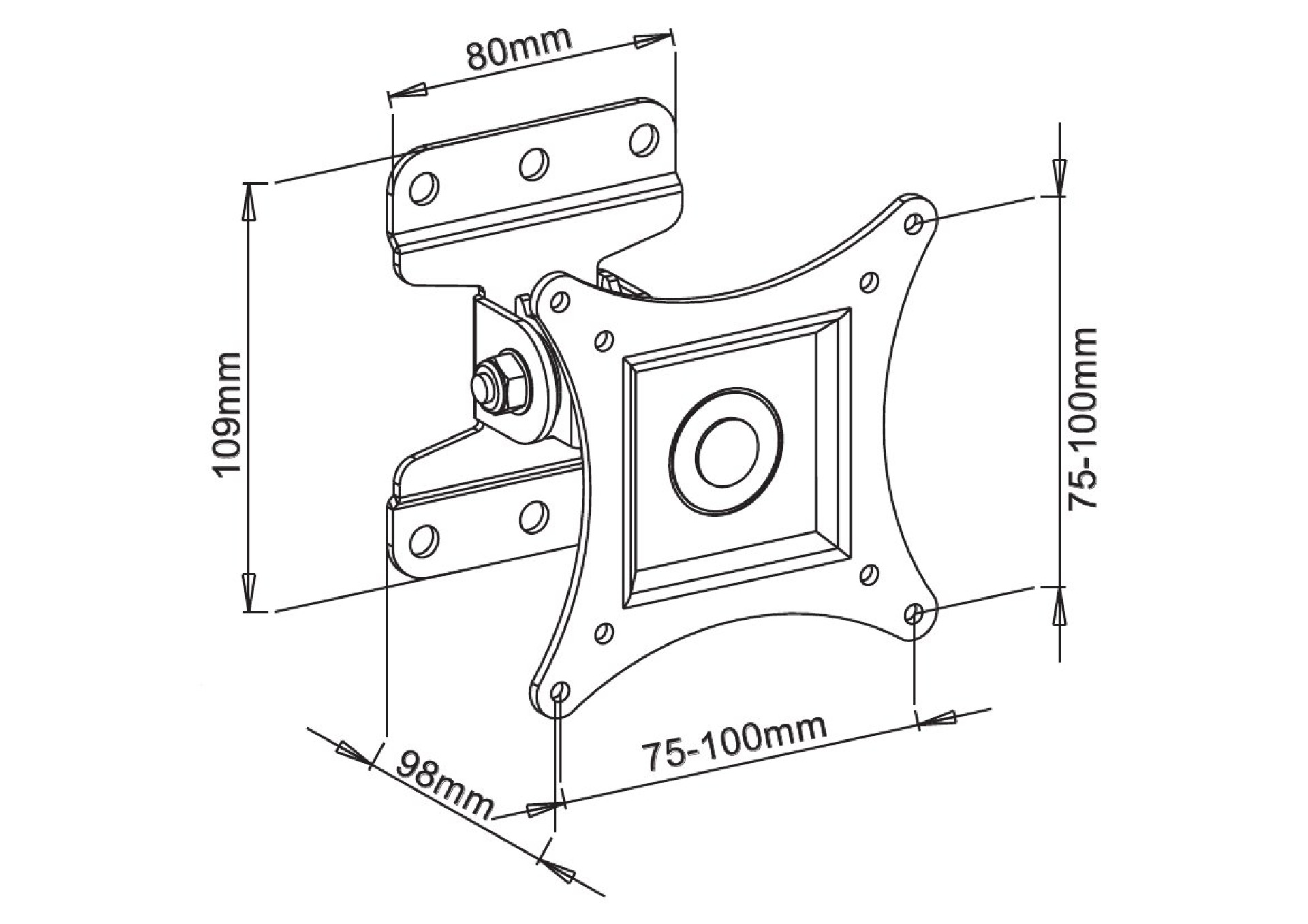

• Dimensions: 80 x 109 x 98 mm
• Weight: 0.9 kg
• Color: White
Package Contents
• Wall support for LCD LED
• Mounting accessories (screws, plugs ...) and installation instructions
Features
• Bracket suitable for LCD LED 13"-30"
• Supports VESA 75x75 mm and 100x100 mm
• Maximum weight supported: 23 kg
Specifications
• Tilt +/- 15°
• Horizontal direction: 60°
• 360° TV rotatable
• Distance from wall: 98 mm
• Dimensions: 80 x 109 x 98 mm
• Weight: 0.9 kg
• Color: White
Package Contents
• Wall support for LCD LED
• Mounting accessories (screws, plugs ...) and installation instructions
Tekniske egenskaber
| Color: | white |
|---|---|
| Lifting capacity: | 23.0 kg |
| Mounting method: | Wall |
| Number of joints: | 1 |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
