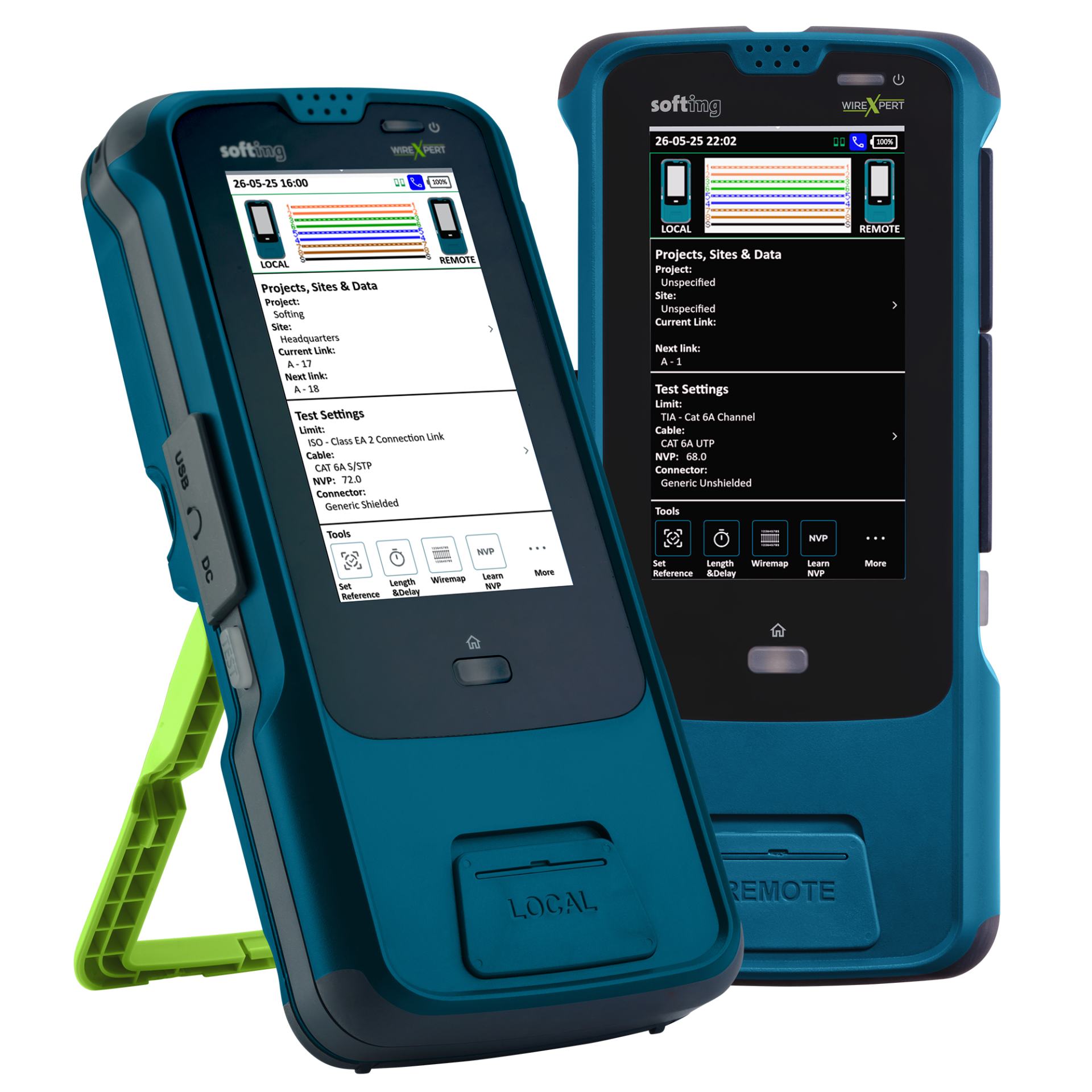

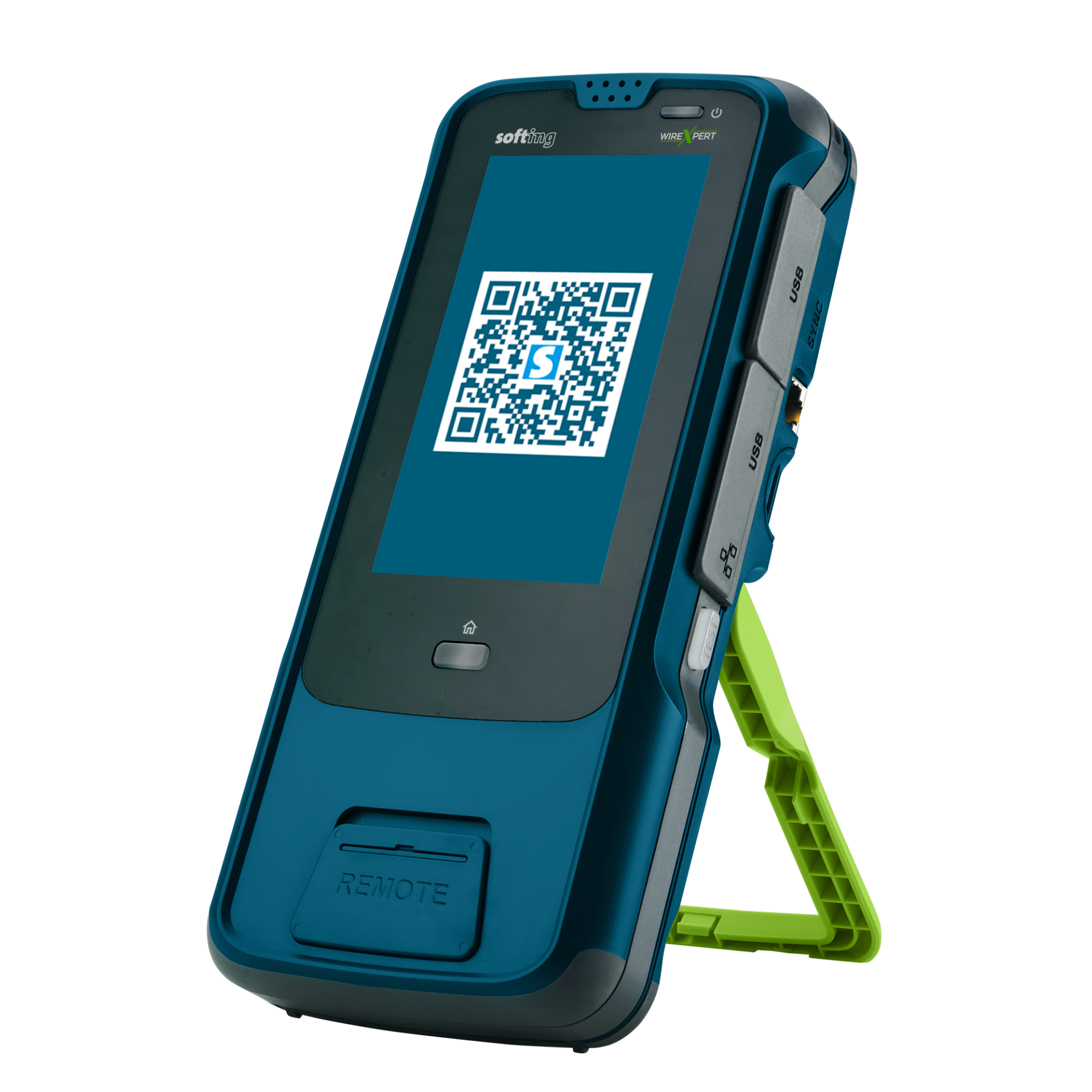

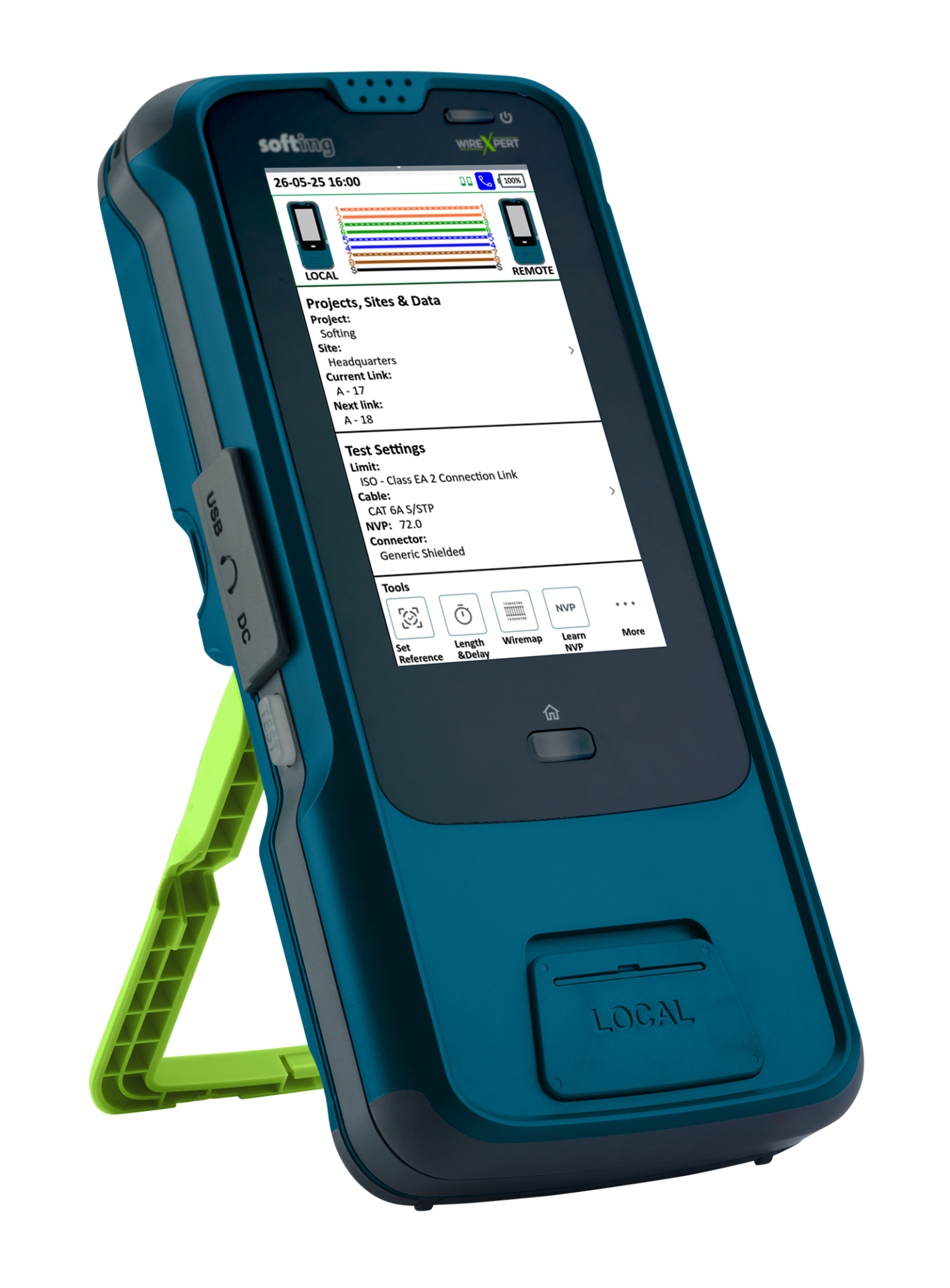

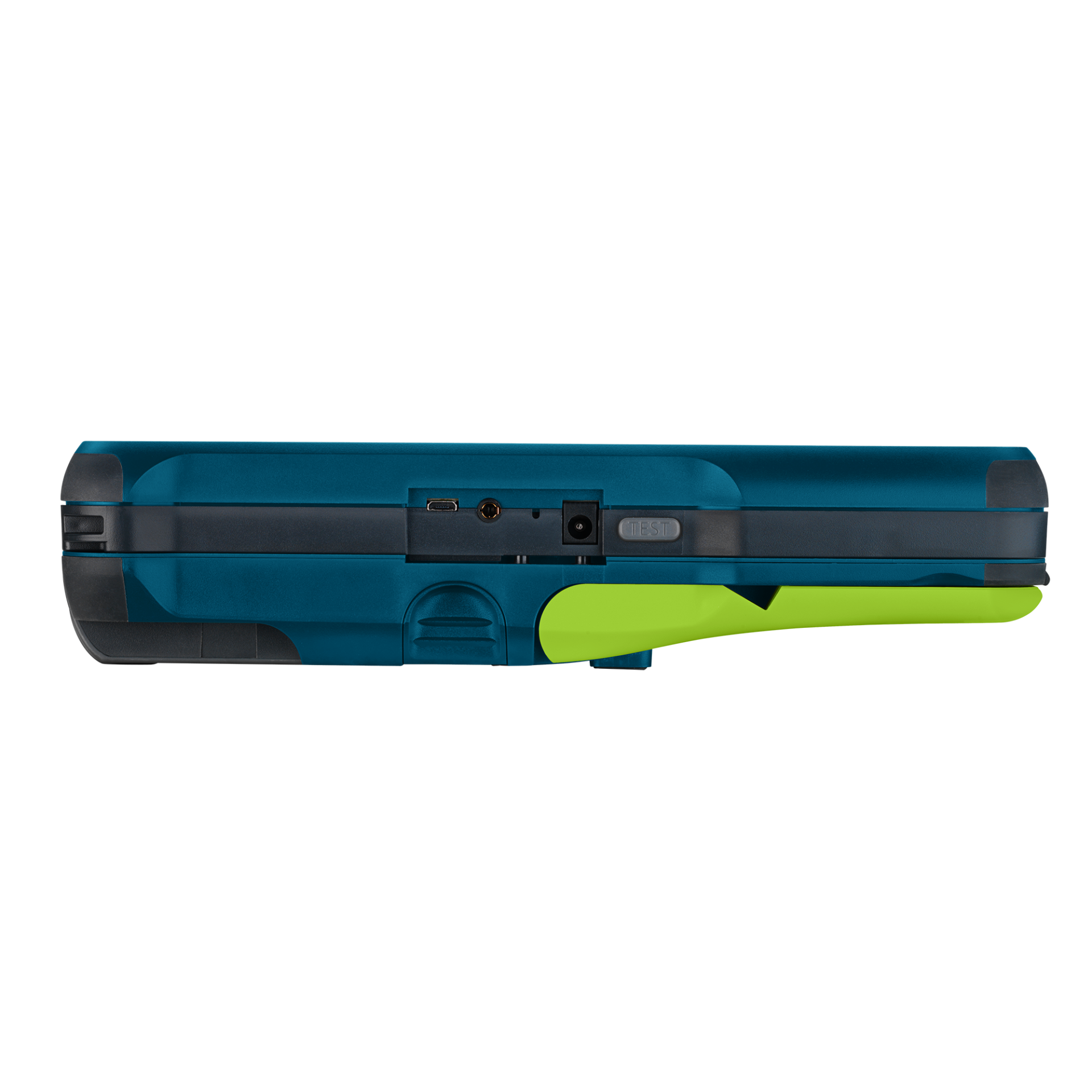

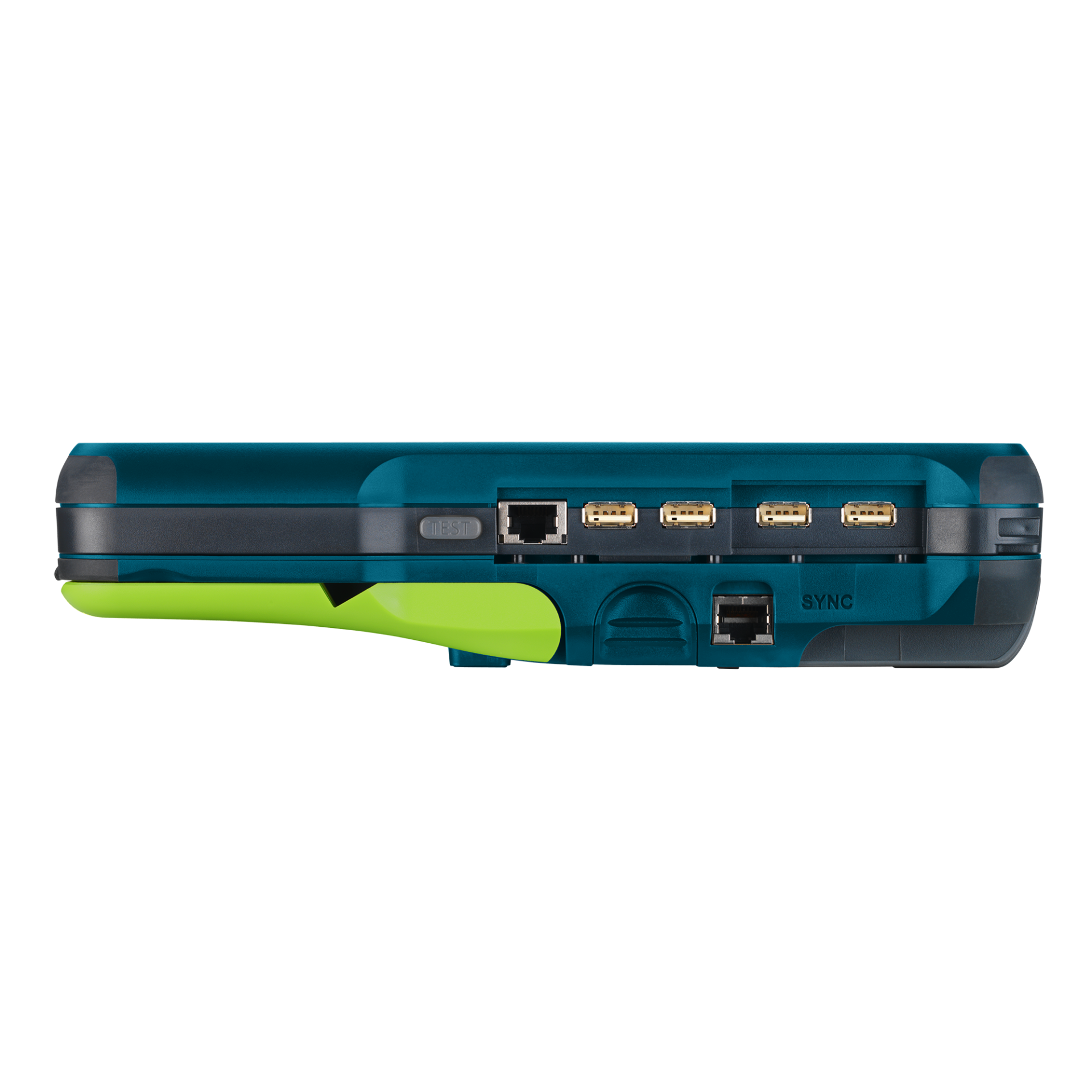

WireXpert MP C6A FM LAN copper cable-Z. 600Mhz
WireXpert MP C6A FM LAN copper cable-Z. 600Mhz, incl. FO MM modules
Varenummer:
WX-MPC6A-FM
EAN-nr.:
0046382255867
Produktinformation til WireXpert MP C6A FM LAN copper cable-Z. 600Mhz, incl. FO MM modules
Modular Entry-Level Certification for Copper
The WireXpert MP meets the diverse certification requirements of network environments ranging from small offices and mid-sized companies to large data centers. Its modular design covers all applications of copper (100 kHz to 600 MHz) and fiber[1] certification (Tier 1, multimode and singlemode).
FEATURES
• WireXpert MP mainframe with copper modules up to 600 MHz (fully upgradeable to 3000 MHz for existing and new applications, e.g., Cat 8)
• With a frequency range of 100 kHz to 600 MHz, the C6A is not only a Cat 6A and Cat 7 tester, but also supports single pair cabling
• Includes DCRU and TCL measurement as well as MPTL[1] and EzE test modes
• Supplied with replaceable and cost-effective LongLife test cables
• A wide range of connectors and test cables is available for industrial applications

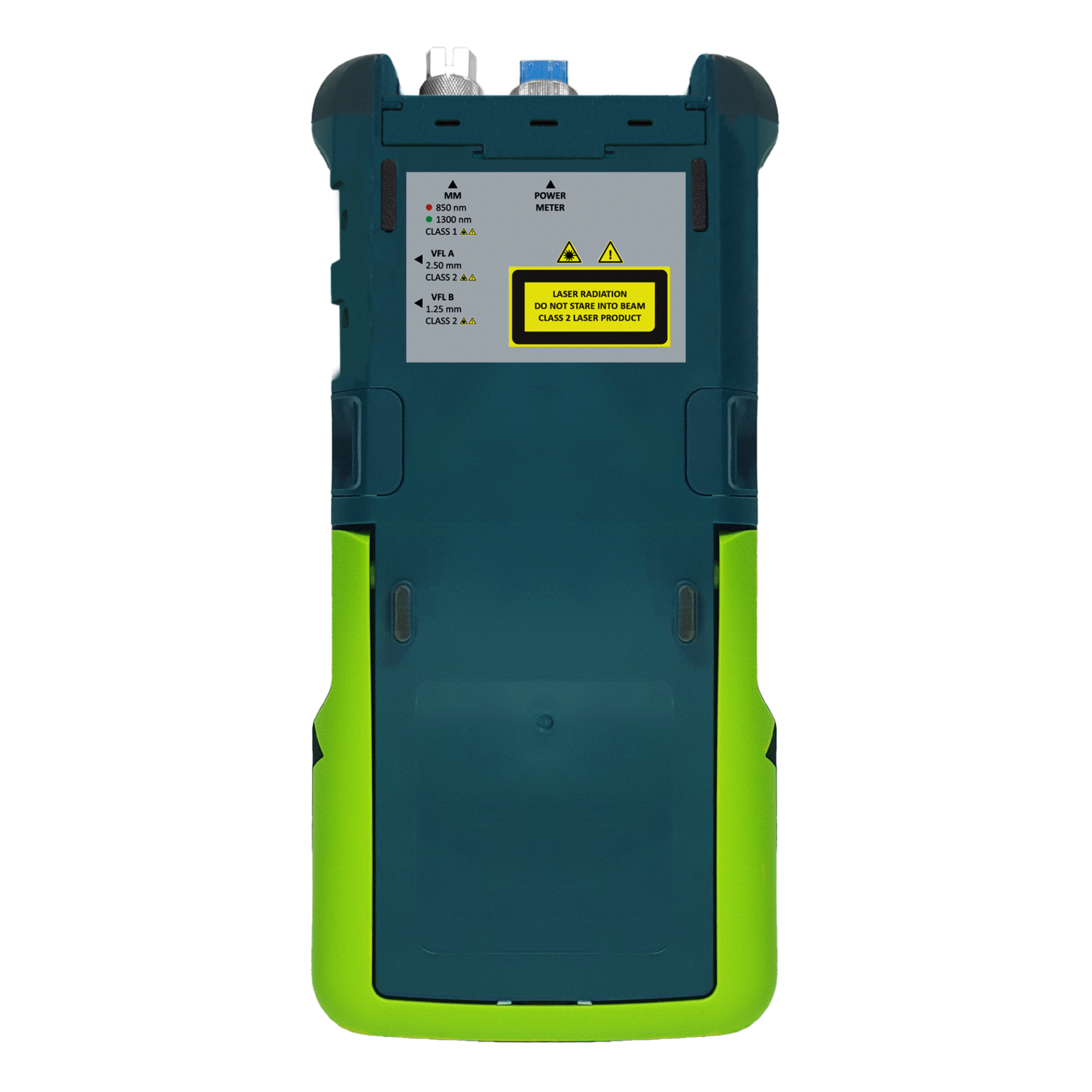

• With multimode fiber optic modules (850/1300 nm)
• Broadband power meter from 800 to 1650 nm
• Interchangeable adapters included for most common connector interfaces (LC, SC, FC)
• Two integrated red light sources with 1.25 and 2.5 mm ferrules - no adapter is required
• User guidance for fiber testing
Scope of delivery:
2 Mainframe Units
2 C6A Copper Test Modules
2 Cat 6A Channel Test Adapters
2 Cat 6A Permanent Link Test Adapters
2 LONGLIFE Permanent Link Cables
2 Chargers
2 Headsets
1 Quick Reference Guide
1 Set of Calibration and Conformance Certificates
1 DCRU Calibration Artifact
1 Tri-Mode Soft Case
2 multimode fiber optic test modules
2 SC interchangeable adapters for RX (In)
2 LC interchangeable adapters for RX (In)
2 SC interchangeable adapters for TX (Out)
2 LC interchangeable adapters for TX (Out)
Please note:
Fiber optic cable sets and accessories are excluded.
Please order test reference cables separately.
The WireXpert MP meets the diverse certification requirements of network environments ranging from small offices and mid-sized companies to large data centers. Its modular design covers all applications of copper (100 kHz to 600 MHz) and fiber[1] certification (Tier 1, multimode and singlemode).
FEATURES
• WireXpert MP mainframe with copper modules up to 600 MHz (fully upgradeable to 3000 MHz for existing and new applications, e.g., Cat 8)
• With a frequency range of 100 kHz to 600 MHz, the C6A is not only a Cat 6A and Cat 7 tester, but also supports single pair cabling
• Includes DCRU and TCL measurement as well as MPTL[1] and EzE test modes
• Supplied with replaceable and cost-effective LongLife test cables
• A wide range of connectors and test cables is available for industrial applications
• With multimode fiber optic modules (850/1300 nm)
• Broadband power meter from 800 to 1650 nm
• Interchangeable adapters included for most common connector interfaces (LC, SC, FC)
• Two integrated red light sources with 1.25 and 2.5 mm ferrules - no adapter is required
• User guidance for fiber testing
Scope of delivery:
2 Mainframe Units
2 C6A Copper Test Modules
2 Cat 6A Channel Test Adapters
2 Cat 6A Permanent Link Test Adapters
2 LONGLIFE Permanent Link Cables
2 Chargers
2 Headsets
1 Quick Reference Guide
1 Set of Calibration and Conformance Certificates
1 DCRU Calibration Artifact
1 Tri-Mode Soft Case
2 multimode fiber optic test modules
2 SC interchangeable adapters for RX (In)
2 LC interchangeable adapters for RX (In)
2 SC interchangeable adapters for TX (Out)
2 LC interchangeable adapters for TX (Out)
Please note:
Fiber optic cable sets and accessories are excluded.
Please order test reference cables separately.
Tekniske egenskaber
| Current supply: | 3 A power supply |
|---|---|
| Current supply: | AC 100-240 V to 12 V |
| Dimensions: | 261 x 120 x 55 mm |
| Measured value memory: | True |
| Net weight: | 1100 g |
| Operating Temperature: | 0 – 40 °C |
| Storage Temperature: | -20 – 60 °C |
| Type of indication: | LCD |
| With PC/printer interface: | True |
