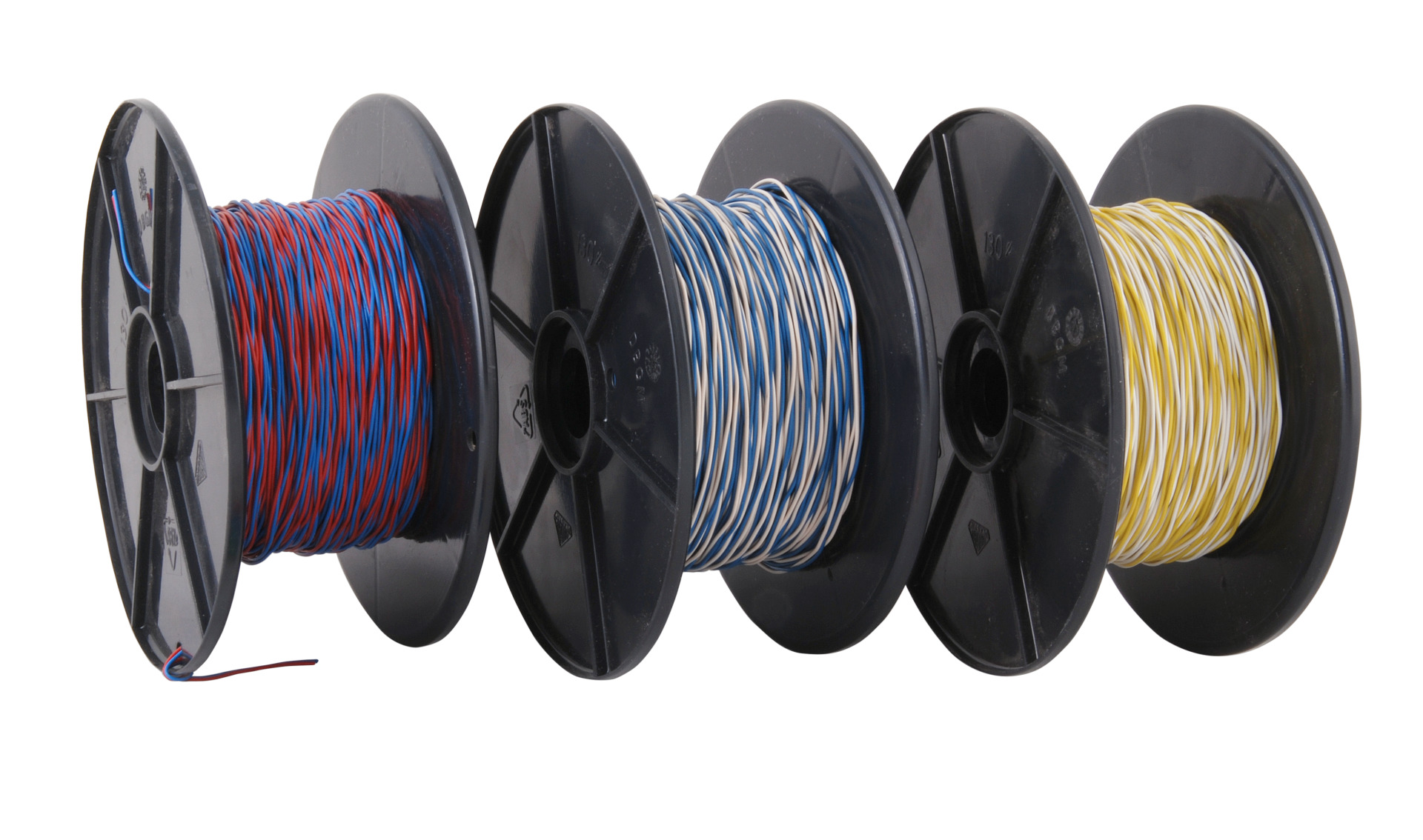

Connection Wire YV, Core Ø 2 x 0.5 / 0.9 mm
YV 2 x 0.5/0.9 white-brown, Ring 100 m
Varenummer:
46090.100
EAN Nr.:
4049759066994
Produktinformationen für YV 2 x 0.5/0.9 white-brown, Ring 100 m
Other types on request
Technische Eigenschaften
| Armouring: | False |
|---|---|
| Circuit integrity: | False |
| Conductor category: | Class 1 = solid |
| Core identification: | Colour |
| Core insulation: | PVC |
| Diameter conductor: | 0.5 mm |
| Flame-retardant: | according to EN 60332-1-2 |
| Halogen free (acc. EN 50267-2-2): | False |
| Jacket material: | - |
| Longitudinal water blocking: | False |
| Low smoke (acc. EN 61034-2): | False |
| Number of stranding elements: | 2 |
| Operating temperature, fix: | 70 – °C |
| Operating temperature, flexible: | 70 – °C |
| Outdoor use permitted: | False |
| Protective sheath: | False |
| Radial water blocking: | False |
| Screen over stranding: | None |
| Screen over stranding element: | None |
| Stranding: | - |
| Stranding element: | Pairs |
Varianten
| Art. Nr. | Bezeichnung | Number of cores | Colour outer sheath | Outer diameter approx. | |
|---|---|---|---|---|---|
| 46090.100 | YV 2 x 0.5/0.9 white-brown, Ring 100 m | 2 | white/brown | 0.9 mm | |
| 46091.100 | YV 2 x 0.5/0.9 red-blue, Ring 100 m | 2 | red/blue | 0.9 mm | |
| 46092.100 | YV 2 x 0.5/0.9 white-green, Ring 100 m | 2 | white/green | 0.9 mm | |
| 46093.100 | YV 2 x 0.5/0.9 white-yellow, Ring 100 m | 2 | white/yellow | 0.9 mm | |
| 46094.100 | YV 2 x 0.5/0.9 white-blue, Ring 100 m | 2 | white/blue | 0.9 mm | |
| 46095.100 | YV 2 x 0.5/0.9 white-red, Ring 100 m | 2 | white/red | 0.9 mm | |
| 46096.100 | YV 2 x 0.5/0.9 white-black, Ring 100 m | 2 | white/black | 0.9 mm | |
| 46097.100 | YV 2 x 0.5/0.9 white-pink, Ring 100 m | 2 | white/pink | 0.9 mm | |
| 46098.100 | YV 2 x 0.5/0.9 red-black, Ring 100 m | 2 | red/black | 0.9 mm | |
| 46088.100 | YV 2 x 0.5/0.9 red-green, Ring 100 m | 2 | red/green | 0.9 mm |
