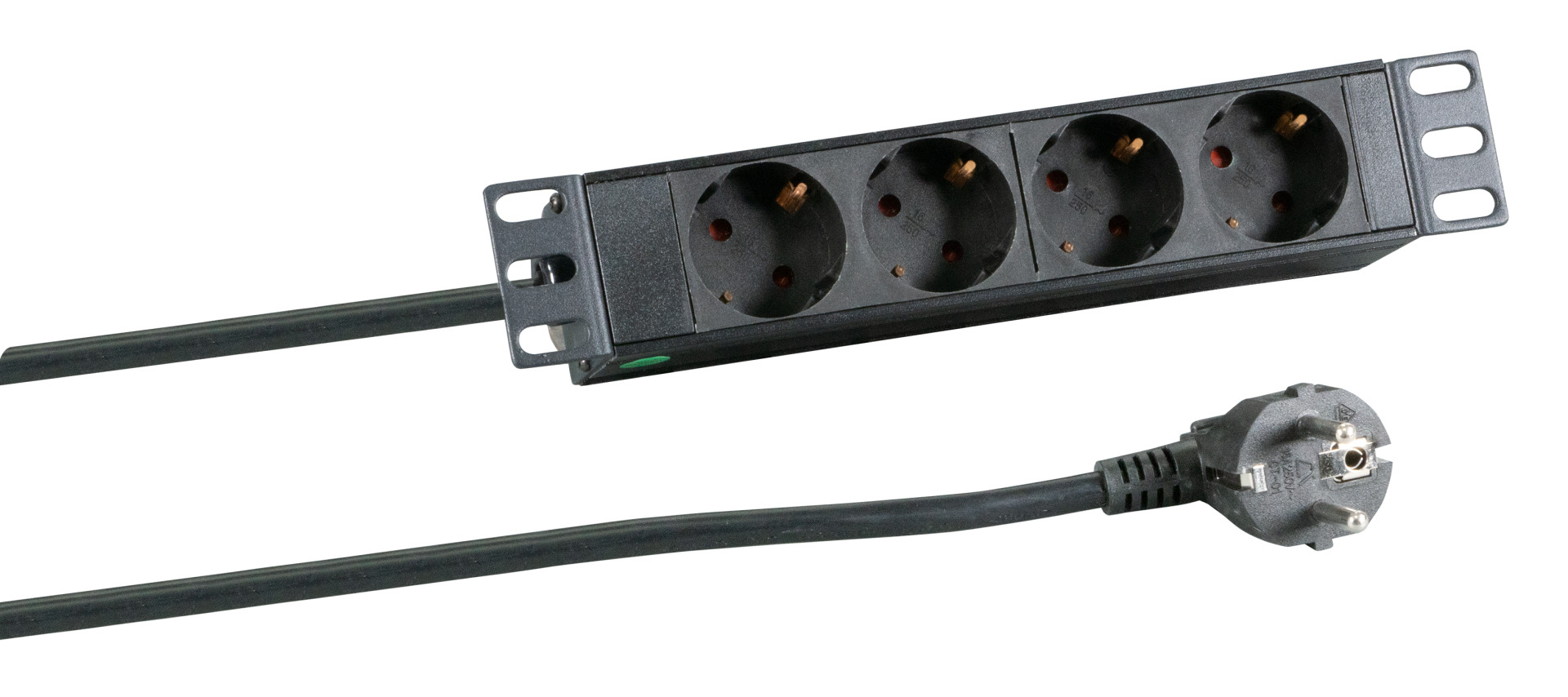

10“ 1U Socket Strip 4 x CEE 7/3 without Switch
10“ 1U Socket Strip 4 x CEE 7/3 w/o Switch, in Alu Profile, Black
Varenummer:
EK631DE.10
EAN Nr.:
4049759203931
Produktinformation til 10“ 1U Socket Strip 4 x CEE 7/3 w/o Switch, in Alu Profile, Black
10" 1U Socket Strip in Aluminium profile
Outlets 4 x CEE7/3
Outlets turned 45°
With increased personal protection against electric shock
Cable 2.0 m black, H03VV-F 3G 1.5 mm² 250 V / 16 A with angled CEE7/7 plug
Certifications CE, RoHS
Outlets 4 x CEE7/3
Outlets turned 45°
With increased personal protection against electric shock
Cable 2.0 m black, H03VV-F 3G 1.5 mm² 250 V / 16 A with angled CEE7/7 plug
Certifications CE, RoHS
Tekniske egenskaber
| Angle rotated central insert: | 45 ° |
|---|---|
| Core cross section: | 1.50 mm² |
| Degree of protection: | IP20 |
| Halogen free: | No |
| Housing shape: | Rectangular |
| Length of power cord: | 2.0 m |
| Mains filter: | False |
| Material: | Metal |
| Material quality: | Aluminium |
| Nominal current: | 16 A |
| Over voltage protection: | False |
| Residual current circuit breaker (RCCB): | False |
| Rotated central insert: | True |
| Surface finishing: | matt |
| Surface treatment: | Anodised |
| Transparent: | False |
| With cover lid: | False |
Varianten
| Art. Nr. | Bezeichnung | With on/off switch | Color | Anti-bacterial treatment | Number of socket outlets with protective contact (CEE7/3) | RAL-number (similar) | |
|---|---|---|---|---|---|---|---|
| EK631DE.10 | 10“ 1U Socket Strip 4 x CEE 7/3 w/o Switch, in Alu Profile, Black | False | black | False | 4 | 9005 | |

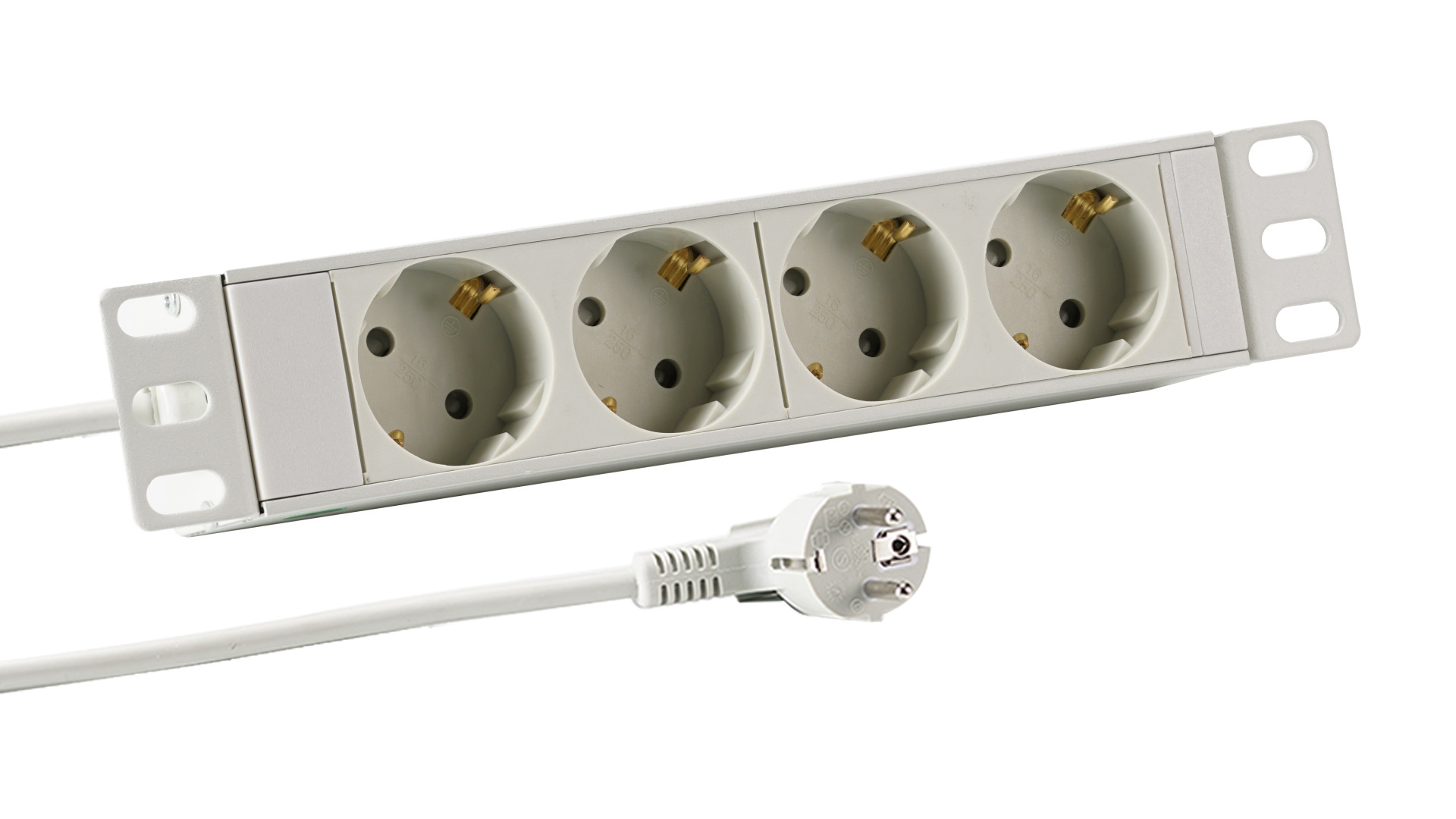

| EK631DE.10GR | 10“ 1U Socket Strip 4 x CEE 7/3 without Switch | False | grey | False | 4 | 7035 |
Sikkerhedsanvisninger
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
