Conduit Flexible Halogen free 320N

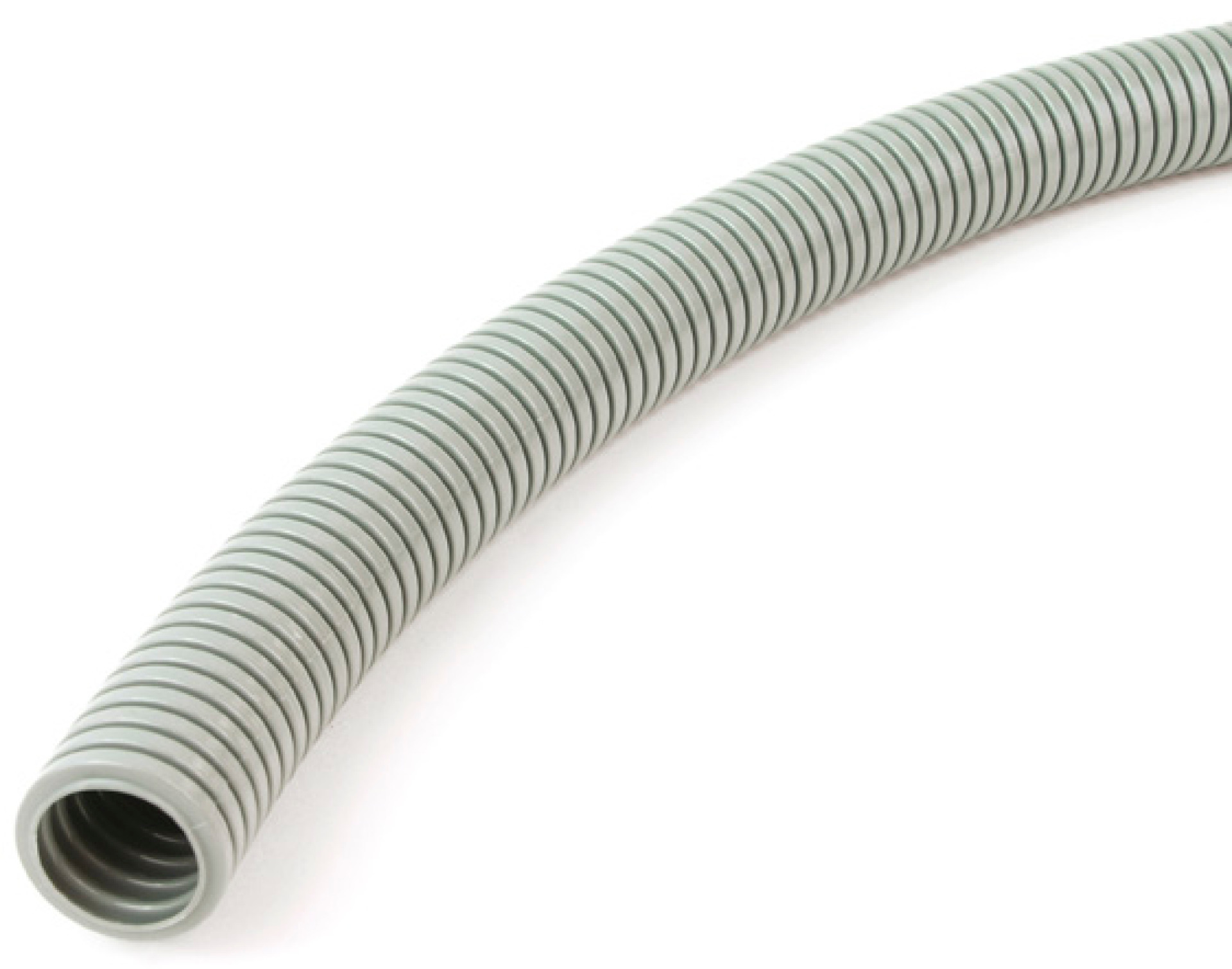

16mm Conduit Flexible LSZH 320N grey
Varenummer:
HFX16 HG
Produktinformation til 16mm Conduit Flexible LSZH 320N grey
HFX FLexible Conduit light gauge
Corruguated
Delivered in Light Grey or White
Coils of 50 mtr for 16-25mm conduit
Coils of 25 mtr for 32-63mm conduits
In accordance with IEC/EN 61386-22, IEC60423, LSFoH Low smoke - zero Halogen
320N
Corruguated
Delivered in Light Grey or White
Coils of 50 mtr for 16-25mm conduit
Coils of 25 mtr for 32-63mm conduits
In accordance with IEC/EN 61386-22, IEC60423, LSFoH Low smoke - zero Halogen
320N
Varianten
| Art. Nr. | Bezeichnung | Impact strength | Material | Outer Diameter | Colour | (Halogenfree) | Inner diameter | |
|---|---|---|---|---|---|---|---|---|
| HFX16 HG | 16mm Conduit Flexible LSZH 320N grey | 320 Newton | PP Blend | 16 mm | Grey | True | 11.4 mm | |
| HFX20 HG | 20mm Conduit Flexible LSZH 320N grey | 320 Newton | PP Blend | 20 mm | Grey | True | 13.5 mm | |
| HFX25 HG | 25mm Conduit Flexible LSZH 320N grey | 320 Newton | PP Blend | 25 mm | Grey | True | 17.5 mm | |
| HFX40 HG | 40mm Conduit Flexible LSZH 320N grey | 320 Newton | PP Blend | 40 mm | Grey | True | 30 mm | |
| HFX50 HG | 50mm Conduit Flexible LSZH 320N grey | 320 Newton | PP Blend | 50 mm | Grey | True | 38.5 mm | |
| HFX63 HG | 63mm Conduit Flexible LSZH 320N grey | 320 Newton | PP Blend | 63 mm | Grey | True | 54.1 mm | |

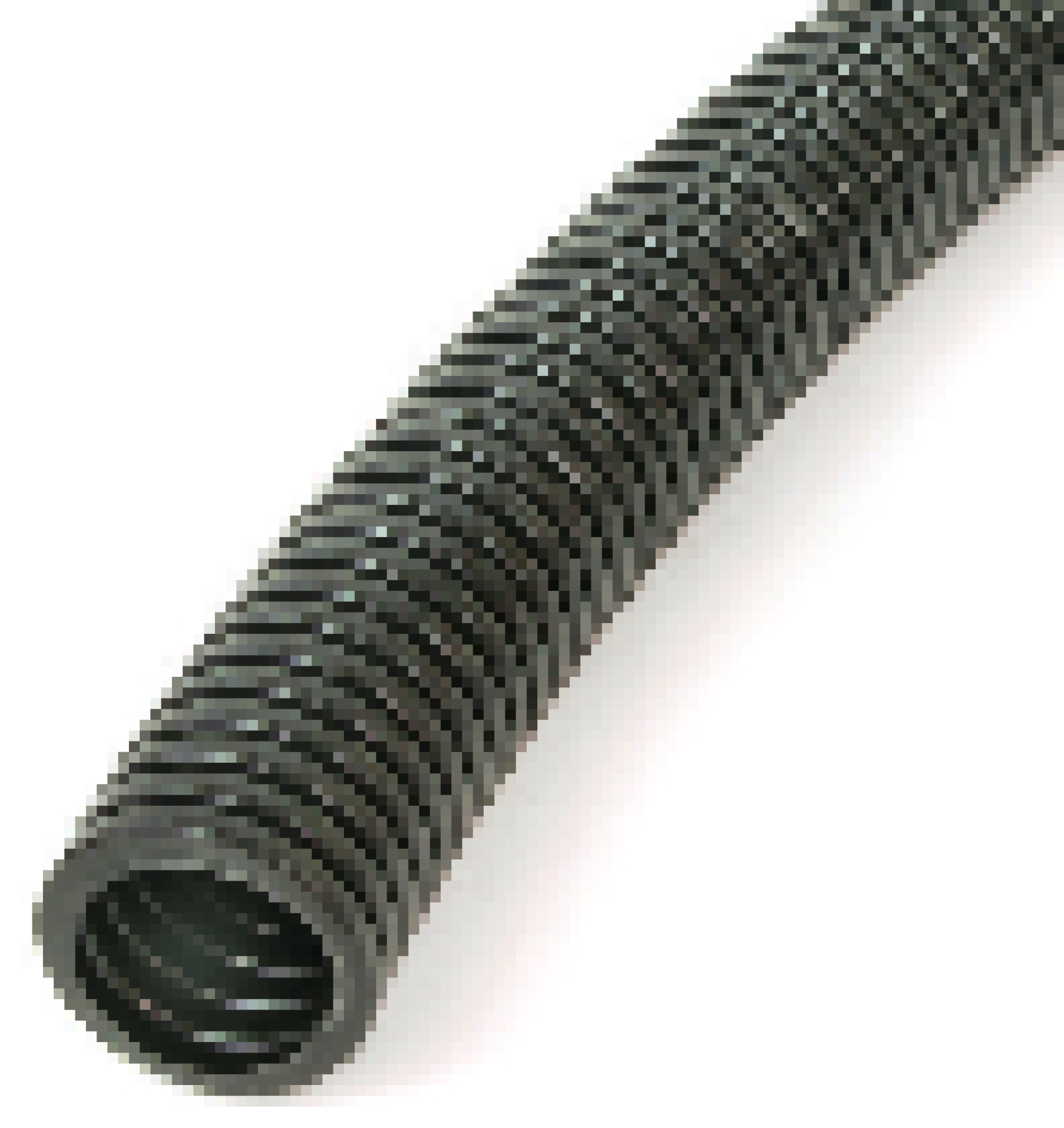

| HFXS16 SW | 16mm protective hose, black, LSF0H | 320 Newton | PP Blend | 16 mm | Black | True | 11.5 mm | |
| HFXS20 SW | 20mm protective hose, black, LSF0H | 320 Newton | PP Blend | 20 mm | Black | True | 13.5 mm | |
| HFXS25 SW | 25mm protective hose, black, LSF0H | 320 Newton | PP Blend | 25 mm | Black | True | 17.5 mm | |
| HFXS40 SW | 40mm protective hose, black, LSF0H | 320 Newton | PP Blend | 40 mm | Black | True | 30 mm |
