Rigid Electric pipe halogen-free 750N with sleeve

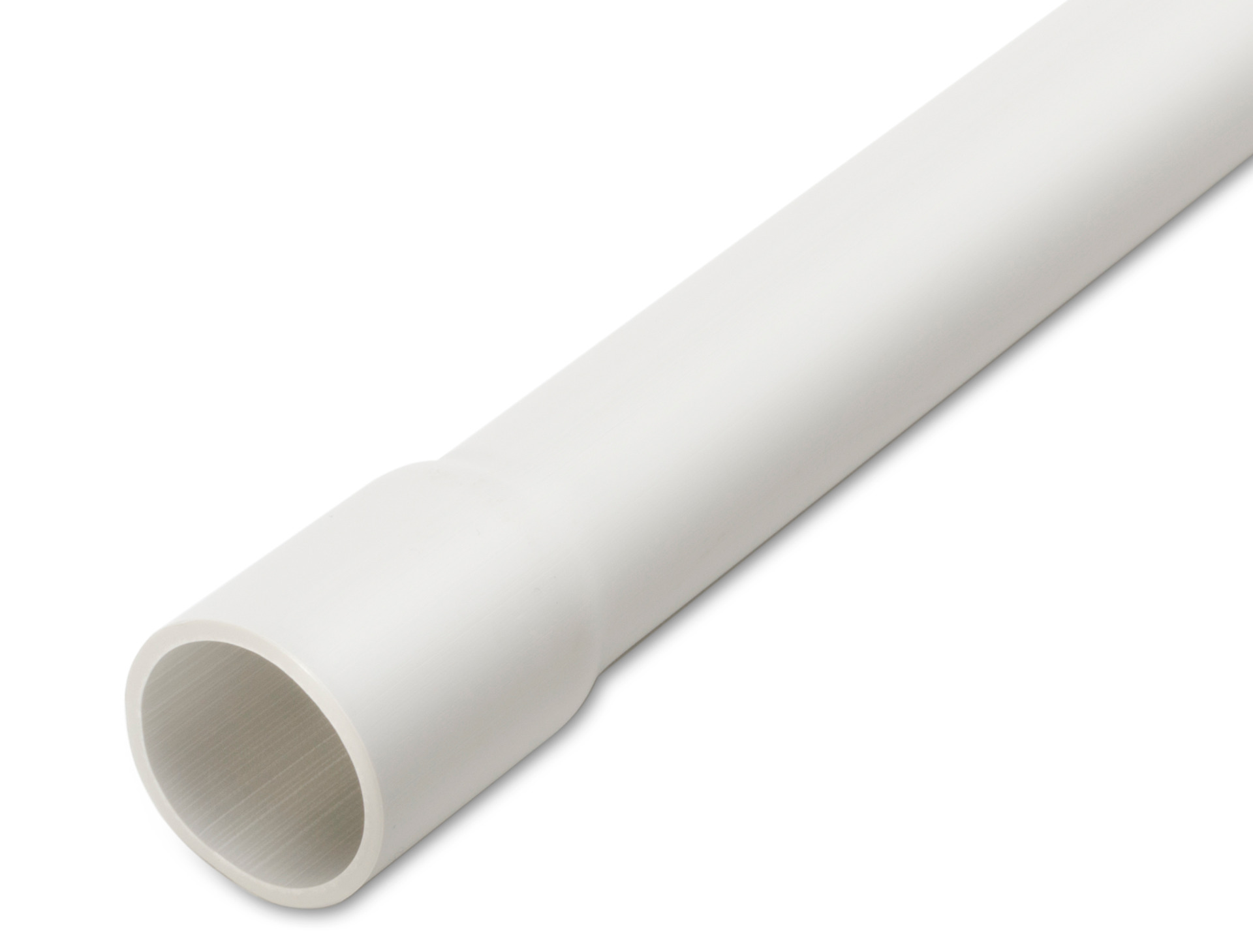

16mm Rigid Electric pipe halogen-free 750N with sleeve lightgrey
Varenummer:
HFPRM16 HG
Produktinformation til 16mm Rigid Electric pipe halogen-free 750N with sleeve lightgrey
HFPRM-Turbo rigid conduit medium gauge, with molded-on coupler and sectional corrugation.
The "TURBO" effect is an Registrated innovation of Dietzel Univolt which reduce the friction properties when pulling the wire/cables into the conduit
Light grey (RAL7035) or black (RAL9005)
UV stabilized
Standard lenght 3 meter
In accordance with IEC/EN 61386-21, IEC60423, LSFoH
Mechanical strenght = 750 N
The "TURBO" effect is an Registrated innovation of Dietzel Univolt which reduce the friction properties when pulling the wire/cables into the conduit
Light grey (RAL7035) or black (RAL9005)
UV stabilized
Standard lenght 3 meter
In accordance with IEC/EN 61386-21, IEC60423, LSFoH
Mechanical strenght = 750 N
Varianten
| Art. Nr. | Bezeichnung | Fire retardant version | Material | Outdoor installation | Colour | (Halogenfree) | Inner diameter | Outer Diameter | |
|---|---|---|---|---|---|---|---|---|---|
| HFPRM16 HG | 16mm Rigid Electric pipe halogen-free 750N with sleeve lightgrey | True | PP Blend | False | Grey | True | 11 mm | 16 mm | |
| HFPRM16 SW | 16mm Rigid Electric pipe halogen-free 750N with sleeve black | True | PP Blend | True | Black | True | 11 mm | 16 mm | |
| HFPRM20 HG | 20mm Rigid Electric pipe halogen-free 750N with sleeve lightgrey | True | PP Blend | False | Grey | True | 15 mm | 20 mm | |
| HFPRM20 SW | 20mm Rigid Electric pipe halogen-free 750N with sleeve black | True | PP Blend | True | Black | True | 15 mm | 20 mm | |
| HFPRM25 HG | 25mm Rigid Electric pipe halogen-free 750N with sleeve lightgrey | True | PP Blend | False | Grey | True | 20 mm | 25 mm | |
| HFPRM25 SW | 25mm Rigid Electric pipe halogen-free 750N with sleeve black | True | PP Blend | True | Black | True | 20 mm | 25 mm | |
| HFPRM32 HG | 32mm Rigid Electric pipe halogen-free 750N with sleeve lightgrey | True | PP Blend | False | Grey | True | 27 mm | 32 mm | |
| HFPRM32 SW | 32mm Rigid Electric pipe halogen-free 750N with sleeve black | True | PP Blend | True | Black | True | 27 mm | 32 mm | |
| HFPRM63 SW | 63mm Rigid Electric pipe halogen-free 750N with sleeve black | True | PP Blend | True | Black | True | 55 mm | 63 mm |
