19" 0.5U Shelves, Fixed, Max. Load 70 kg

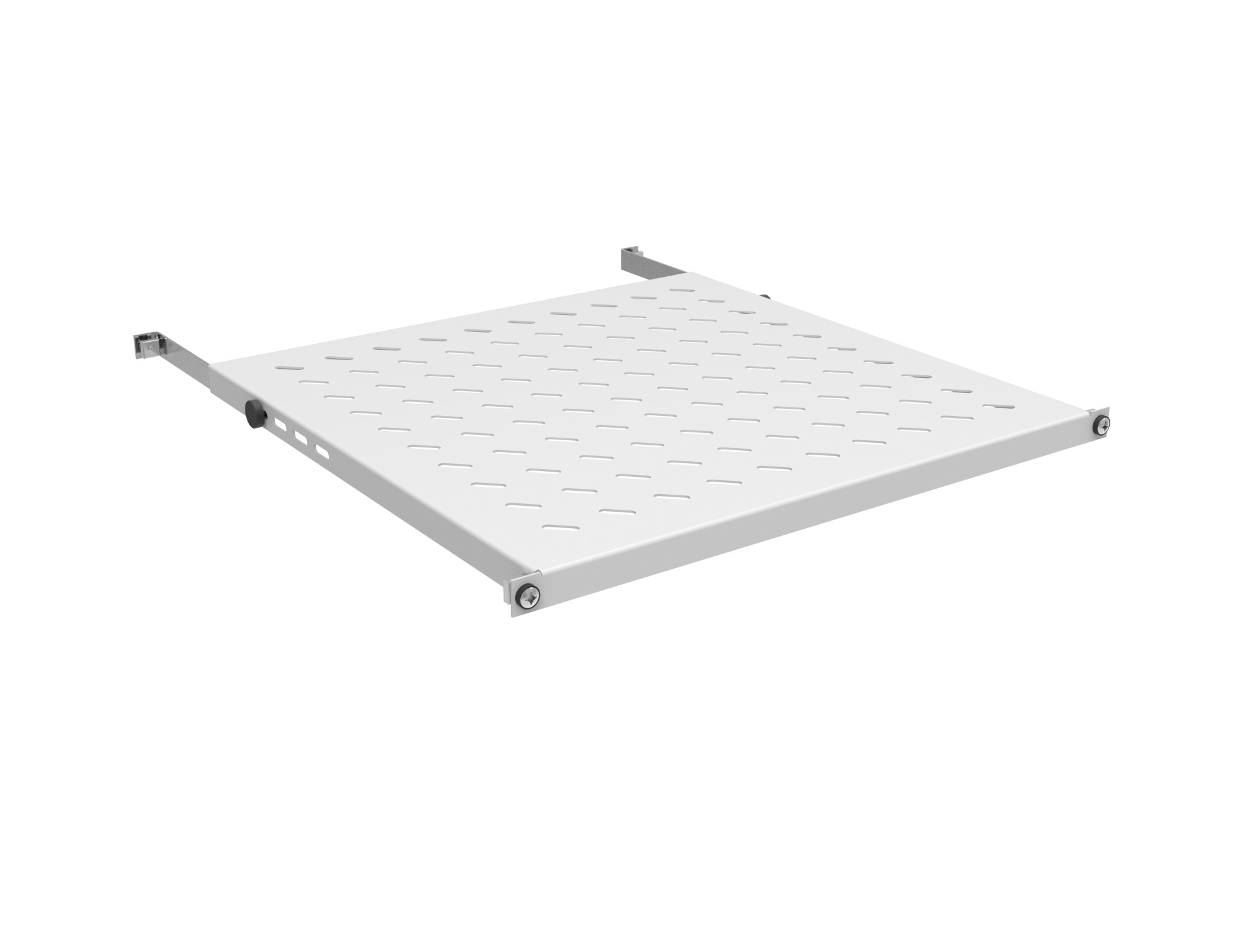

19" 0.5U Shelf, Fixed, MD 350..450 mm, Max. Load 70 kg, CD 600, RAL7035
Varenummer: 691641FGR.6
EAN-nr.: 4049759252397
Forudbestil det ønskede antal nu, eller få besked, når det er tilgængeligt:
Piece

Giv mig besked, når produktet er på lager igen.

Produktinformation til 19" 0.5U Shelf, Fixed, MD 350..450 mm, Max. Load 70 kg, CD 600, RAL7035

For use in all 19" network and server cabinets

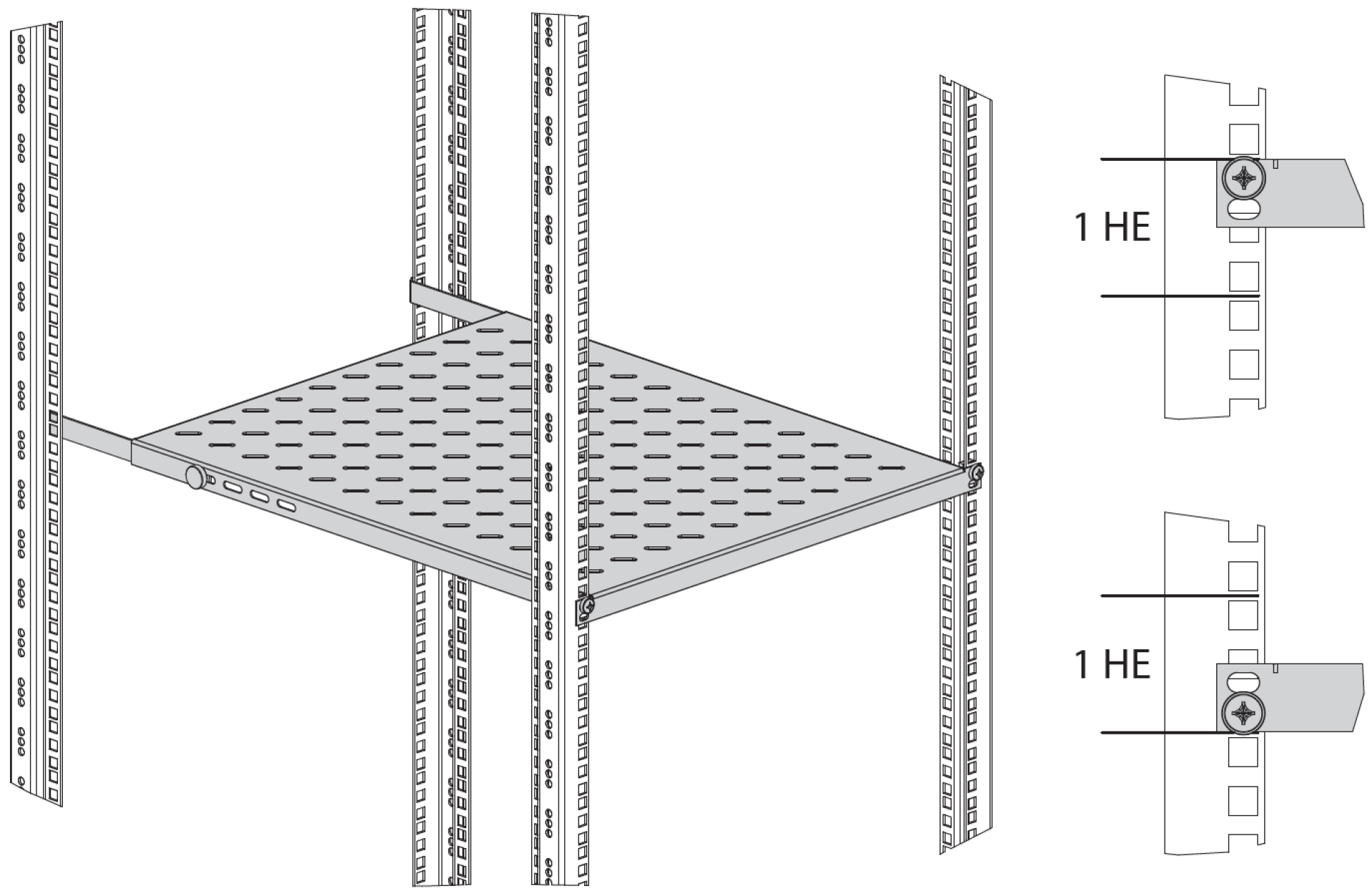

Fixing at the front and rear-sided 19" profiles necessary
Mounting depth rear-sided adjustable (+0 .. 100 mm)
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x shelf incl. mounting accessories

Tekniske egenskaber

Material: Metal
Model: Shelf

Variants

ON Label Adjustment Max. Load Depth Color Width Height RAL-number Usable Width For Cabinet Depth Usable Depth
691641FGR.6 19" 0.5U Shelf, Fixed, MD 350..450 mm, Max. Load 70 kg, CD 600, RAL7035 350 – 450 mm 70 kg 350 mm grey 482.6 mm 22 mm 7035 450 mm 600 mm 350 mm
691641FGR.8 19" 0.5U Shelf, Fixed, MD 550..650 mm, Max. Load 70 kg, CD 800, RAL7035 550 – 650 mm 70 kg 550 mm grey 482.6 mm 22 mm 7035 450 mm 800 mm 550 mm
691641FGR.10 19" 0.5U Shelf, Fixed, MD 750..850 mm, Max. Load 70 kg, CD 1000, RAL7035 750 – 850 mm 70 kg 750 mm grey 482.6 mm 22 mm 7035 450 mm 1000 mm 750 mm
691641FGR.12 19" 0.5U Shelf, Fixed, MD 950..1050 mm, Max. Load 70 kg, CD 1200, RAL7035 950 – 1050 mm 70 kg 950 mm grey 482.6 mm 22 mm 7035 450 mm 1200 mm 950 mm
691641FTS.6 19" 0.5U Shelf, Fixed, MD 350..450 mm, Max. Load 70 kg, CD 600, RAL9005 350 – 450 mm 70 kg 350 mm black 482.6 mm 22 mm 9005 450 mm 600 mm 350 mm
691641FTS.8 19" 0.5U Shelf, Fixed, MD 550..650 mm, Max. Load 70 kg, CD 800, RAL9005 550 – 650 mm 70 kg 550 mm black 482.6 mm 22 mm 9005 450 mm 800 mm 550 mm
691641FTS.10 19" 0.5U Shelf, Fixed, MD 750..850 mm, Max. Load 70 kg, CD 1000, RAL9005 750 – 850 mm 70 kg 750 mm black 482.6 mm 22 mm 9005 450 mm 1000 mm 750 mm
691641FTS.12 19" 0.5U Shelf, Fixed, MD 950..1050 mm, Max. Load 70 kg, CD 1200, RAL9005 950 – 1050 mm 70 kg 950 mm black 482.6 mm 22 mm 9005 450 mm 1200 mm 950 mm

Sikkerhedsanvisninger


Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse. Important safety information to prevent accidents and damage during installation: Hazard: If the raised floor is used incorrectly, it may break. Action: Avoid walking on the raised floor unless the correct loads and load specifications are taken into account. Incorrect loading Hazard: Incorrect loading can lead to instability and damage. Action: Ensure that the load is even and prescribed according to the manufacturer's instructions. Enclosure falls due to weight being exceeded Hazard: Exceeding the maximum weight limit can destabilize the enclosure. Action: Check the maximum permissible load of the enclosure and ensure that this is not exceeded. Falling components due to inadequate fastening Hazard: Inadequately fastened components can fall and cause injury. Action: Ensure that all parts are properly and securely assembled. Housing parts breaking out due to incorrect loading Danger: Inadmissible loading leads to material damage and possible housing parts breaking out. Action: Ensure that the load is distributed correctly and that the recommended load is used. Risk of tipping due to uneven floor Danger: An uneven floor can cause the cabinet or device to tip over. Action: Make sure that the surface is level and stable to avoid the risk of tipping. Risk of tipping due to insufficient load-bearing capacity of the surface Danger: Insufficient load-bearing capacity of the surface can encourage the cabinet to tip over. Action: Check the load-bearing capacity of the surface before installation and ensure that it can safely support the weight. Cabinet can tip over if heavy server unit is pulled forward Danger: Pulling heavy server units forward can cause the cabinet to tip over. Action: Always secure cabinets and server units with suitable brackets and seek assistance when handling heavy equipment. Risk of tipping over with heavy cooling unit without safety measures Hazard: Improper fastening of cooling units to external brackets can cause the cabinet or device to tip over. Action: Secure cooling units with suitable devices to prevent tipping. Side walls fall off - sash lock not used correctly Hazard: Incorrectly used sash locks can cause the side walls of the cabinet to fall off. Action: Regularly check that all sash locks are correctly and securely fitted. Load capacity not provided Hazard: An insufficient load capacity can destabilise the system. Action: Before installation, check the load capacity information and ensure that the base and the shelves are sufficiently stable. Inadequate fastening when fitting accessories Hazard: Loosely fitted accessories can fall down dangerously. Action: Fasten all accessories carefully and regularly check them for strength. Insufficient wall statics - housing falls down Danger: Insufficient wall statics can cause the housing to fall down. Action: Before installation, make sure that the wall has sufficient static load-bearing capacity and that the housing can be installed safely. Injury from falling attachments Danger: Insufficiently secured attachments can fall down and cause injuries. Action: Make sure that all attachments are correctly secured and check them regularly.
