19" 1.2U Socket Strip 6/7 x with Surge Protection, PVC

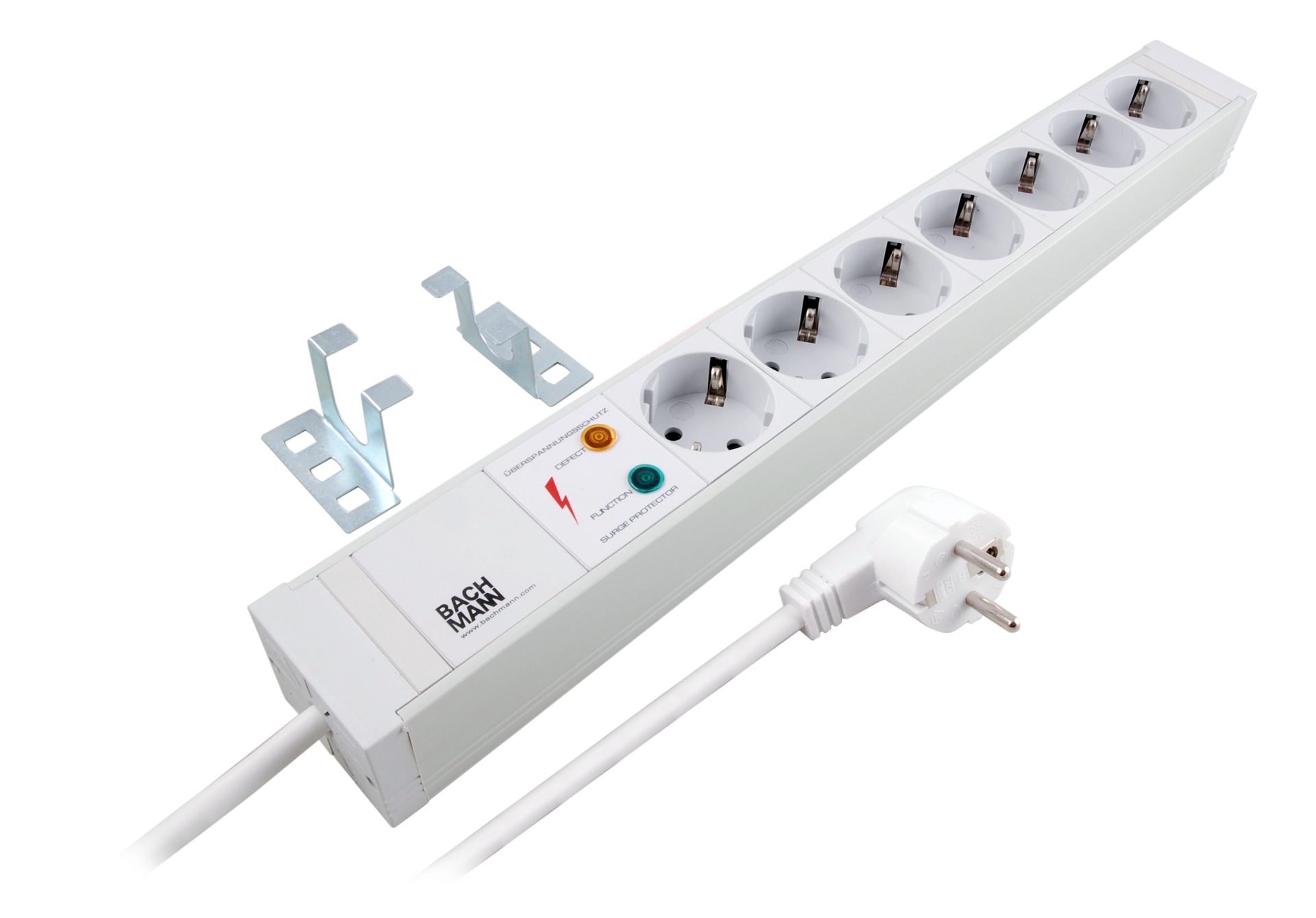

19" 1.2U Socket Strip 7 x CEE7/3 with Surge Protection, PVC, Grey
Varenummer:
691693
EAN Nr.:
4016514019366
Produktinformation til 19" 1.2U Socket Strip 7 x CEE7/3 with Surge Protection, PVC, Grey
Surge protection leakage current 6.5 kA
Optical function indication
35° turned socket inserts in plastic profile
2.0 metre supply cable black, H05VV-F 3G 1.5 mm², 250 V AC / 16 A with angled plug CEE7/7
Height 54 mm (1.2U)
Supplied mounting brackets allow any fastening position
Optical function indication
35° turned socket inserts in plastic profile
2.0 metre supply cable black, H05VV-F 3G 1.5 mm², 250 V AC / 16 A with angled plug CEE7/7
Height 54 mm (1.2U)
Supplied mounting brackets allow any fastening position
Tekniske egenskaber
| Angle rotated central insert: | 35 ° |
|---|---|
| Core cross section: | 1.50 mm² |
| Degree of protection: | IP20 |
| Halogen free: | No |
| Housing shape: | Rectangular |
| Length of power cord: | 2.0 m |
| Mains filter: | False |
| Material: | Plastic |
| Material quality: | Aluminium |
| Nominal current: | 16 A |
| Over voltage protection: | True |
| Residual current circuit breaker (RCCB): | False |
| Rotated central insert: | True |
| Surface finishing: | matt |
| Surface treatment: | untreated |
| Transparent: | False |
| With cover lid: | False |
Varianten
| Art. Nr. | Bezeichnung | Anti-bacterial treatment | Color | With on/off switch | Number of socket outlets with protective contact (CEE7/3) | RAL-number (similar) | |
|---|---|---|---|---|---|---|---|
| 691693 | 19" 1.2U Socket Strip 7 x CEE7/3 with Surge Protection, PVC, Grey | False | grey | True | 7 | 7035 | |
| 691694 | 19" 1.2U Socket Strip 6 x CEE7/3 with Surge Protection and Switch, PVC, Grey | False | grey | True | 6 | 7035 |
Sikkerhedsanvisninger
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
