19" Wall Housing BASIC, Depth 600 mm, RAL9010

Priser kun synlige for indloggede brugere

19“ 12U Wall Housing Basic, Depth 600 mm, 1-Part, Flat Pack, RAL9010
Varenummer: WGB-1912WS.60
EAN nr.: 4049759207090
Piece

Produktinformation für 19“ 12U Wall Housing Basic, Depth 600 mm, 1-Part, Flat Pack, RAL9010

19" Wall housing 1-part, type Flat Pack
Steel sheet housing screwable, not pre-assembled
Front door fully made of certified safety glass, thickness 4 mm, smoked, tempered, smoothed, antistatic
Front door lockable, Door opening angle 120°
Door stop easy changeable (right/left)
Sidewalls not detachable
Roof prepared for mounting of 2 x single fans
Roof and bottom with cable entry 145 x 70 mm
Inside 2 x 19" profile rails, depth-dajustable, with lateral opening for cable routing
Paint finish RAL7035 light grey / RAL9005 (jet black) / RAL9010 (pure white)
Width 535 mm, depth 450 / 600 mm
Max. load 80 kg (static, equally distributed)
Protection degree IP20
Incl. key

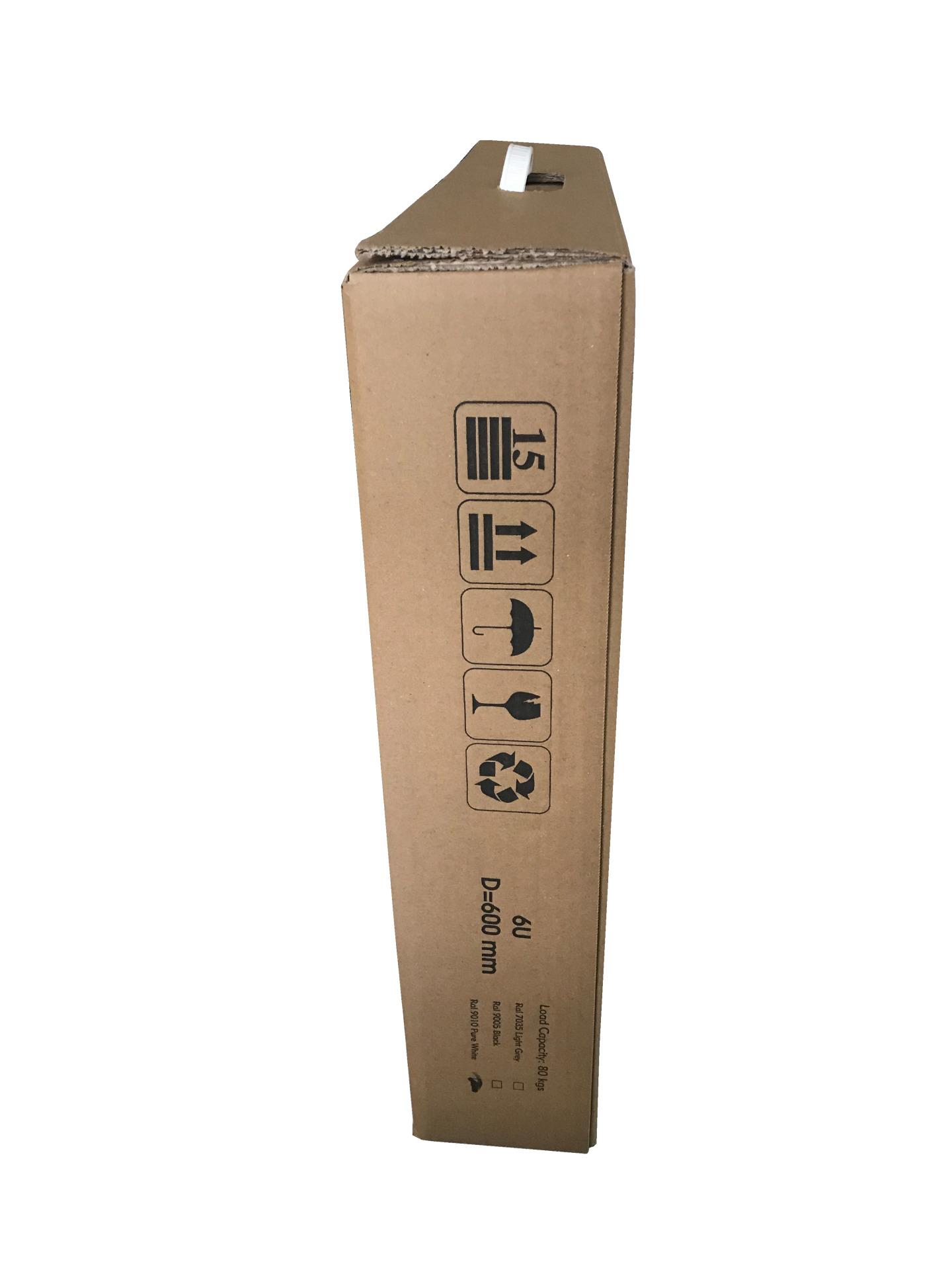

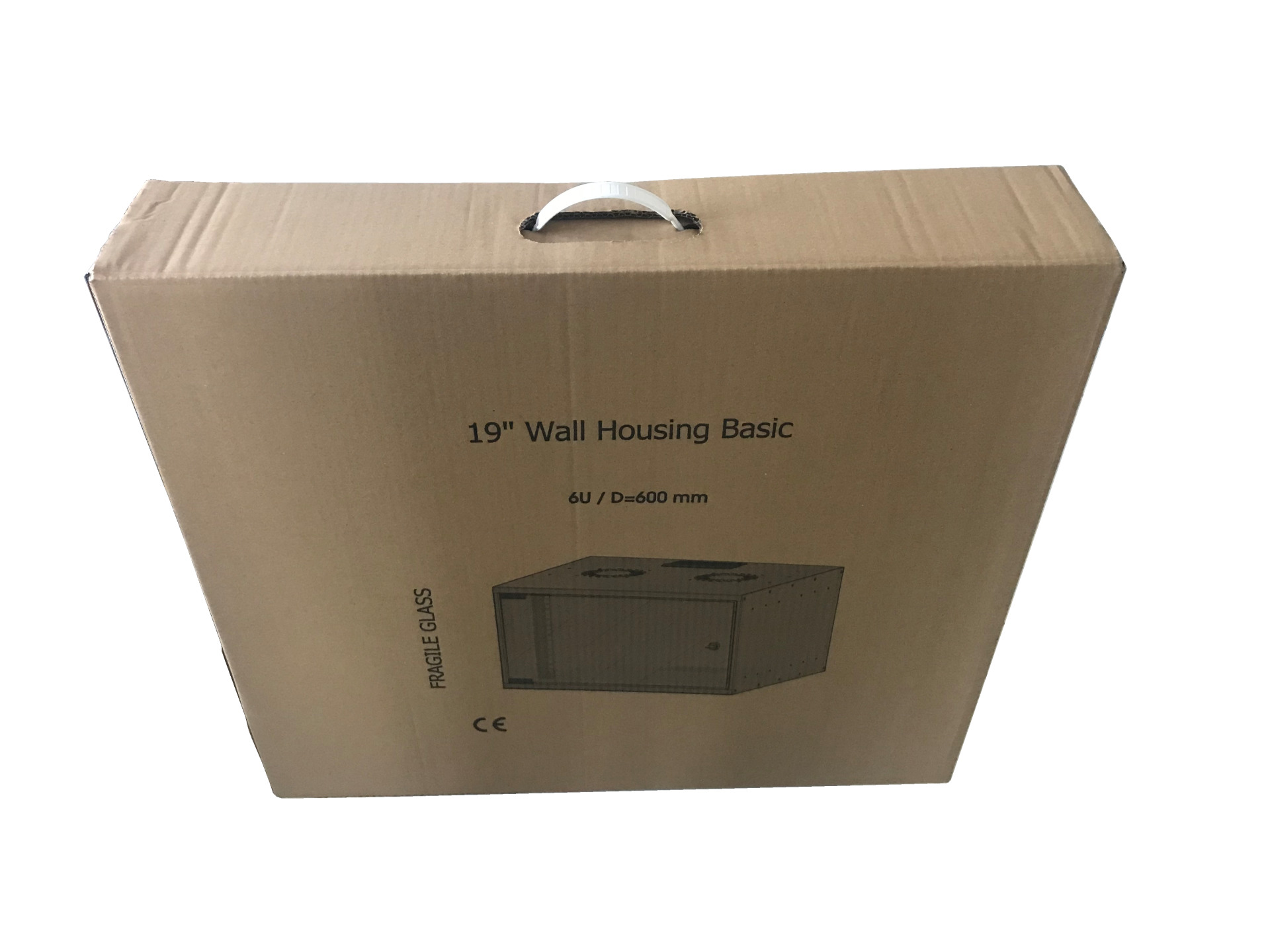

Delivery unassembled in 1 carton with handle

Tekniske egenskaber

Degree of protection: IP20
Demountable: True
Material: steel
Model: With permanent frame
Modular spacing: 482.6 mm (19 inch)
Mounting level: Front side
Number of cartons: 1
Number of doors: 1
Surface finishing: powder coating
Type of profile rail: L-shaped
Type of ventilation: Passive
With earthing: True
With front door: True
With roof plate: True
With sidewall: True

Varianter

Art. Nej. Betegnelse Height Colour Number of height units Depth Width Max. Load RAL-number

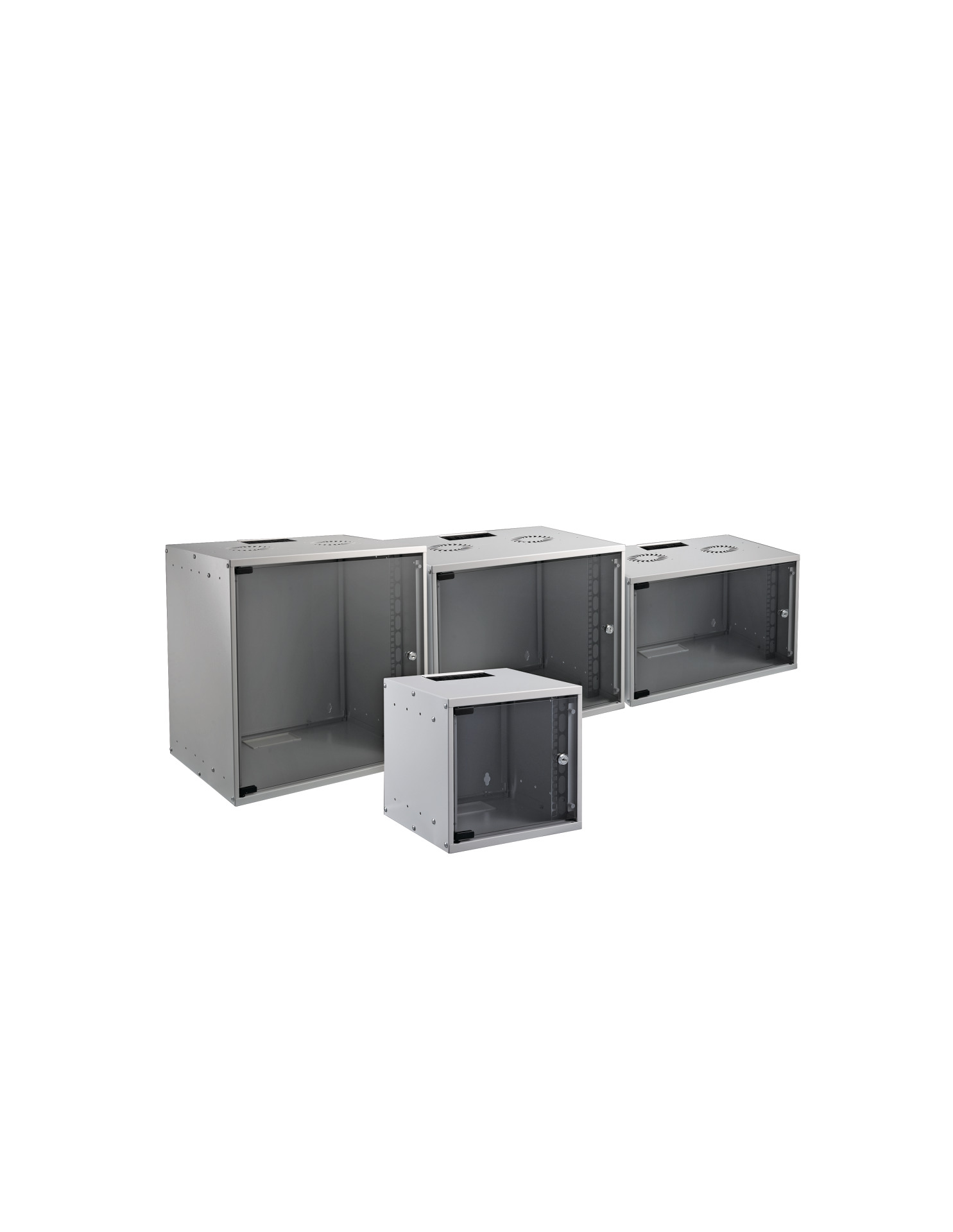

WGB-1906WS.60 19“ 06U Wall Housing Basic, Depth 600 mm, 1-Part, Flat Pack, RAL9010 30 mm white 6 U 600 mm 535 mm 80 kg 9010
WGB-1909WS.60 19“ 09U Wall Housing Basic, Depth 600 mm, 1-Part, Flat Pack, RAL9010 437 mm white 9 U 600 mm 535 mm 80 kg 9010
WGB-1912WS.60 19“ 12U Wall Housing Basic, Depth 600 mm, 1-Part, Flat Pack, RAL9010 571 mm white 12 U 600 mm 535 mm 80 kg 9010
WGB-1915WS.60 19“ 15U Wall Housing Basic, Depth 600 mm, 1-Part, Flat Pack, RAL9010 707 mm white 15 U 600 mm 535 mm 80 kg 9010

accessory

19“ 1U Socket Strip 8 x CEE 7/3 with Switch, in Alu Profile, Black
19“ 1U Socket Strip 9 x CEE 7/3 without Switch, in Alu Profile, Black
19“ 1U Socket Strip 7 x CEE 7/3 with Surge Protection, in Alu Profile, Black
Power Cable CEE7/7 90° - C13 180°, Black 2.0 m, 3 x 0.75 mm²

spare part

Front Door for Wall Housing BASIC 12U
