19" 1U Shelves Fixed with Cable Routing, max. Load 120 kg
Priser kun synlige for indloggede brugere

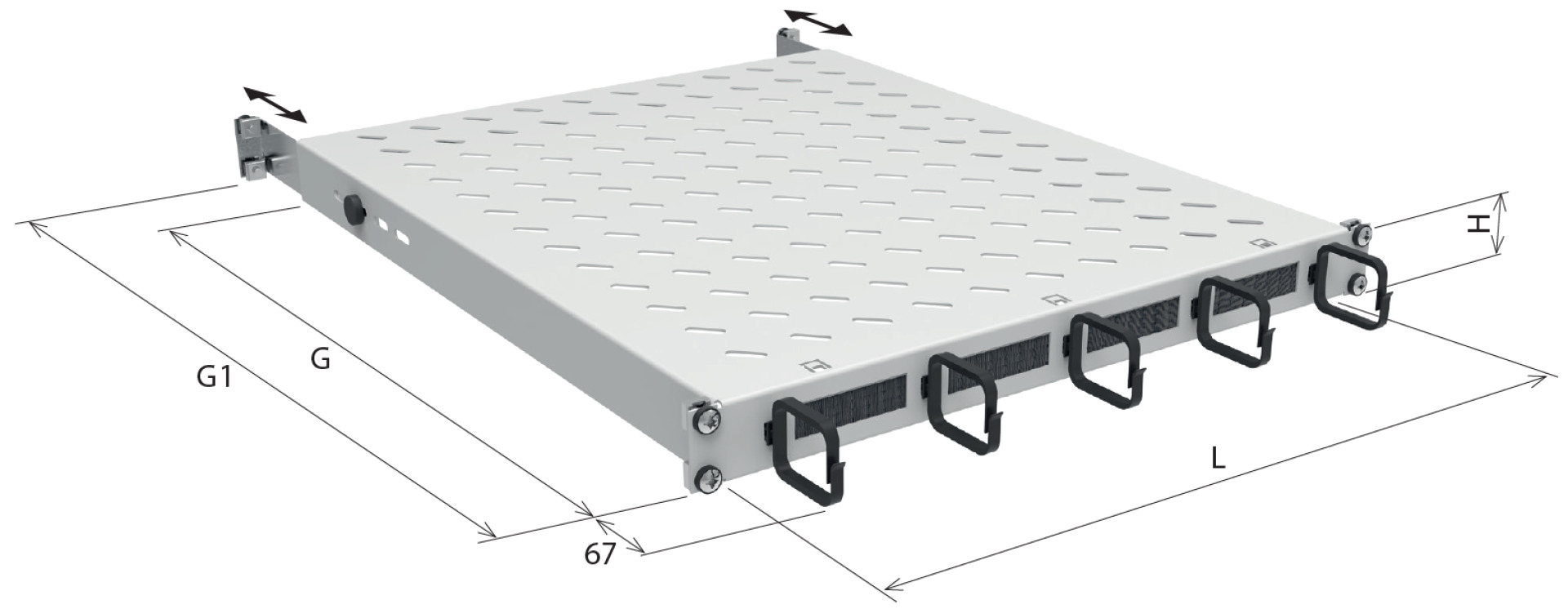

19" 1U Shelf Fixed, with Cable Routing, MD 350..450 mm, 120 kg, CD 600 RAL7035
Varenummer:
691651KGR.6
EAN nr.:
4049759252618
Produktinformation für 19" 1U Shelf Fixed, with Cable Routing, MD 350..450 mm, 120 kg, CD 600 RAL7035
For use in all 19" network and server cabinets
With front-sided cable entries and cable routing brackets
Fixing at the front and rear-sided 19" profiles necessary
Mounting depth rear-sided adjustable (+0 .. 100 mm)
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x shelf incl. mounting accessories
With front-sided cable entries and cable routing brackets
Fixing at the front and rear-sided 19" profiles necessary
Mounting depth rear-sided adjustable (+0 .. 100 mm)
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x shelf incl. mounting accessories
Tekniske egenskaber
| Material: | Metal |
|---|---|
| Model: | Shelf |
Varianter
| Art. Nej. | Betegnelse | Adjustment | Max. Load | Depth | Colour | Width | Height | RAL-number | Usable Width | For Cabinet Depth | Usable Depth | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 691651KGR.6 | 19" 1U Shelf Fixed, with Cable Routing, MD 350..450 mm, 120 kg, CD 600 RAL7035 | 350 – 450 mm | 120 kg | 350 mm | grey | 482.6 mm | 44 mm | 7035 | 450 mm | 600 mm | 350 mm | |
| 691651KGR.8 | 19" 1U Shelf Fixed, with Cable Routing, MD 550..650 mm, 120 kg, CD 800 RAL7035 | 550 – 650 mm | 120 kg | 550 mm | grey | 482.6 mm | 44 mm | 7035 | 450 mm | 800 mm | 550 mm | |
| 691651KGR.10 | 19" 1U Shelf Fixed, with Cable Routing, MD 750..850 mm, 120 kg, CD 1000 RAL7035 | 750 – 850 mm | 120 kg | 750 mm | grey | 482.6 mm | 44 mm | 7035 | 450 mm | 1000 mm | 750 mm | |
| 691651KGR.12 | 19" 1U Shelf Fixed, with Cable Routing, MD 950..1050 mm, 120 kg, CD 1200 RAL7035 | 950 – 1050 mm | 120 kg | 950 mm | grey | 482.6 mm | 44 mm | 7035 | 450 mm | 1200 mm | 950 mm |
