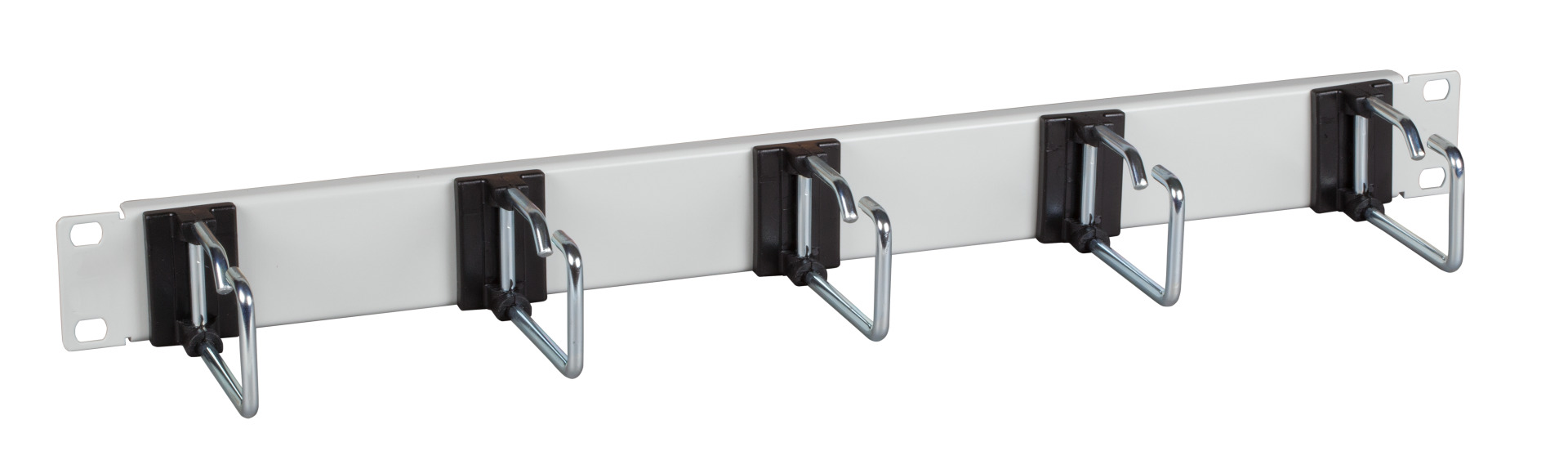

19" 1U Cable Routing Panel, 5 x Metal Bracket
19" 1U Cable Routing Panel, 5 x Metal Bracket
Varenummer:
699980TS.1
EAN Nr.:
4049759150051
Produktinformation til 19" 1U Cable Routing Panel, 5 x Metal Bracket
For clear and orderly cable routing in the 19" level
Especially solid steel brackets, diameter 5 mm
Bracket turnable in steps of 90°
The cable brackets are included loose and still need to be snapped into the base plate.
Bracket length 75 or 110 mm
Material bracket + panel steel, holder PA
Colour RAL7035, light grey / RAL9005, jet black
Especially solid steel brackets, diameter 5 mm
Bracket turnable in steps of 90°
The cable brackets are included loose and still need to be snapped into the base plate.
Bracket length 75 or 110 mm
Material bracket + panel steel, holder PA
Colour RAL7035, light grey / RAL9005, jet black
Tekniske egenskaber
| Ausführung: | Kabelführungspanel |
|---|---|
| Geeignet für 482,6 mm (19 Zoll)-Montage: | Ja |
| Werkstoff: | Metall |
Varianten
| Art. Nr. | Bezeichnung | Width | Height | Number of height units | Bracket Length | Colour | Farbe | Breite | Anzahl der Höheneinheiten (HE) | Höhe | Bügellänge | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 699980.1 | 19" 1U Cable Routing Panel, 5 x Metal Bracket 75 mm Single, RAL7035 | 482.6 mm | 44.45 mm | 1 U | 75 mm | grey | - | - | - | - | - | |
| 699980.2 | 19" 1U Cable Routing Panel, 5 x Metal Bracket 110 mm Single, RAL7035 | 482.6 mm | 44.45 mm | 1 U | 110 mm | grey | - | - | - | - | - | |
| 699980TS.1 | 19" 1U Cable Routing Panel, 5 x Metal Bracket | - | - | - | - | - | schwarz | 482,6 mm | 1 HE | 44,45 mm | 75 mm | |
| 699980TS.2 | 19" 1U Cable Routing Panel, 5 x Metal Bracket | - | - | - | - | - | schwarz | 482,6 mm | 1 HE | 44,45 mm | 110 mm |
