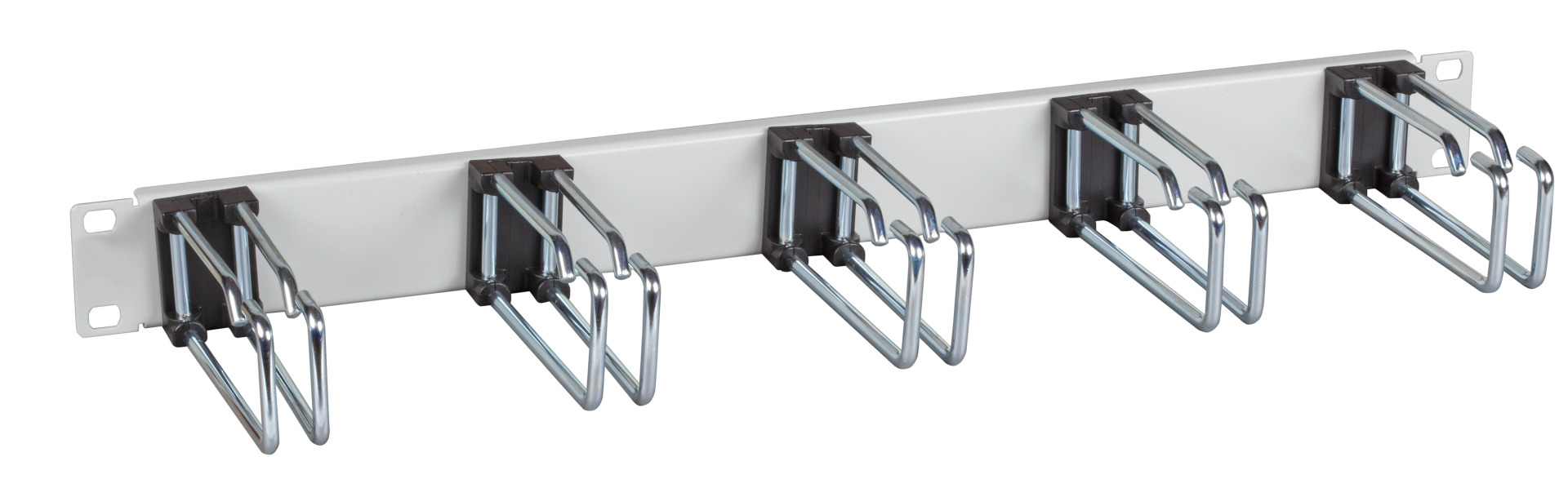

19" 1U Cable Routing Panel, 5 x Metal Double Brackets
19" 1U Cable Routing Panel, 5 x Metal Double Bracket 75 mm, RAL7035
Varenummer:
699981.1
EAN Nr.:
4049759147907
Produktinformation til 19" 1U Cable Routing Panel, 5 x Metal Double Bracket 75 mm, RAL7035
For clear and orderly cable routing in the 19" level

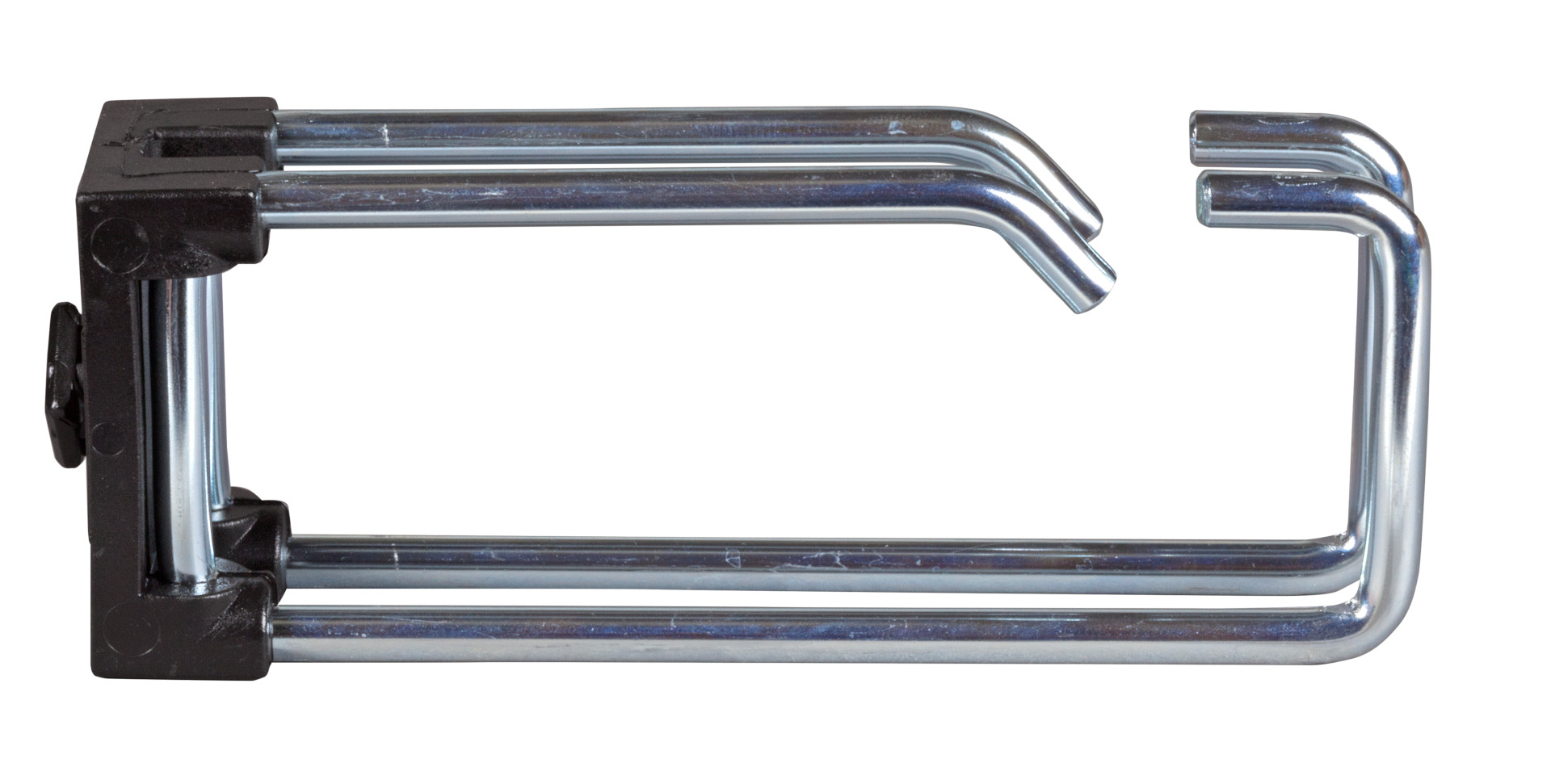

Especially solid steel double brackets, diameter 5 mm
Bracket turnable in steps of 90°
The cable brackets are included loose and still need to be snapped into the base plate.
Bracket length 75 or 110 mm
Material bracket + panel steel, holder PA
Colour RAL7035, light grey / RAL9005, jet black
Especially solid steel double brackets, diameter 5 mm
Bracket turnable in steps of 90°
The cable brackets are included loose and still need to be snapped into the base plate.
Bracket length 75 or 110 mm
Material bracket + panel steel, holder PA
Colour RAL7035, light grey / RAL9005, jet black
Tekniske egenskaber
| Material: | Metal |
|---|---|
| Model: | Cabling panel |
| Suitable for 19 inch mounting: | True |
Varianten
| Art. Nr. | Bezeichnung | Color | Width | Number of height units | Height | Bracket Length | |
|---|---|---|---|---|---|---|---|
| 699981.1 | 19" 1U Cable Routing Panel, 5 x Metal Double Bracket 75 mm, RAL7035 | grey | 482.6 mm | 1 U | 44.45 mm | 75 mm | |
| 699981.2 | 19" 1U Cable Routing Panel, 5 x Metal Double Bracket 110 mm, RAL7035 | grey | 482.6 mm | 1 U | 44.45 mm | 110 mm | |
| 699981TS.1 | 19" 1U Cable Routing Panel, 5 x Metal Double Brackets | black | 482.6 mm | 1 U | 44.45 mm | 75 mm | |
| 699981TS.2 | 19" 1U Cable Routing Panel, 5 x Metal Double Brackets | black | 482.6 mm | 1 U | 44.45 mm | 110 mm |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
