19" 1U Pull-Out Shelves, Max. Load 30 kg

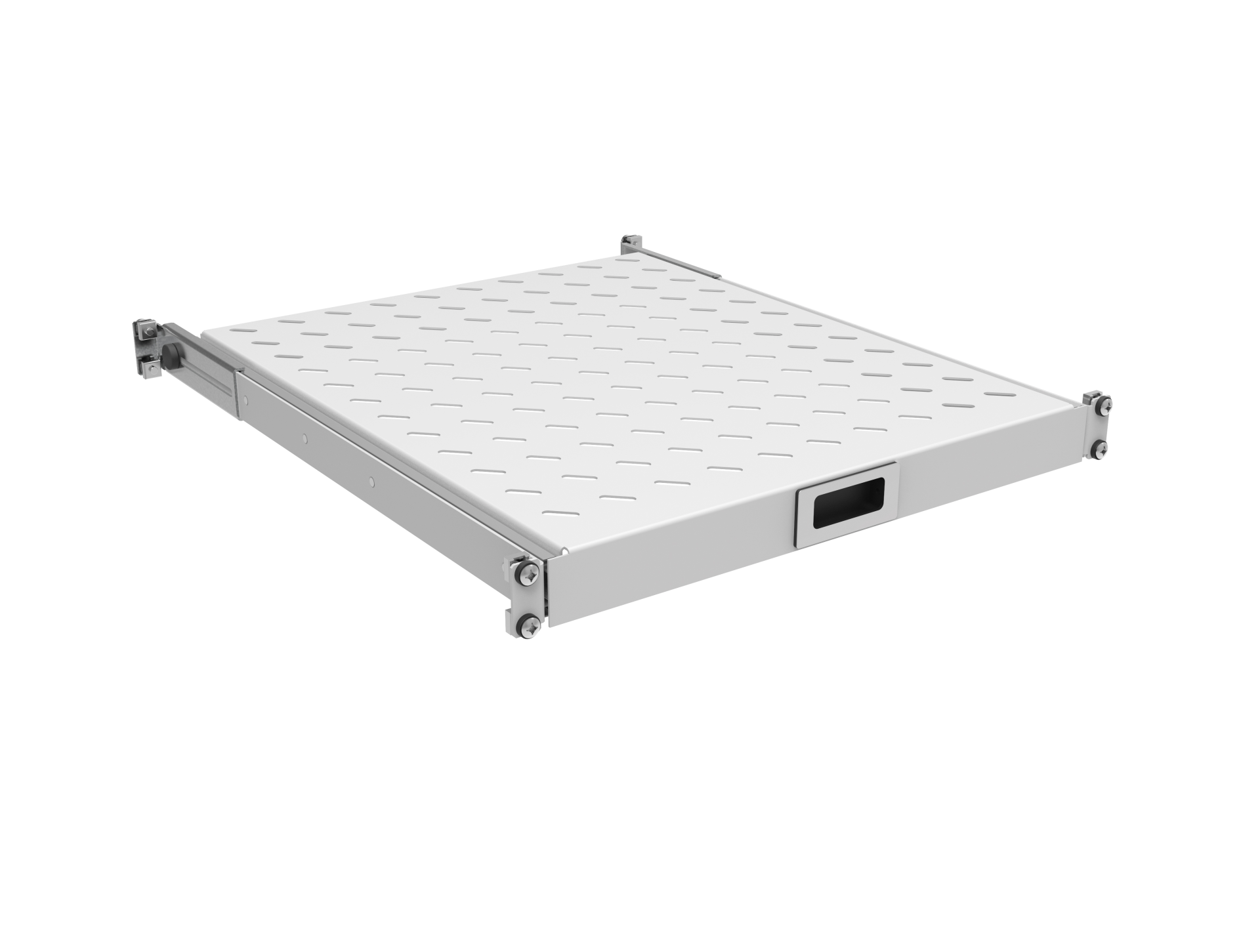

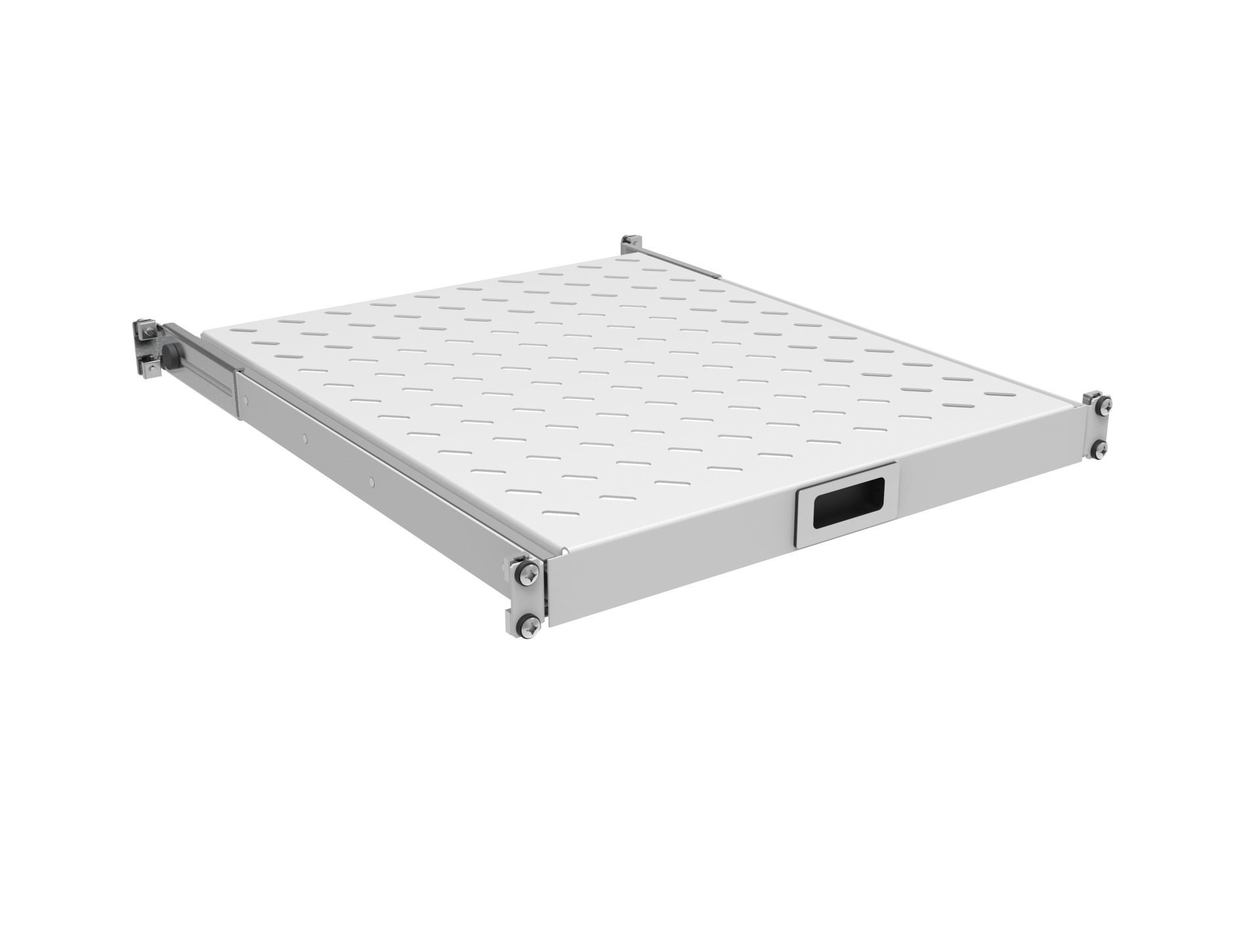

19" 1U Pull-Out Shelf, MD 350..450 mm, Max. Load 30 kg, CD 600, RAL7035
Varenummer:
691651AGR.6
EAN Nr.:
4049759252465
Produktinformationen für 19" 1U Pull-Out Shelf, MD 350..450 mm, Max. Load 30 kg, CD 600, RAL7035
For use in all 19" network and server cabinets

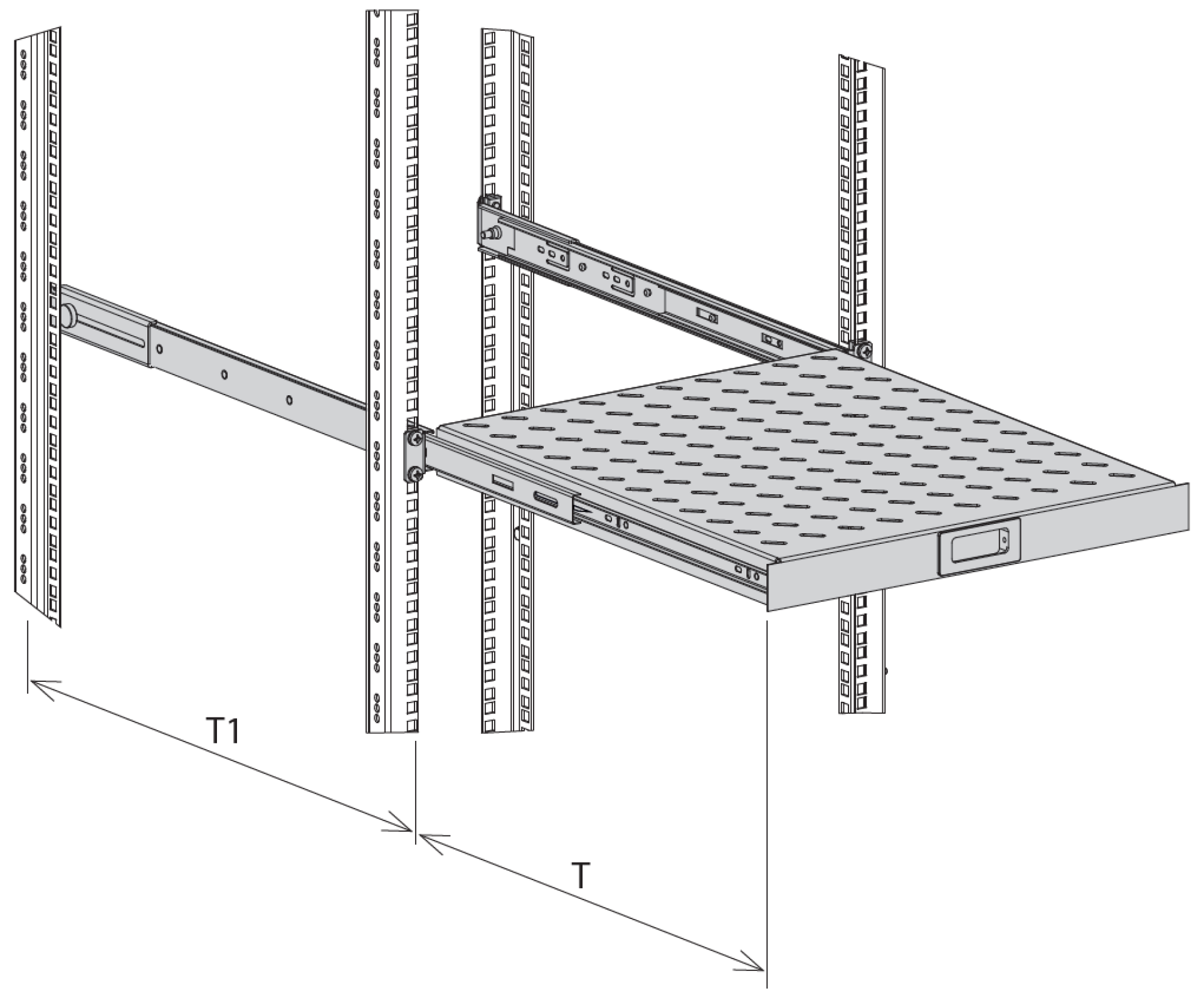

Fixing at the front and rear-sided 19" profiles necessary
Mounting depth rear-sided adjustable (+0 .. 100 mm)
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x shelf incl. mounting accessories
Fixing at the front and rear-sided 19" profiles necessary
Mounting depth rear-sided adjustable (+0 .. 100 mm)
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x shelf incl. mounting accessories
Technische Eigenschaften
| Material: | Metal |
|---|---|
| Model: | Shelf |
Varianten

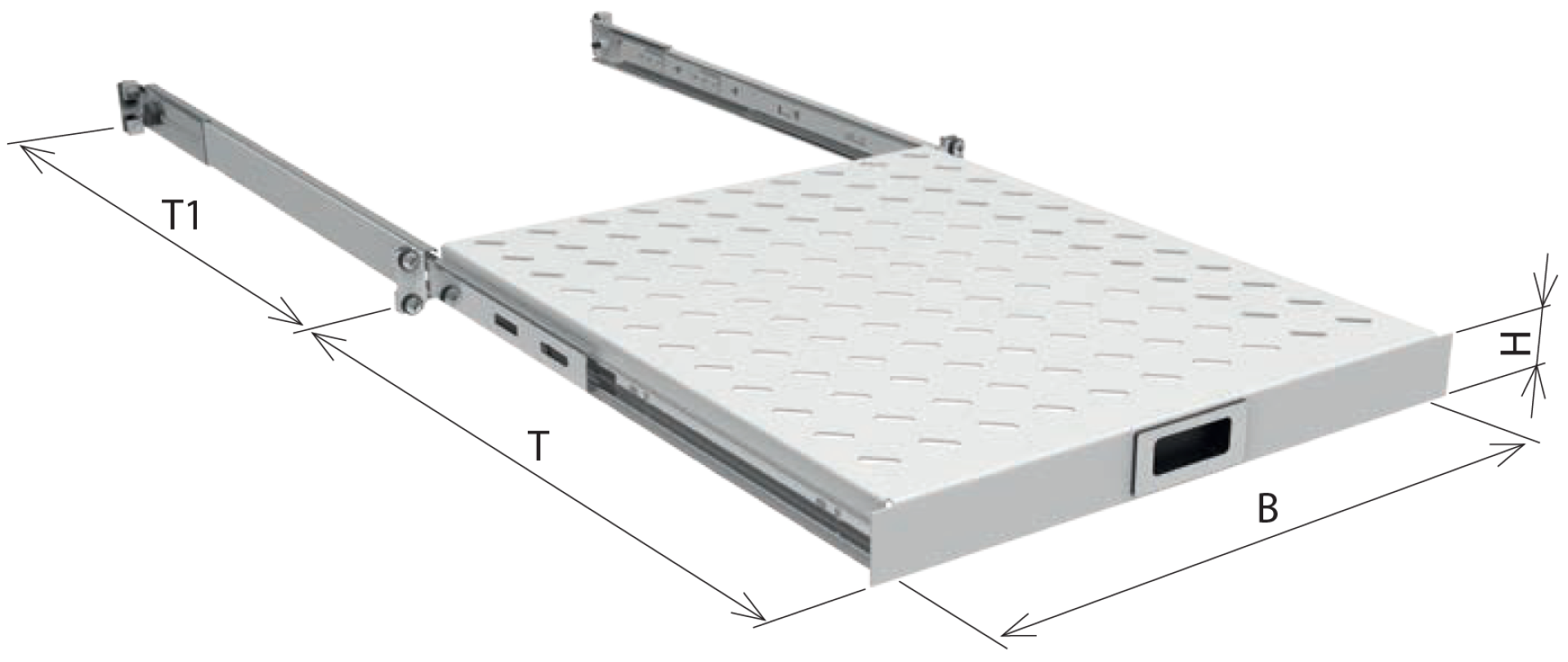

| Art. Nr. | Bezeichnung | Max. Load | Adjustment | Depth | Colour | Width | Height | RAL-number | Usable Width | For Cabinet Depth | Usable Depth | Max. Pull-Out | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 691651AGR.6 | 19" 1U Pull-Out Shelf, MD 350..450 mm, Max. Load 30 kg, CD 600, RAL7035 | 30 kg | 350 – 450 mm | 350 mm | grey | 482.6 mm | 44 mm | 7035 | 414 mm | 600 mm | 350 mm | 350 mm | |
| 691651AGR.8 | 19" 1U Pull-Out Shelf, MD 550..650 mm, Max. Load 30 kg, CD 800, RAL7035 | 30 kg | 550 – 650 mm | 550 mm | grey | 482.6 mm | 44 mm | 7035 | 414 mm | 800 mm | 550 mm | 550 mm | |
| 691651AGR.10 | 19" 1U Pull-Out Shelf, MD 750..850 mm, Max. Load 30 kg, CD 1000, RAL7035 | 30 kg | 750 – 850 mm | 750 mm | grey | 482.6 mm | 44 mm | 7035 | 414 mm | 1000 mm | 750 mm | 750 mm | |
| 691651AGR.12 | 19" 1U Pull-Out Shelf, MD 950..1050 mm, Max. Load 30 kg, CD 1200, RAL7035 | 30 kg | 950 – 1050 mm | 950 mm | grey | 482.6 mm | 44 mm | 7035 | 414 mm | 1200 mm | 950 mm | 950 mm | |
| 691651ATS.6 | 19" 1U Pull-Out Shelf, MD 350..450 mm, Max. Load 30 kg, CD 600, RAL9005 | 30 kg | 350 – 450 mm | 350 mm | black | 482.6 mm | 44 mm | 9005 | 414 mm | 600 mm | 350 mm | 350 mm | |
| 691651ATS.8 | 19" 1U Pull-Out Shelf, MD 550..650 mm, Max. Load 30 kg, CD 800, RAL9005 | 30 kg | 550 – 650 mm | 550 mm | black | 482.6 mm | 44 mm | 9005 | 414 mm | 800 mm | 550 mm | 550 mm | |
| 691651ATS.10 | 19" 1U Pull-Out Shelf, MD 750..850 mm, Max. Load 30 kg, CD 1000, RAL9005 | 30 kg | 750 – 850 mm | 750 mm | black | 482.6 mm | 44 mm | 9005 | 414 mm | 1000 mm | 750 mm | 750 mm | |
| 691651ATS.12 | 19" 1U Pull-Out Shelf, MD 950..1050 mm, Max. Load 30 kg, CD 1200, RAL9005 | 30 kg | 950 – 1050 mm | 950 mm | black | 482.6 mm | 44 mm | 9005 | 414 mm | 1200 mm | 950 mm | 950 mm |
