19“ 1U Socket Strip 7 x CEE 7/3 with Surge Protection
19“ 1U Socket Strip 7 x CEE 7/3 with Surge Protection
Varenummer:
EK631DE.3GR
EAN Nr.:
4049759278144
Produktinformation til 19“ 1U Socket Strip 7 x CEE 7/3 with Surge Protection

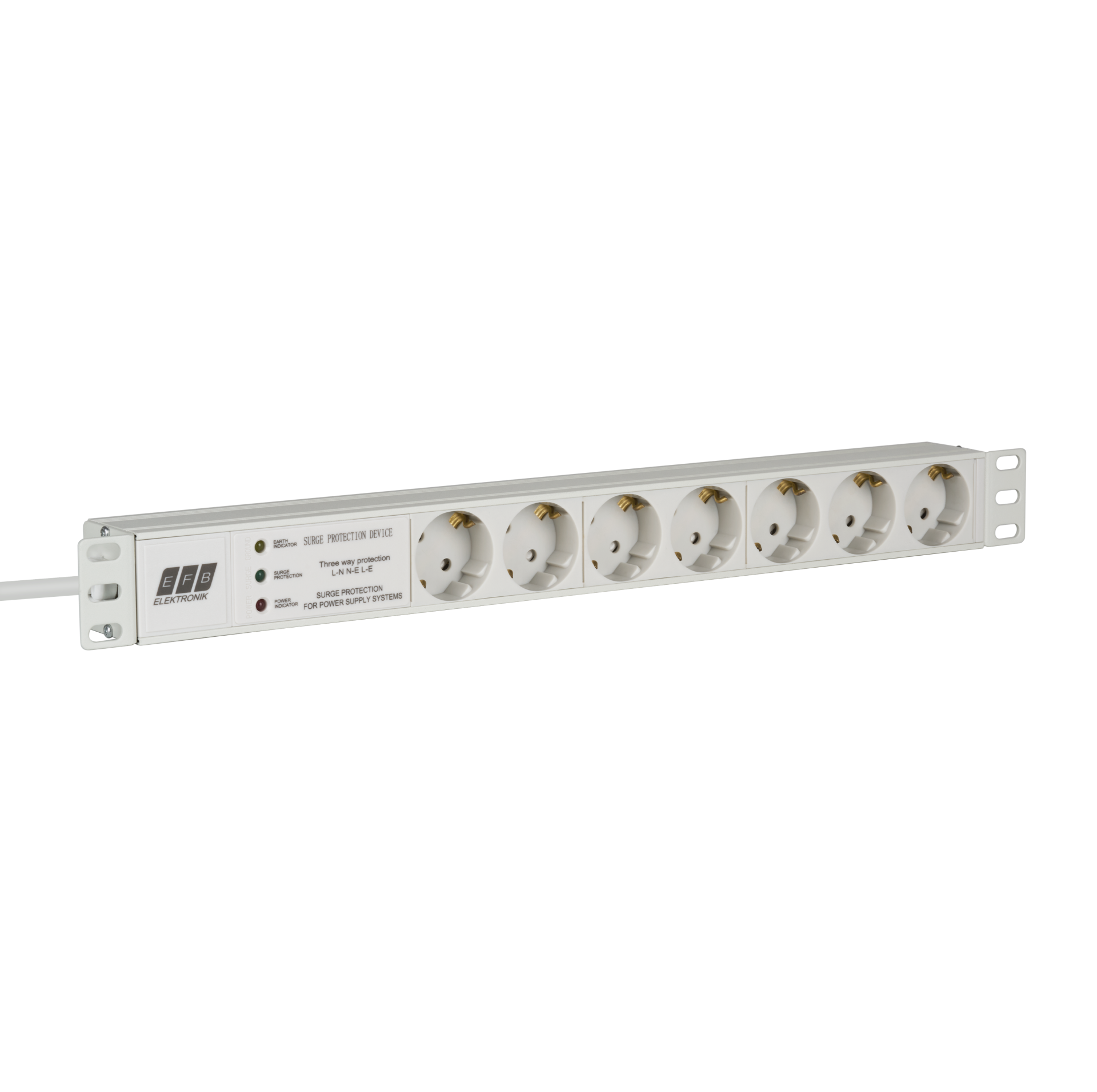

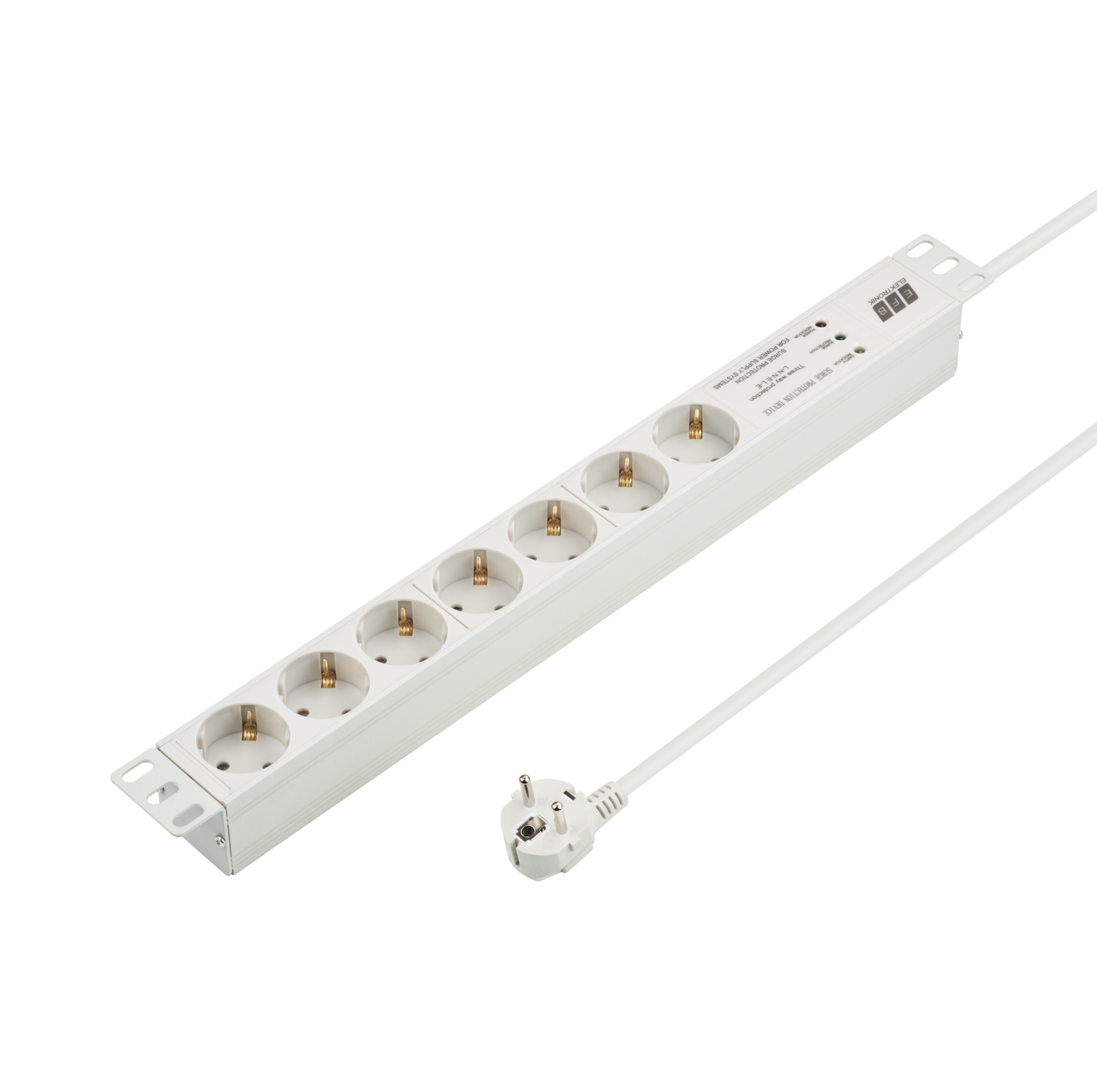

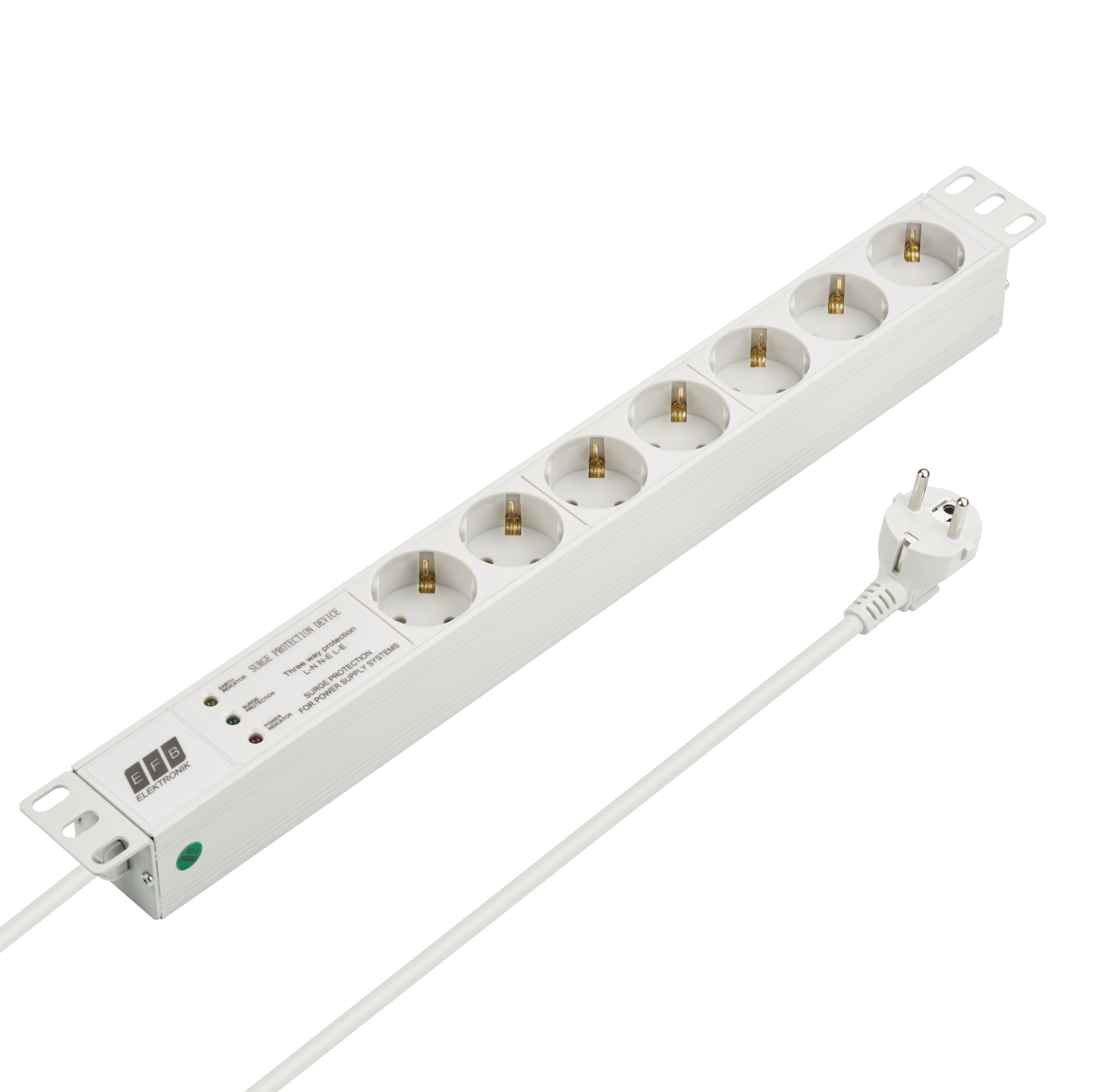

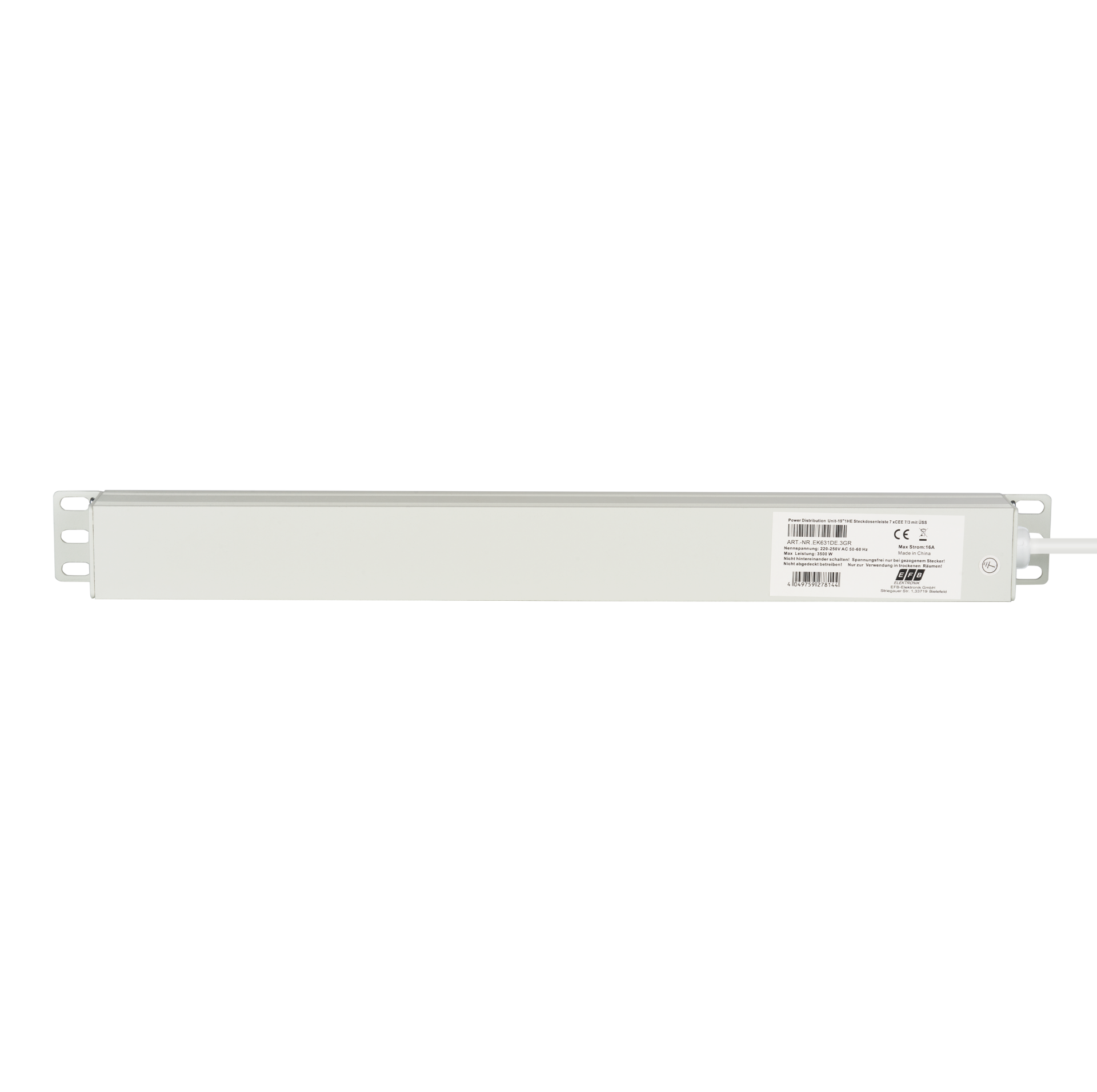

19" 1U socket strip in aluminium profile
Outlets 7 x CEE 7/3
With surge protection
Outlets turned 45°
With increased personal protection against electric shock
Cable 2 m H03VV-F 3G 1.5 mm² with angled CEE7/7 plug
Colour black
Certifications CE, RoHS
Note: after an overvoltage event, the strip is still suitable for power supply without surge protection, i.e. the surge protection is not multifunctional
Outlets 7 x CEE 7/3
With surge protection
Outlets turned 45°
With increased personal protection against electric shock
Cable 2 m H03VV-F 3G 1.5 mm² with angled CEE7/7 plug
Colour black
Certifications CE, RoHS
Note: after an overvoltage event, the strip is still suitable for power supply without surge protection, i.e. the surge protection is not multifunctional
Tekniske egenskaber
| Aderquerschnitt: | 1,50 mm² |
|---|---|
| Ausführung der Oberfläche: | matt |
| FI-Schalter: | Nein |
| Gehäuseform: | rechteckig |
| Halogenfrei: | Nein |
| Länge der Zuleitung: | 2,0 m |
| Mit Deckel: | Nein |
| Nennstrom: | 16 A |
| Netzentstörfilter: | Nein |
| Oberfläche: | anodisiert/eloxiert |
| Schutzart: | IP20 |
| Transparent: | Nein |
| Verdrehter Zentraleinsatz: | Ja |
| Werkstoff: | Metall |
| Werkstoffgüte: | Aluminium |
| Winkel verdrehter Zentraleinsatz: | 45° ° |
| Überspannungsschutz: | Ja |
Varianten
| Art. Nr. | Bezeichnung | Colour | Number of socket outlets with protective contact (CEE7/3) | With on/off switch | RAL-Nummer (ähnlich) | Mit Ein-/Ausschalter | Farbe | Anzahl der CEE7/3-Steckdosen | |
|---|---|---|---|---|---|---|---|---|---|
| EK631DE.3 | 19“ 1U Socket Strip 7 x CEE 7/3 with Surge Protection, in Alu Profile, Black | black | 7 | False | 9005 | - | - | - | |
| EK631DE.3GR | 19“ 1U Socket Strip 7 x CEE 7/3 with Surge Protection | - | - | - | 7035 | Nein | grau | 7 |
