19" 1U Socket Strip 8 x with Switch

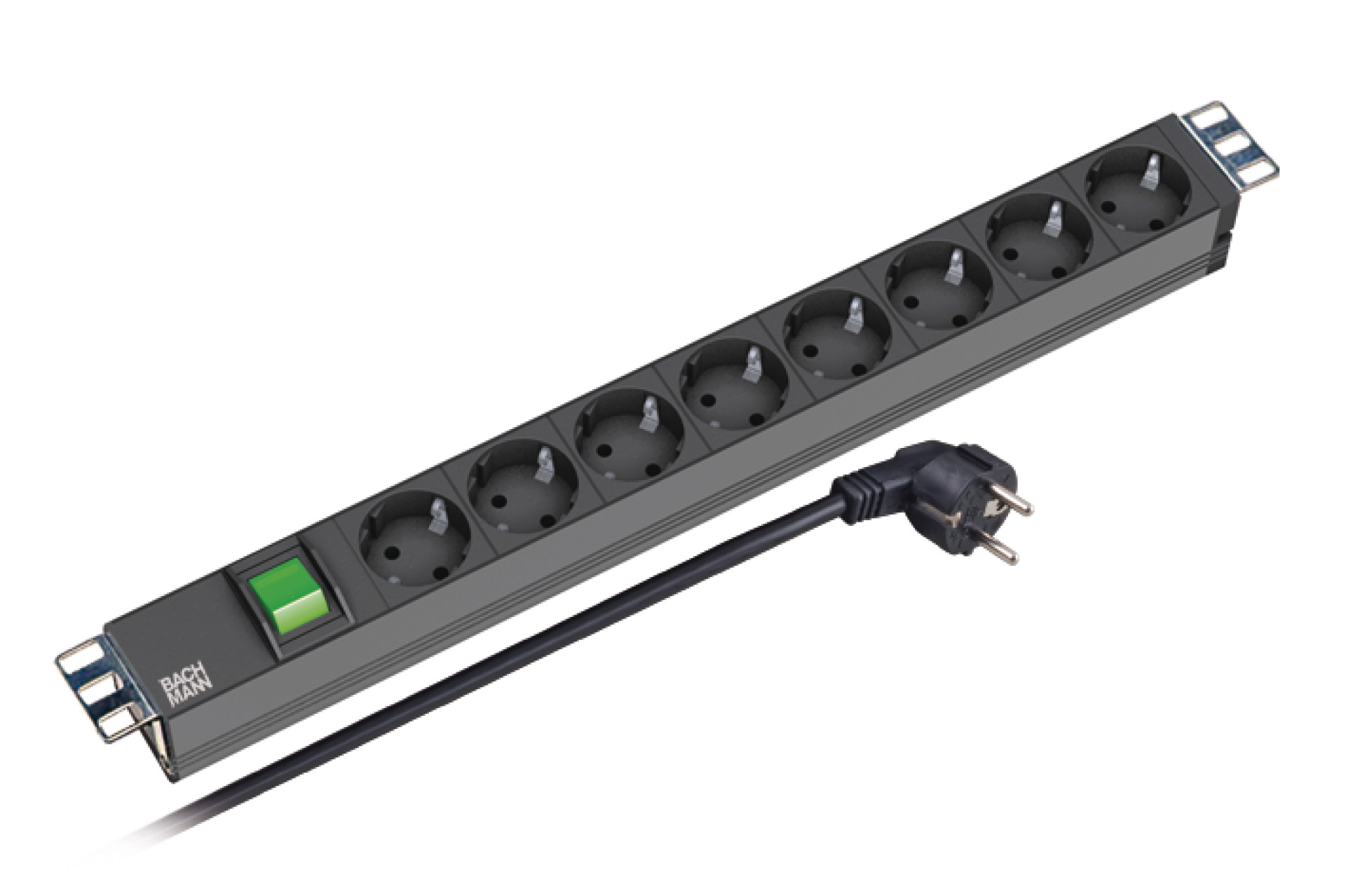

19" 1U Socket Strip 8 x CEE7/3 with Switch, Black
Varenummer:
691684
EAN Nr.:
4016514019267
Produktinformation til 19" 1U Socket Strip 8 x CEE7/3 with Switch, Black
35° turned socket inserts in the aluminium profile

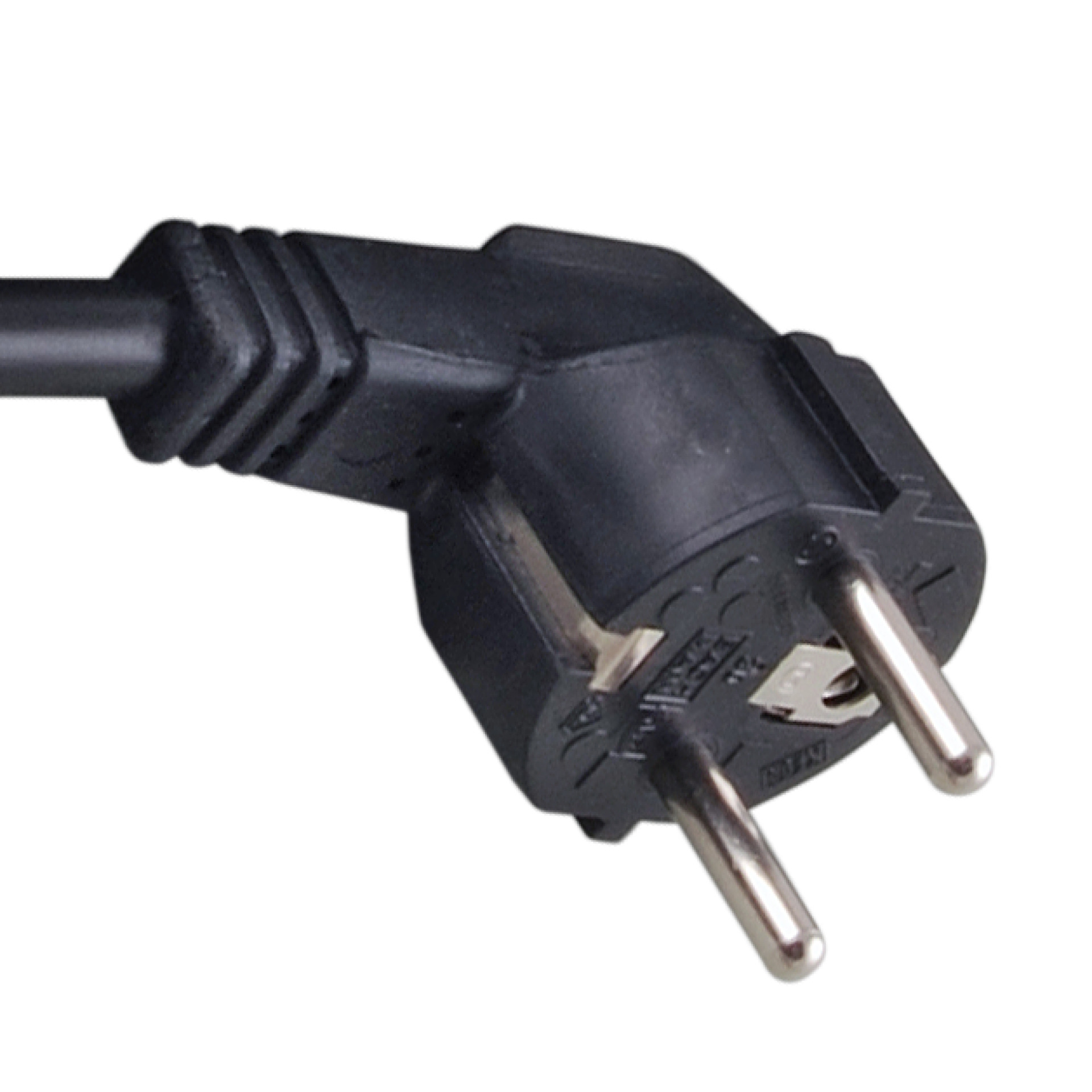

Cable H05VV-F 3G 1.5 mm², black, 2.0 m, 250 V AC / 16 A with angled CEE7/3 plug CEE7/7

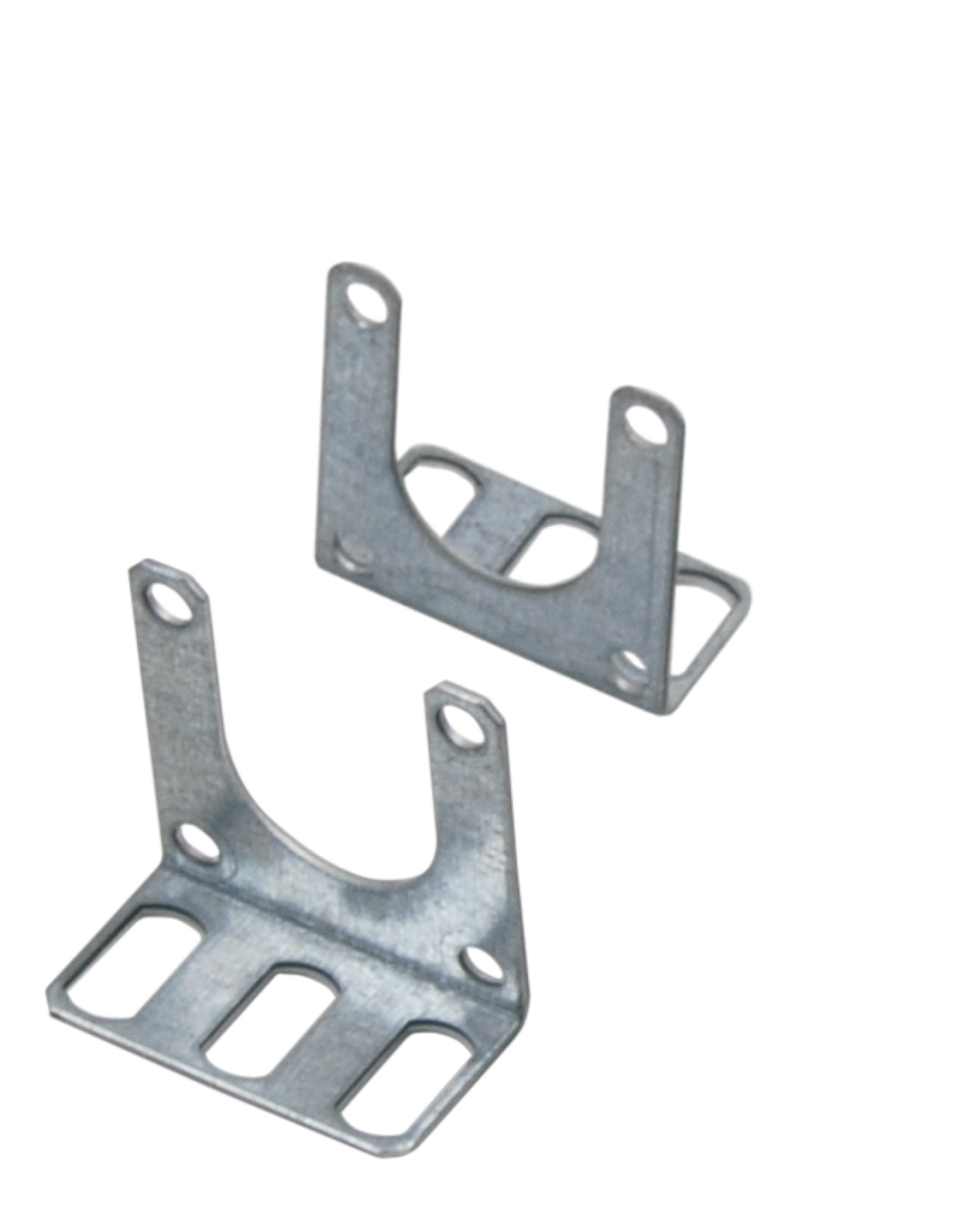

Supplied mounting brackets allow any fastening position
Cable H05VV-F 3G 1.5 mm², black, 2.0 m, 250 V AC / 16 A with angled CEE7/3 plug CEE7/7
Supplied mounting brackets allow any fastening position
Tekniske egenskaber
| Angle rotated central insert: | 35 ° |
|---|---|
| Core cross section: | 1.50 mm² |
| Degree of protection: | IP20 |
| Halogen free: | No |
| Housing shape: | Rectangular |
| Length of power cord: | 2.0 m |
| Mains filter: | False |
| Material: | Metal |
| Material quality: | Aluminium |
| Nominal current: | 16 A |
| Over voltage protection: | False |
| Residual current circuit breaker (RCCB): | False |
| Rotated central insert: | True |
| Surface finishing: | matt |
| Surface treatment: | Anodised |
| Transparent: | False |
| With cover lid: | False |
Varianten
| Art. Nr. | Bezeichnung | Number of socket outlets with protective contact (CEE7/3) | Anti-bacterial treatment | With on/off switch | Color | RAL-number (similar) | |
|---|---|---|---|---|---|---|---|
| 691686 | 19" 1U Socket Strip 8 x CEE7/3 with Switch, Grey | 8 | False | True | grey | 7035 | |
| 691684 | 19" 1U Socket Strip 8 x CEE7/3 with Switch, Black | 8 | False | True | black | 9005 |
Sikkerhedsanvisninger
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
Producentangivelse
Bachmann Sales GmbH & Co. KG
Ernsthaldenstr. 33
70565 Stuttgart
info@bachmann.com
www.bachmann.com
