19" 2U Pull-Out Shelves, Front Mounting, Max. Load 20 kg

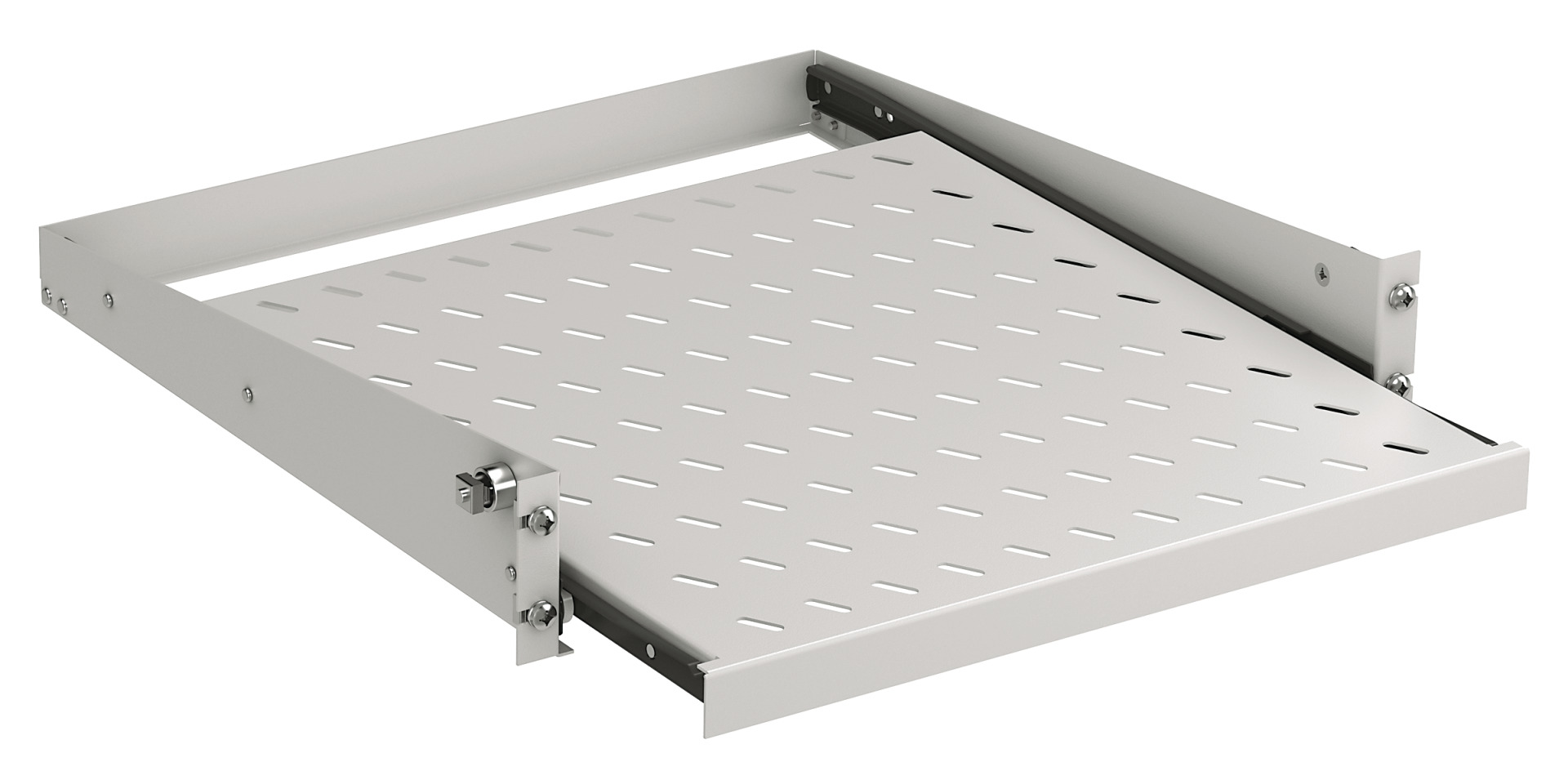

19" 2U Pull-Out Shelf, D=355 mm, Front Mounting, 20 kg, RAL7035
Varenummer:
691667GR.2A
EAN Nr.:
4049759252724
Produktinformation til 19" 2U Pull-Out Shelf, D=355 mm, Front Mounting, 20 kg, RAL7035
For use in all 19" network and server cabinets

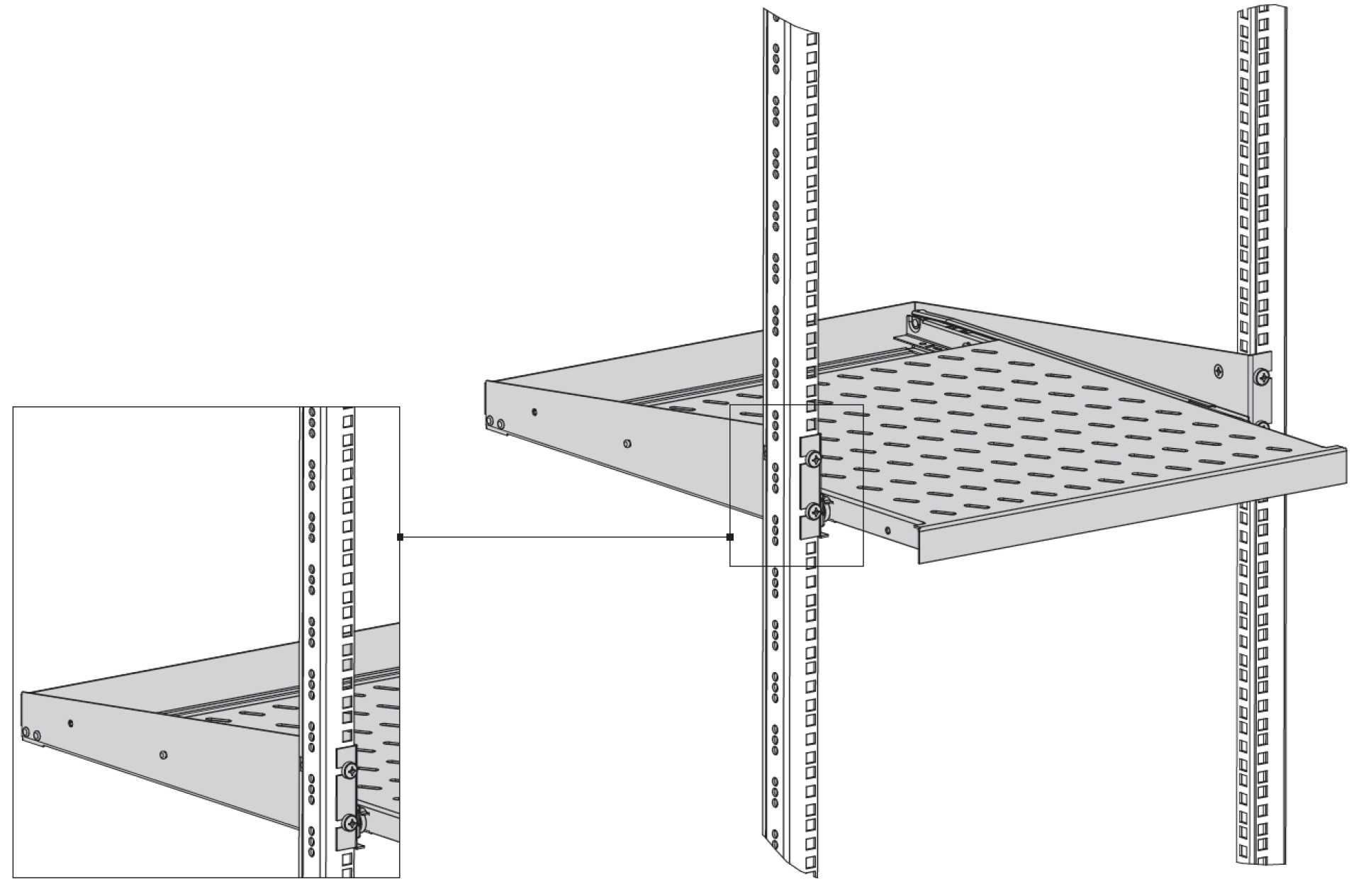

For fixing at the front sided 19" profiles
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x shelf incl. mounting accessories
For fixing at the front sided 19" profiles
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x shelf incl. mounting accessories
Tekniske egenskaber
| Material: | Metal |
|---|---|
| Model: | Shelf |
Varianten
| Art. Nr. | Bezeichnung | Depth | Max. Load | Colour | Width | Height | RAL-number | Usable Width | Usable Depth | Max. Pull-Out | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 691667GR.2A | 19" 2U Pull-Out Shelf, D=355 mm, Front Mounting, 20 kg, RAL7035 | 355 mm | 20 kg | grey | 482.6 mm | 88 mm | 7035 | 416 mm | 355 mm | 255 mm | |
| 691667GR.2B | 19" 2U Pull-Out Shelf, D=455 mm, Front Mounting, 20 kg, RAL7035 | 455 mm | 20 kg | grey | 482.6 mm | 88 mm | 7035 | 416 mm | 455 mm | - | |
| 691667GR.2C | 19" 2U Pull-Out Shelf, D=555 mm, Front Mounting, 20 kg, RAL7035 | 555 mm | 20 kg | grey | 482.6 mm | 88 mm | 7035 | 416 mm | 555 mm | 455 mm | |
| 691667TS.2A | 19" 2U Pull-Out Shelf, D=355 mm, Front Mounting, 20 kg, RAL9005 | 355 mm | 20 kg | black | 482.6 mm | 88 mm | 9005 | 416 mm | 355 mm | 255 mm | |
| 691667TS.2B | 19" 2U Pull-Out Shelf, D=455 mm, Front Mounting, 20 kg, RAL9005 | 455 mm | 20 kg | black | 482.6 mm | 88 mm | 9005 | 416 mm | 455 mm | 355 mm | |
| 691667TS.2C | 19" 2U Pull-Out Shelf, D=555 mm, Front Mounting, 20 kg, RAL9005 | 555 mm | 20 kg | black | 482.6 mm | 88 mm | 9005 | 416 mm | 555 mm | 455 mm |
