19" 3U Power Distribution/Circuit Braker
19" 3U Power Distribution/Circuit Braker Housing for 22 Modules 17.5 mm, RAL7035
Varenummer:
691277.1V2
EAN Nr.:
4049759213541
Produktinformationen für 19" 3U Power Distribution/Circuit Braker Housing for 22 Modules 17.5 mm, RAL7035

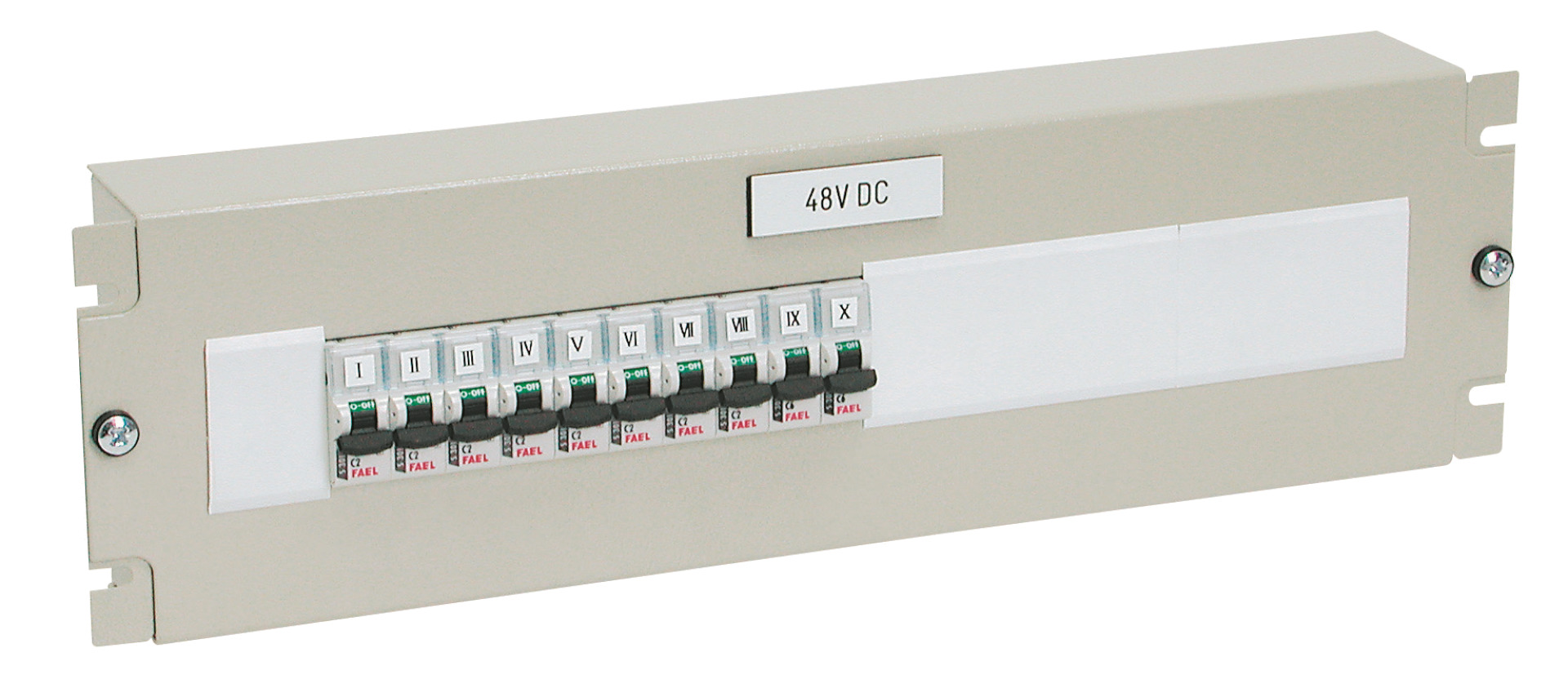

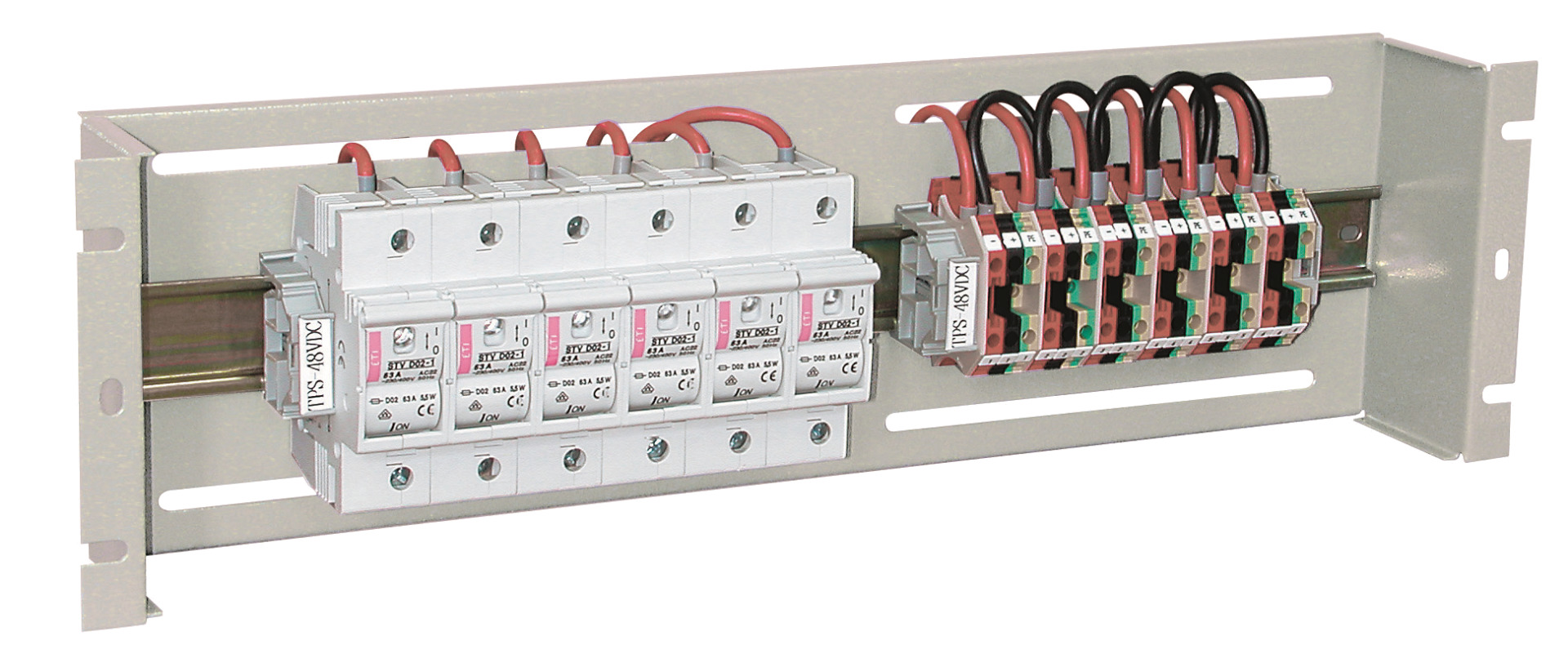

For carrying DIN rail modules like circuit breakers, outlets etc.
Capacity 22 modules to 17.5 mm
Front opening 402.5 x 45.5 mm

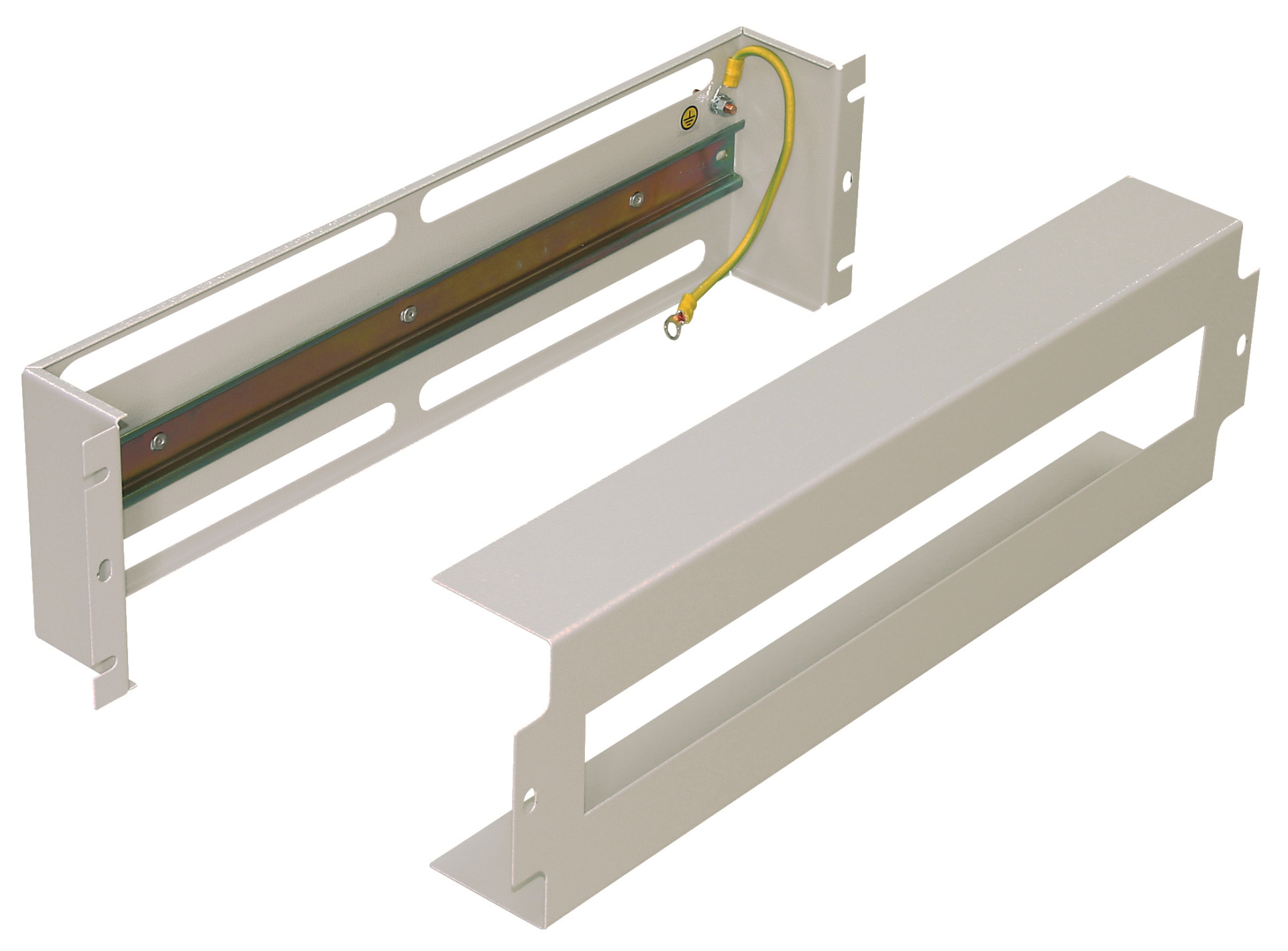

Rear-sided earthing bolt M5 incl. cable
Dimensions (W x H x D) 482.6 x 133 x 60 mm
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Mounting note: For easy opening and closing of the front cover, a captive nut M6 should be installed behind the left & right cover screw.
Capacity 22 modules to 17.5 mm
Front opening 402.5 x 45.5 mm
Rear-sided earthing bolt M5 incl. cable
Dimensions (W x H x D) 482.6 x 133 x 60 mm
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Mounting note: For easy opening and closing of the front cover, a captive nut M6 should be installed behind the left & right cover screw.
Technische Eigenschaften
| Material: | Metal |
|---|---|
| Model: | Device carrier |
Varianten
| Art. Nr. | Bezeichnung | Depth | Colour | Width | Height | RAL-number | |
|---|---|---|---|---|---|---|---|
| 691277.1V2 | 19" 3U Power Distribution/Circuit Braker Housing for 22 Modules 17.5 mm, RAL7035 | 60 mm | grey | 482.6 mm | 133 mm | 7035 | |
| 691277TS.1V2 | 19" 3U Power Distribution/Circuit Braker Housing for 22 Modules 17.5 mm, RAL9005 | 60 mm | black | 482.6 mm | 133 mm | 9005 |
