19" Co-Location Racks PRO, 800 x 800 mm, F+R 1-Part

19" Co-Location Racks PRO, 800 x 800 mm, F+R 1-Part
Varenummer: PRO-CL2-4288TS.P1
EAN-nr.: 4049759261238
Forudbestil det ønskede antal nu, eller få besked, når det er tilgængeligt:
Piece

Giv mig besked, når produktet er på lager igen.

Produktinformation til 19" Co-Location Racks PRO, 800 x 800 mm, F+R 1-Part

19" network cabinet according to DIN 41494
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated

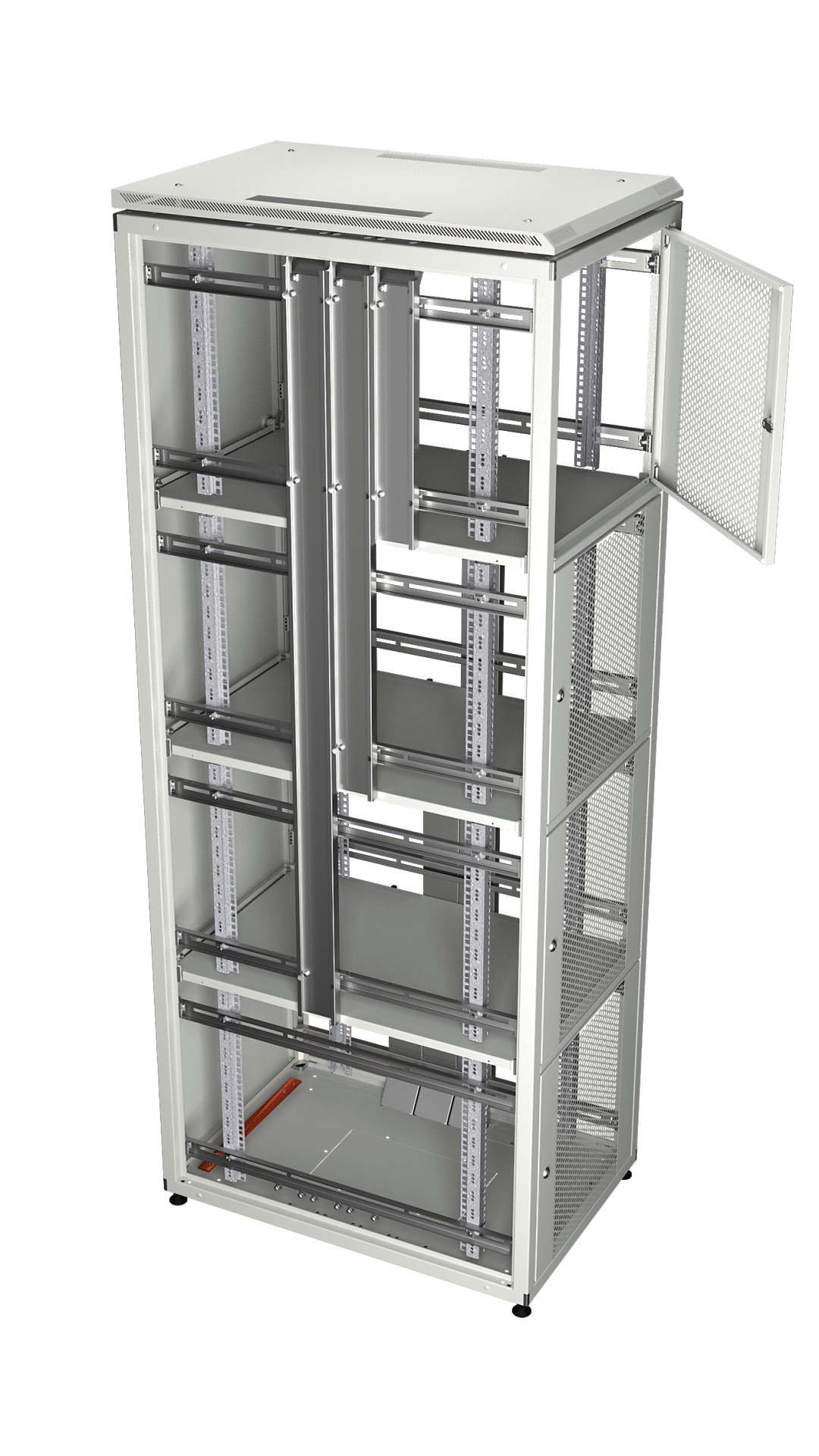

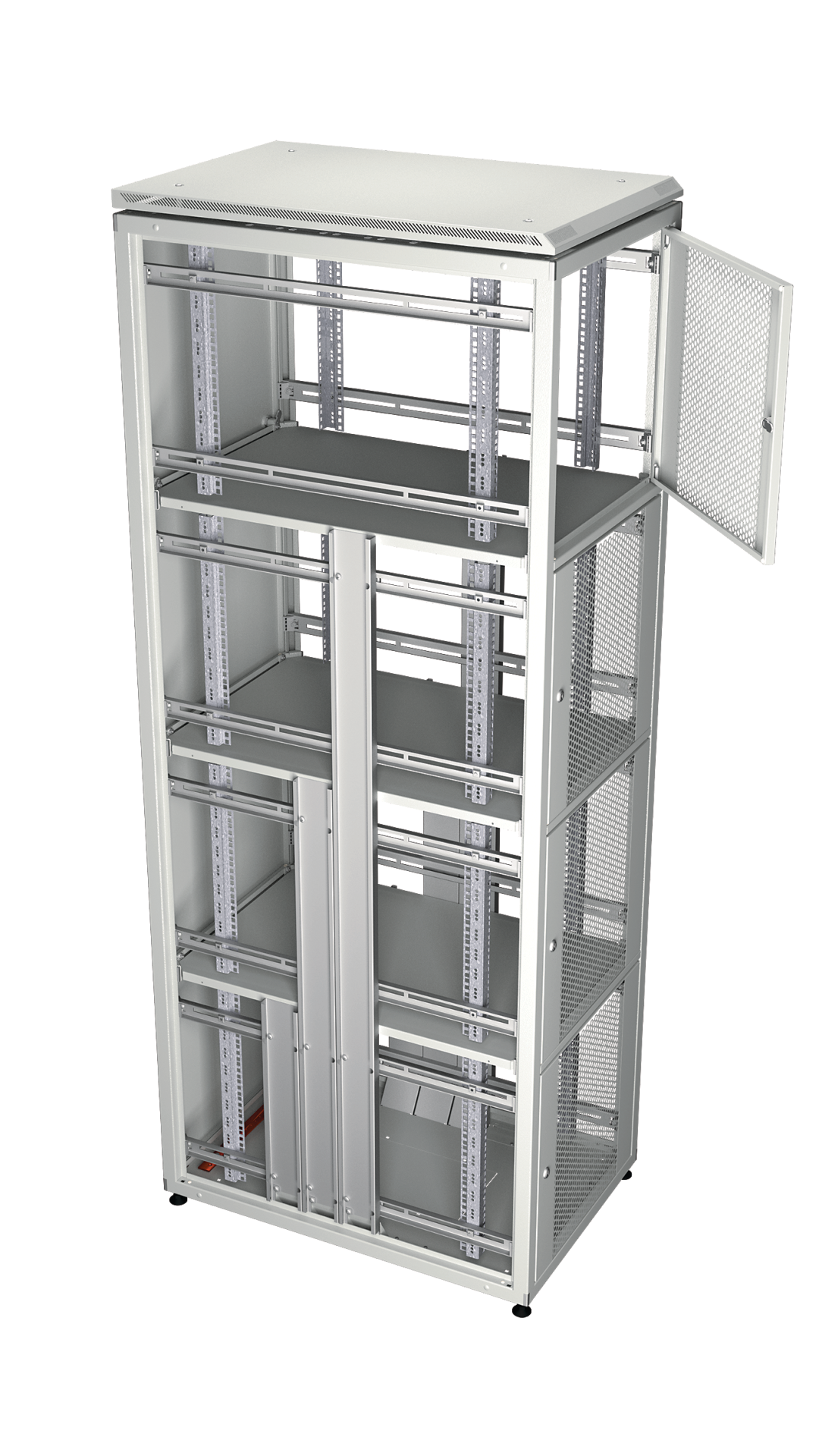

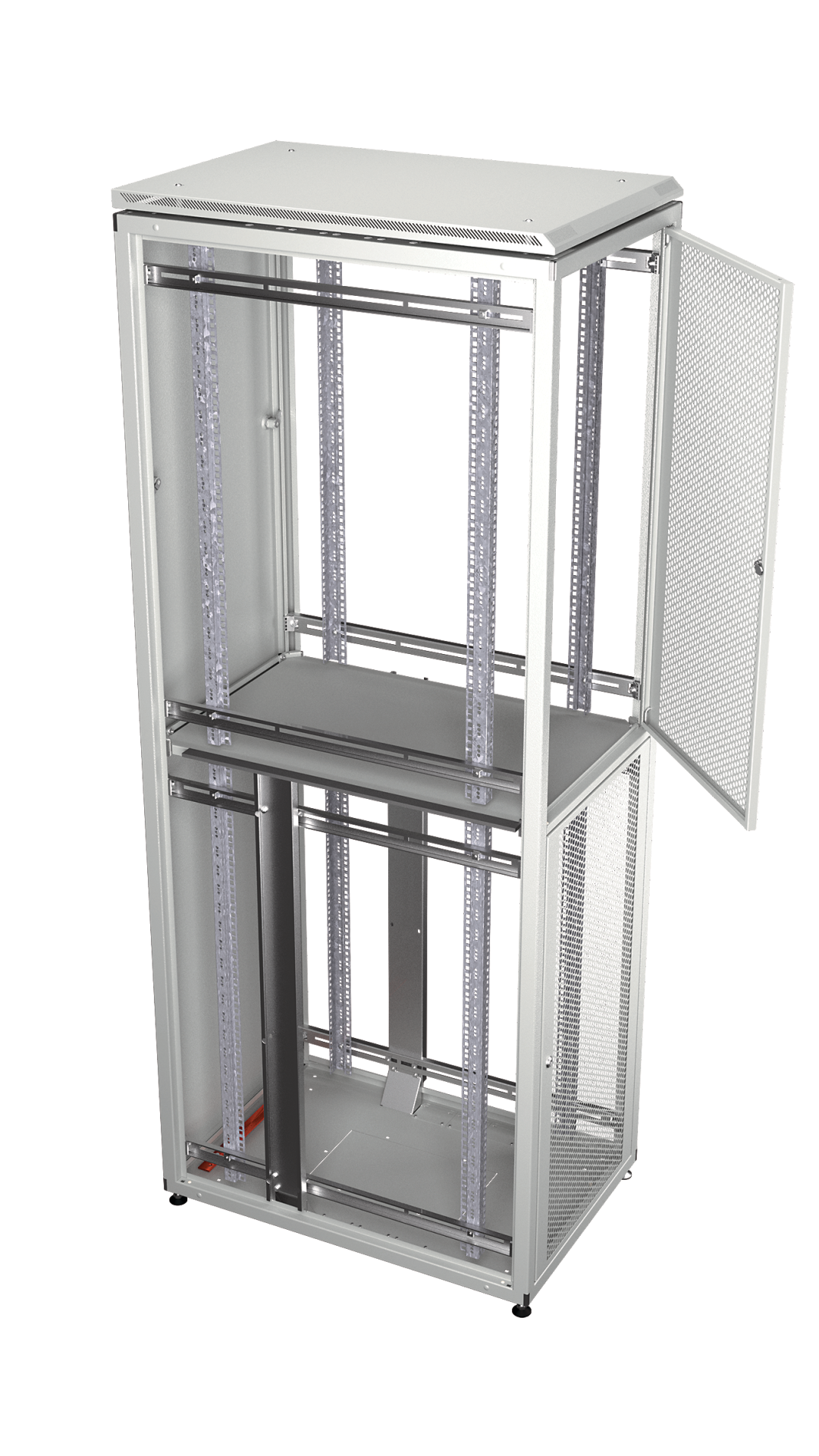

1, 2, 3 or 4 boxes for individual access
Every box with independent cable ducts left and right for cable entry from top or bottom
Inside front and rear 4 x 19" profiles per box (2 front, 2 rear), galvanised, step-less depth-adjustable
Numbering of height units at the profiles
Front- and rear doors steel, perforated, 1-part
Doors with 1-point turning handle, lockable, incl. profile half-cylinder acc. to DIN 18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop left and right-sided possible
Detachable side walls with 2 x latch locking (lock equal to door lock)
Side walls optional available perforated

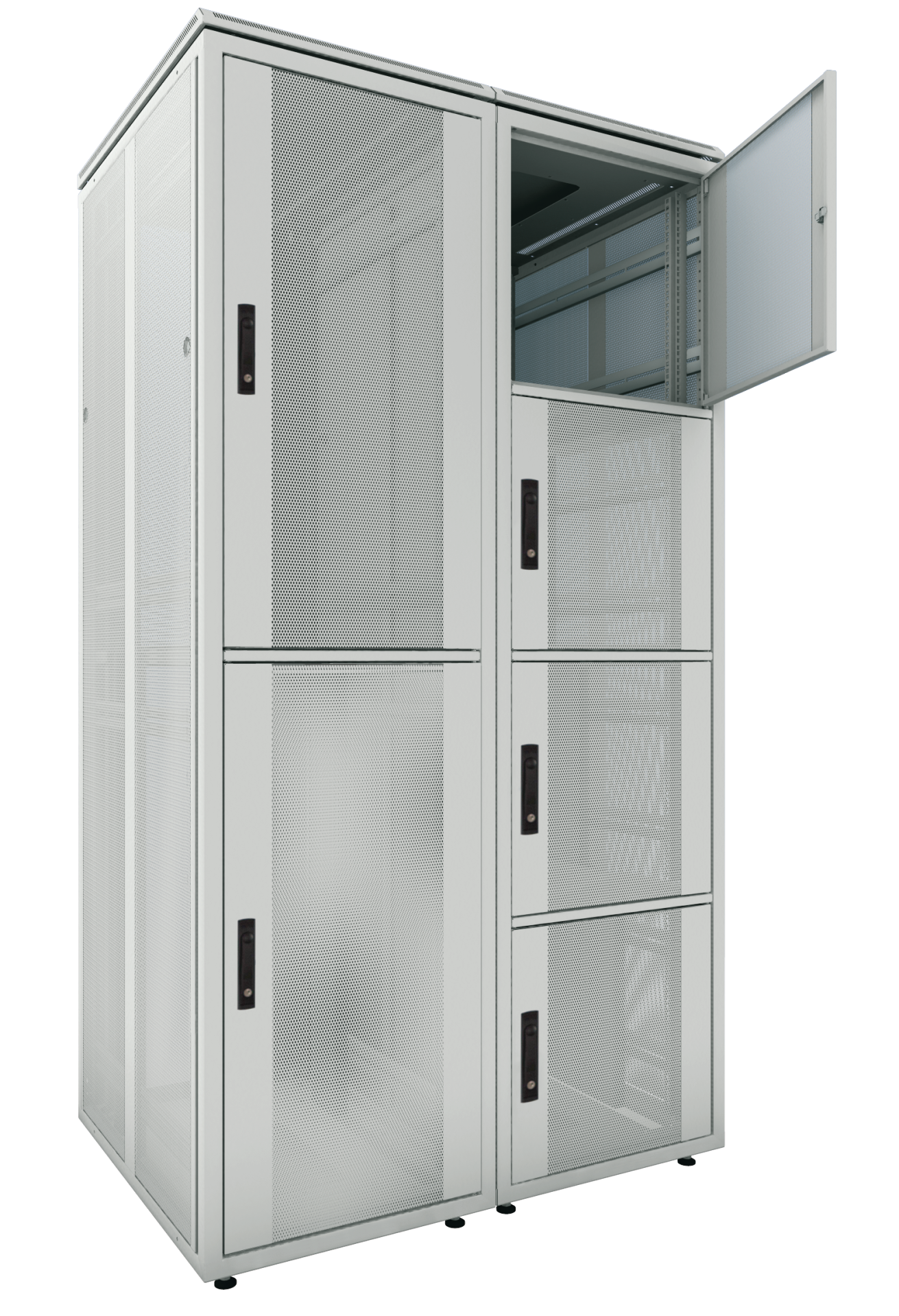

Cabinets stackable side-by-side with and without side wall via baying set PRO-ANR01

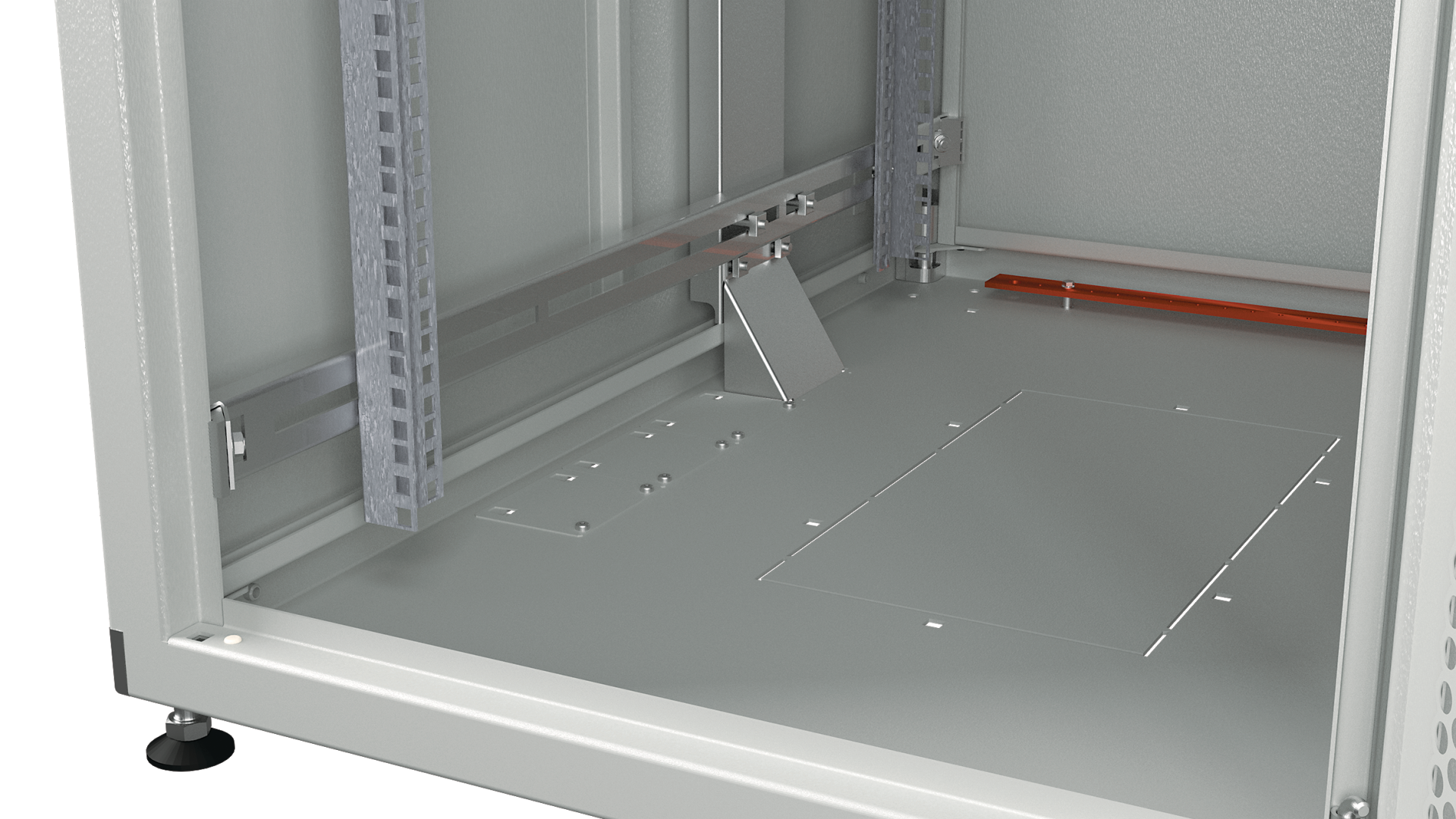

Roof and bottom with covered cutouts for cable entry (left/right) and for accommodation of fan unit PRO-LFD02BT.xx

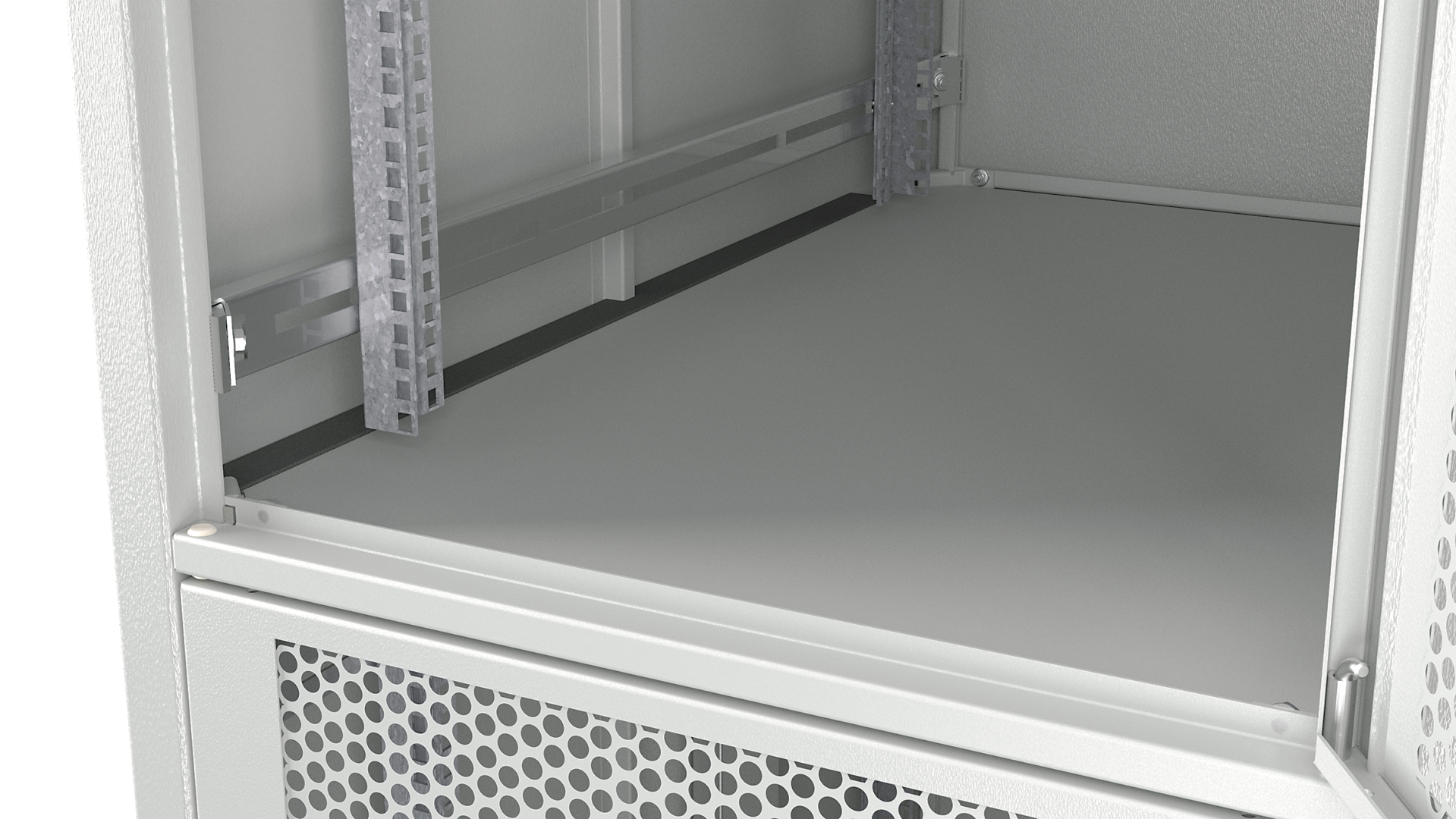

Intermediate bottoms sealed to side walls
Internal earthing of all cabinet parts
Max. load 600 kg
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20
Included accessories: 1 x set of captive nuts (PU 20 pcs.), 4 x Leveling feet M12, 2 x key
Delivery in transport packaging on disposable pallet

Tekniske egenskaber

Cabinet Series: PRO
Degree of protection: IP20
Demountable: True
Material: Steel
Model: With permanent frame
Modular spacing: 482.6 mm (19 inch)
Mounting level: Front and rear
Surface finishing: Powder coating
Type of back door: Steel perforated 1-part
Type of front door: Steel perforated 1-part
Type of profile rail: Crank
Type of ventilation: Passive
With backside door: True
With earthing: True
With front door: True
With roof plate: True
With sidewall: True
With socket: False

Variants

ON Label Color Front door locking system Width Depth Max. load capacity Material front door Rear door locking system Material rear door With vertical cable management Number of height units Height RAL-number Number of doors Suitable Fans Number of Boxes
PRO-CL4-4288TS.P1 Co-Location Rack PRO, 4 x 9U, 800x800 mm, F+R 1-Part Perforated, RAL9005 black One point 800 mm 800 mm 600 kg Steel One point Steel True 4 x 10 U 1963 mm 9005 8 PRO-LFD02BO.xx 4
PRO-CL1-4288TS.P1 19" Co-Location Racks PRO, 800 x 800 mm, F+R 1-Part black One point 800 mm 800 mm 600 kg Steel One point Steel True 1 x 42 U 1963 mm 9005 2 PRO-LFD02BO.xx 1
PRO-CL2-4288GR.P1 19" Co-Location Racks PRO, 800 x 800 mm, F+R 1-Part grey One point 800 mm 800 mm 600 kg Steel One point Steel True 2 x 20 U 1963 mm 7035 4 PRO-LFD02BT.x 2
PRO-CL2-4288TS.P1 19" Co-Location Racks PRO, 800 x 800 mm, F+R 1-Part black One point 800 mm 800 mm 600 kg Steel One point Steel True 2 x 20 U 1963 mm 9005 4 PRO-LFD02BO.xx 2

Sikkerhedsanvisninger


Do not use the device if the cable or plug is damaged. This device may only be used in dry environments. Avoid faulty electrical connections. Only use the device within the specified voltage range. Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation. Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse. Warning: Pay attention to the assembly sequence! Observe the correct assembly sequence, see instructions. Important safety information to prevent accidents and damage during installation: Hazard: If the raised floor is used incorrectly, it may break. Action: Avoid walking on the raised floor unless the correct loads and load specifications are taken into account. Incorrect loading Hazard: Incorrect loading can lead to instability and damage. Action: Ensure that the load is even and prescribed according to the manufacturer's instructions. Enclosure falls due to weight being exceeded Hazard: Exceeding the maximum weight limit can destabilize the enclosure. Action: Check the maximum permissible load of the enclosure and ensure that this is not exceeded. Falling components due to inadequate fastening Hazard: Inadequately fastened components can fall and cause injury. Action: Ensure that all parts are properly and securely assembled. Housing parts breaking out due to incorrect loading Danger: Inadmissible loading leads to material damage and possible housing parts breaking out. Action: Ensure that the load is distributed correctly and that the recommended load is used. Risk of tipping due to uneven floor Danger: An uneven floor can cause the cabinet or device to tip over. Action: Make sure that the surface is level and stable to avoid the risk of tipping. Risk of tipping due to insufficient load-bearing capacity of the surface Danger: Insufficient load-bearing capacity of the surface can encourage the cabinet to tip over. Action: Check the load-bearing capacity of the surface before installation and ensure that it can safely support the weight. Cabinet can tip over if heavy server unit is pulled forward Danger: Pulling heavy server units forward can cause the cabinet to tip over. Action: Always secure cabinets and server units with suitable brackets and seek assistance when handling heavy equipment. Risk of tipping over with heavy cooling unit without safety measures Hazard: Improper fastening of cooling units to external brackets can cause the cabinet or device to tip over. Action: Secure cooling units with suitable devices to prevent tipping. Side walls fall off - sash lock not used correctly Hazard: Incorrectly used sash locks can cause the side walls of the cabinet to fall off. Action: Regularly check that all sash locks are correctly and securely fitted. Load capacity not provided Hazard: An insufficient load capacity can destabilise the system. Action: Before installation, check the load capacity information and ensure that the base and the shelves are sufficiently stable. Inadequate fastening when fitting accessories Hazard: Loosely fitted accessories can fall down dangerously. Action: Fasten all accessories carefully and regularly check them for strength. Insufficient wall statics - housing falls down Danger: Insufficient wall statics can cause the housing to fall down. Action: Before installation, make sure that the wall has sufficient static load-bearing capacity and that the housing can be installed safely. Injury from falling attachments Danger: Insufficiently secured attachments can fall down and cause injuries. Action: Make sure that all attachments are correctly secured and check them regularly. Warning: Do not exceed the load capacity! If the specified load capacity is exceeded, serious injuries may occur due to instability of the product.
