19" Network Cabinet 24U 800x800, GDPR
19" Network Cabinet 24U 800x800, DSGVO, RAL7035
Varenummer:
692724DSGVO.GR
EAN-nr.:
4049759258481
Produktinformation til 19" Network Cabinet 24U 800x800, DSGVO, RAL7035
19" network-/server cabinet according to DIN 41494
Steel sheet housing with welded frame, completely pre-assembled
Completely closed construction, no intrusion possible
Pre-assembled plinth 100 mm
Inside 4 x 19" profiles (2 front, 2 rear-sided), galvanised, depth-adjustable in 25 mm raster
Numbering of rack units at the profiles

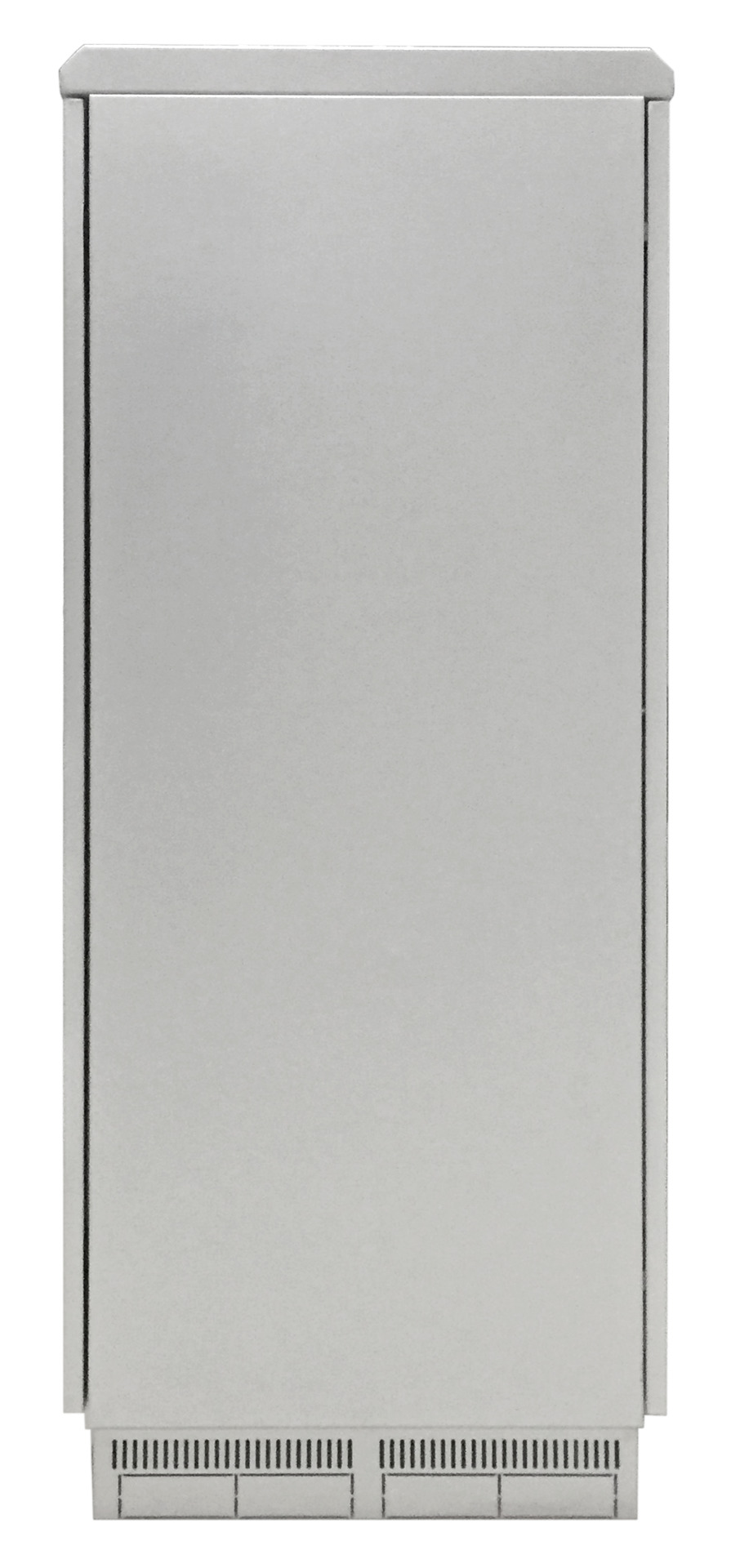

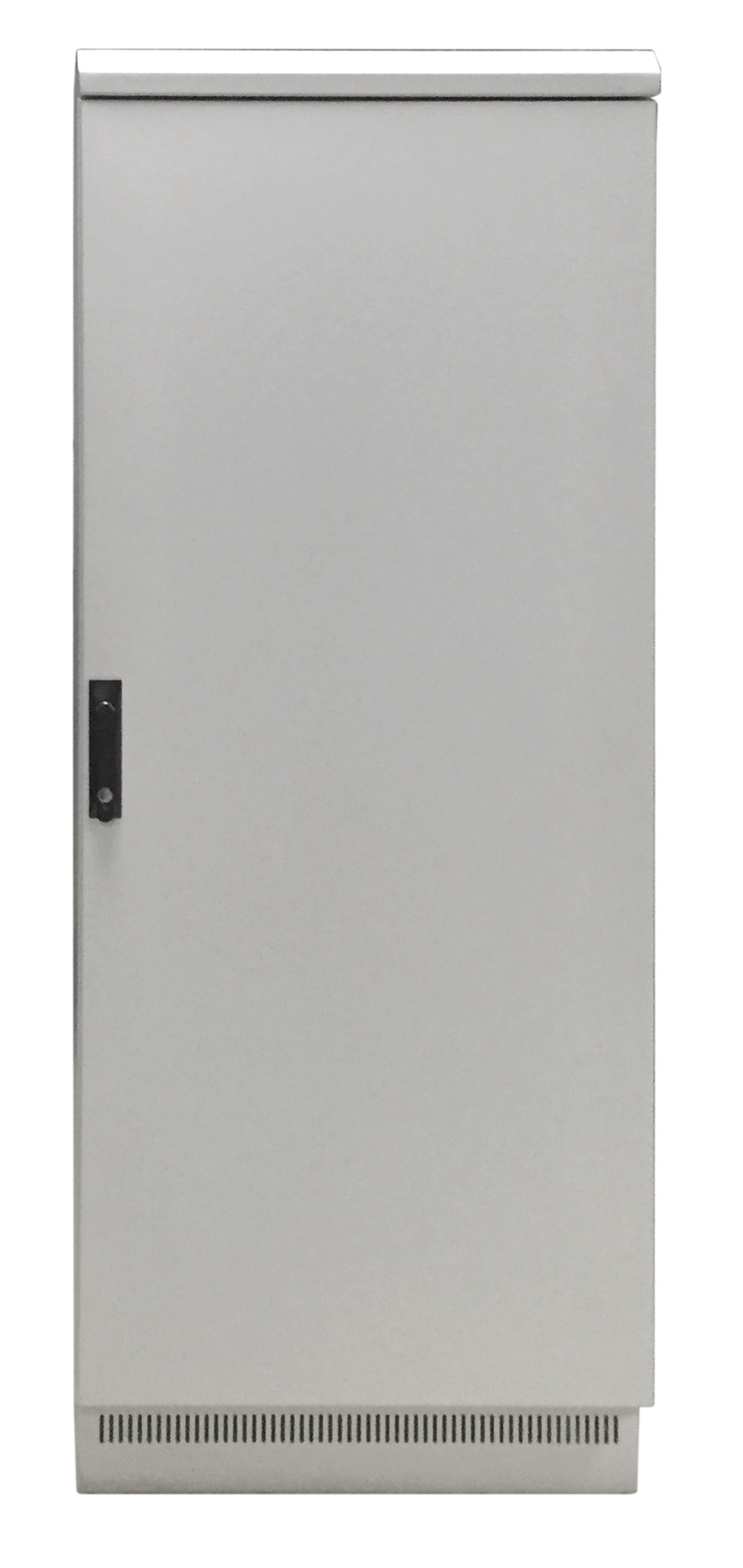

Front- and rear door steel, 1-part
Front- and rear door with 2-point bar-locking, lockable
Front- and rear door with door opening angle > 120°
Side walls closed, not detachable

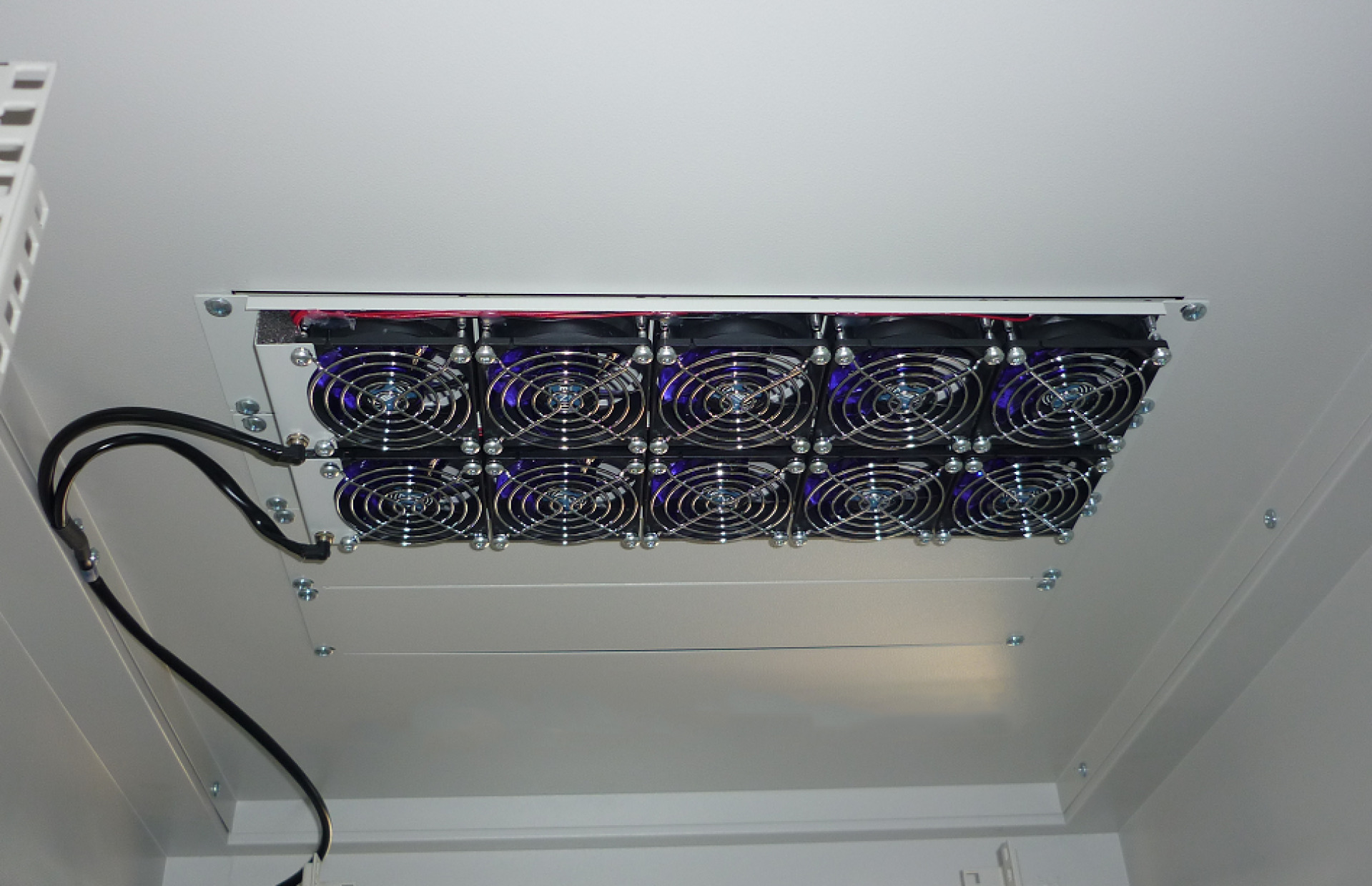

Inner roof with out-blowing Silent fans

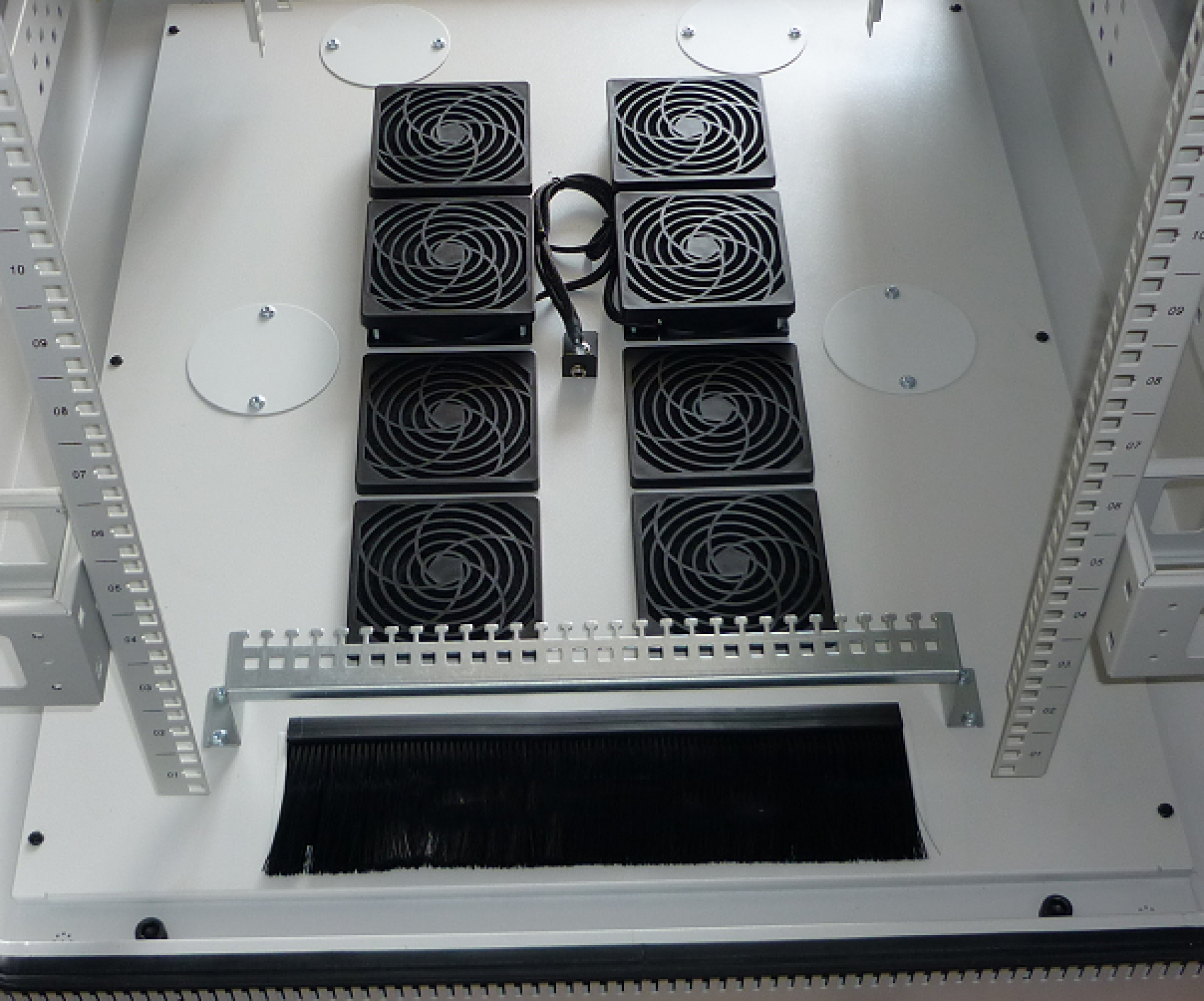

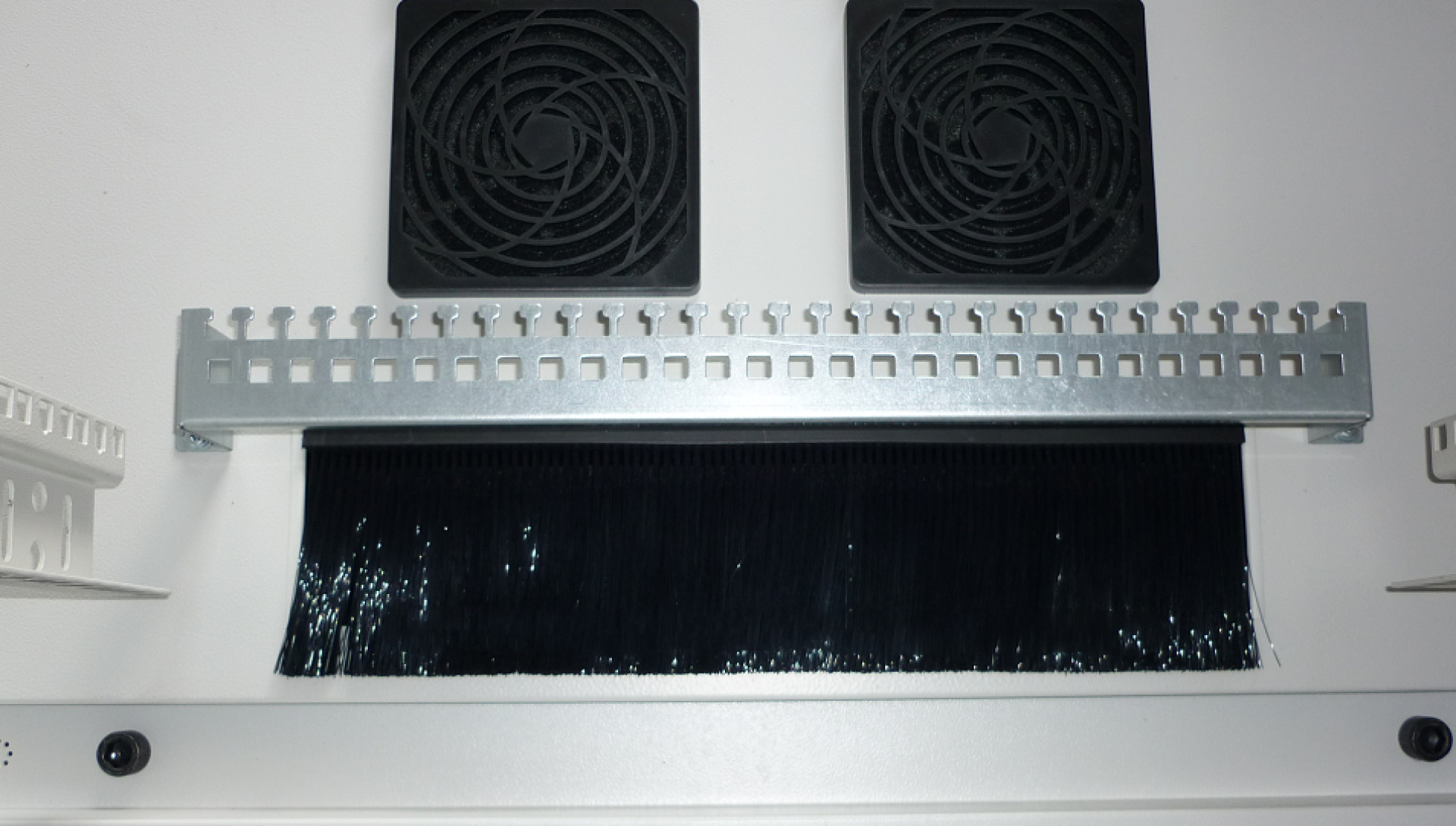

Bottom with cable entry and cable clamping rail
Bottom sheet with in-blowing fans
2 vertical cable managements with hinged cover rear-sided left and right
Power distribution unit socket strip with 8 x CEE7/3 outlets
All cabinet parts inside completely grounded
Max. load 1000 kg static
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP55
Included access: 1 x cage nut set (PU 20 pcs.), plinth pre-assembled, 2 x key
Delivery in transport packaging
Steel sheet housing with welded frame, completely pre-assembled
Completely closed construction, no intrusion possible
Pre-assembled plinth 100 mm
Inside 4 x 19" profiles (2 front, 2 rear-sided), galvanised, depth-adjustable in 25 mm raster
Numbering of rack units at the profiles
Front- and rear door steel, 1-part
Front- and rear door with 2-point bar-locking, lockable
Front- and rear door with door opening angle > 120°
Side walls closed, not detachable
Inner roof with out-blowing Silent fans
Bottom with cable entry and cable clamping rail
Bottom sheet with in-blowing fans
2 vertical cable managements with hinged cover rear-sided left and right
Power distribution unit socket strip with 8 x CEE7/3 outlets
All cabinet parts inside completely grounded
Max. load 1000 kg static
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP55
Included access: 1 x cage nut set (PU 20 pcs.), plinth pre-assembled, 2 x key
Delivery in transport packaging
Tekniske egenskaber
| Degree of protection: | IP55 |
|---|---|
| Demountable: | False |
| Material: | Steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front and rear |
| Number of cartons: | 1 |
| Surface finishing: | Powder coating |
| Type of back door: | Steel door 1-part |
| Type of front door: | Steel door 1-part |
| Type of ventilation: | Active |
| With backside door: | True |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
| With socket: | True |
Variants
| ON | Label | Width | Depth | Number of height units | Color | Height | RAL-number | Number of doors | |
|---|---|---|---|---|---|---|---|---|---|
| 692724DSGVO.GR | 19" Network Cabinet 24U 800x800, DSGVO, RAL7035 | 800 mm | 800 mm | 24 U | grey | 1360 mm | 7035 | 2 | |
| 692724DSGVO.TS | 19" Network Cabinet 42U 800x800, GDPR, RAL9005 | 800 mm | 800 mm | 24 U | black | 1360 mm | 9005 | 2 |
Sikkerhedsanvisninger
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
