19" Network Cabinet 24U 800x800, IP55, RAL9005
19" Network Cabinet 24U 800x800, IP55, with Pre-Assembled Plinth, RAL9005
Varenummer:
692724IP55.TS
EAN Nr.:
4049759185954
Produktinformation til 19" Network Cabinet 24U 800x800, IP55, with Pre-Assembled Plinth, RAL9005
19" Network cabinet according to DIN 41494
Steel sheet housing with welded frame, completely pre-assembled
Pre-assembled plinth 100 mm
Inside front and rear 4 x 19" profiles (2 front, 2 rear-sided), galvanised, depth-adjustable in 25 mm raster
Numbering of rack units at the 19" profiles
Front an rear door steel, 1-part

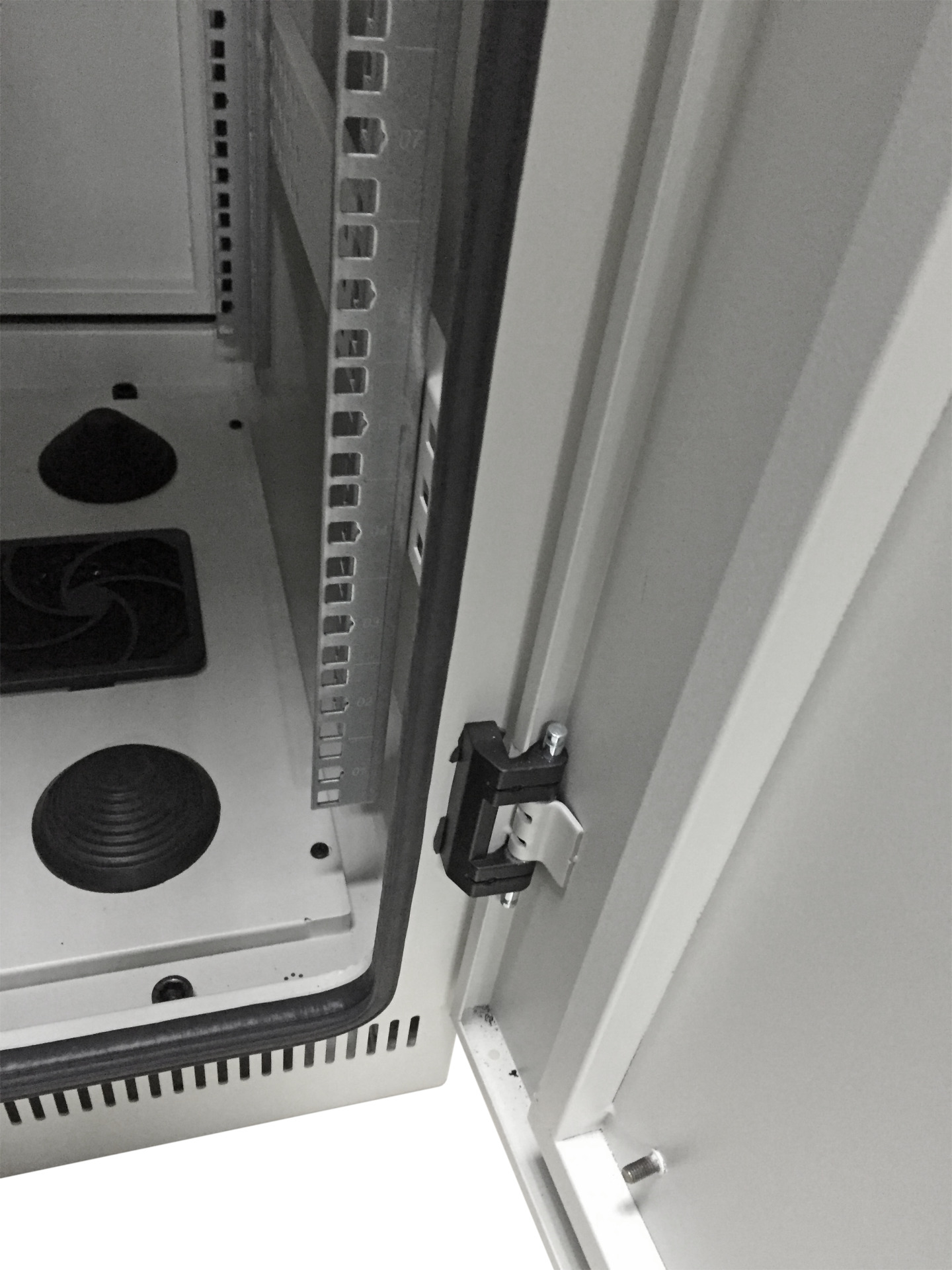

Front and rear door with 3-point locking with turning handle, lockable
Door opening angle front and rear > 120°
Side walls not detachable
Inner roof pre-punched openings for fan units

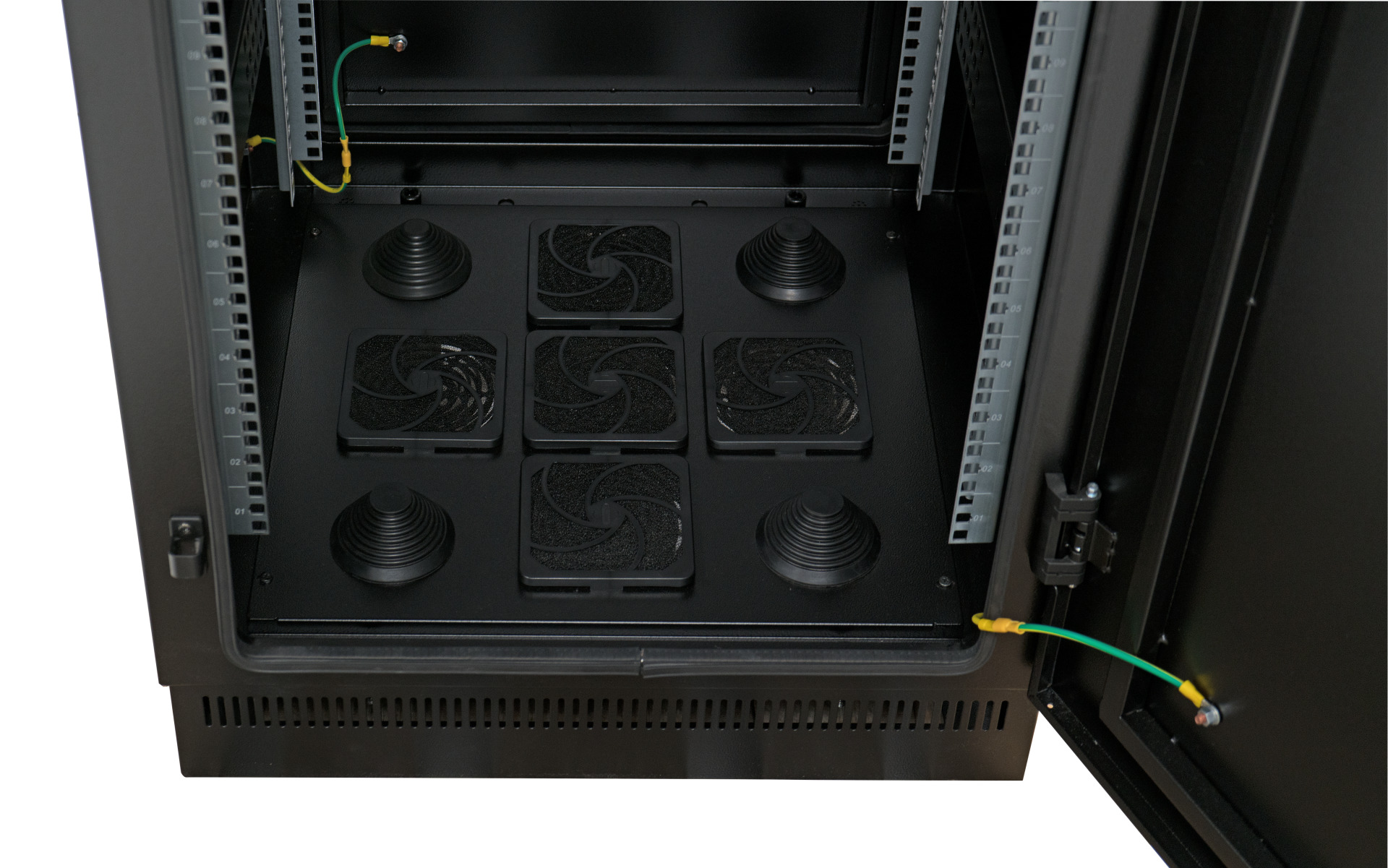

Bottom prepared with air inlet filters and rubber grommets Ø 80 mm for cable entry
Internal earthing of all cabinet sections
Max. load 1000 kg
Paint finish RAL9005, jet black
Protection degree IP55
Included accessories: 1 x set of captive nuts (PU 20 pcs.), pre-installed plinth, 2 x key
Delivery in transport packaging on disposable pallet
Steel sheet housing with welded frame, completely pre-assembled
Pre-assembled plinth 100 mm
Inside front and rear 4 x 19" profiles (2 front, 2 rear-sided), galvanised, depth-adjustable in 25 mm raster
Numbering of rack units at the 19" profiles
Front an rear door steel, 1-part
Front and rear door with 3-point locking with turning handle, lockable
Door opening angle front and rear > 120°
Side walls not detachable
Inner roof pre-punched openings for fan units
Bottom prepared with air inlet filters and rubber grommets Ø 80 mm for cable entry
Internal earthing of all cabinet sections
Max. load 1000 kg
Paint finish RAL9005, jet black
Protection degree IP55
Included accessories: 1 x set of captive nuts (PU 20 pcs.), pre-installed plinth, 2 x key
Delivery in transport packaging on disposable pallet
Tekniske egenskaber
Degree of protection: | IP55 |
---|---|
Demountable: | False |
Material: | steel |
Model: | With permanent frame |
Modular spacing: | 482.6 mm (19 inch) |
Mounting level: | Front and rear |
Surface finishing: | Powder coating |
Type of back door: | Steel door 1-part |
Type of front door: | Steel door 1-part |
Type of ventilation: | Passive |
With backside door: | True |
With earthing: | True |
With front door: | True |
With roof plate: | True |
With sidewall: | True |
With socket: | True |
