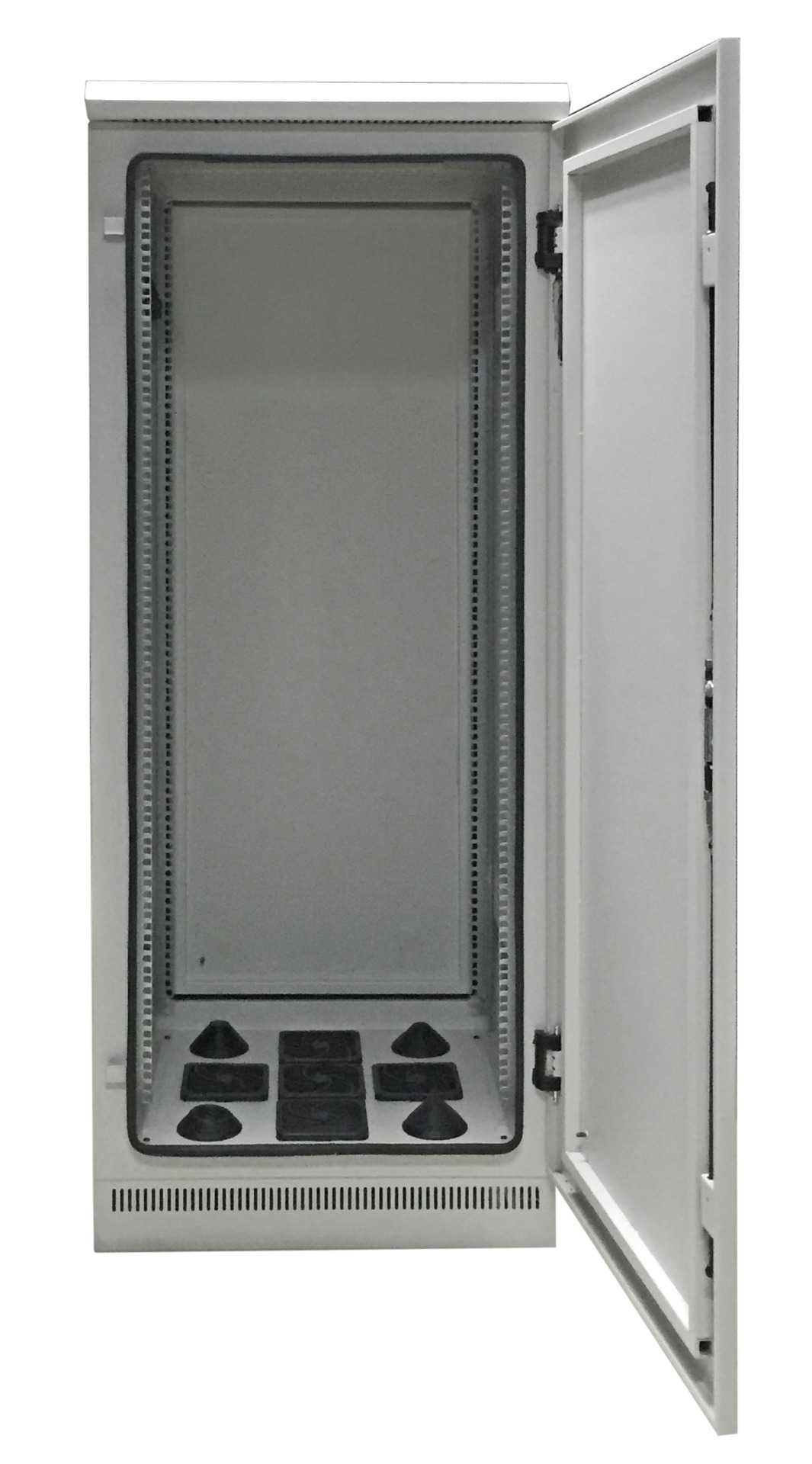

19" Network Cabinet 42U 800x800, IP55, RAL7035

Priser kun synlige for indloggede brugere

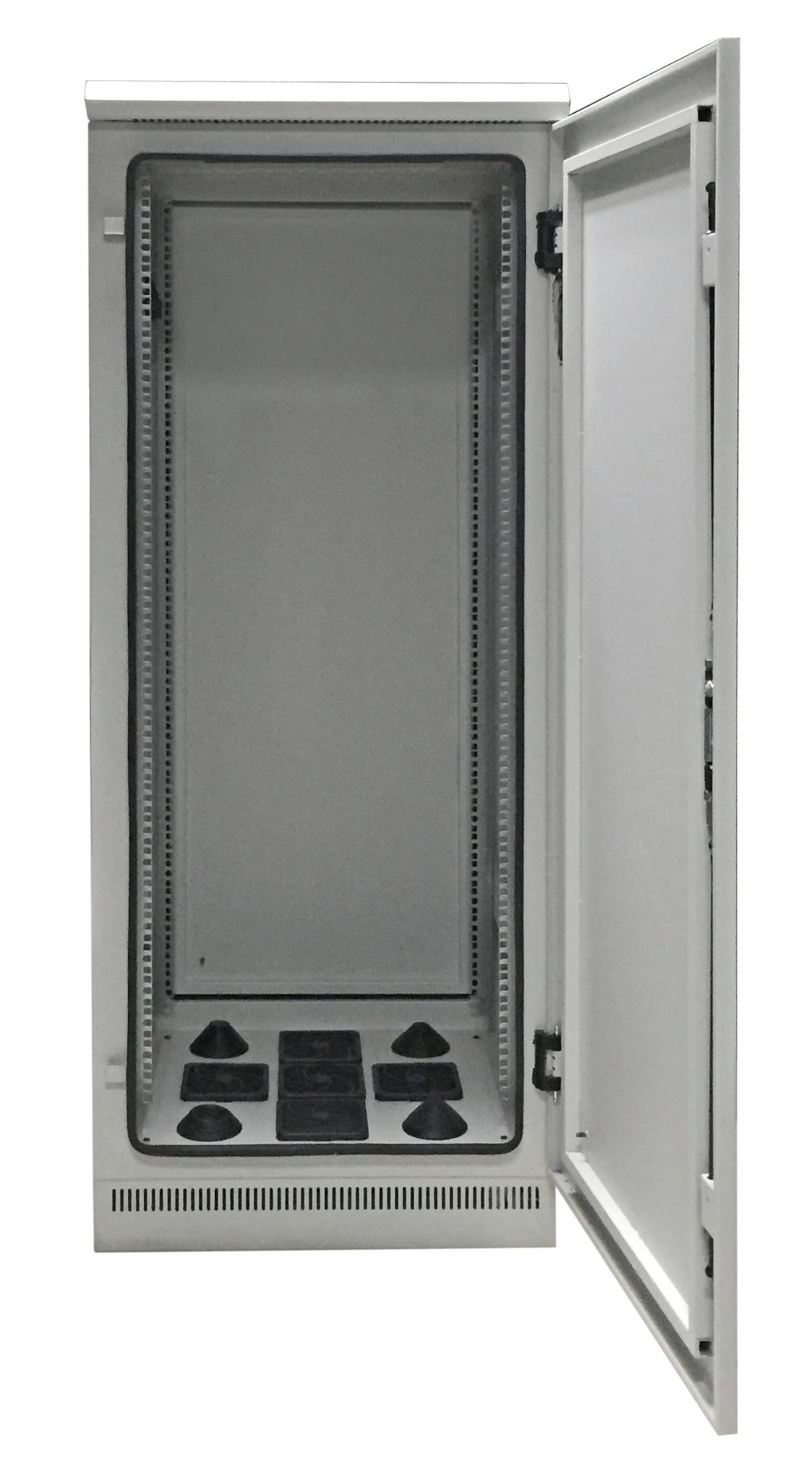

19" Network Cabinet 42U 800x800, IP55, with Pre-Assembled Plinth, RAL7035
Varenummer: 691742IP55.GR
EAN nr.: 4049759185886
Piece

Produktinformation für 19" Network Cabinet 42U 800x800, IP55, with Pre-Assembled Plinth, RAL7035

19" Network cabinet according to DIN 41494
Steel sheet housing with welded frame, completely pre-assembled
Pre-assembled plinth 100 mm
Inside front and rear 4 x 19" profiles (2 front, 2 rear-sided), galvanised, depth-adjustable in 25 mm raster
Numbering of rack units at the 19" profiles

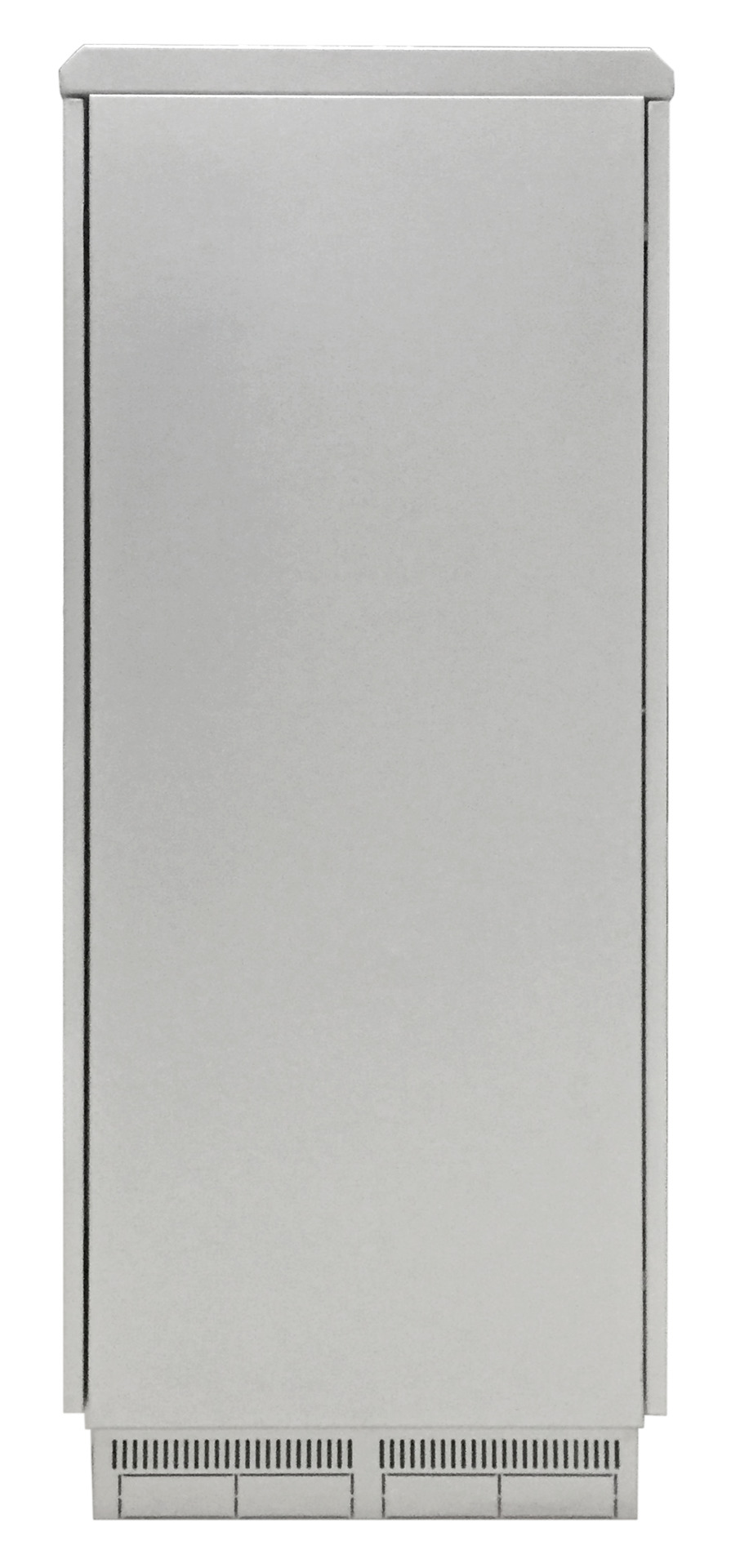

Front an rear door steel, 1-part

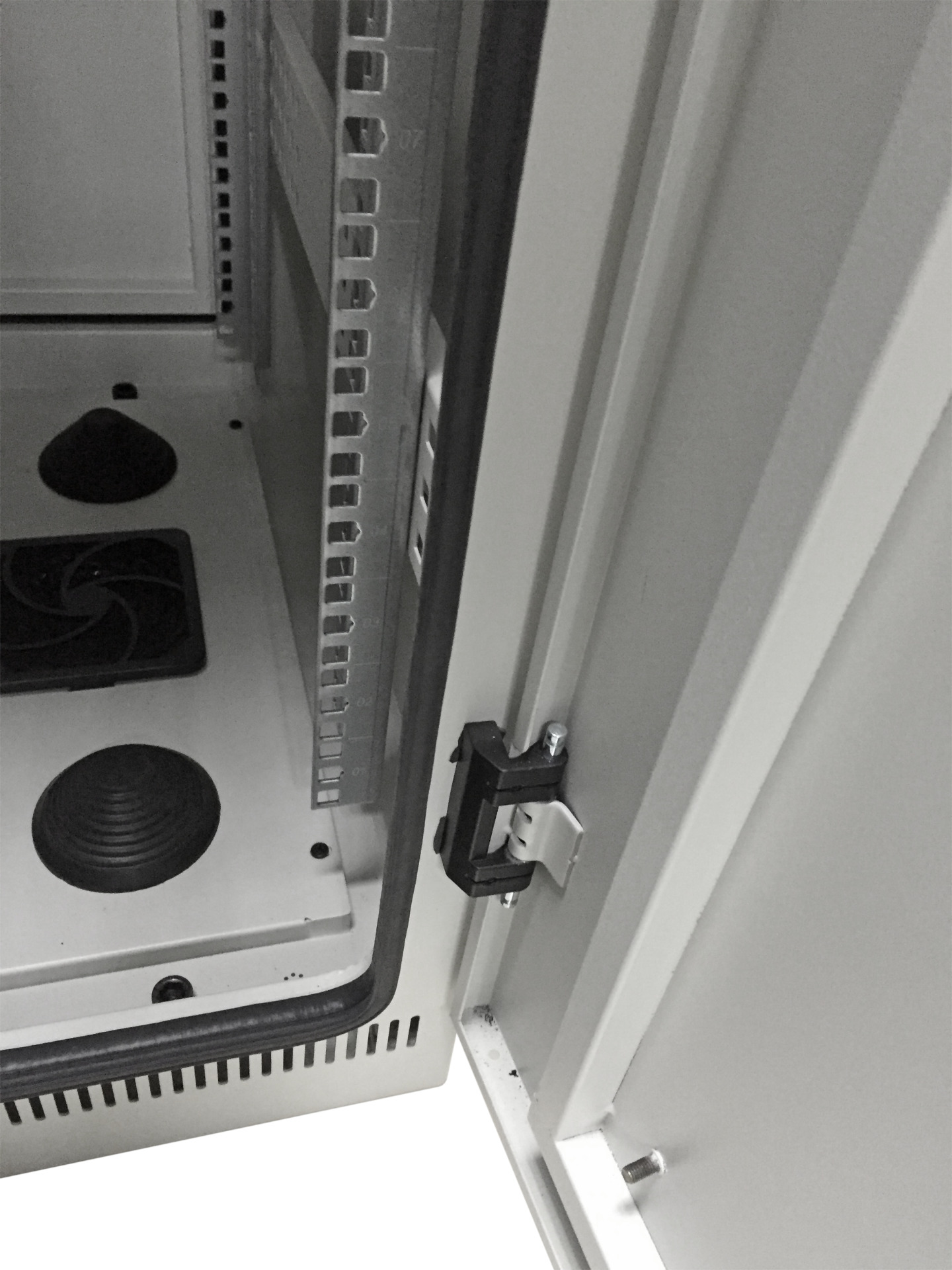

Front and rear door with 2-point locking with turning handle, lockable

Door opening angle front and rear > 120°
Side walls not detachable
Inner roof pre-punched openings for fan units CLASSIC

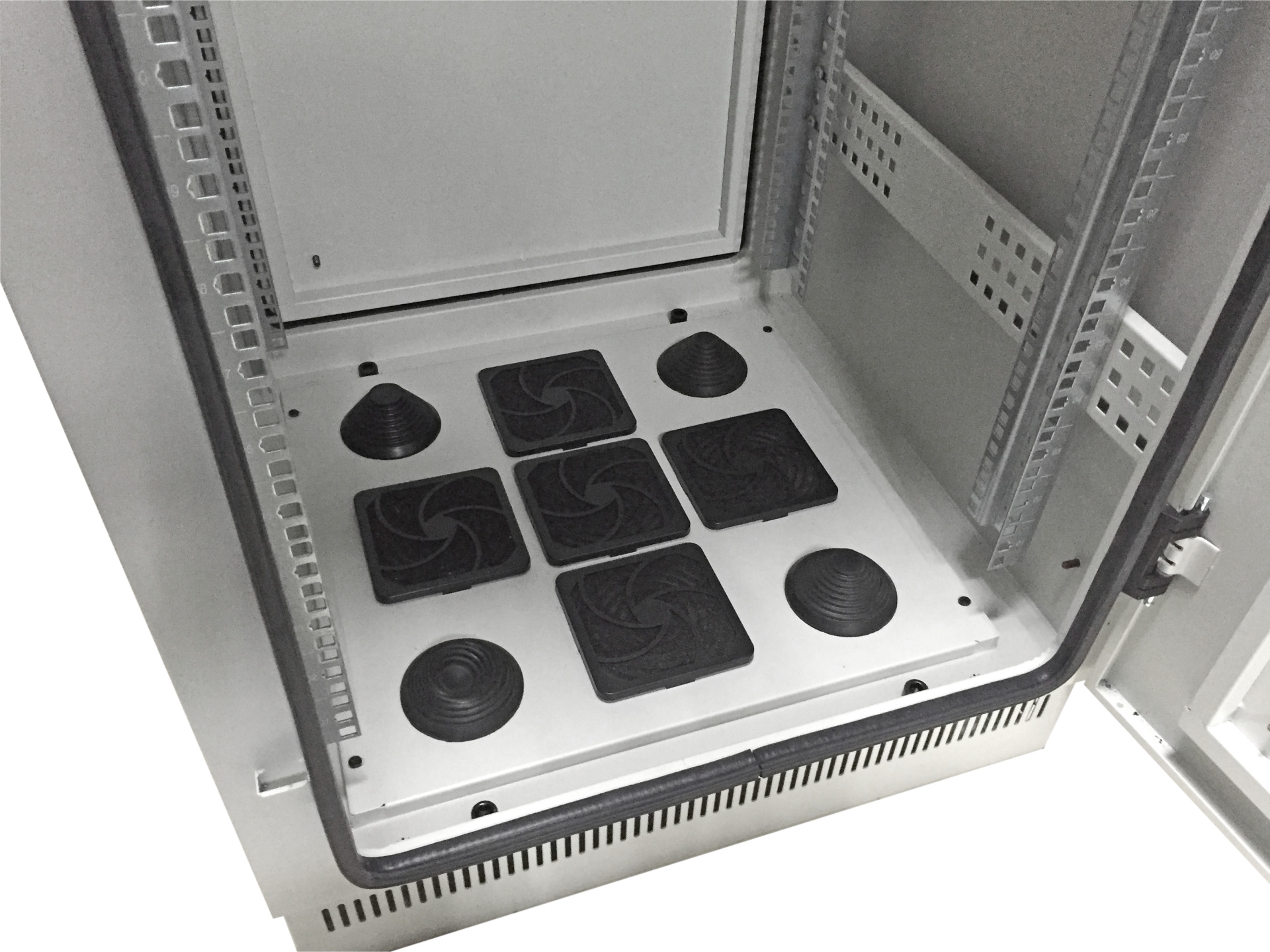

Bottom prepared with air inlet filters and rubber grommets Ø 80 mm for cable entry
Internal earthing of all cabinet sections
Max. load 1000 kg
Paint finish RAL7035, light grey
Protection degree IP55
Included accessories: 1 x set of captive nuts (PU 20 pcs.), pre-installed plinth, 2 x key
Delivery in transport packaging on disposable pallet

Tekniske egenskaber

Degree of protection: IP55
Demountable: False
Material: steel
Model: With permanent frame
Modular spacing: 482.6 mm (19 inch)
Mounting level: Front and rear
Surface finishing: Powder coating
Type of back door: Steel door 1-part
Type of front door: Steel door 1-part
Type of ventilation: Passive
With backside door: True
With earthing: True
With front door: True
With roof plate: True
With sidewall: True
With socket: True
