19'' Network Cabinet PEL RAL7035
Produktinformation til 19''Network Cabinet PEL 42HE 800x1000 RAL7035 front glass 1-pc. rear steel 1-pc
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable
Inside front and rear 4 x 19“ profiles (2 front, 2 rear-sided), powder-coated, depth-adjustable in steps of 20 mm
Uprising numbering of rack units at the 19“ profiles
Front door 1-part, with window of certified safety glass (thickness 5 mm)
Front door with 1-point turning handle, lockable
Rear door 1-part, steel sheet, with 1 x latch locking (lock equal to front door)
Door stop for font and rear door possible left- or right-sided, door opening angle > 180°
Detachable side walls with 2 x quick release and 1 x latch locking (lock equal to door lock)
Cabinets stackable side-by-side with and without removal of side walls, baying set Art.-No. PEL-ANR01

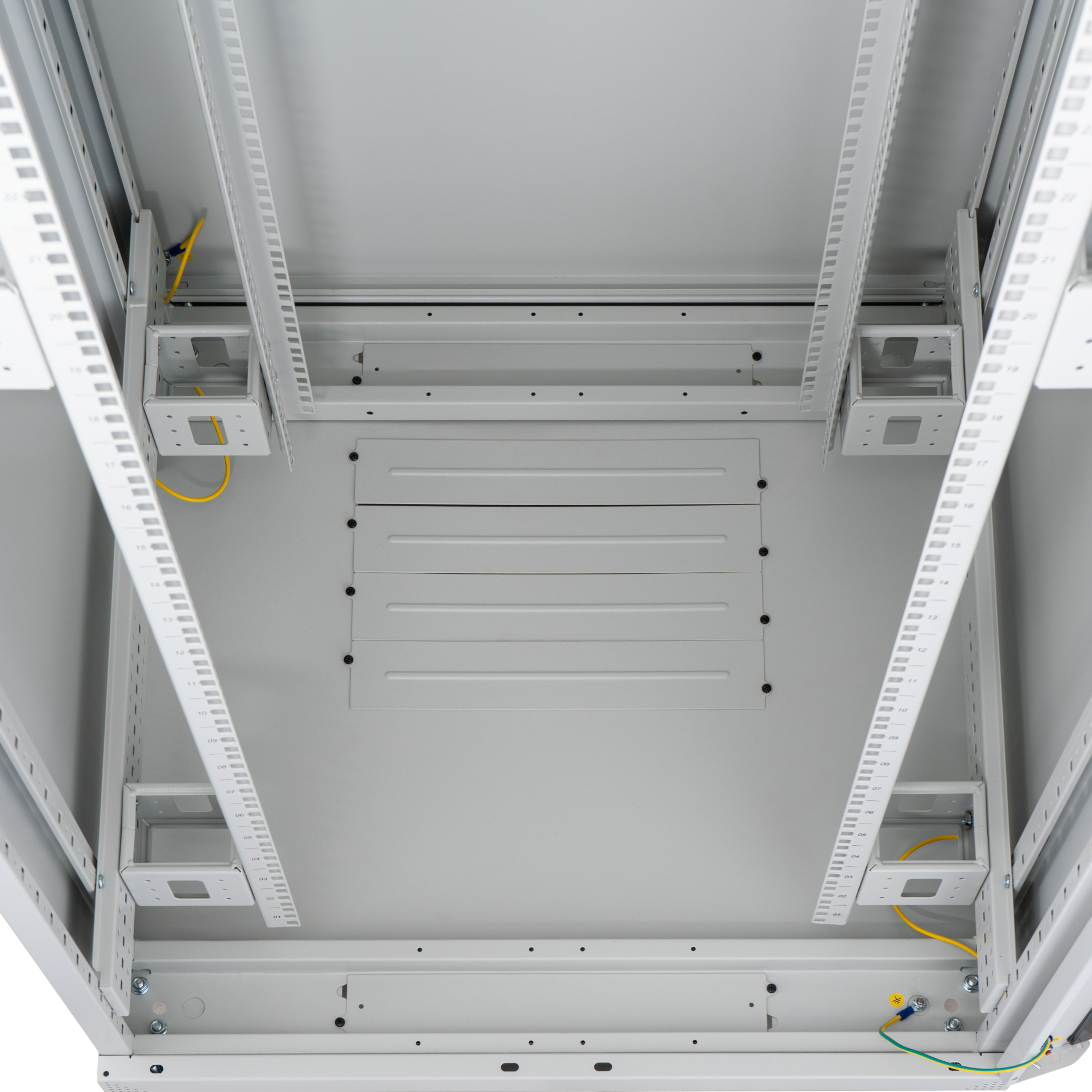

Roof and bottom with 2 pre-punched openings for cable entry (386 x 69 mm)

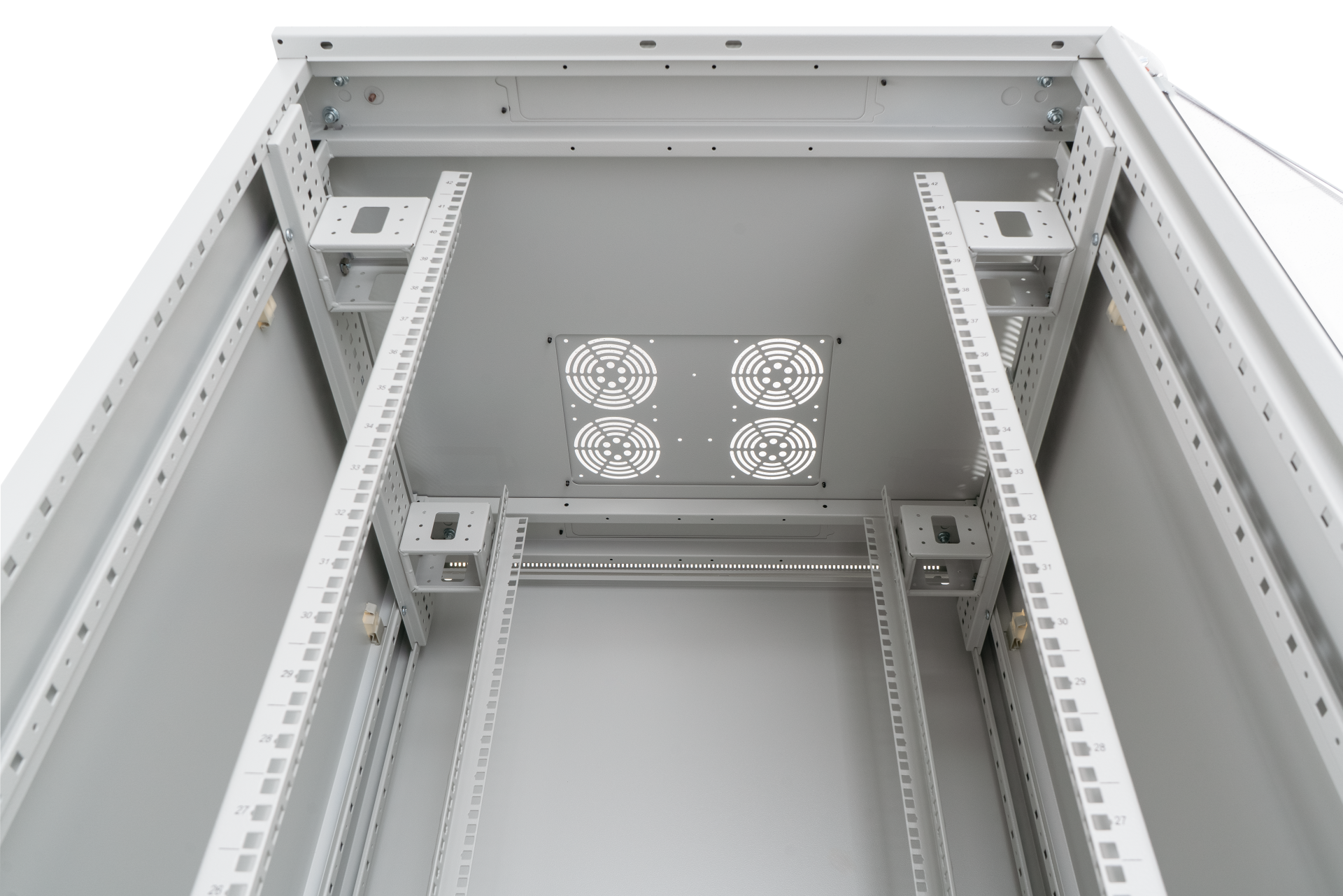

Roof and bottom prepared for accommodation of 4-fan unit Art.-No. PEL-LFD04ET.GR
Cable entries and fan openings covered with screwed covers
Internal earthing of all cabinet sections
Max. load 800 kg for static equally distributed load
Protection degree IP20
Paint finish RAL7035, light grey
Included accessories: 4 x leveling feet, set of captive nuts (PU 40 pcs. for 42U, 20 pcs. for 24U), keys
Tekniske egenskaber
| Active air conditioning: | False |
|---|---|
| Cabinet Series: | PEL |
| Cable entry roof/floor: | Roof and base each 2 screwed openings (front, rear), each 386 x 69 mm (re-sealable with pre-mounted blanking plates) |
| Category: | 19" network cabinet according to DIN41494 |
| Degree of protection: | IP20 according to EN60529 |
| Demountable: | True |
| Door hinge reversible front door: | True |
| Door hinge reversible rear door: | True |
| Door opening angle front door: | 180 ° |
| Door opening angle rear door: | 180 ° |
| Frame: | screwed together, completely pre-assembled |
| Material: | Steel |
| Model: | With permanent frame |
| Modular spacing: | 482,6 mm (19 inch) |
| Mounting level: | Front and rear |
| PHC replaceable front door: | False, |
| PHC replaceable rear door: | False |
| Packaging: | Delivery in transport packaging on a disposable pallet |
| Scope of delivery: | 1x cabinet, 4 x leveling feet, cage nut set (20 pieces), key |
| Stackable: | True |
| Surface finishing: | powder coating |
| Type of back door: | Steel door 1-part |
| Type of front door: | Glass door 1-part (certified safety glass, glass thickness 4 mm) |
| Type of profile rail: | Crank |
| Type of ventilation: | Passive |
| With backside door: | True |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
| With socket: | False |
Variants
| ON | Label | Depth | Rear door locking system | Color | Front door locking system | Width | Max. load capacity | Material rear door | With vertical cable management | Material front door | Number of height units | Height | RAL-number | Number of doors | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PEL-2466GR.G1SV | 19''Network Cabinet PEL 24HE 600x600 RAL7035 front glass 1-pc. rear steel 1-pc | 600 mm | 1-point latch locking mechanism | grey | 1-point latch locking mechanism with swivel lever | 600 mm | 800 kg | Steel | False | Glass | 24 HE | 1200 mm | 7035 | 2 | |
| PEL-4266GR.G1SV | 19''Network Cabinet PEL 42HE 600x600 RAL7035 front glass 1-pc. rear steel 1-pc | 600 mm | 1-point latch locking mechanism | grey | 1-point latch locking mechanism with swivel lever | 600 mm | 800 kg | Steel | False | Glass | 42 HE | 2000 mm | 7035 | 2 | |
| PEL-4288GR.G1SV | 19''Network Cabinet PEL 42HE 800x800 RAL7035 front glass 1-pc. rear steel 1-pc | 800 mm | 1-point latch locking mechanism | grey | 1-point latch locking mechanism with swivel lever | 800 mm | 800 kg | Steel | False | Glass | 42 HE | 2000 mm | 7035 | 2 | |
| PEL-4280GR.G1SV | 19''Network Cabinet PEL 42HE 800x1000 RAL7035 front glass 1-pc. rear steel 1-pc | 1000 mm | 1-point latch locking mechanism | grey | 1-point latch locking mechanism with swivel lever | 800 mm | 800 kg | Steel | False | Glass | 42 HE | 2000 mm | 7035 | 2 |
