19" Server Cabinets PRO, 800x800 mm, 1+2-Part Doors

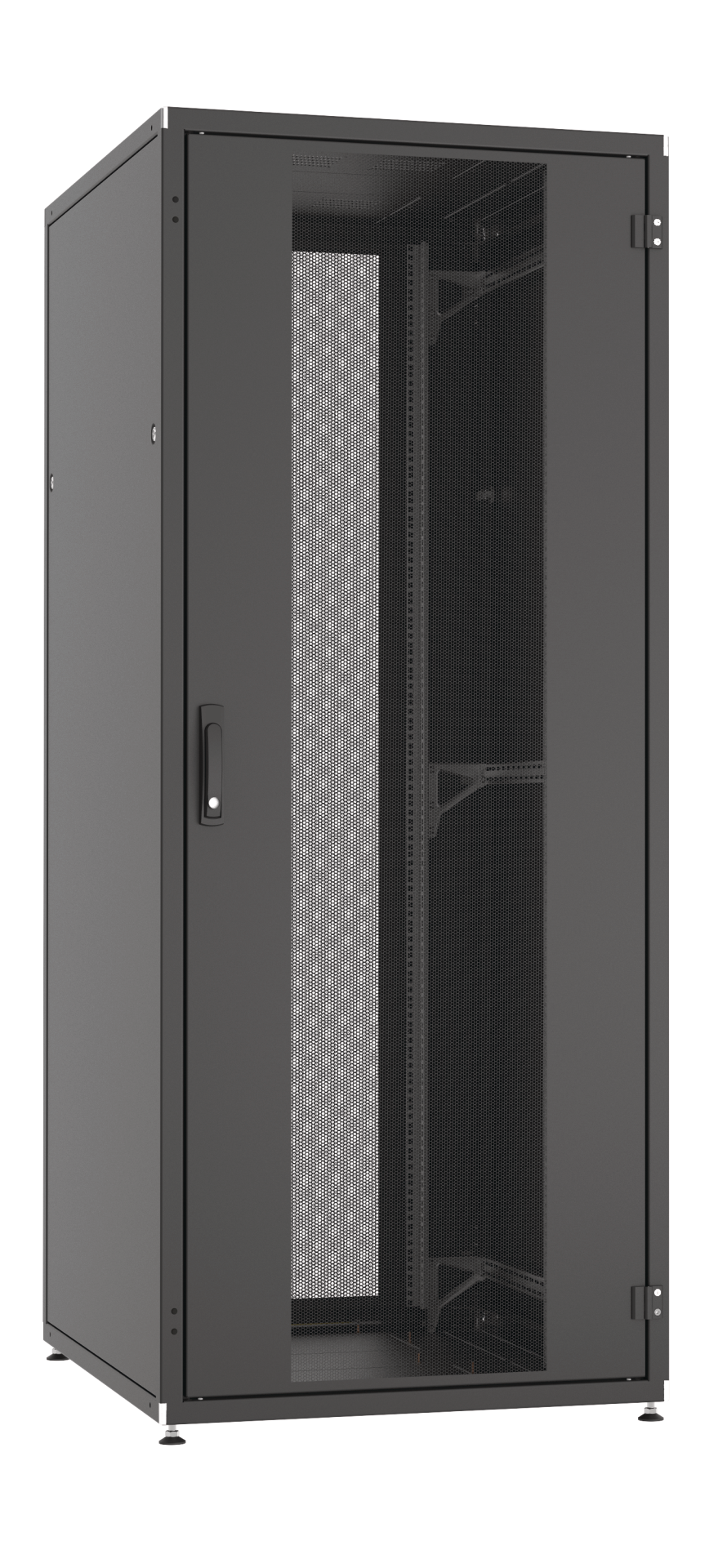

19" Server Cabinet PRO 42U, 800x800 mm, F=1-Part R=2-Part, RAL9005
Varenummer:
PRO-4288TS.P1P2
EAN Nr.:
4049759226008
Produktinformation til 19" Server Cabinet PRO 42U, 800x800 mm, F=1-Part R=2-Part, RAL9005
19" server cabinet according to DIN41494
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable

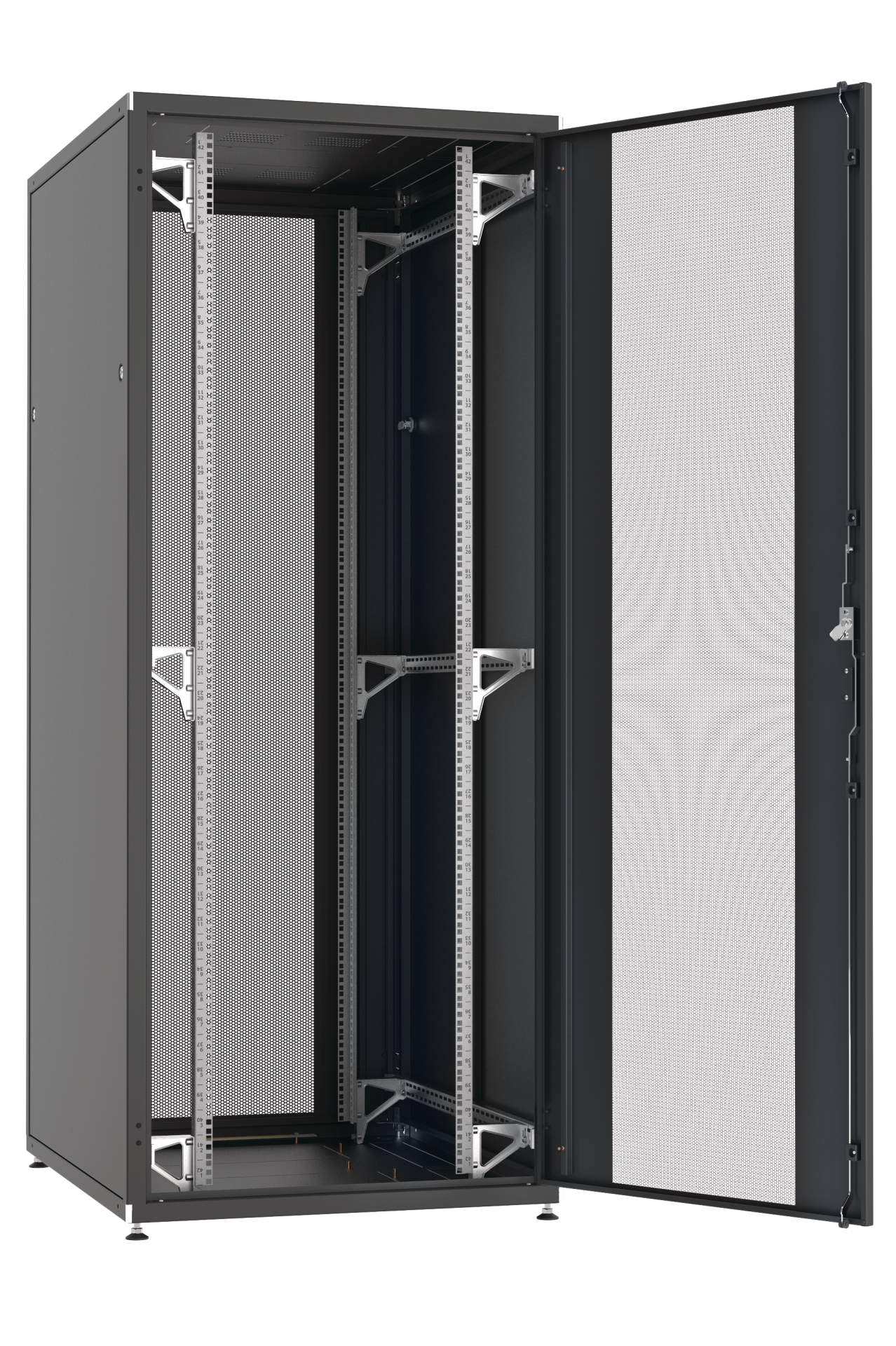

Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Front and rear door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop for front and rear door possible left- or right-sided
Detachable side walls with 2 x latch locking (lock equal to the door lock)
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6
Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear

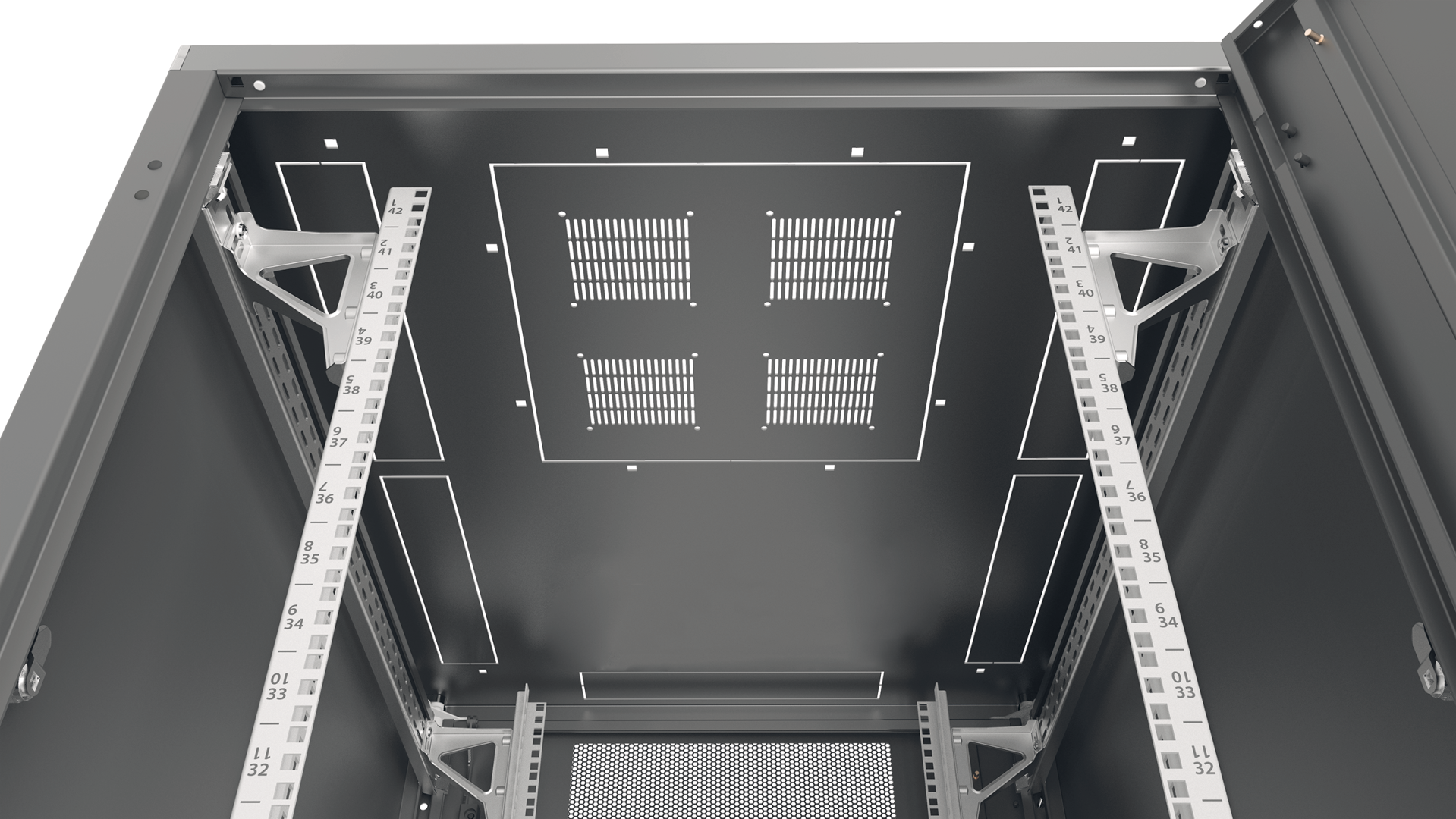

Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 20 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey
Protection degree IP20
Included accessories: 1 x brush, 1 x set of captive nuts (PU 20 pcs.), earthing bar and earthing cables, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Front and rear door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop for front and rear door possible left- or right-sided
Detachable side walls with 2 x latch locking (lock equal to the door lock)
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6
Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear
Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 20 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey
Protection degree IP20
Included accessories: 1 x brush, 1 x set of captive nuts (PU 20 pcs.), earthing bar and earthing cables, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Tekniske egenskaber
| Degree of protection: | IP20 |
|---|---|
| Demountable: | True |
| Material: | Steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front and rear |
| Number of cartons: | 1 |
| Surface finishing: | Powder coating |
| Type of back door: | Steel perforated 2-part |
| Type of front door: | Steel perforated 1-part |
| Type of profile rail: | Crank |
| Type of ventilation: | Passive |
| With backside door: | True |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
| With socket: | False |
Varianten
| Art. Nr. | Bezeichnung | Width | Depth | Max. load capacity | Front door locking system | Color | Rear door locking system | Material front door | Material rear door | With vertical cable management | With glazed door | Number of height units | Height | RAL-number | Number of doors | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO-2488GR.P1P2 | 19" Server Cabinet PRO 24U, 800x800 mm, F=1-Part R=2-Part, RAL7035 | 800 mm | 800 mm | 1000 kg | Three-point | grey | Three-point | Steel | Steel | False | False | 24 U | 1163 mm | 7035 | 2 | |
| PRO-4288GR.P1P2 | 19" Server Cabinet PRO 42U, 800x800 mm, F=1-Part R=2-Part, RAL7035 | 800 mm | 800 mm | 1000 kg | Three-point | grey | Three-point | Steel | Steel | False | False | 42 U | 1963 mm | 7035 | 2 | |
| PRO-4288TS.P1P2 | 19" Server Cabinet PRO 42U, 800x800 mm, F=1-Part R=2-Part, RAL9005 | 800 mm | 800 mm | 1000 kg | Three-point | black | Three-point | Steel | Steel | False | False | 42 U | 1963 mm | 9005 | 2 | |
| PRO-4788TS.P1P2 | 19" Server Cabinet PRO 47U, 800x800 mm, F=1-Part R=2-Part, RAL9005 | 800 mm | 800 mm | 1000 kg | Three-point | black | Three-point | Steel | Steel | False | False | 47 U | 2186 mm | 9005 | 2 |
Sikkerhedsanvisninger
Do not use the device if the cable or plug is damaged. This device may only be used in dry environments. Avoid faulty electrical connections. Only use the device within the specified voltage range.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
