19" Server Cabinets PRO, 800x1000 mm, 1+2-Part Doors

Priser kun synlige for indloggede brugere

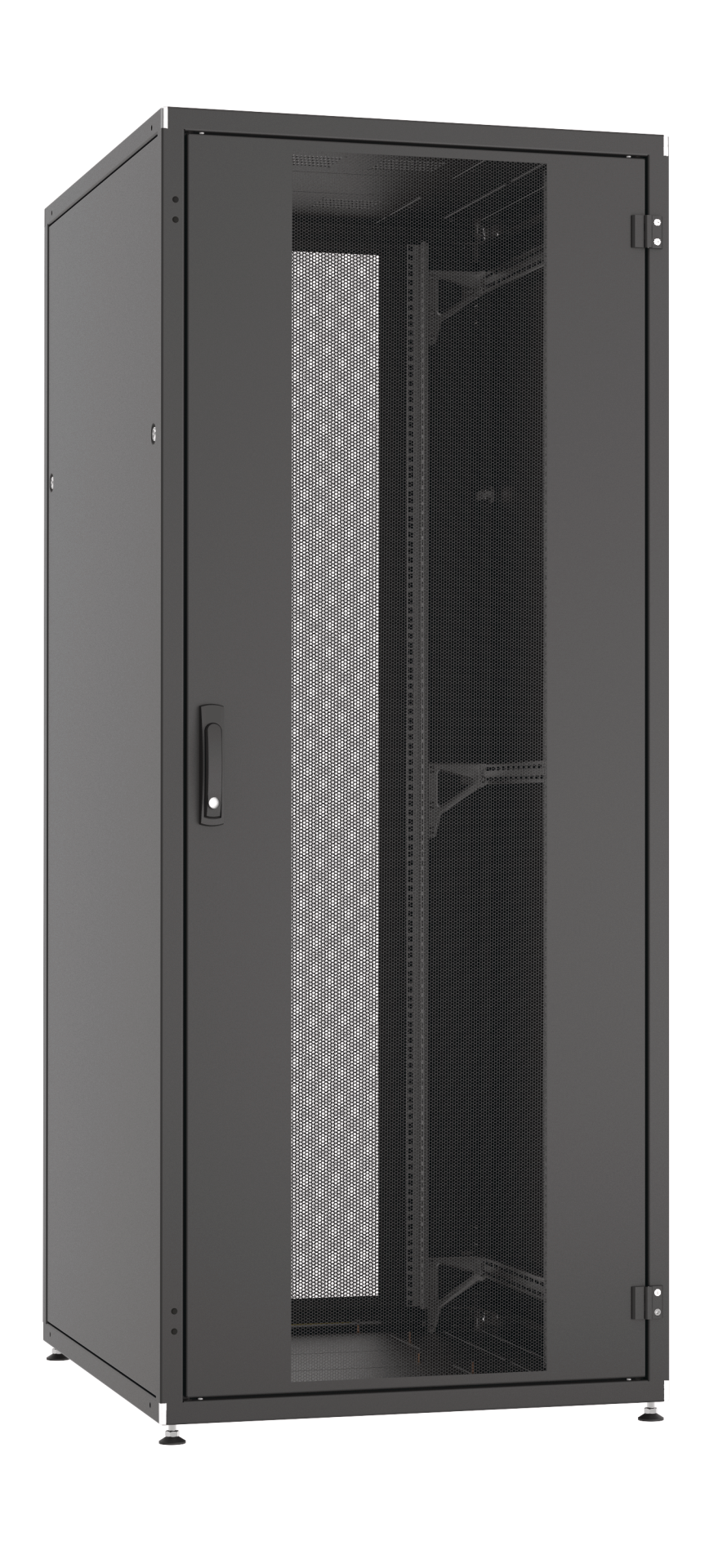

19" Server Cabinet PRO 47U, 800x1000 mm, F=1-P R=2-P, RAL9005
Varenummer: PRO-4780TS.P1P2
EAN nr.: 4049759218577
Piece

Produktinformation für 19" Server Cabinet PRO 47U, 800x1000 mm, F=1-P R=2-P, RAL9005

19" server cabinet according to DIN41494
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable

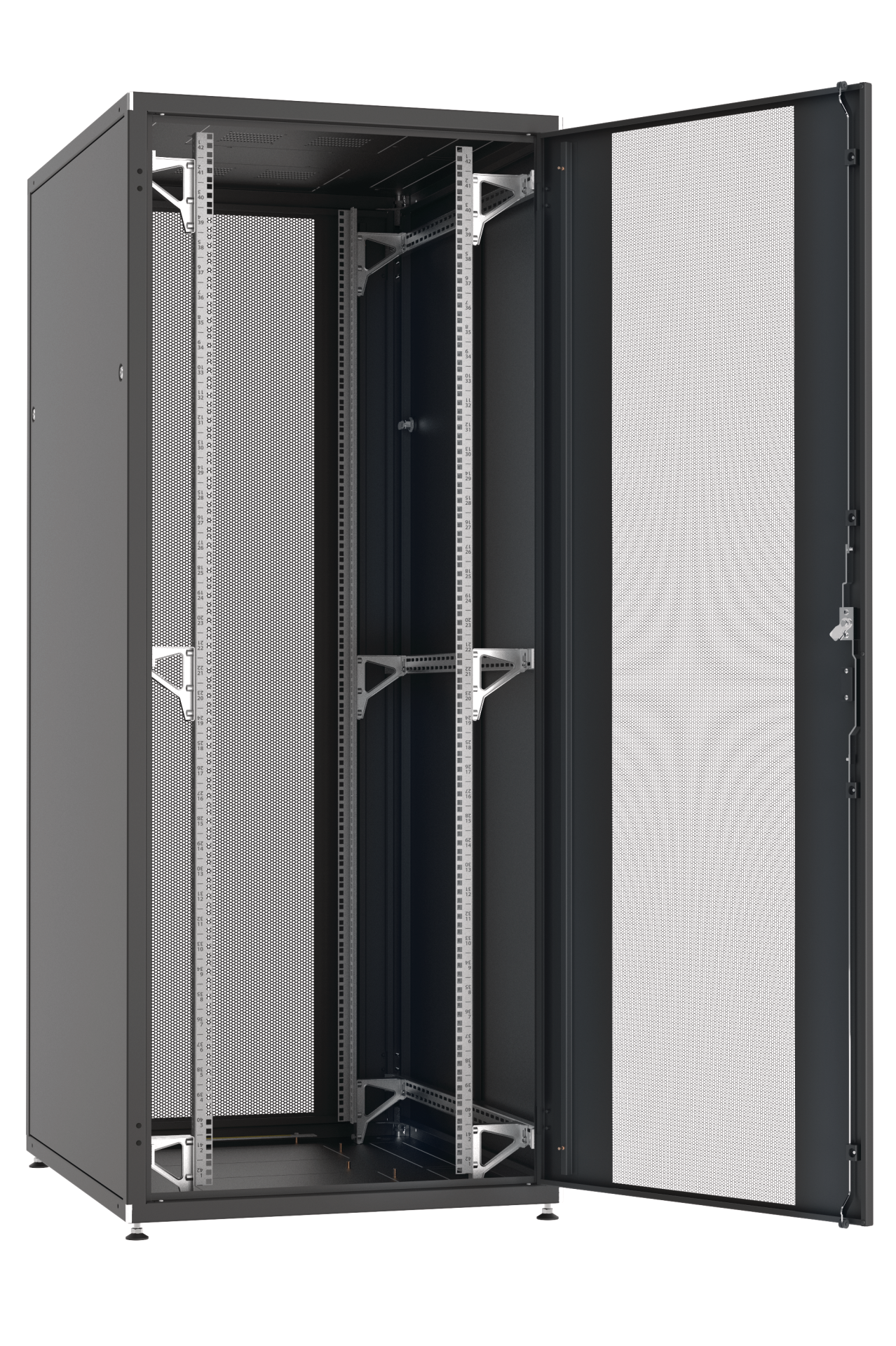

Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Front and rear door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop for front and rear door possible left- or right-sided
Detachable side walls with 2 x latch locking (lock equal to the door lock)
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6
Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear

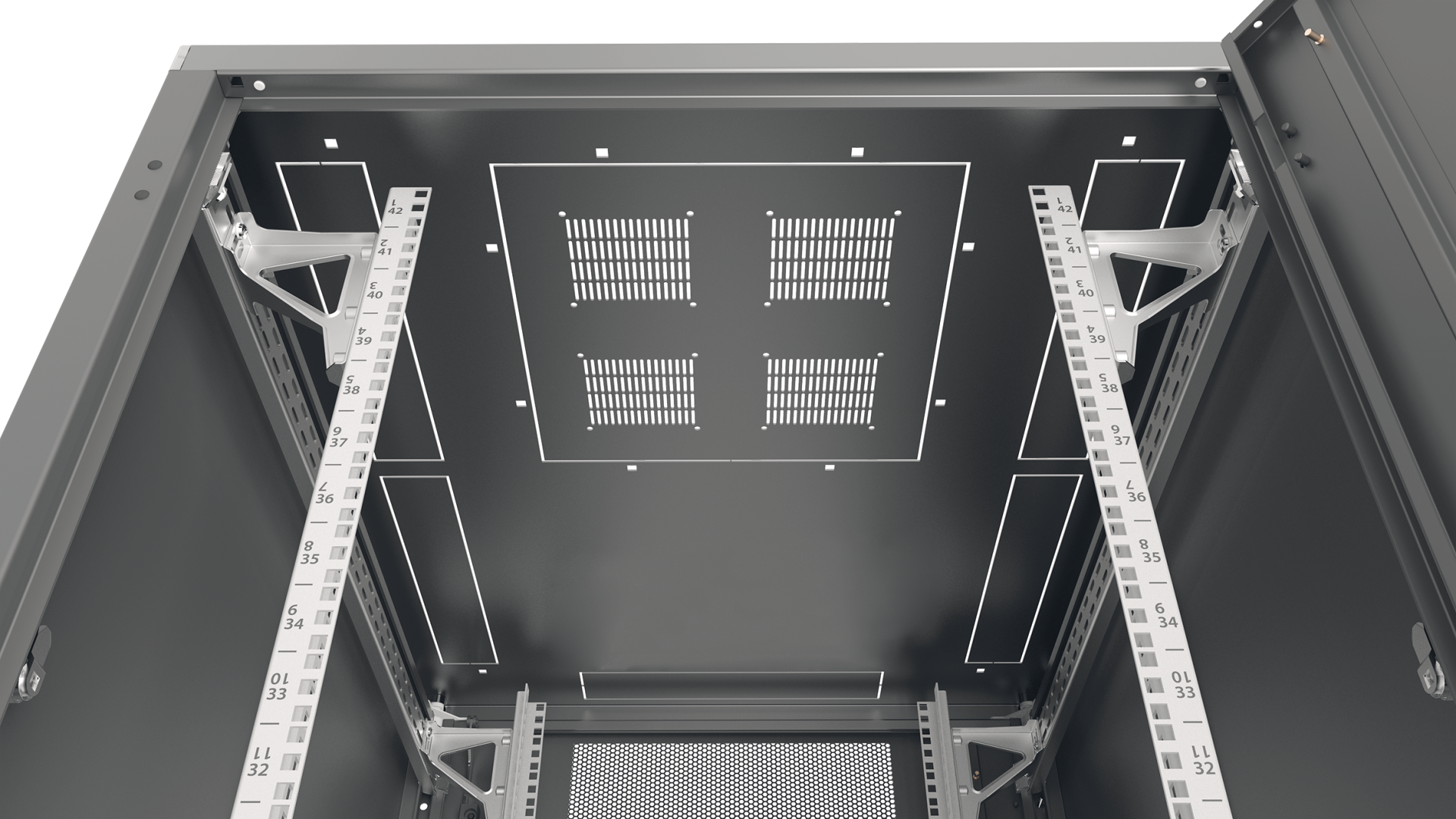

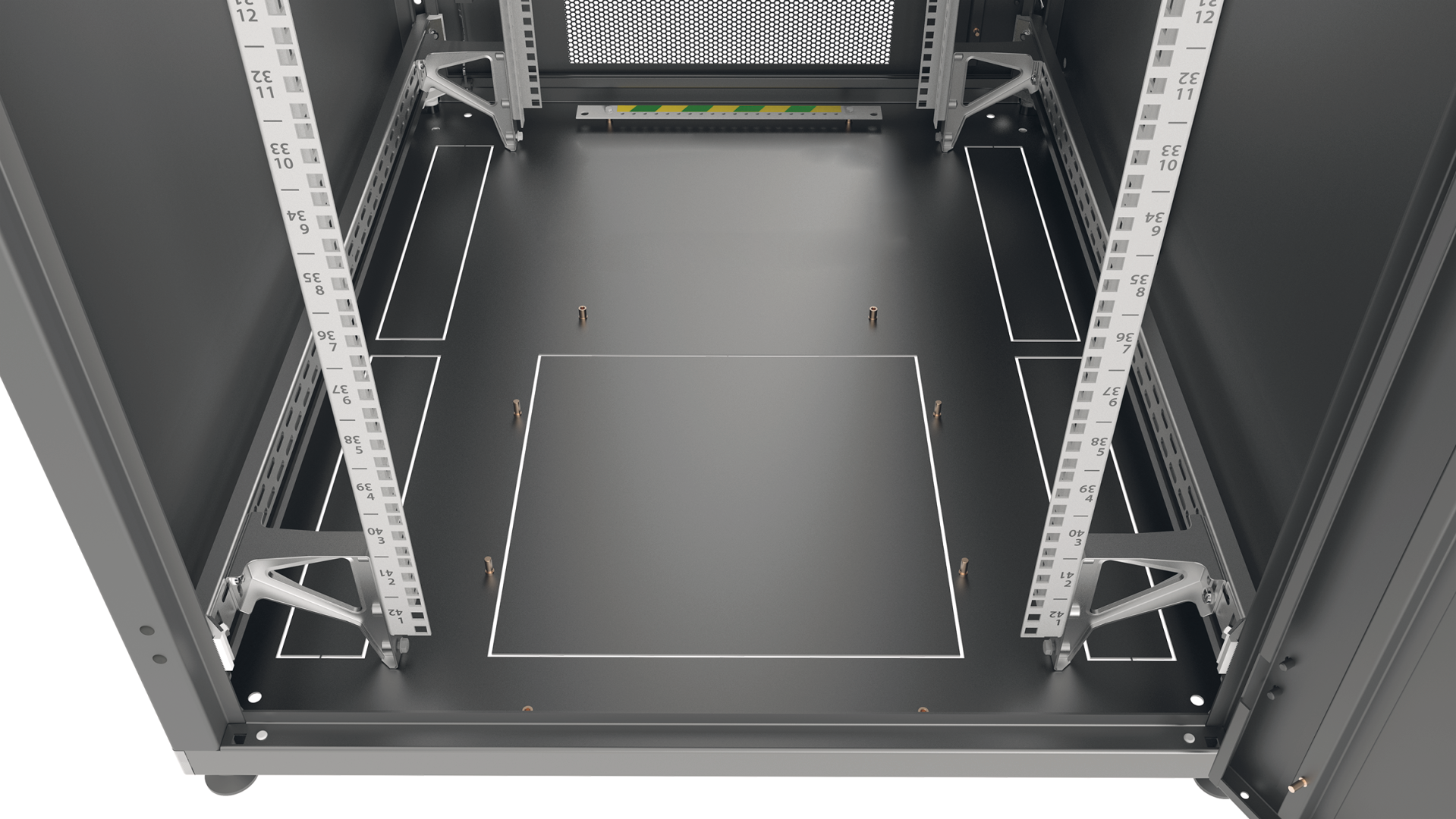

Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 20 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey
Protection degree IP20
Included accessories: 1 x brush, 1 x set of captive nuts (PU 20 pcs.), earthing bar and earthing cables, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet

Tekniske egenskaber

Degree of protection: IP20
Demountable: True
Material: steel
Model: With permanent frame
Modular spacing: 482,6 mm (19 inch)
Mounting level: Front and rear
Surface finishing: With powder coating
Type of back door: Steel perforated 2-part
Type of front door: Steel perforated 1-part
Type of profile rail: Crank
Type of ventilation: Passive
With backside door: True
With earthing: True
With front door: True
With roof plate: True
With sidewall: True
With socket: False

Varianter

Art. Nej. Betegnelse Depth Width With vertical cable management Material rear door With glazed door Colour Front door locking system Number of height units Material front door Max. load capacity Rear door locking system Height RAL-number Number of doors
PRO-4280TS.P1P2 19" Server Cabinet PRO 42U, 800x1000 mm, F=1-P R=2-P, RAL9005 1000 mm 800 mm False Steel False black Three-point 42 U Steel 1360 kg Three-point 1963 mm 9005 2
PRO-4780TS.P1P2 19" Server Cabinet PRO 47U, 800x1000 mm, F=1-P R=2-P, RAL9005 1000 mm 800 mm False Steel False black Three-point 47 U Steel 1360 kg Three-point 2186 mm 9005 2
