19“ Wall Housings Fixed, 1-Part, Depth 800 mm, RAL9005

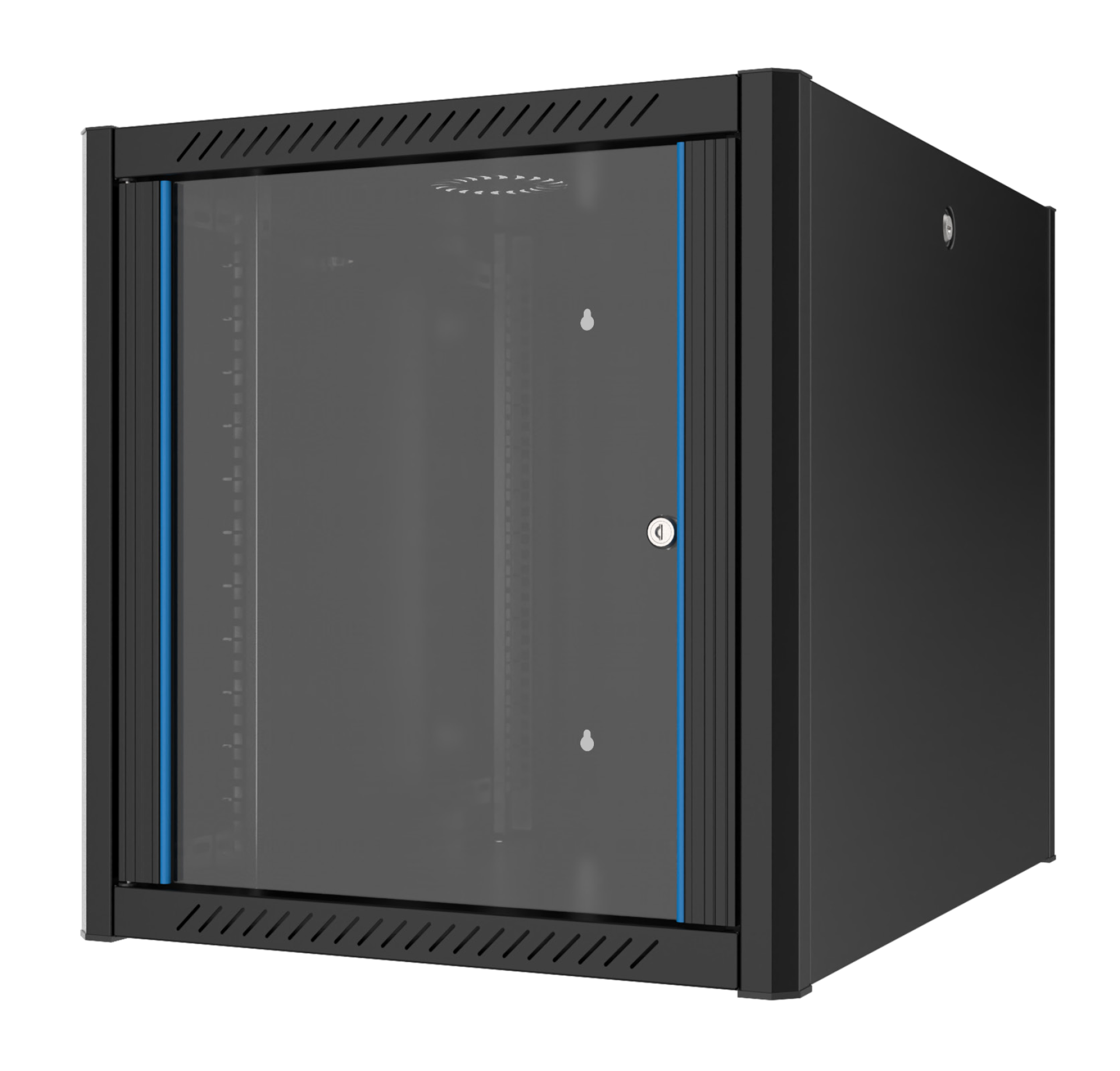

19“ Wall Housing 12U, Depth 800 mm, Pre-Assembled, RAL9005
Varenummer:
691912TS.80
Produktinformationen für 19“ Wall Housing 12U, Depth 800 mm, Pre-Assembled, RAL9005
Steel sheet housing with screwed frame, pre-assembled, self-ventilated, detachable
Prepared for plug & play fan unit Art.-No. 691656GR

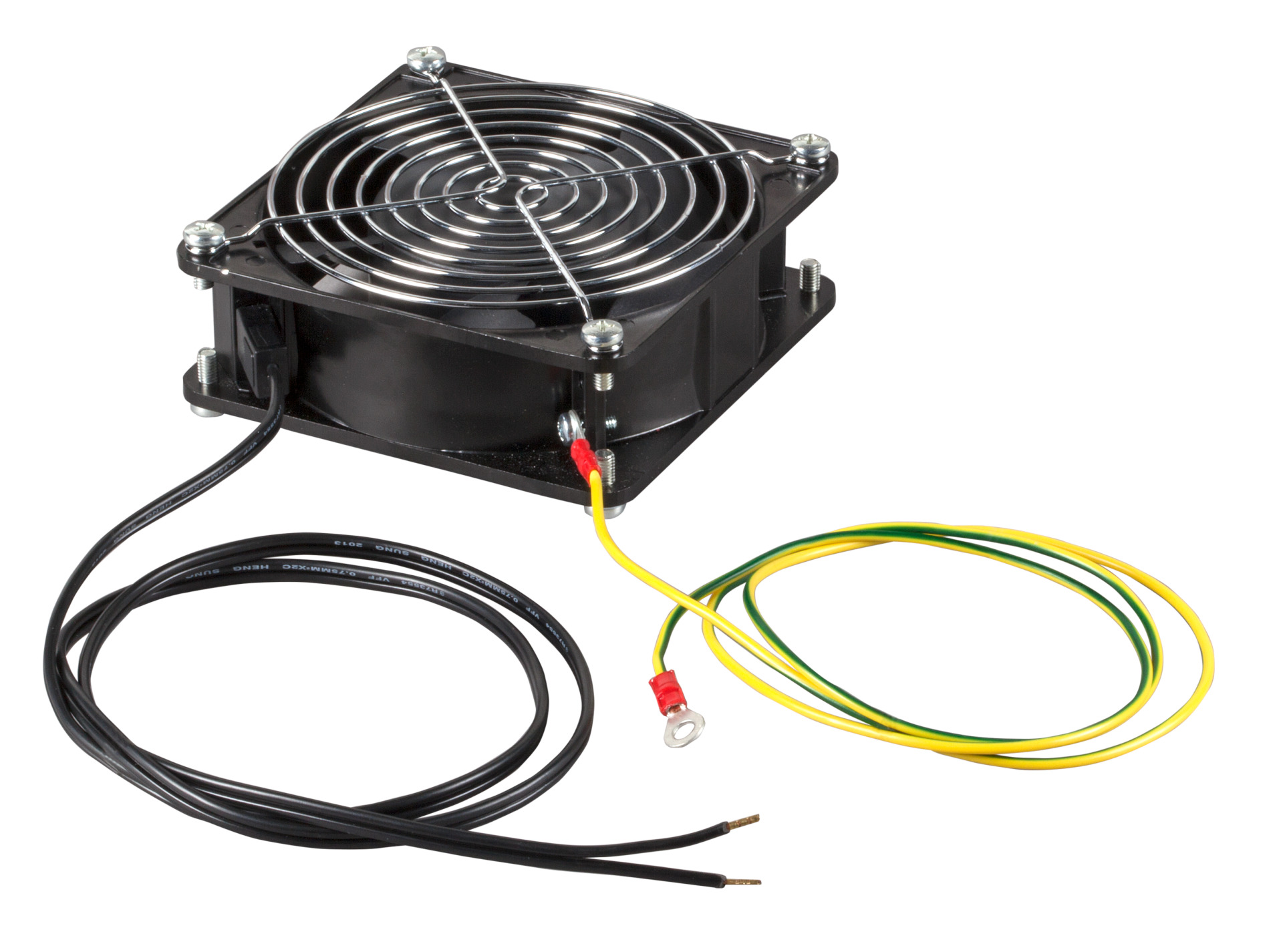

Also suitable for mounting of 2 single fans in roof
Side walls detachable, lockable, lock equal to front door
Roof, bottom and rear wall with pre-punched openings for cable entry (145 x 70 mm)
Inside front and rear sided each 2 x 19“ profile rails, galvanised, depth adjustable
Max. distance of 19" levels (front/rear) 625 mm

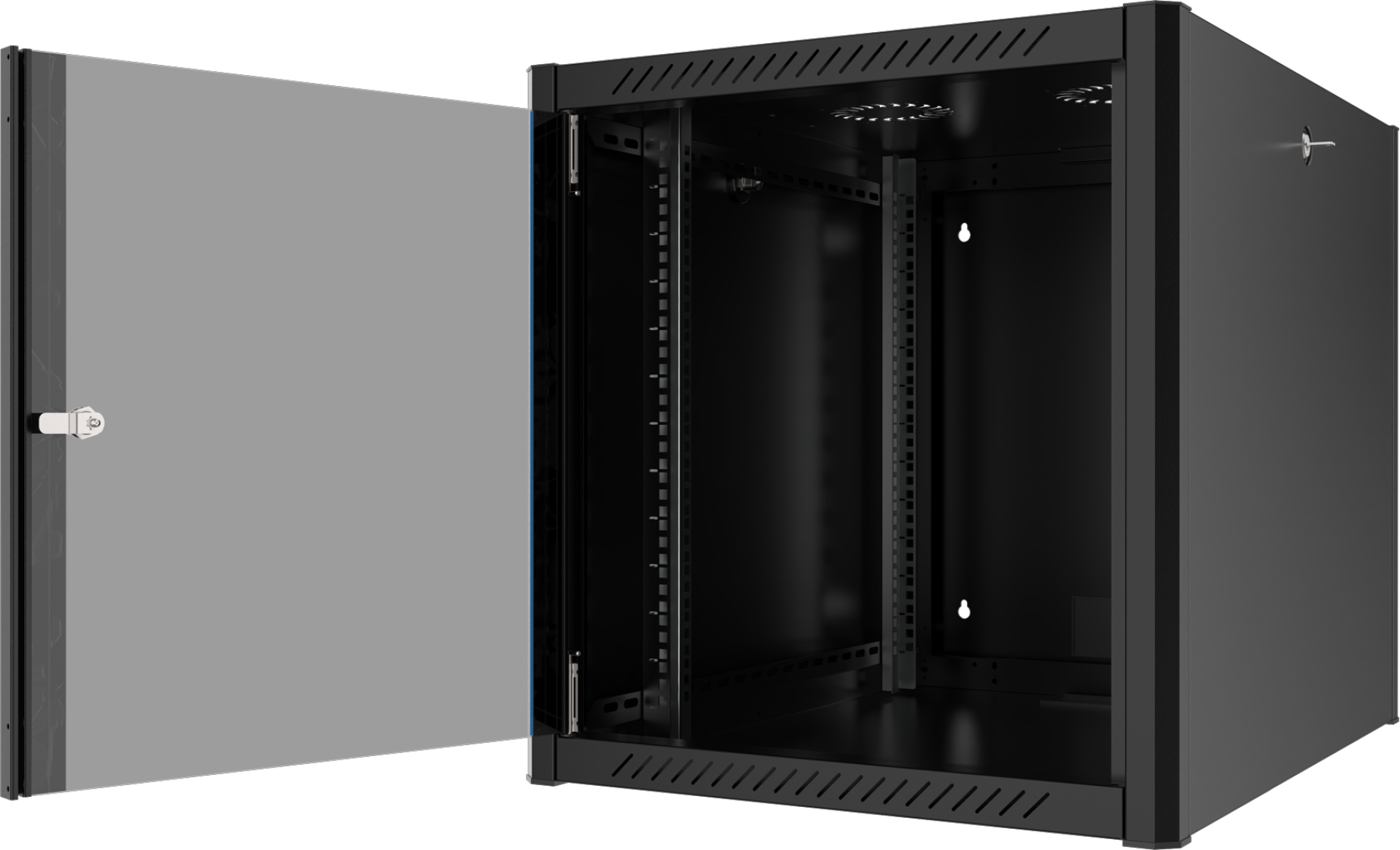

Front door with latch locking and window of certified safety glass (thickness 4 mm)
Cabinet parts inside fully earthed
Paint finish RAL9005, jet black
Protection degree IP20
Included accessories: 1 x brush strip, 1 x plastic cover for cable entry, 1 x set of cage nuts (PU 20 pcs.), 2 x key
Delivery in transport packaging, from 30 kg / 12U on disposable pallet
Prepared for plug & play fan unit Art.-No. 691656GR
Also suitable for mounting of 2 single fans in roof
Side walls detachable, lockable, lock equal to front door
Roof, bottom and rear wall with pre-punched openings for cable entry (145 x 70 mm)
Inside front and rear sided each 2 x 19“ profile rails, galvanised, depth adjustable
Max. distance of 19" levels (front/rear) 625 mm
Front door with latch locking and window of certified safety glass (thickness 4 mm)
Cabinet parts inside fully earthed
Paint finish RAL9005, jet black
Protection degree IP20
Included accessories: 1 x brush strip, 1 x plastic cover for cable entry, 1 x set of cage nuts (PU 20 pcs.), 2 x key
Delivery in transport packaging, from 30 kg / 12U on disposable pallet
Technische Eigenschaften
| Degree of protection: | IP20 |
|---|---|
| Demountable: | True |
| Material: | steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front and rear |
| Number of cartons: | 1 |
| Number of doors: | 1 |
| Surface finishing: | powder coating |
| Type of profile rail: | Crank |
| Type of ventilation: | Passive |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
Varianten
| Art. Nr. | Bezeichnung | Depth | Width | Colour | Max. Load | Max. load capacity | Height | Number of height units | RAL-number | |
|---|---|---|---|---|---|---|---|---|---|---|
| 691912TS.80 | 19“ Wall Housing 12U, Depth 800 mm, Pre-Assembled, RAL9005 | 800 mm | 600 mm | black | 80 kg | 80 kg | 634 mm | 12 U | 7035 | |
| 691916TS.80 | 19“ Wall Housing 16U, Depth 800 mm, Pre-Assembled, RAL9005 | 800 mm | 600 mm | black | 80 kg | 80 kg | 812 mm | 16 U | 7035 | |
| 691920TS.80 | 19“ Wall Housing 20U, Depth 800 mm, Pre-Assembled, RAL9005 | 800 mm | 600 mm | black | 80 kg | 80 kg | 990 mm | 20 U | 7035 | |
| 691922TS.80 | 19“ Wall Housing 22U, Depth 800 mm, Pre-Assembled, RAL9005 | 800 mm | 600 mm | black | 80 kg | 80 kg | 1078 mm | 22 U | 7035 | |
| 691926TS.80 | 19“ Wall Housing 26U, Depth 800 mm, Pre-Assembled, RAL9005 | 800 mm | 600 mm | black | 80 kg | 80 kg | 1256 mm | 26 U | 7035 |
