19" Wall Housing Fixed, 1-Part, Depth 400 mm, RAL7035
Priser kun synlige for indloggede brugere

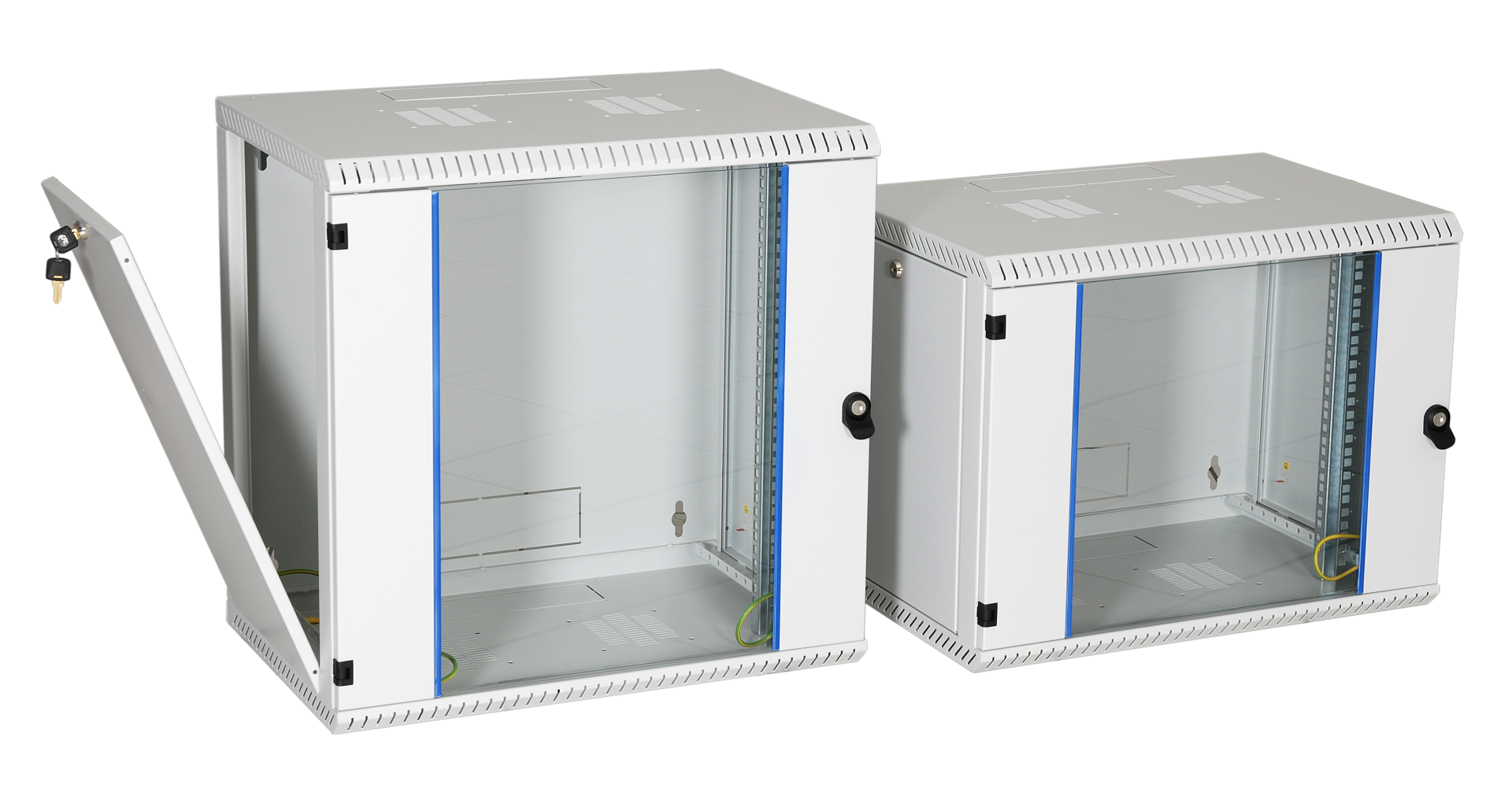

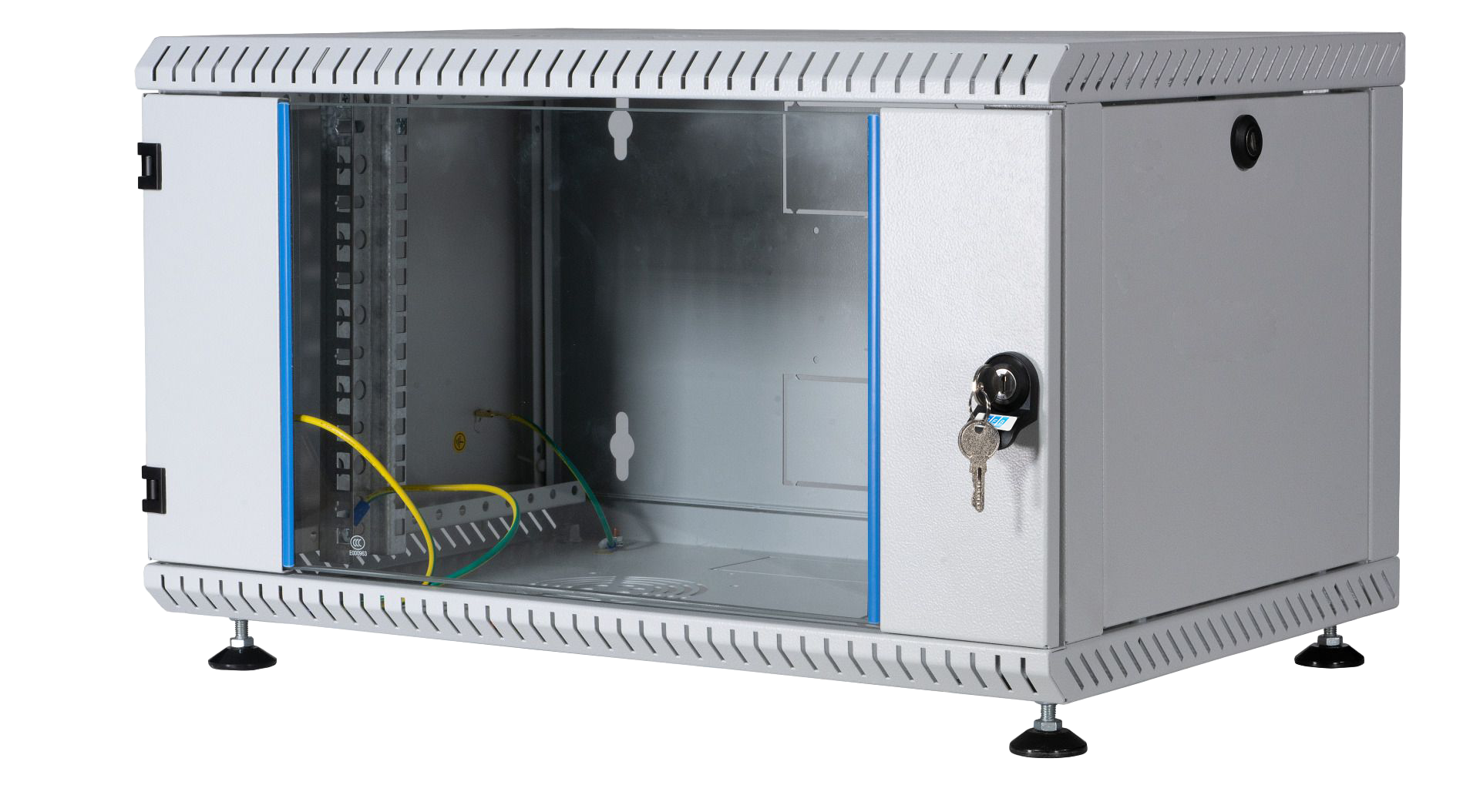

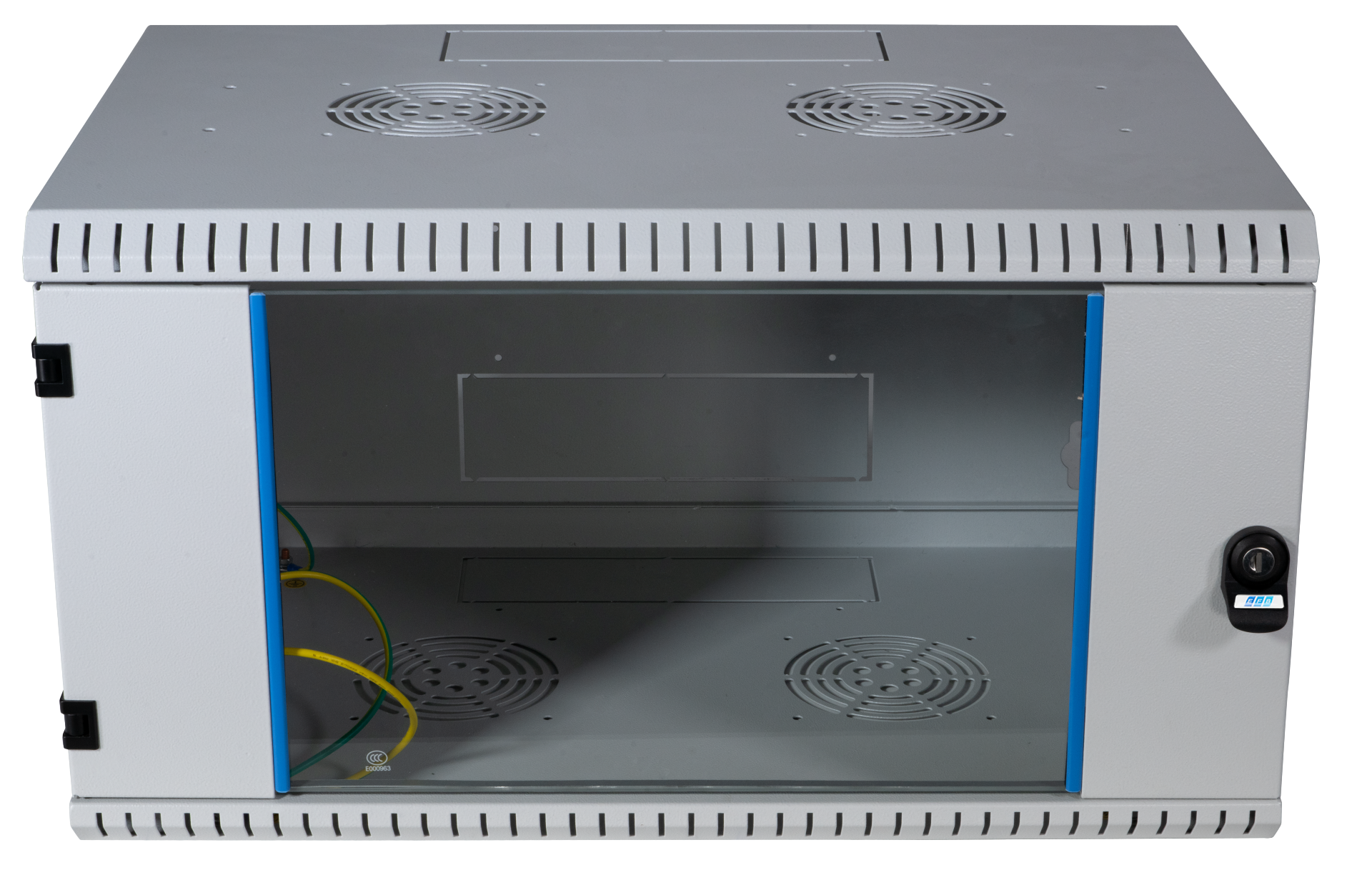

19" Wall Housing 12U, Fixed, 1-Part, RAL7035, Depth 400 mm
Varenummer:
691712VGR.40
EAN nr.:
4049759212933
Produktinformation für 19" Wall Housing 12U, Fixed, 1-Part, RAL7035, Depth 400 mm
Steel sheet housing with welded frame, completely pre-assembled, self-ventilated

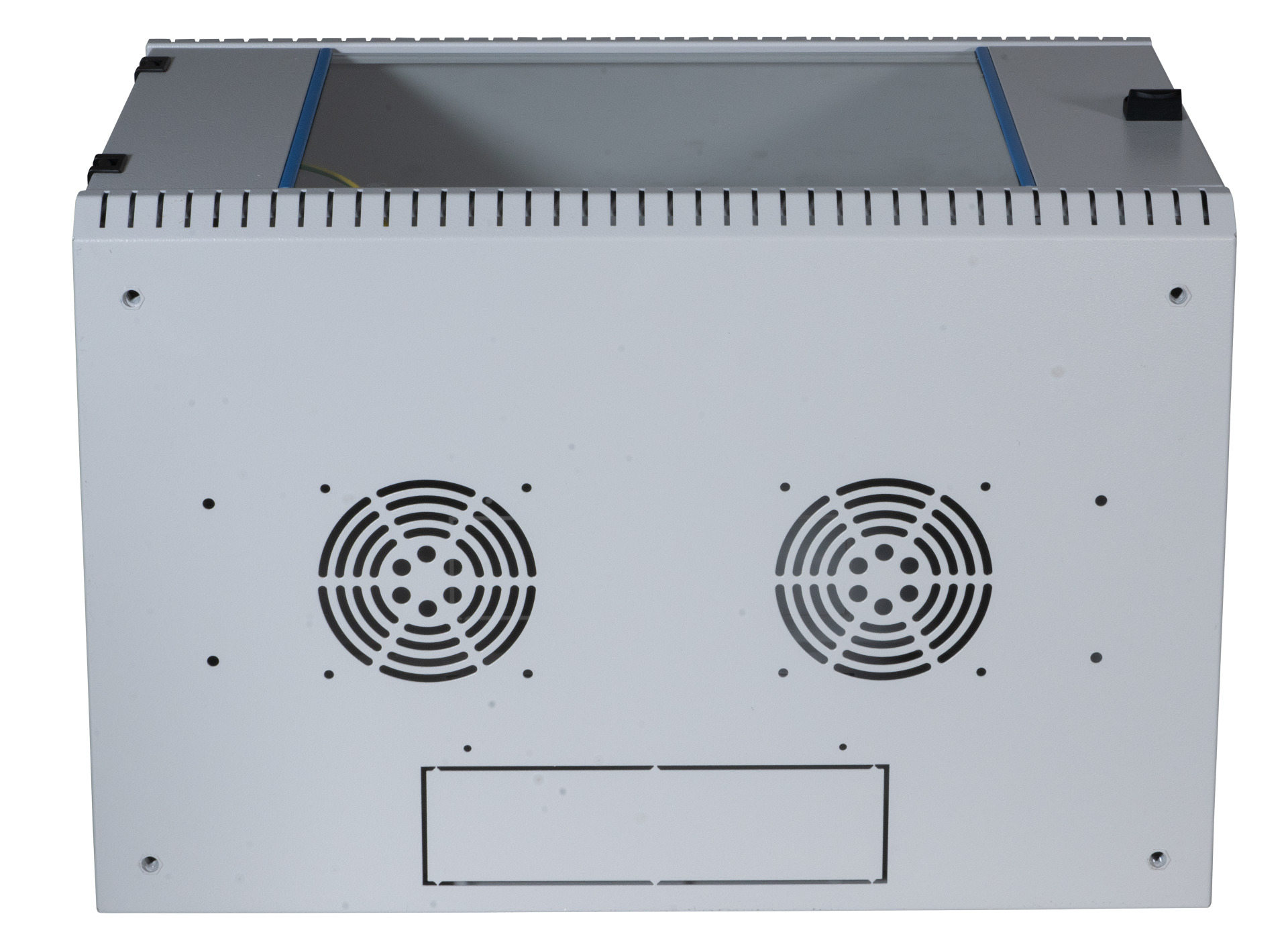

NEW: Prepared for Plug & Play 2-fan unit Art.-No. 691656xx

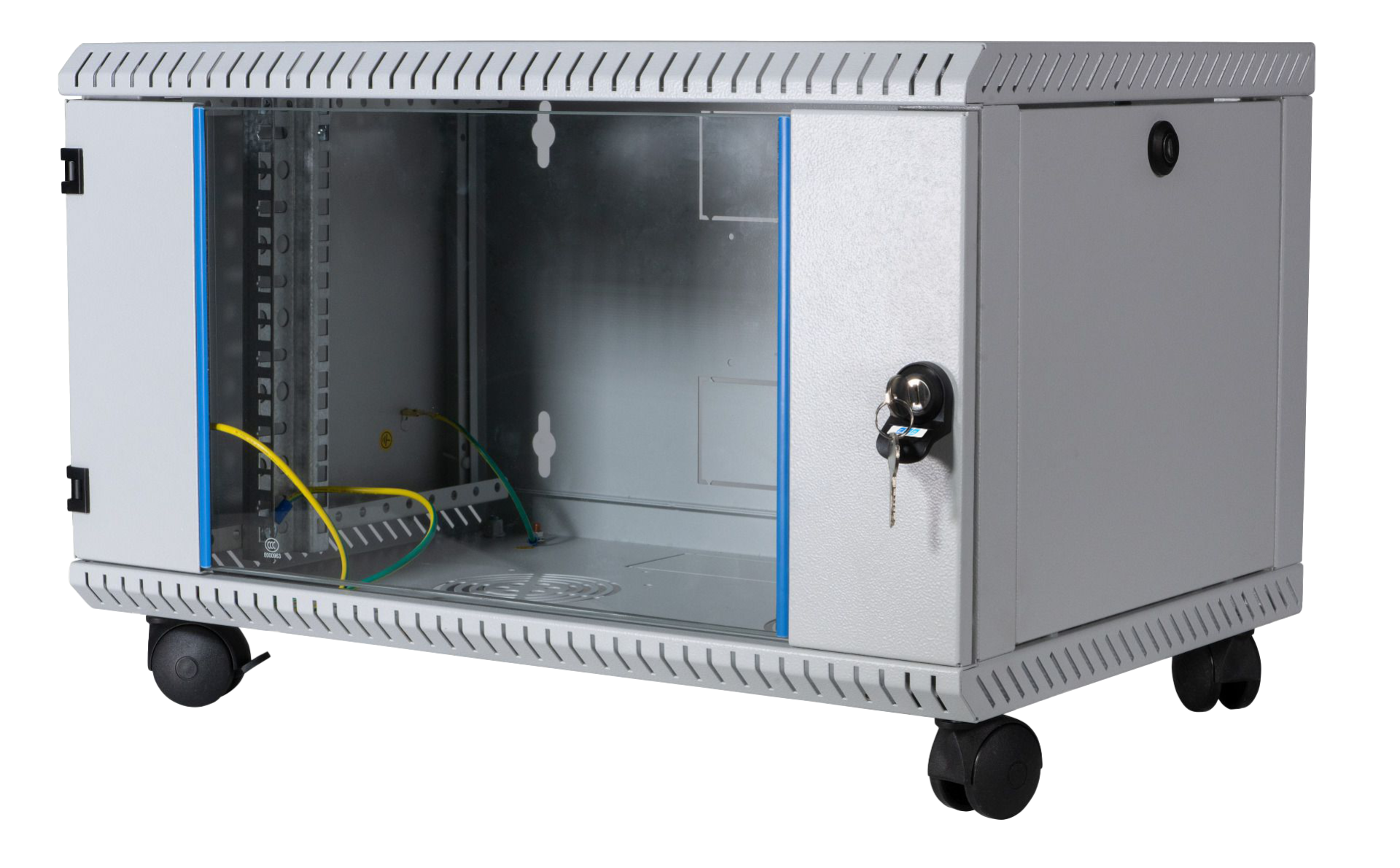

NEW: Bottom with 4 x mounting point for leveling feet or castor set (please order separately)
NEW: Front door with metal hinges for increased stability
Side walls removable, lockable, locks equal to door lock

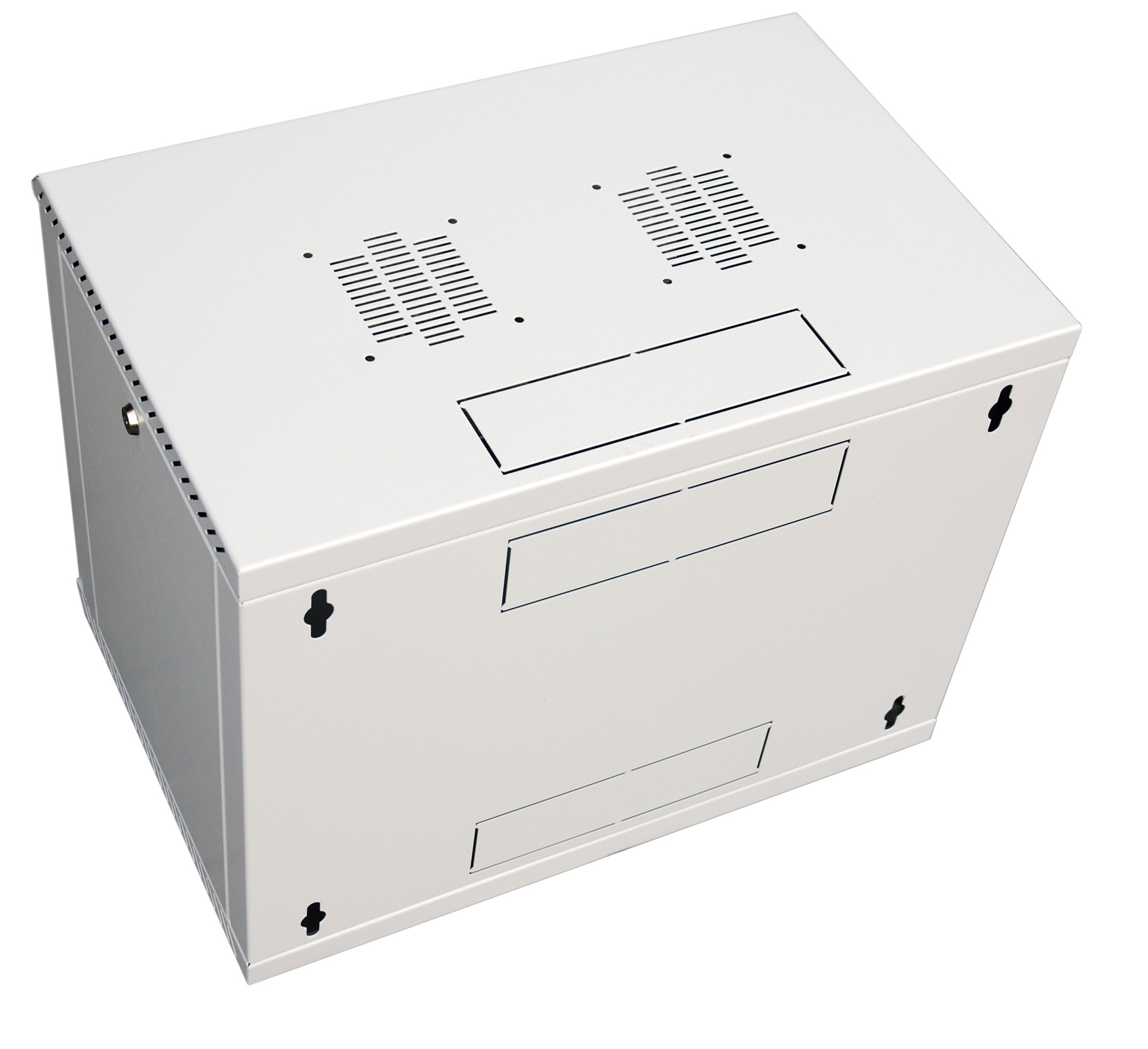

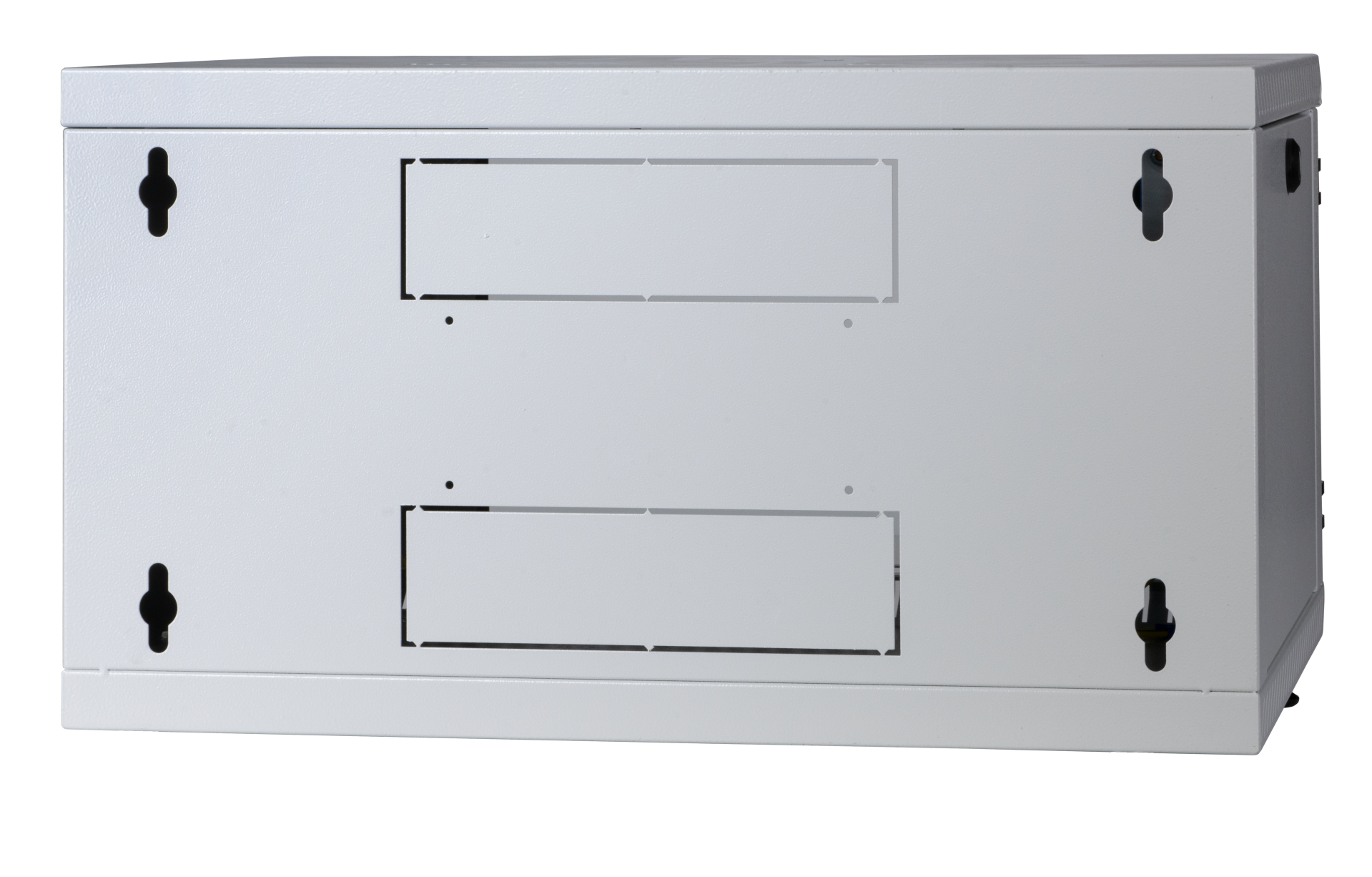

Roof, bottom and rear wall with pre-punched openings for cable entry (250 x 70 mm)

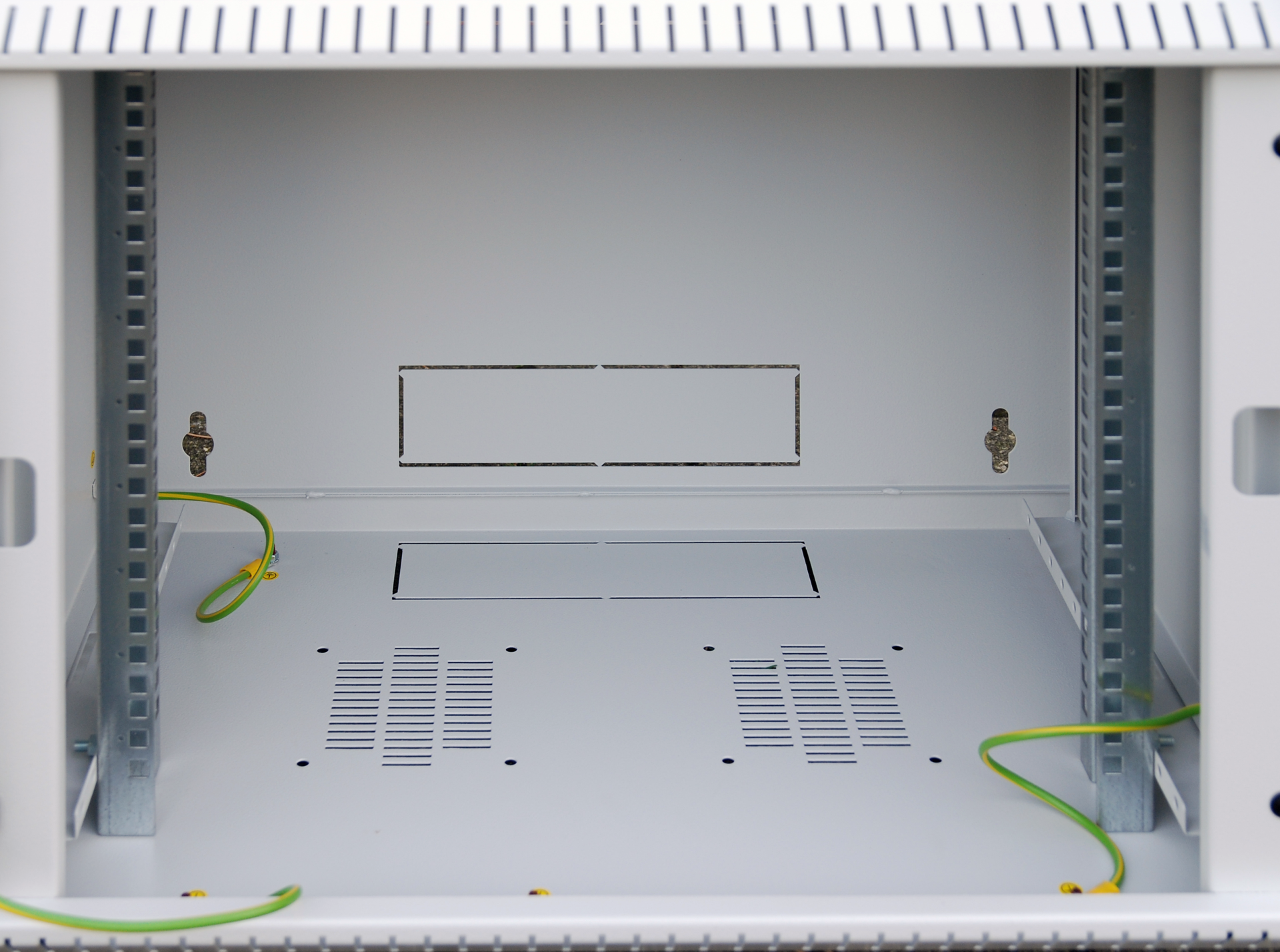

Front-sided 2 x 19“ profile rails, galvanised, depth-adjustable
Front door with latch locking and window made of certified safety glass (thickness 4 mm)
Internal earthing of all cabinet sections
Paint finish RAL7035, light grey
Protection degree IP20
Included in delivery: 1 x brush terminal, 1 x set of captive nuts (PU 20 pcs.), 2 x key
Delivery in transport packaging, from 30 kg / 12U on disposable pallet
NEW: Prepared for Plug & Play 2-fan unit Art.-No. 691656xx
NEW: Bottom with 4 x mounting point for leveling feet or castor set (please order separately)
NEW: Front door with metal hinges for increased stability
Side walls removable, lockable, locks equal to door lock
Roof, bottom and rear wall with pre-punched openings for cable entry (250 x 70 mm)
Front-sided 2 x 19“ profile rails, galvanised, depth-adjustable
Front door with latch locking and window made of certified safety glass (thickness 4 mm)
Internal earthing of all cabinet sections
Paint finish RAL7035, light grey
Protection degree IP20
Included in delivery: 1 x brush terminal, 1 x set of captive nuts (PU 20 pcs.), 2 x key
Delivery in transport packaging, from 30 kg / 12U on disposable pallet
Tekniske egenskaber
| Degree of protection: | IP20 |
|---|---|
| Demountable: | False |
| Material: | steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front side |
| Number of cartons: | 1 |
| Number of doors: | 1 |
| Surface finishing: | powder coating |
| Type of profile rail: | L-shaped |
| Type of ventilation: | Passive |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
Varianter
| Art. Nej. | Betegnelse | Width | Max. Load | Depth | Colour | Height | Number of height units | RAL-number | |
|---|---|---|---|---|---|---|---|---|---|
| 691704VGR.40 | 19" Wall Housing 4U, Fixed, 1-Part, RAL7035, Depth 400 mm | 600 mm | 50 kg | 400 mm | grey | 240 mm | 4 U | 7035 | |
| 691706VGR.40 | 19" Wall Housing 6U, Fixed, 1-Part, RAL7035, Depth 400 mm | 600 mm | 50 kg | 400 mm | grey | 330 mm | 6 U | 7035 | |
| 691709VGR.40 | 19" Wall Housing 9U, Fixed, 1-Part, RAL7035, Depth 400 mm | 600 mm | 50 kg | 400 mm | grey | 465 mm | 9 U | 7035 | |
| 691712VGR.40 | 19" Wall Housing 12U, Fixed, 1-Part, RAL7035, Depth 400 mm | 600 mm | 50 kg | 400 mm | grey | 600 mm | 12 U | 7035 |
