19“ Wall Housings Fixed, 1-Part, Depth 800 mm, RAL7035

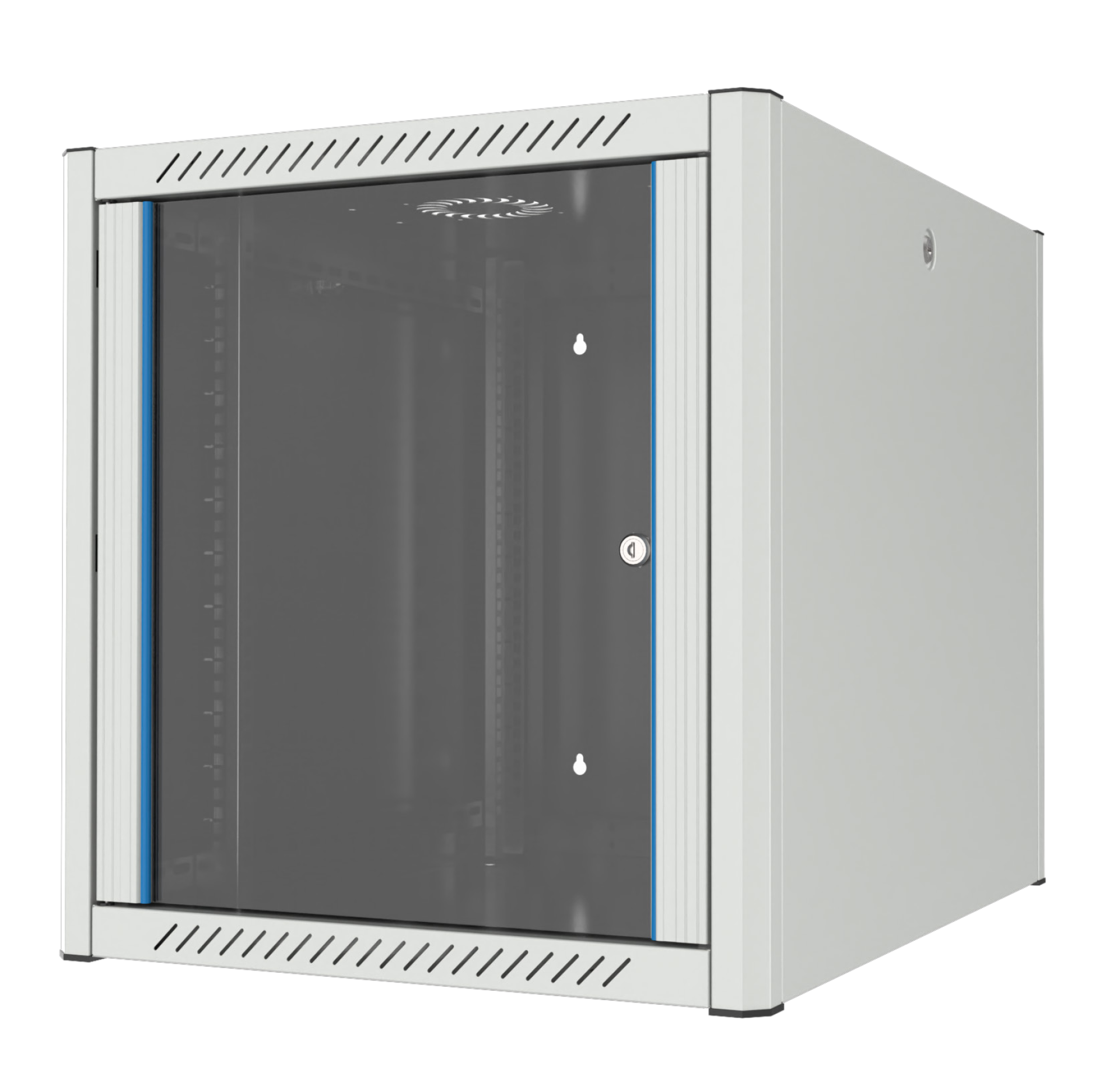

19“ Wall Housing 12U, Fixed, Depth 800 mm, RAL7035
Varenummer:
691912GR.80
EAN Nr.:
4049759300180
Produktinformation til 19“ Wall Housing 12U, Fixed, Depth 800 mm, RAL7035
Steel sheet housing with screwed frame, pre-assembled, self-ventilated, detachable
Prepared for plug & play fan unit Art.-No. 691656GR
Also suitable for mounting of 2 single fans in roof
Side walls detachable, lockable, lock equal to front door
Roof, bottom and rear wall with pre-punched openings for cable entry (145 x 70 mm)

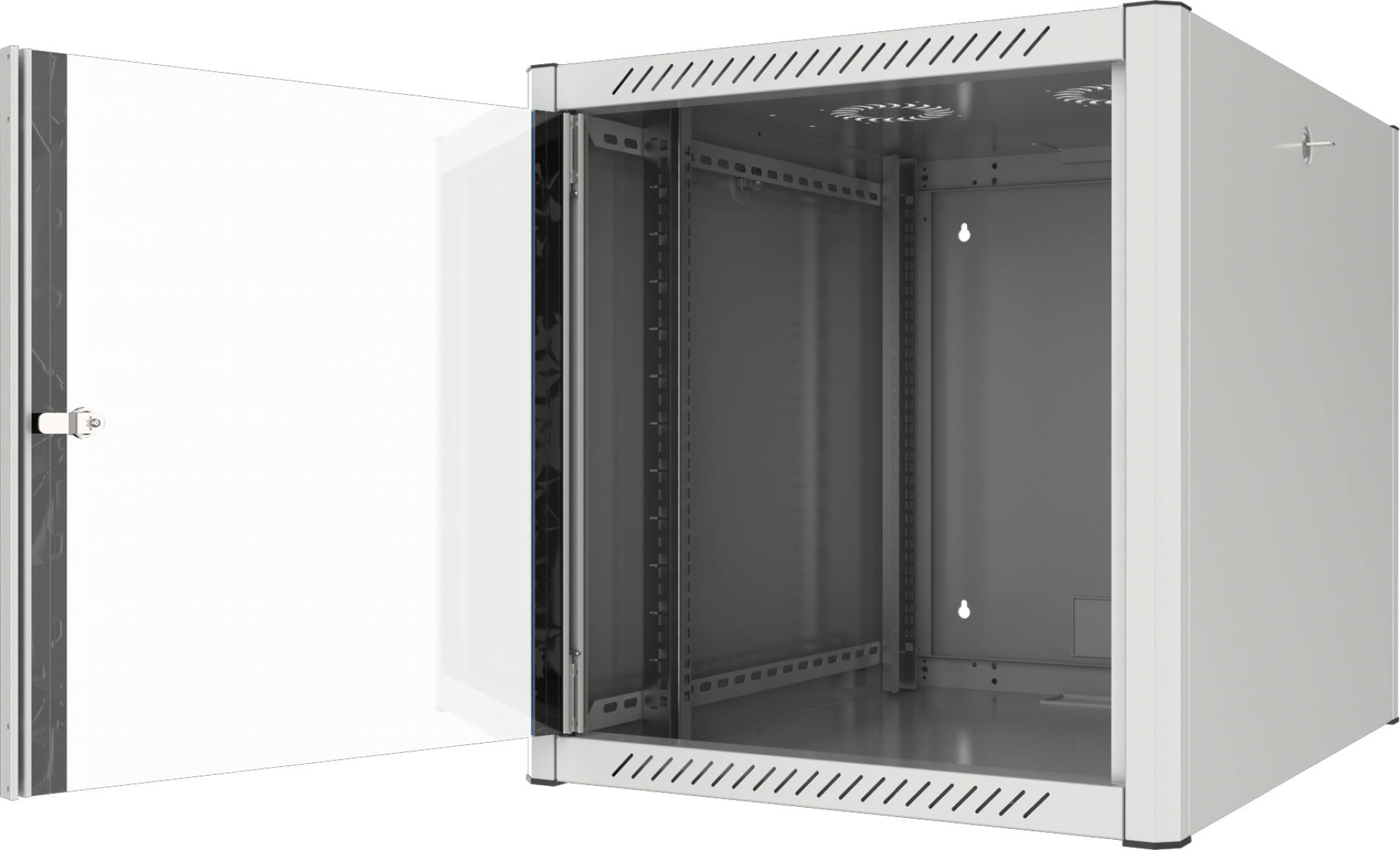

Inside front and rear sided each 2 x 19“ profile rails, galvanised, depth adjustable
Max. distance of 19" levels (front/rear) 625 mm
Front door with latch locking and window of certified safety glass (thickness 4 mm)
Cabinet parts inside fully earthed
Paint finish RAL7035, light grey
Protection degree IP20
Included accessories: 1 x brush strip, 1 x plastic cover for cable entry, 1 x set of cage nuts (PU 20 pcs.), 2 x key
Delivery in transport packaging, from 30 kg / 12U on disposable pallet
Prepared for plug & play fan unit Art.-No. 691656GR
Also suitable for mounting of 2 single fans in roof
Side walls detachable, lockable, lock equal to front door
Roof, bottom and rear wall with pre-punched openings for cable entry (145 x 70 mm)
Inside front and rear sided each 2 x 19“ profile rails, galvanised, depth adjustable
Max. distance of 19" levels (front/rear) 625 mm
Front door with latch locking and window of certified safety glass (thickness 4 mm)
Cabinet parts inside fully earthed
Paint finish RAL7035, light grey
Protection degree IP20
Included accessories: 1 x brush strip, 1 x plastic cover for cable entry, 1 x set of cage nuts (PU 20 pcs.), 2 x key
Delivery in transport packaging, from 30 kg / 12U on disposable pallet
Tekniske egenskaber
| Cabinet Series: | 19" Wall Housing Depth 800 mm, pre-assembled |
|---|---|
| Degree of protection: | IP20 |
| Demountable: | True |
| Material: | Steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front and rear |
| Number of cartons: | 1 |
| Number of doors: | 1 |
| Surface finishing: | Powder coating |
| Type of front door: | Glass door 1-part |
| Type of profile rail: | Crank |
| Type of ventilation: | Passive |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
Varianten
| Art. Nr. | Bezeichnung | Depth | Color | Width | Max. Load | Max. load capacity | Height | Number of height units | RAL-number | |
|---|---|---|---|---|---|---|---|---|---|---|
| 691912GR.80 | 19“ Wall Housing 12U, Fixed, Depth 800 mm, RAL7035 | 800 mm | grey | 600 mm | 80 kg | 80 kg | 634 mm | 12 U | 7035 | |
| 691916GR.80 | 19“ Wall Housing 16U, Depth 800 mm, Pre-Assembled, RAL7035 | 800 mm | grey | 600 mm | 80 kg | 80 kg | 812 mm | 16 U | 7035 | |
| 691920GR.80 | 19“ Wall Housing 20U, Depth 800 mm, Pre-Assembled, RAL7035 | 800 mm | grey | 600 mm | 80 kg | 80 kg | 990 mm | 20 U | 7035 | |
| 691922GR.80 | 19“ Wall Housing 22U, Depth 800 mm, Pre-Assembled, RAL7035 | 800 mm | grey | 600 mm | 80 kg | 80 kg | 1078 mm | 22 U | 7035 | |
| 691926GR.80 | 19“ Wall Housing 26U, Depth 800 mm, Pre-Assembled, RAL7035 | 800 mm | grey | 600 mm | 80 kg | 80 kg | 1256 mm | 26 U | 7035 |
Sikkerhedsanvisninger
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
