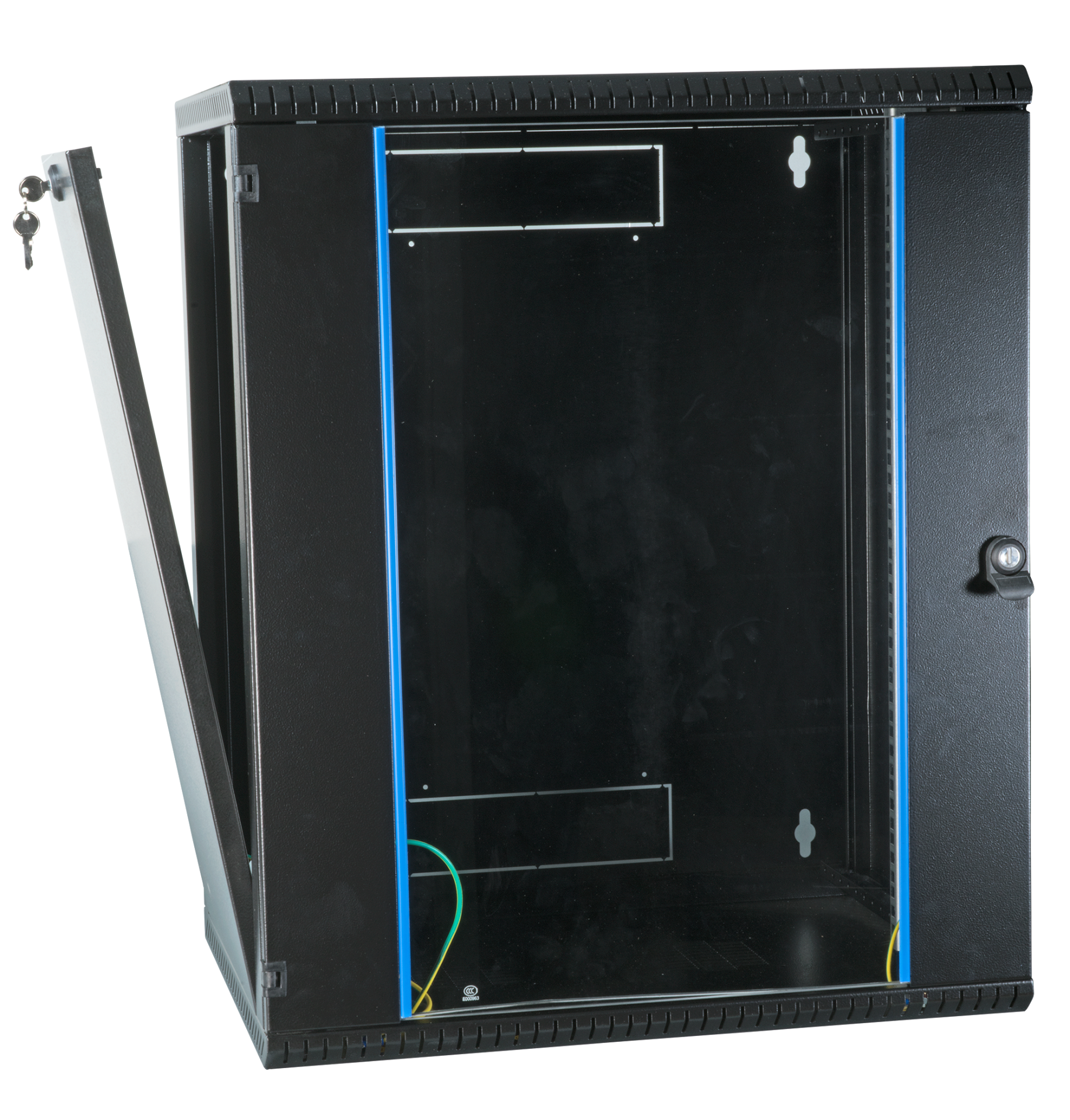

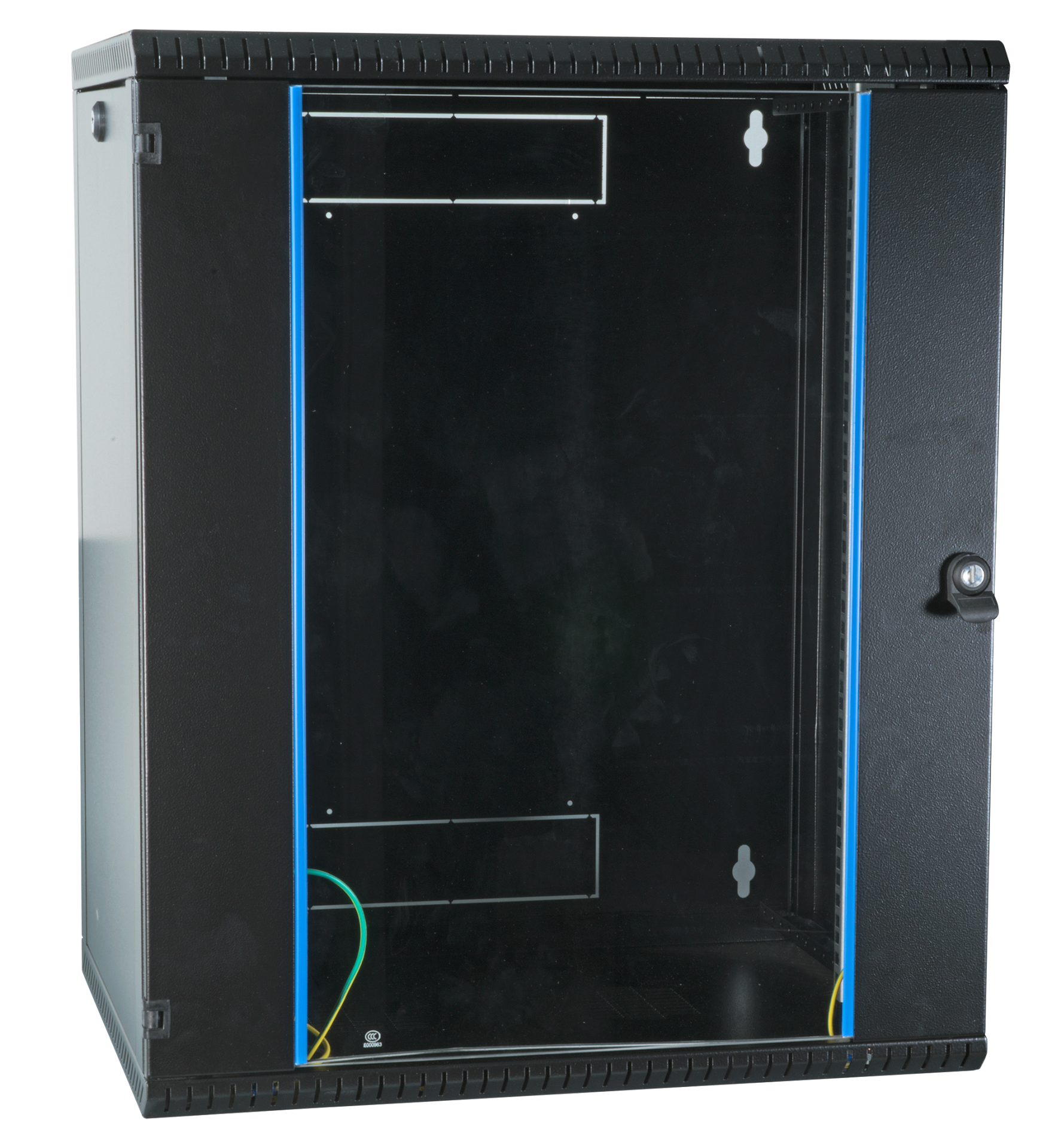

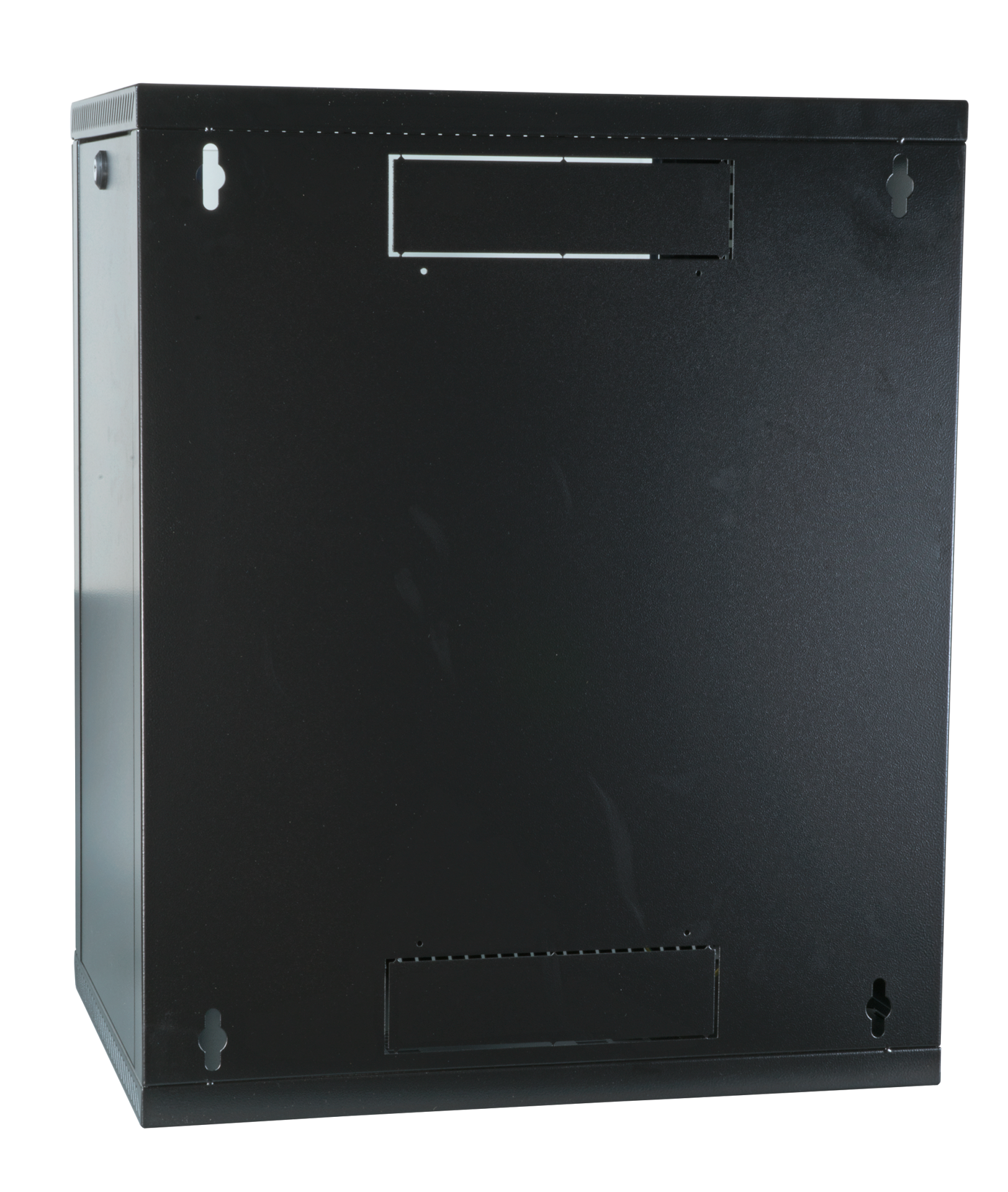

19" fixed wall housing, 1 piece, depth 600 mm, RAL9005
19" Wall Housing 21U, Fixed, 1-Part, RAL9005, Depth 600 mm
Varenummer:
691721VTS.60
EAN Nr.:
4049759213176
Produktinformation til 19" Wall Housing 21U, Fixed, 1-Part, RAL9005, Depth 600 mm
Steel sheet housing with welded frame, completely pre-assembled, self-ventilated
NEW: Prepared for Plug & Play 2-fan unit Art.-No. 691656xx
NEW: Bottom with 4 x mounting point for leveling feet or castor set (please order separately)
NEW: Front door with metal hinges for increased stability
Side walls removable, lockable, locks equal to door lock
Roof, bottom and rear wall with pre-punched openings for cable entry (250 x 70 mm)
Front-sided 2 x 19“ profile rails, galvanised, depth-adjustable
Front door with latch locking and window made of certified safety glass (thickness 4 mm)
Internal earthing of all cabinet sections
Paint finish RAL9005, jet black
Protection degree IP20
Included in delivery: 1 x brush terminal, 1 x set of captive nuts (PU 20 pcs.), 2 x key
Delivery in transport packaging, from 30 kg / 12U on disposable pallet
NEW: Prepared for Plug & Play 2-fan unit Art.-No. 691656xx
NEW: Bottom with 4 x mounting point for leveling feet or castor set (please order separately)
NEW: Front door with metal hinges for increased stability
Side walls removable, lockable, locks equal to door lock
Roof, bottom and rear wall with pre-punched openings for cable entry (250 x 70 mm)
Front-sided 2 x 19“ profile rails, galvanised, depth-adjustable
Front door with latch locking and window made of certified safety glass (thickness 4 mm)
Internal earthing of all cabinet sections
Paint finish RAL9005, jet black
Protection degree IP20
Included in delivery: 1 x brush terminal, 1 x set of captive nuts (PU 20 pcs.), 2 x key
Delivery in transport packaging, from 30 kg / 12U on disposable pallet
Tekniske egenskaber
| Degree of protection: | IP20 |
|---|---|
| Demountable: | False |
| Material: | steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front side |
| Number of cartons: | 1 |
| Number of doors: | 1 |
| Surface finishing: | powder coating |
| Type of profile rail: | L-shaped |
| Type of ventilation: | Passive |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
Varianten
| Art. Nr. | Bezeichnung | Width | Colour | Max. Load | Depth | Height | Number of height units | RAL-number | |
|---|---|---|---|---|---|---|---|---|---|
| 691715VTS.60 | 19" Wall Housing 15U, Fixed, 1-Part, RAL9005, Depth 600 mm | 600 mm | black | 50 kg | 600 mm | 730 mm | 15 U | 9005 | |
| 691721VTS.60 | 19" Wall Housing 21U, Fixed, 1-Part, RAL9005, Depth 600 mm | 600 mm | black | 50 kg | 600 mm | 997 mm | 21 U | 9005 |
