19" Wall Housing Fixed, 1-Part, Depth 500 mm, RAL7035
19" Wall Housing 6U, Fixed, 1-Part, RAL7035, Depth 500 mm
Varenummer:
691706VGR.50
EAN Nr.:
4049759212841
Produktinformation til 19" Wall Housing 6U, Fixed, 1-Part, RAL7035, Depth 500 mm
Steel sheet housing with welded frame, completely pre-assembled, self-ventilated

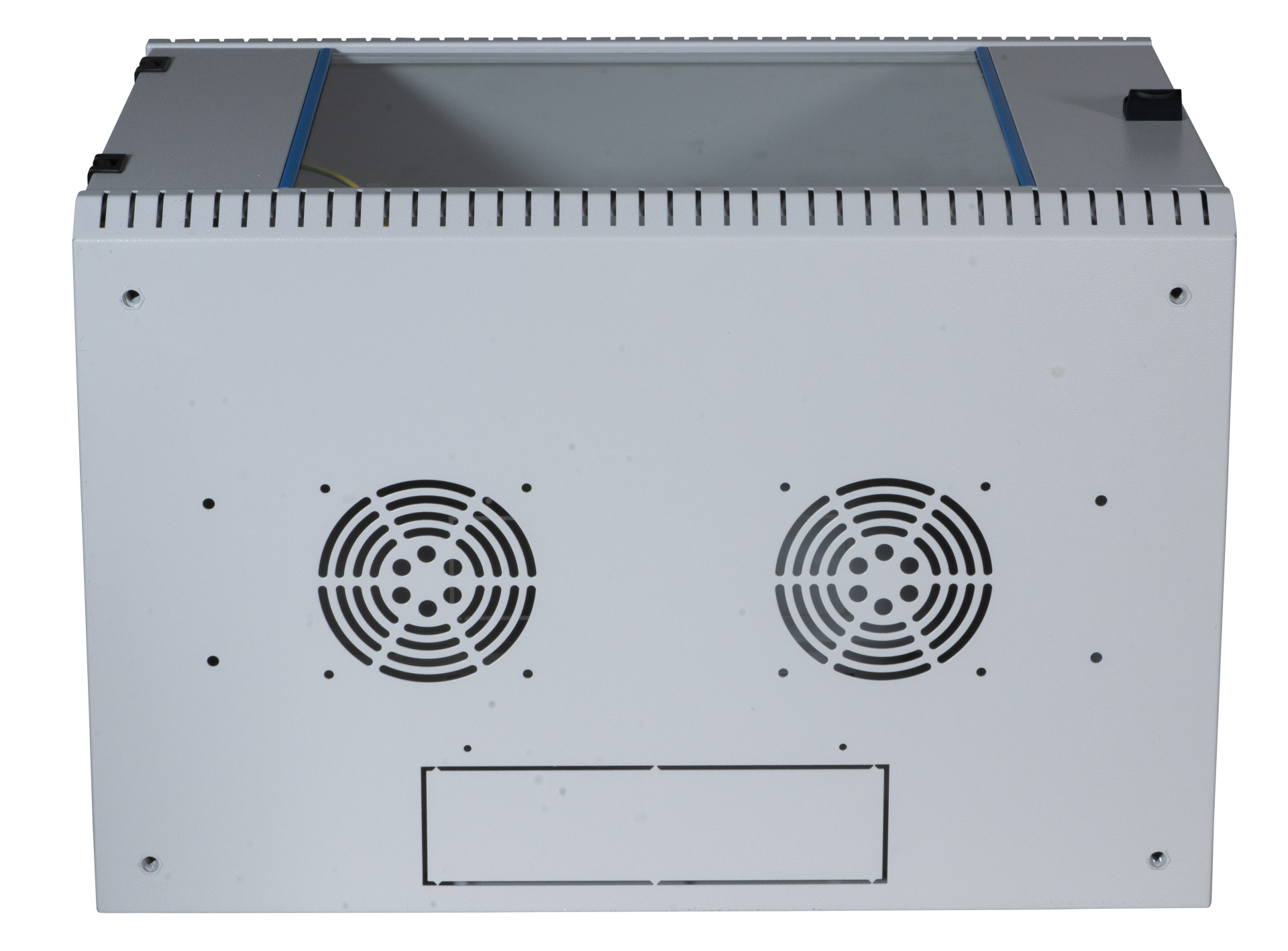

NEW: Prepared for Plug & Play 2-fan unit Art.-No. 691656xx

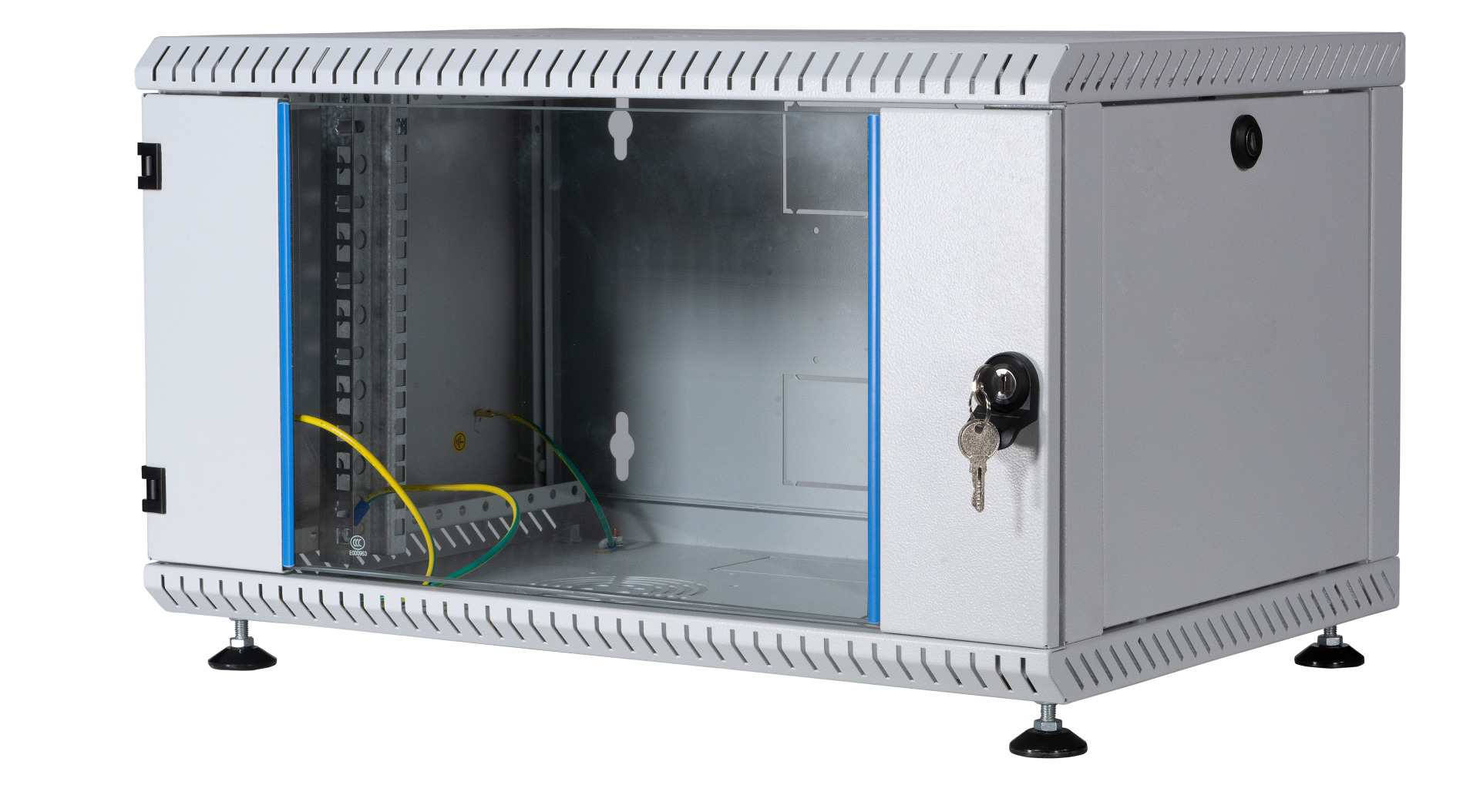

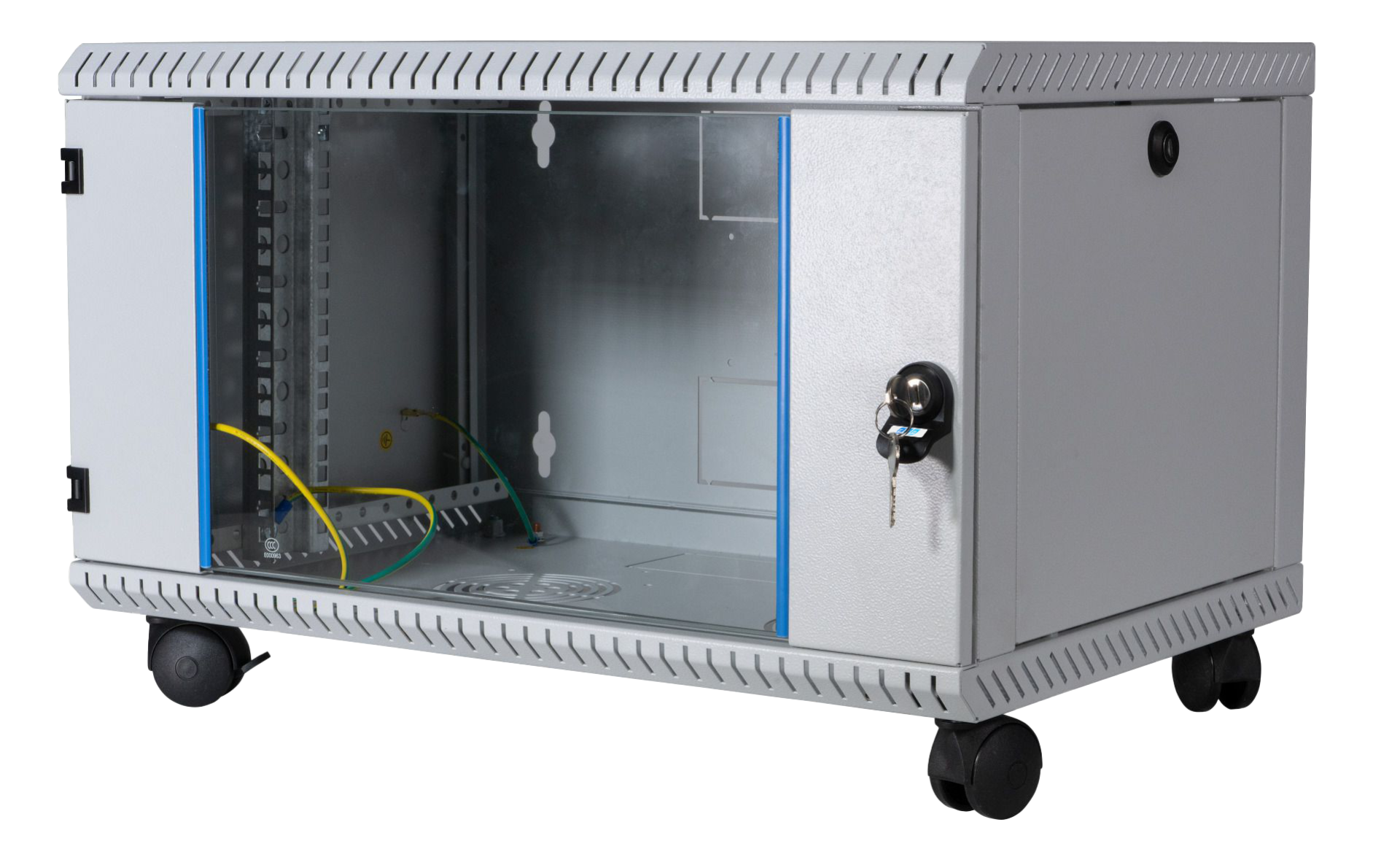

NEW: Bottom with 4 x mounting point for leveling feet or castor set (please order separately)
NEW: Front door with metal hinges for increased stability
Side walls removable, lockable, locks equal to door lock

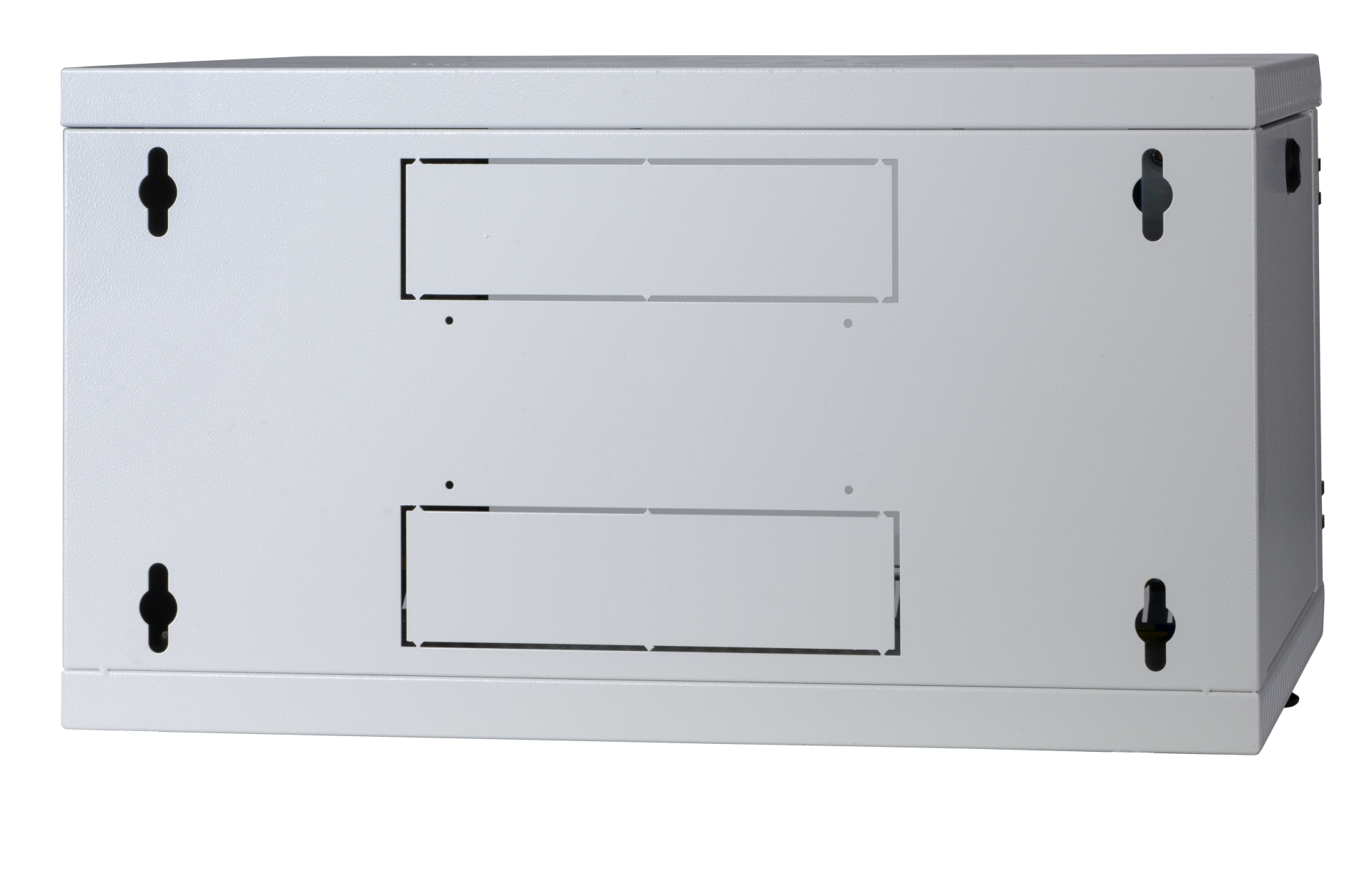

Roof, bottom and rear wall with pre-punched openings for cable entry (250 x 70 mm)
Front-sided 2 x 19“ profile rails, galvanised, depth-adjustable

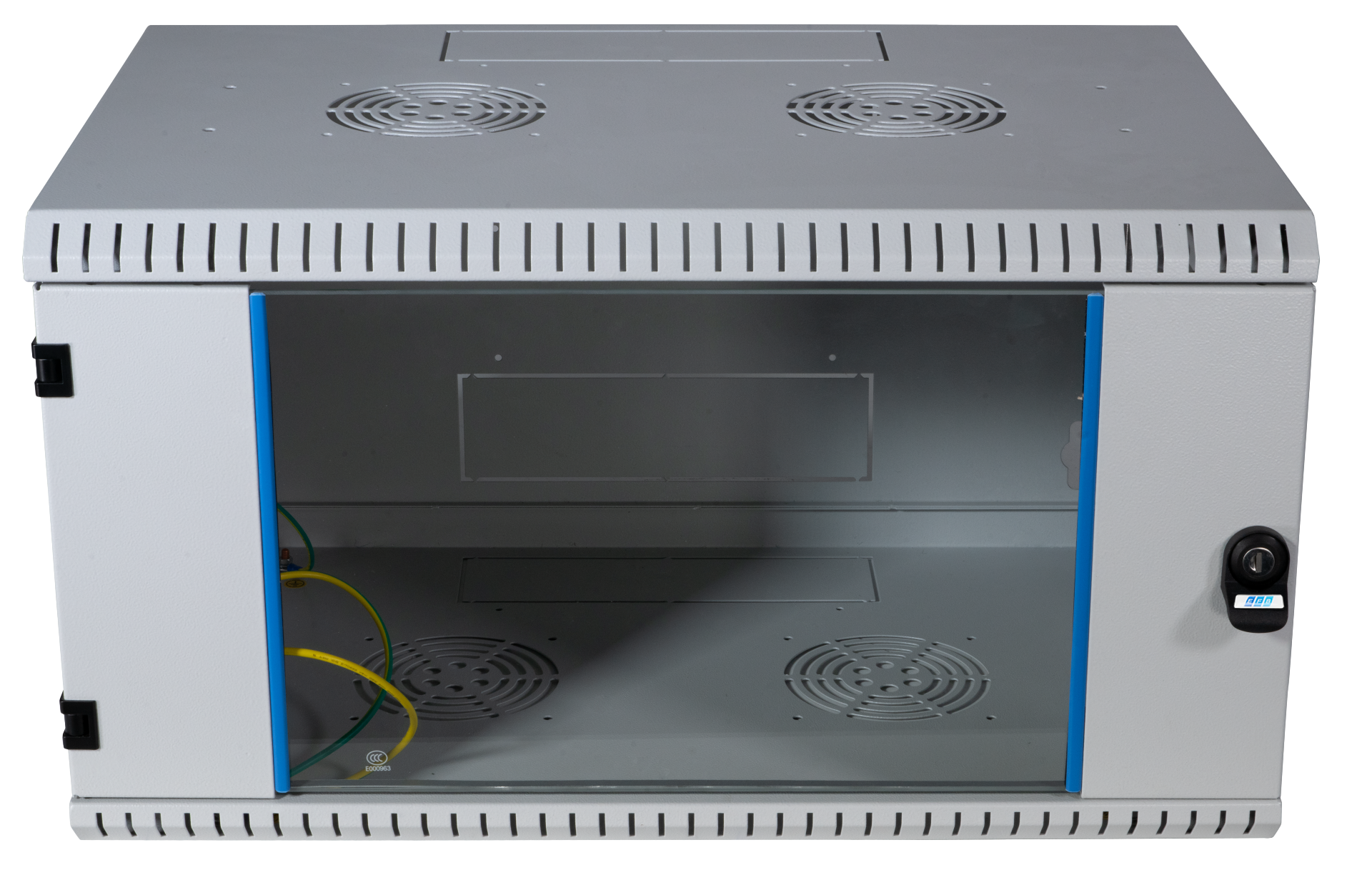

Front door with latch locking and window made of certified safety glass (thickness 4 mm)
Internal earthing of all cabinet sections
Paint finish RAL7035, light grey
Protection degree IP20
Included in delivery: 1 x brush terminal, 1 x set of captive nuts (PU 20 pcs.), 2 x key
Delivery in transport packaging, from 30 kg / 12U on disposable pallet
NEW: Prepared for Plug & Play 2-fan unit Art.-No. 691656xx
NEW: Bottom with 4 x mounting point for leveling feet or castor set (please order separately)
NEW: Front door with metal hinges for increased stability
Side walls removable, lockable, locks equal to door lock
Roof, bottom and rear wall with pre-punched openings for cable entry (250 x 70 mm)
Front-sided 2 x 19“ profile rails, galvanised, depth-adjustable
Front door with latch locking and window made of certified safety glass (thickness 4 mm)
Internal earthing of all cabinet sections
Paint finish RAL7035, light grey
Protection degree IP20
Included in delivery: 1 x brush terminal, 1 x set of captive nuts (PU 20 pcs.), 2 x key
Delivery in transport packaging, from 30 kg / 12U on disposable pallet
Tekniske egenskaber
| Anzahl Packstücke: | 1 |
|---|---|
| Anzahl der Türen: | 1 |
| Art der Lüftung: | passiv |
| Ausführung: | mit Festrahmen |
| Ausführung der Oberfläche: | pulverbeschichtet |
| Ausführung der Profilschiene: | L-förmig |
| Mit Dachblech: | Ja |
| Mit Erdung: | Ja |
| Mit Fronttür: | Ja |
| Mit Seitenwänden: | Ja |
| Montage-Ebene: | vorne |
| Rastermaß: | 482,6 mm (19 Zoll) |
| Schutzart: | IP20 |
| Werkstoff: | Stahl |
| Zerlegbar: | Nein |
Varianten
| Art. Nr. | Bezeichnung | Farbe | Breite | Tiefe | Traglast | Anzahl der Höheneinheiten (HE) | Höhe | RAL-number | |
|---|---|---|---|---|---|---|---|---|---|
| 691706VGR.50 | 19" Wall Housing 6U, Fixed, 1-Part, RAL7035, Depth 500 mm | grau | 600 mm | 500 mm | 50 kg | 6 HE | 330 mm | 7035 | |
| 691709VGR.50 | 19" Wall Housing 9U, Fixed, 1-Part, RAL7035, Depth 500 mm | grau | 600 mm | 500 mm | 50 kg | 9 HE | 465 mm | 7035 | |
| 691712VGR.50 | 19" Wall Housing 12U, Fixed, 1-Part, RAL7035, Depth 500 mm | grau | 600 mm | 500 mm | 50 kg | 12 HE | 600 mm | 7035 | |
| 691715VGR.50 | 19" Wall Housing 15U, Fixed, 1-Part, RAL7035, Depth 500 mm | grau | 600 mm | 500 mm | 50 kg | 15 HE | 730 mm | 7035 |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
