19" Wall Housing IP55, Depth 600 mm, RAL7035
19" Wall Housing IP55, 7U, Steel Door, Depth 600 mm, RAL7035
Varenummer:
691707IP55.2
EAN Nr.:
4049759156794
Produktinformation til 19" Wall Housing IP55, 7U, Steel Door, Depth 600 mm, RAL7035
Steel sheet housing with welded corpus, completely pre-assembled
Right- and left-sided metal covered air inlets for passive ventilation
Side walls not detachable

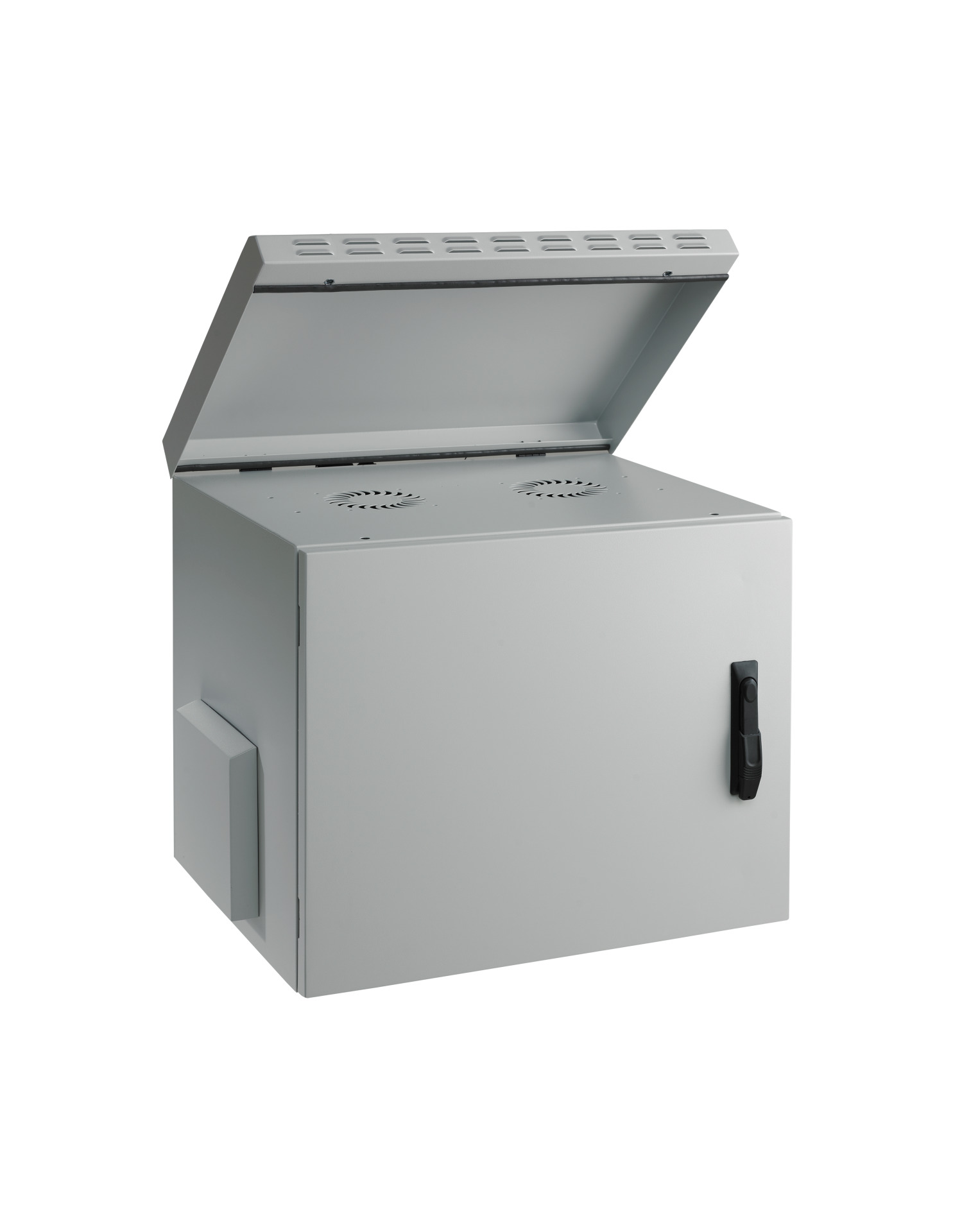

Roof hinged, inner roof prepared for mounting of Plug&Play fan unit Art.-No. 691656GR (cable not included, please order separately, e.g. Art.-No. EK504.x)

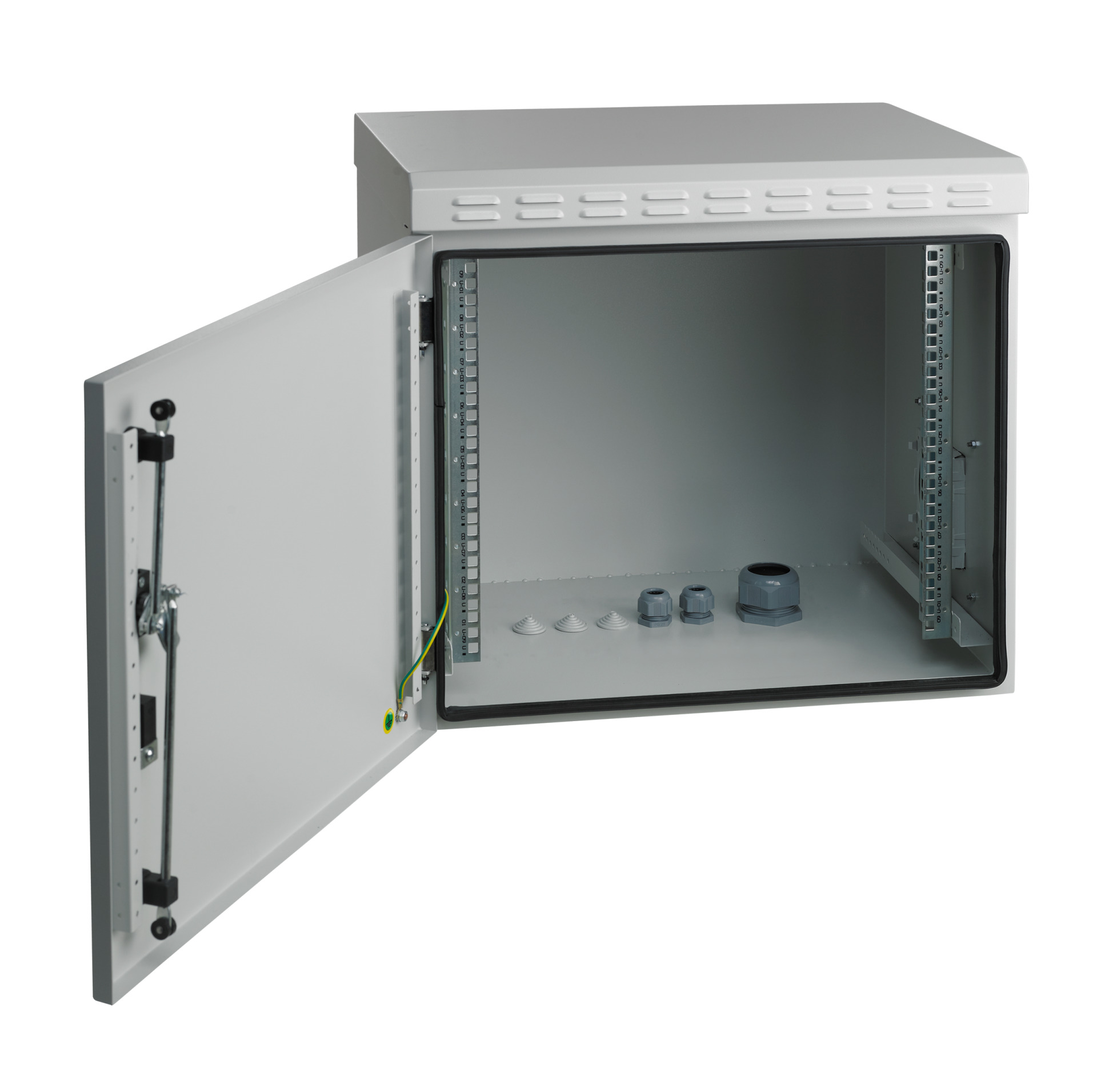

Bottom with PG glands 1 x PG48, 2 x PG21 and 3 x Ø 20 mm PVC blind grommets
For depth 450 mm inside 2 x 19" profile rails front-sided, galvanised, with numberung of rack units (U)
For depth 600 mm inside 4 x 19" profile rails (2 front, 2 rear), galvanised, with numberung of rack units (U)
Front door steel sheet with reinforcement and 3-point bar locking, lockable, with profile half-cylinder acc. to DIN 18252 / EN1303
Profile half-cylinder exchangeable by customer
Cabinet parts inside completely earthed
Max. load 100 kg
Paint finish RAL7035, light grey
Protection degree IP55
Plinth for use as standing cabinet available as option
Included accessories: 4 x Wall mount angle, 2 x key
Right- and left-sided metal covered air inlets for passive ventilation
Side walls not detachable
Roof hinged, inner roof prepared for mounting of Plug&Play fan unit Art.-No. 691656GR (cable not included, please order separately, e.g. Art.-No. EK504.x)
Bottom with PG glands 1 x PG48, 2 x PG21 and 3 x Ø 20 mm PVC blind grommets
For depth 450 mm inside 2 x 19" profile rails front-sided, galvanised, with numberung of rack units (U)
For depth 600 mm inside 4 x 19" profile rails (2 front, 2 rear), galvanised, with numberung of rack units (U)
Front door steel sheet with reinforcement and 3-point bar locking, lockable, with profile half-cylinder acc. to DIN 18252 / EN1303
Profile half-cylinder exchangeable by customer
Cabinet parts inside completely earthed
Max. load 100 kg
Paint finish RAL7035, light grey
Protection degree IP55
Plinth for use as standing cabinet available as option
Included accessories: 4 x Wall mount angle, 2 x key
Tekniske egenskaber
| Anzahl Packstücke: | 1 |
|---|---|
| Anzahl der Türen: | 1 |
| Art der Lüftung: | passiv |
| Ausführung: | mit Festrahmen |
| Ausführung der Oberfläche: | pulverbeschichtet |
| Ausführung der Profilschiene: | L-förmig |
| Mit Dachblech: | Ja |
| Mit Erdung: | Ja |
| Mit Fronttür: | Ja |
| Mit Seitenwänden: | Ja |
| Montage-Ebene: | vorne und hinten |
| Rastermaß: | 482,6 mm (19 Zoll) |
| Schrankserie: | IP / Klima |
| Schutzart: | IP55 |
| Werkstoff: | Stahl |
| Zerlegbar: | Ja |
Varianten
| Art. Nr. | Bezeichnung | Tiefe | Traglast | Farbe | Breite | Höhe | Anzahl der Höheneinheiten (HE) | RAL-number | |
|---|---|---|---|---|---|---|---|---|---|
| 691707IP55.2 | 19" Wall Housing IP55, 7U, Steel Door, Depth 600 mm, RAL7035 | 600 mm | 100 kg | grau | 600 mm | 410 mm | 7 HE | 7035 | |
| 691709IP55.2 | 19" Wall Housing IP55, 9U, Steel Door, Depth 600 mm, RAL7035 | 600 mm | 100 kg | grau | 600 mm | 500 mm | 9 HE | 7035 | |
| 691712IP55.2 | 19" Wall Housing IP55, 12U, Steel Door, Depth 600 mm, RAL7035 | 600 mm | 100 kg | grau | 600 mm | 630 mm | 12 HE | 7035 | |
| 691716IP55.2 | 19" Wall Housing IP55, 16U, Steel Door, Depth 600 mm, RAL7035 | 600 mm | 100 kg | grau | 600 mm | 810 mm | 16 HE | 7035 | |
| 691720IP55.2 | 19" Wall Housing IP55, 20U, Steel Door, Depth 600 mm, RAL7035 | 600 mm | 100 kg | grau | 600 mm | 1000 mm | 20 HE | 7035 |
