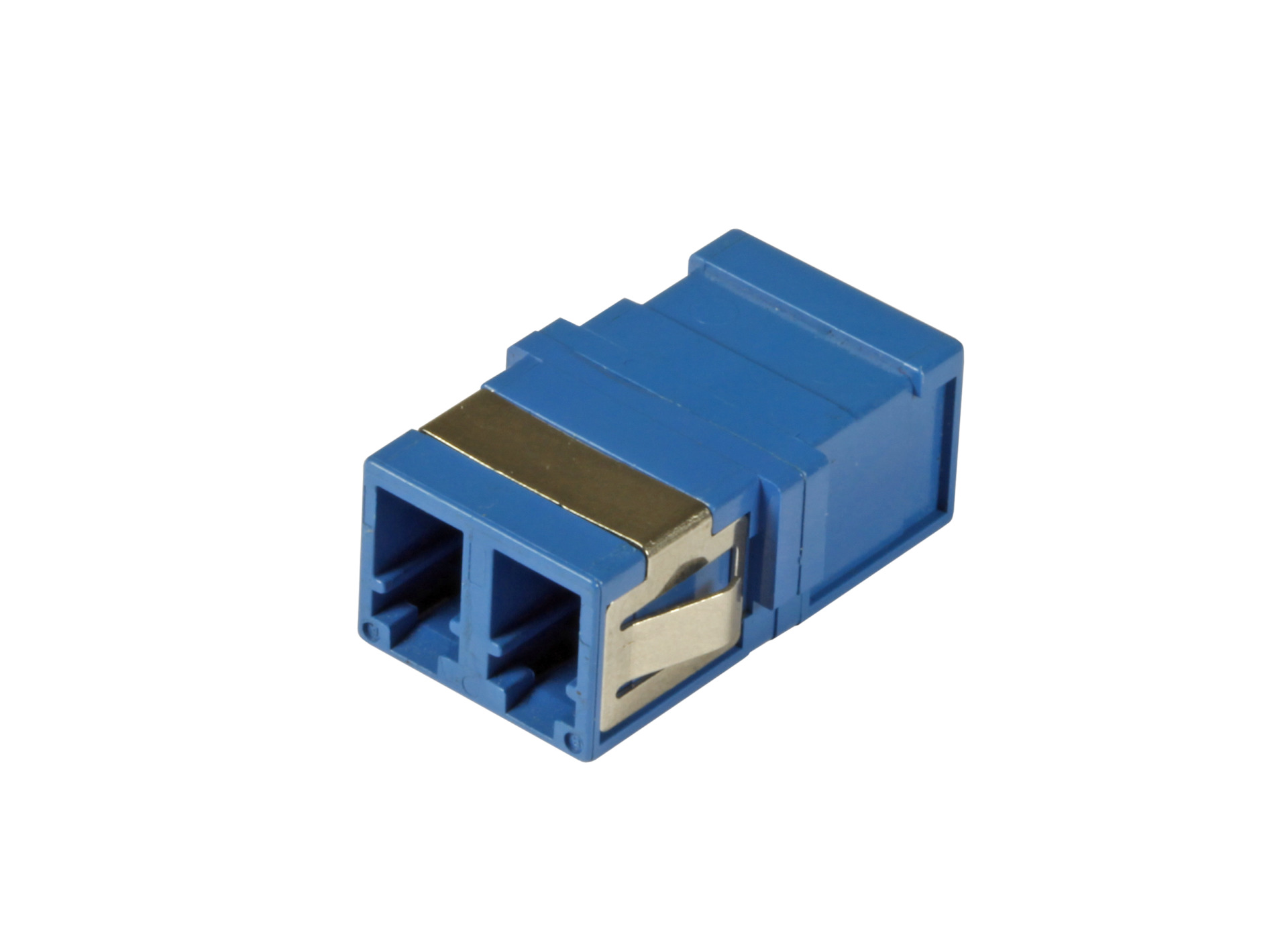

LC Duplex Adapter without flansch, Plastic housing
Adapter LC Duplex SM one piece, flangeless, blue, ceramic sleeve
Varenummer:
53515.1
EAN Nr.:
4049759103194
Produktinformationen für Adapter LC Duplex SM one piece, flangeless, blue, ceramic sleeve
• Flangeless adapter are good for high density and could be used as keystone modules
in consumption with keystone adapter frames
in consumption with keystone adapter frames
Technische Eigenschaften
| Conform to Standard: | IEC61754-20 |
|---|---|
| Design: | SC-Simplex |
| Dust cover: | True |

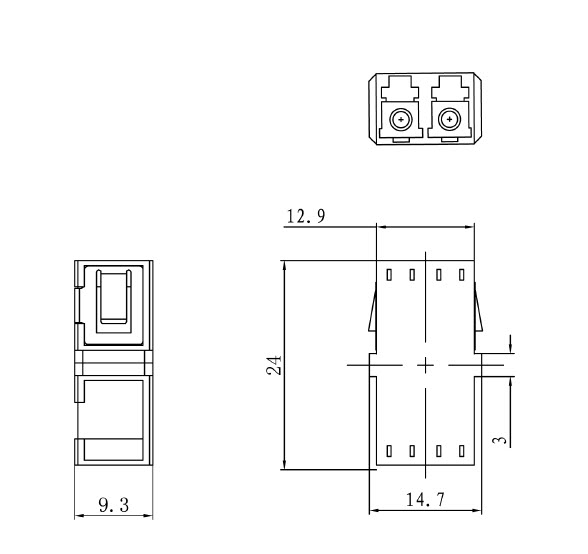

| Height: | 9.3 mm |
| Insertion loss 850nm: | - |
| Internal Shutter: | False |
| Length: | 24 mm |
| Material housing: | Plastic |
| Material sleeve: | Ceramics |
| Operating Temperature: | -40 – 85 °C |
| Storage Temperature: | -40 – 85 °C |
| Type of connector connection 1: | LC-Duplex |
| Type of connector connection 2: | LC-Duplex |
| Type of fastening: | Engage (snap) |
| Type of housing: | flangeless |
| Width: | 14.7 mm |
Varianten
| Art. Nr. | Bezeichnung | Model | Category | Colour | Suitable for type of fibre | Insertion loss 1310nm | Insertion loss 850nm | |
|---|---|---|---|---|---|---|---|---|
| 53515.1 | Adapter LC Duplex SM one piece, flangeless, blue, ceramic sleeve | LC/PC | OS2 | blue | Single mode | < 0.15 dB | - | |
| 53516.1 | Adapter LC Duplex OM3 one piece, flangeless, aqua, ceramic sleeve | LC/PC | OM3 | aqua | Multi mode | - | < 0.15 dB |
