Assembled 19'' Splicebox OM3
Assembled 19'' Splicebox OM3
Varenummer:
M3LC/12-24 AP
EAN-nr.:
5705721134823
Produktinformation til Assembled 19'' Splicebox OM3

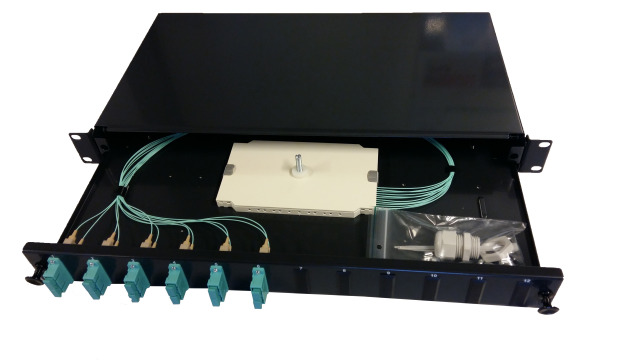

Completely assembled splice box with adapters, pigtails and splice cassette. Metal housing depth adjustable & Cable entries at the rear, incl. 1 x M20 cable Gland + Self adhesive fiber trays
RdeM Splice Cassette with relief
Pigtails stripped down to 250um
Special assembly possible at short notice!
RdeM Splice Cassette with relief
Pigtails stripped down to 250um
Special assembly possible at short notice!
Tekniske egenskaber
| Adapter material: | Plastic adapter |
|---|---|
| Depth: | 245 mm |
| Extendable: | sliding version |
| Fibre class: | OM3 |
| Fibre type: | Multi mode 50/125 and 62.5/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 |
| Pigtails prepared: | stripped |
| Suitable for number of module inserts: | - |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Variants
| ON | Label | With number of couplings/adapters | Pigtail | Adapter colour | |
|---|---|---|---|---|---|
| M3LC/12-24 AP | Assembled 19'' Splicebox OM3 | 12 | 24 x LC | Aqua | |
| M3LC/24-48 AP | Assembled 19'' Splicebox OM3 | 24 | 48 x LC | Aqua | |
| M3LC/6-12 AP | Assembled 19'' Splicebox OM3 | 6 | 12 x LC | Aqua | |
| M3SC/12-24 AP | Assembled 19'' Splicebox OM3 | 12 | 24 x SC | Aqua | |
| M3SC/24-48 AP | Assembled 19'' Splicebox OM3 | 24 | 48 x SC | Aqua |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
