Assembled 19'' Splicebox OM4
EFB-Elektronik GmbH
Assembled 19'' Splicebox OM4
Varenummer:
M4LC/6-12 AP
EAN nr.:
5705721136292
Produktinformation til Assembled 19'' Splicebox OM4

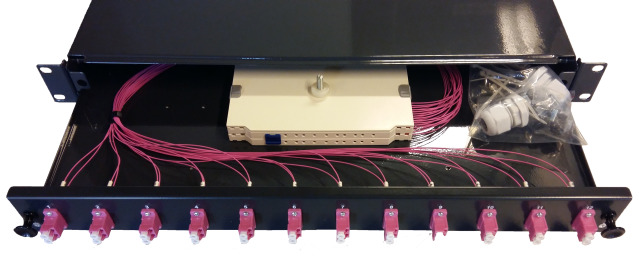

Completely assembled splice box with adapters, pigtails and splice cassette. Metal housing depth adjustable & Cable entries at the rear, incl. 1 x M20 cable Gland + Self adhesive fiber trays
RdeM Splice Cassette with relief
Pigtails stripped down to 250um
Special assembly possible at short notice!
RdeM Splice Cassette with relief
Pigtails stripped down to 250um
Special assembly possible at short notice!
| Adapter material: | Plastic adapter |
|---|---|
| Depth: | 245 mm |
| Extendable: | sliding version |
| Fibre class: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 |
| Pigtails prepared: | stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Tekniske egenskaber
| Adapter material: | Plastic adapter |
|---|---|
| Depth: | 245 mm |
| Extendable: | sliding version |
| Fibre class: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 |
| Pigtails prepared: | stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Varianter
| Art. Nej. | Betegnelse | Pigtail | With number of couplings/adapters | Adapter colour | |
|---|---|---|---|---|---|
| M4LC/12-24 AP | Assembled 19'' Splicebox OM4 | 24 x LC | 12 | Magenta | |
| M4LC/24-48 AP | Assembled 19'' Splicebox OM4 | 48 x LC | 24 | Magenta | |
| M4LC/6-12 AP | Assembled 19'' Splicebox OM4 | 12 x LC | 6 | Magenta | |
| M4SC/12-24 AP | Assembled 19'' Splicebox OM4 | 24 x SC | 12 | Magenta | |
| M4SC/24-48 AP | Assembled 19'' Splicebox OM4 | 48 x SC | 24 | Magenta | |
| M4SC/6-12 AP | Assembled 19'' Splicebox OM4 | 12 x SC | 6 | Magenta |
Produktinformation til Assembled 19'' Splicebox OM4
Completely assembled splice box with adapters, pigtails and splice cassette. Metal housing depth adjustable & Cable entries at the rear, incl. 1 x M20 cable Gland + Self adhesive fiber trays
RdeM Splice Cassette with relief
Pigtails stripped down to 250um
Special assembly possible at short notice!
RdeM Splice Cassette with relief
Pigtails stripped down to 250um
Special assembly possible at short notice!
| Adapter material: | Plastic adapter |
|---|---|
| Depth: | 245 mm |
| Extendable: | sliding version |
| Fibre class: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 |
| Pigtails prepared: | stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
| Adapter material: | Plastic adapter |
|---|---|
| Depth: | 245 mm |
| Extendable: | sliding version |
| Fibre class: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 |
| Pigtails prepared: | stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Varianter
| Art. Nej. | Betegnelse | Pigtail | With number of couplings/adapters | Adapter colour | |
|---|---|---|---|---|---|
| M4LC/12-24 AP | Assembled 19'' Splicebox OM4 | 24 x LC | 12 | Magenta | |
| M4LC/24-48 AP | Assembled 19'' Splicebox OM4 | 48 x LC | 24 | Magenta | |
| M4LC/6-12 AP | Assembled 19'' Splicebox OM4 | 12 x LC | 6 | Magenta | |
| M4SC/12-24 AP | Assembled 19'' Splicebox OM4 | 24 x SC | 12 | Magenta | |
| M4SC/24-48 AP | Assembled 19'' Splicebox OM4 | 48 x SC | 24 | Magenta | |
| M4SC/6-12 AP | Assembled 19'' Splicebox OM4 | 12 x SC | 6 | Magenta |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
