Produktinformation til Assembled 19'' Splicebox SM

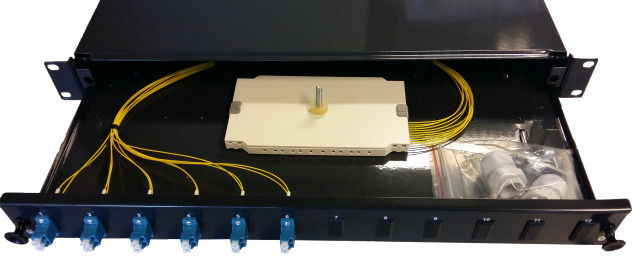

Completely assembled splice box with adapters, pigtails and splice cassette. Metal housing depth adjustable & Cable entries at the rear, incl. 1 x M20 cable Gland + Self adhesive fiber trays
RdeM Splice Cassette with relief
Pigtails stripped down to 250um
Special assembly possible at short notice!
RdeM Splice Cassette with relief
Pigtails stripped down to 250um
Special assembly possible at short notice!
Tekniske egenskaber
| Adapter material: | Plastic adapter |
|---|---|
| Depth: | 245 mm |
| Extendable: | sliding version |
| Fibre class: | OS2 acc. to ITU-T G.652.D |
| Fibre type: | Single mode 9/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 |
| Pigtails prepared: | stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Variants
| ON | Label | Pigtail | With number of couplings/adapters | Adapter colour | |
|---|---|---|---|---|---|
| M9LC/12-24 AP | Assembled 19'' Splicebox SM | 24 x LC | 12 | blue | |
| M9LC/24-48 AP | Assembled 19'' Splicebox SM | 48 x LC | 24 | blue | |
| M9LC/6-12 AP | Assembled 19'' Splicebox SM | 12 x LC | 6 | blue | |
| M9SC/12-24 AP | Assembled 19'' Splicebox SM | 24 x SC | 12 | blue | |
| M9SC/24-48 AP | Assembled 19'' Splicebox SM | 48 x SC | 24 | blue | |
| M9SC/6-12 AP | Assembled 19'' Splicebox SM | 12 x SC | 6 | blue |
