Installation Cable Cat.6 U/UTP LSZH, Class Dca
EFB-Elektronik GmbH

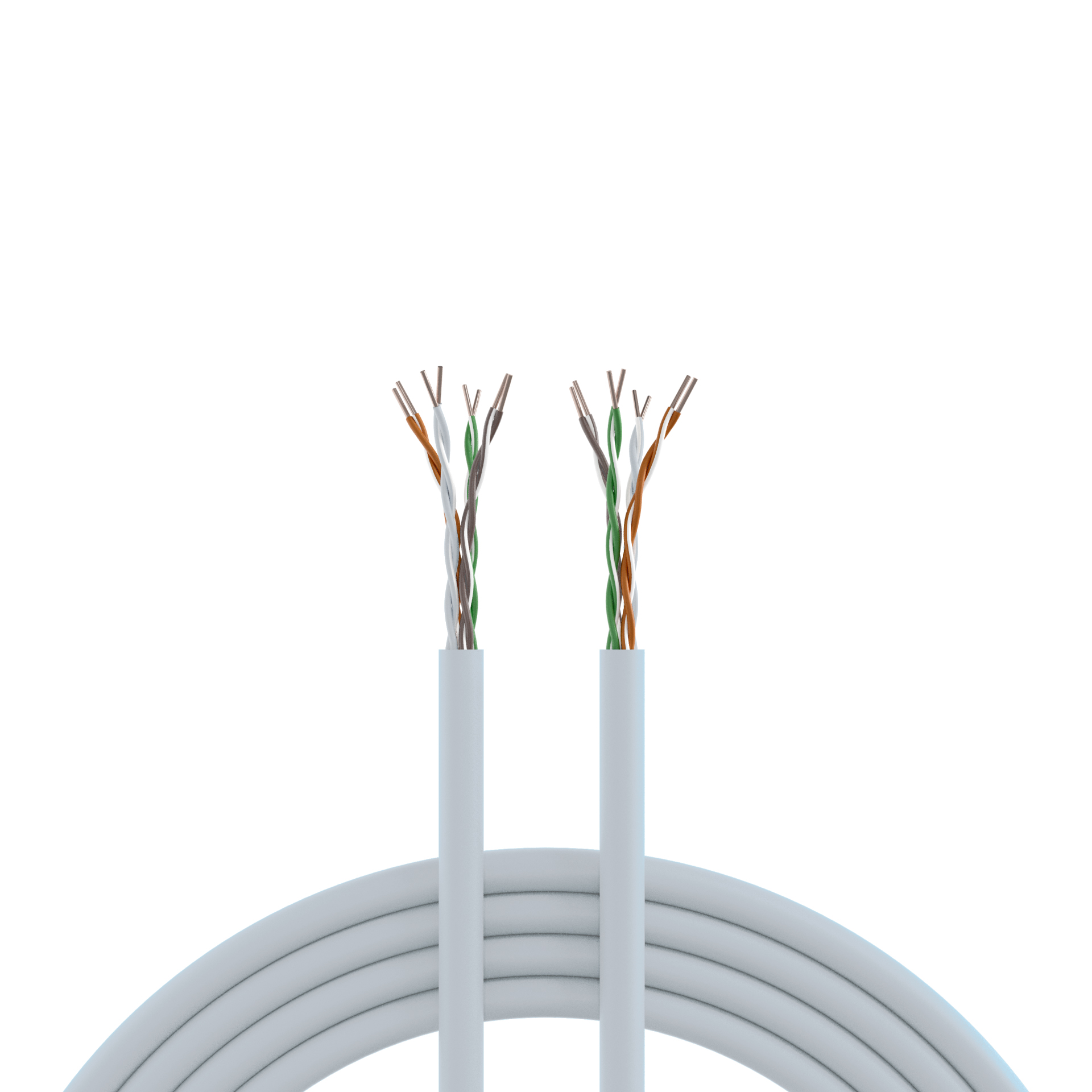

CABLE CAT.6 U/UTP (4X2XAWG23) LSZH white, 305 Mtr Box
Varenummer:
DK-ICD6UW.305-V1
EAN nr.:
5705721137541
Produktinformation til CABLE CAT.6 U/UTP (4X2XAWG23) LSZH white, 305 Mtr Box
InfraLan datacable 4 x Twisted pairs in accordance to ISO/IEC 11801, EN-50173 & TIA568-C.2
This cable fullfill the requirement in accordance to EN50575, Class Dca S2,D2,A1
This cable fullfill the requirement in accordance to EN50575, Class Dca S2,D2,A1
| AWG-size: | 23 |
|---|---|
| Bending radius (dynamic): | 8 x OD |
| Bending radius (static): | 4 x OD |

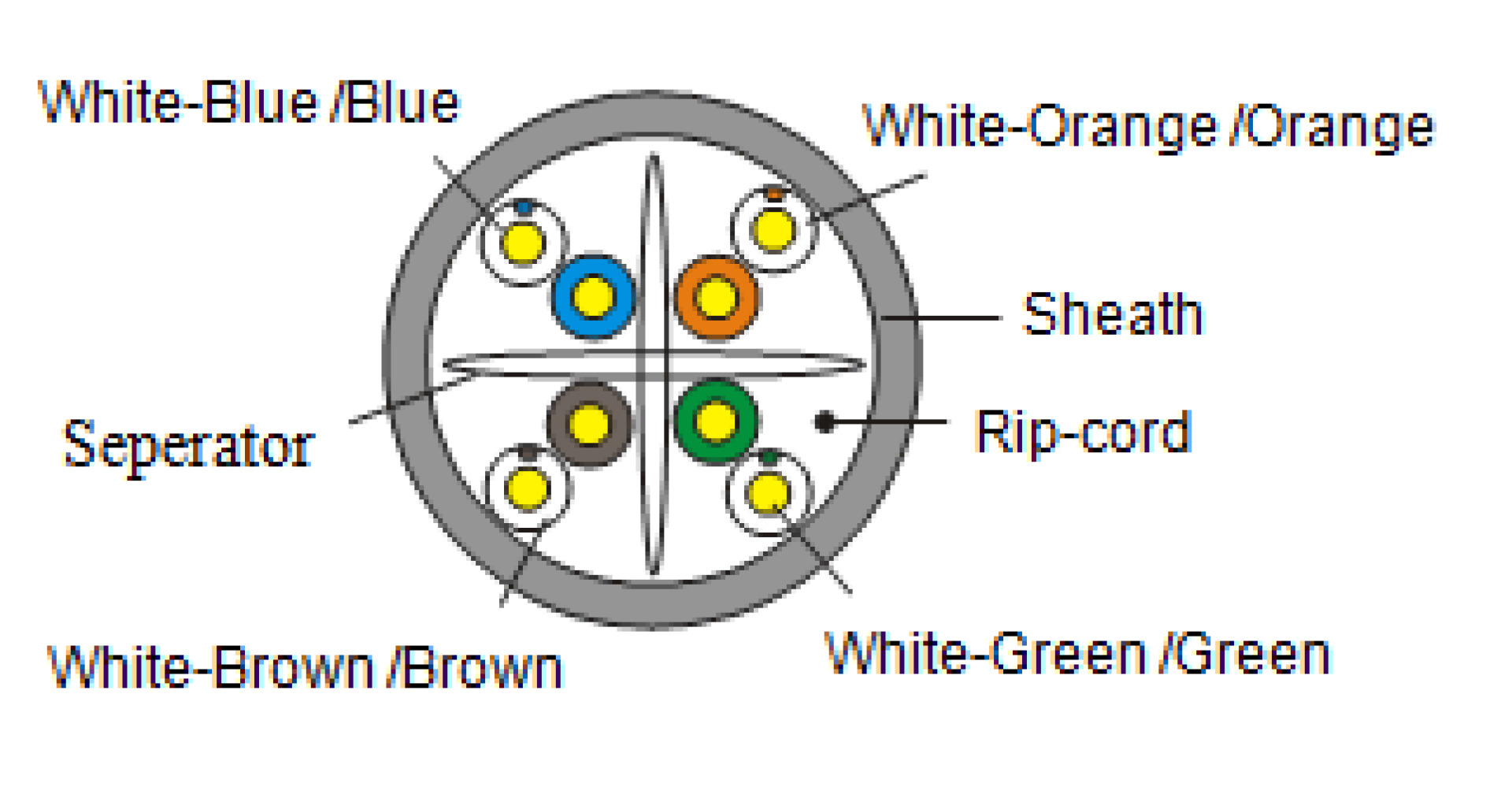

| Cable structure: | U/UTP |
| Category: | 6 |
| Colour outher sheath: | White |
| Conductor category: | solid |
| Conductor material: | CU, bare |
| Core identification: | colour |
| Core insulation: | HDPE |
| Diameter conductor: | 0.55 |
| Euro class: | Dca |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Jacket material: | LSZH |
| Low smoke (acc. EN 61034-2): | True |
| Max. frequency: | 250 MHz |
| NVP value: | 70 |
| Nominal cross section conductor: | 23 |
| Operating temperature, fix: | -20 – 75 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Screen over stranding: | without |
| Screen over stranding element: | without |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| UV resistant: | no |
Tekniske egenskaber
| AWG-size: | 23 |
|---|---|
| Bending radius (dynamic): | 8 x OD |
| Bending radius (static): | 4 x OD |
| Cable structure: | U/UTP |
| Category: | 6 |
| Colour outher sheath: | White |
| Conductor category: | solid |
| Conductor material: | CU, bare |
| Core identification: | colour |
| Core insulation: | HDPE |
| Diameter conductor: | 0.55 |
| Euro class: | Dca |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Jacket material: | LSZH |
| Low smoke (acc. EN 61034-2): | True |
| Max. frequency: | 250 MHz |
| NVP value: | 70 |
| Nominal cross section conductor: | 23 |
| Operating temperature, fix: | -20 – 75 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Screen over stranding: | without |
| Screen over stranding element: | without |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| UV resistant: | no |
Varianter
| Art. Nej. | Betegnelse | Type | Number of cores | Colour outer sheath | Length | RAL colour | Outer diameter approx. | |
|---|---|---|---|---|---|---|---|---|
| DK-ICD6UW.305-V1 | CABLE CAT.6 U/UTP (4X2XAWG23) LSZH white, 305 Mtr Box | simplex | 8 | white | 305 m | RAL9003 | 5.6 mm | |
| DK-ICD6UW.305-V2 | INFRALAN CABLE CAT.6 U/UTP (4X2XAWG23) LSZH white, 305 Mtr Box | simplex | 8 | white | 305 m | RAL9003 | - | |
| DK-ICD6UW.500-V1 | CABLE CAT.6 U/UTP (4X2XAWG23) LSZH white, 500 Mtr Drum | simplex | 8 | white | 500 m | RAL9003 | 5.6 mm |
Produktinformation til CABLE CAT.6 U/UTP (4X2XAWG23) LSZH white, 305 Mtr Box
InfraLan datacable 4 x Twisted pairs in accordance to ISO/IEC 11801, EN-50173 & TIA568-C.2
This cable fullfill the requirement in accordance to EN50575, Class Dca S2,D2,A1
This cable fullfill the requirement in accordance to EN50575, Class Dca S2,D2,A1
| AWG-size: | 23 |
|---|---|
| Bending radius (dynamic): | 8 x OD |
| Bending radius (static): | 4 x OD |
| Cable structure: | U/UTP |
| Category: | 6 |
| Colour outher sheath: | White |
| Conductor category: | solid |
| Conductor material: | CU, bare |
| Core identification: | colour |
| Core insulation: | HDPE |
| Diameter conductor: | 0.55 |
| Euro class: | Dca |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Jacket material: | LSZH |
| Low smoke (acc. EN 61034-2): | True |
| Max. frequency: | 250 MHz |
| NVP value: | 70 |
| Nominal cross section conductor: | 23 |
| Operating temperature, fix: | -20 – 75 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Screen over stranding: | without |
| Screen over stranding element: | without |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| UV resistant: | no |
| AWG-size: | 23 |
|---|---|
| Bending radius (dynamic): | 8 x OD |
| Bending radius (static): | 4 x OD |
| Cable structure: | U/UTP |
| Category: | 6 |
| Colour outher sheath: | White |
| Conductor category: | solid |
| Conductor material: | CU, bare |
| Core identification: | colour |
| Core insulation: | HDPE |
| Diameter conductor: | 0.55 |
| Euro class: | Dca |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Jacket material: | LSZH |
| Low smoke (acc. EN 61034-2): | True |
| Max. frequency: | 250 MHz |
| NVP value: | 70 |
| Nominal cross section conductor: | 23 |
| Operating temperature, fix: | -20 – 75 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Screen over stranding: | without |
| Screen over stranding element: | without |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| UV resistant: | no |
Varianter
| Art. Nej. | Betegnelse | Type | Number of cores | Colour outer sheath | Length | RAL colour | Outer diameter approx. | |
|---|---|---|---|---|---|---|---|---|
| DK-ICD6UW.305-V1 | CABLE CAT.6 U/UTP (4X2XAWG23) LSZH white, 305 Mtr Box | simplex | 8 | white | 305 m | RAL9003 | 5.6 mm | |
| DK-ICD6UW.305-V2 | INFRALAN CABLE CAT.6 U/UTP (4X2XAWG23) LSZH white, 305 Mtr Box | simplex | 8 | white | 305 m | RAL9003 | - | |
| DK-ICD6UW.500-V1 | CABLE CAT.6 U/UTP (4X2XAWG23) LSZH white, 500 Mtr Drum | simplex | 8 | white | 500 m | RAL9003 | 5.6 mm |
