Installation Cable Cat.6A UTP PE Outdoor
EFB-Elektronik GmbH

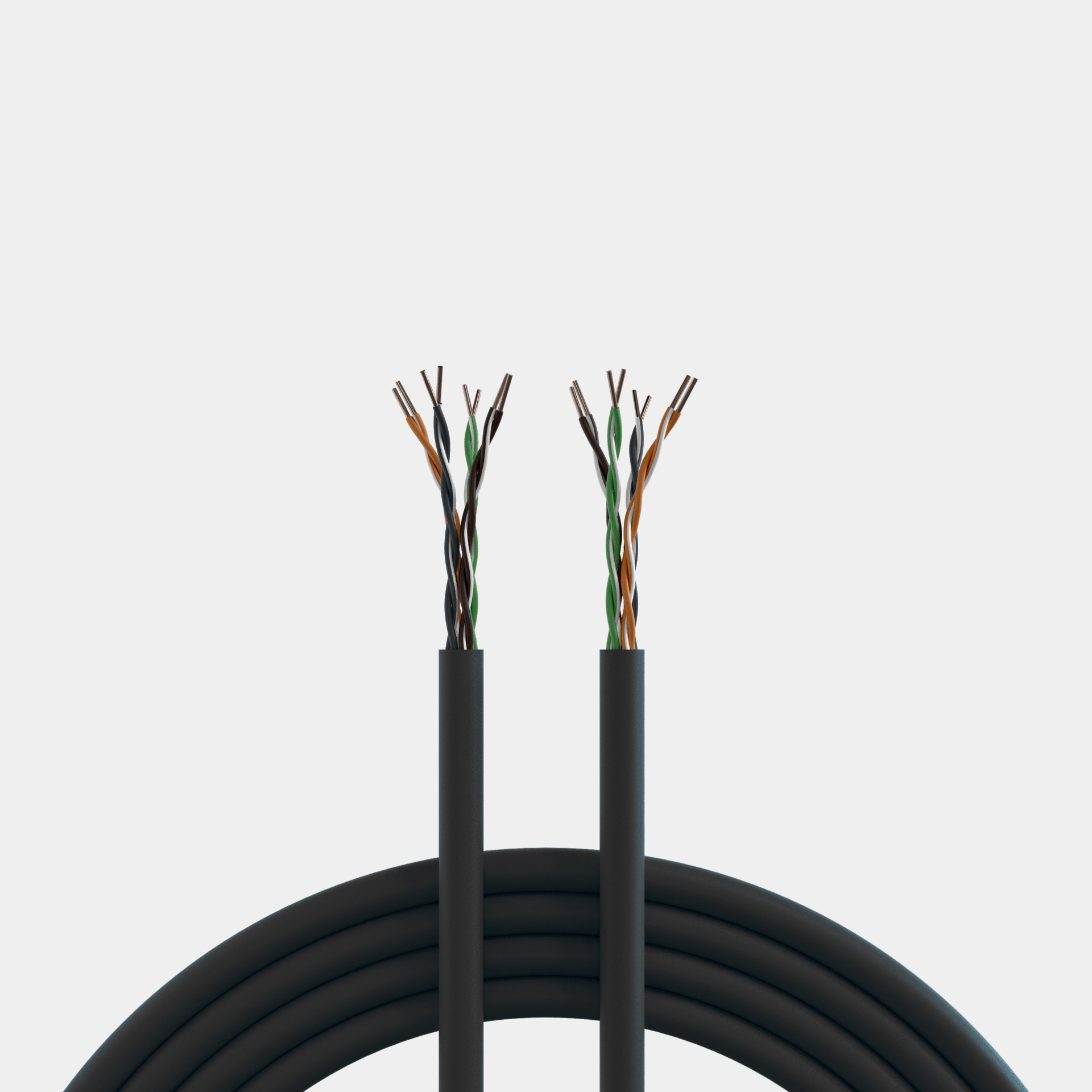

CABLE CAT.6A U/UTP 4X2XAWG23 PE black, 305 Mtr Box
Varenummer:
DK-IC6AUPEB.305
EAN nr.:
5705721145577
Produktinformation til CABLE CAT.6A U/UTP 4X2XAWG23 PE black, 305 Mtr Box
Datacable 4 x Twisted pairs in accordance to ISO/IEC 11801, EN-50173 & TIA568-C.2
This cable is a PE jacket for outdoor installation, and installation in conduits in ground
This cable is a PE jacket for outdoor installation, and installation in conduits in ground
| AWG-size: | 23 |
|---|---|
| Category: | 6A (IEC) |
| Characteristic impedance: | 100 ± 5 |
| Conductor category: | Class 1 = solid |
| Conductor material: | Copper, bare |
| Core identification: | colour |
| Core insulation: | Solid PE (HD-PE) |
| Coupling attenuation: | 80 |
| Diameter conductor: | 0.99 |
| Low smoke: | No |
| Material outer sheath: | Polyethylene (PE) |
| Max. Freuqency: | 500 |
| NVP value: | 68 % |
| Nominal cross section conductor: | 23 |
| Operating temperature, fix: | -40 – 75 |
| Operating temperature, flexible: | -20 – 50 |
| Resistance unbalance: | 5 % |
| Screen over stranding: | None |
| Screen over stranding element: | without |
| Stranding element: | Pairs |
| UV resistant: | yes |
Tekniske egenskaber
| AWG-size: | 23 |
|---|---|
| Category: | 6A (IEC) |
| Characteristic impedance: | 100 ± 5 |
| Conductor category: | Class 1 = solid |
| Conductor material: | Copper, bare |
| Core identification: | colour |
| Core insulation: | Solid PE (HD-PE) |
| Coupling attenuation: | 80 |
| Diameter conductor: | 0.99 |
| Low smoke: | No |
| Material outer sheath: | Polyethylene (PE) |
| Max. Freuqency: | 500 |
| NVP value: | 68 % |
| Nominal cross section conductor: | 23 |
| Operating temperature, fix: | -40 – 75 |
| Operating temperature, flexible: | -20 – 50 |
| Resistance unbalance: | 5 % |
| Screen over stranding: | None |
| Screen over stranding element: | without |
| Stranding element: | Pairs |
| UV resistant: | yes |
Produktinformation til CABLE CAT.6A U/UTP 4X2XAWG23 PE black, 305 Mtr Box
Datacable 4 x Twisted pairs in accordance to ISO/IEC 11801, EN-50173 & TIA568-C.2
This cable is a PE jacket for outdoor installation, and installation in conduits in ground
This cable is a PE jacket for outdoor installation, and installation in conduits in ground
| AWG-size: | 23 |
|---|---|
| Category: | 6A (IEC) |
| Characteristic impedance: | 100 ± 5 |
| Conductor category: | Class 1 = solid |
| Conductor material: | Copper, bare |
| Core identification: | colour |
| Core insulation: | Solid PE (HD-PE) |
| Coupling attenuation: | 80 |
| Diameter conductor: | 0.99 |
| Low smoke: | No |
| Material outer sheath: | Polyethylene (PE) |
| Max. Freuqency: | 500 |
| NVP value: | 68 % |
| Nominal cross section conductor: | 23 |
| Operating temperature, fix: | -40 – 75 |
| Operating temperature, flexible: | -20 – 50 |
| Resistance unbalance: | 5 % |
| Screen over stranding: | None |
| Screen over stranding element: | without |
| Stranding element: | Pairs |
| UV resistant: | yes |
| AWG-size: | 23 |
|---|---|
| Category: | 6A (IEC) |
| Characteristic impedance: | 100 ± 5 |
| Conductor category: | Class 1 = solid |
| Conductor material: | Copper, bare |
| Core identification: | colour |
| Core insulation: | Solid PE (HD-PE) |
| Coupling attenuation: | 80 |
| Diameter conductor: | 0.99 |
| Low smoke: | No |
| Material outer sheath: | Polyethylene (PE) |
| Max. Freuqency: | 500 |
| NVP value: | 68 % |
| Nominal cross section conductor: | 23 |
| Operating temperature, fix: | -40 – 75 |
| Operating temperature, flexible: | -20 – 50 |
| Resistance unbalance: | 5 % |
| Screen over stranding: | None |
| Screen over stranding element: | without |
| Stranding element: | Pairs |
| UV resistant: | yes |
