Patch Cable Cat.5e UTP PVC

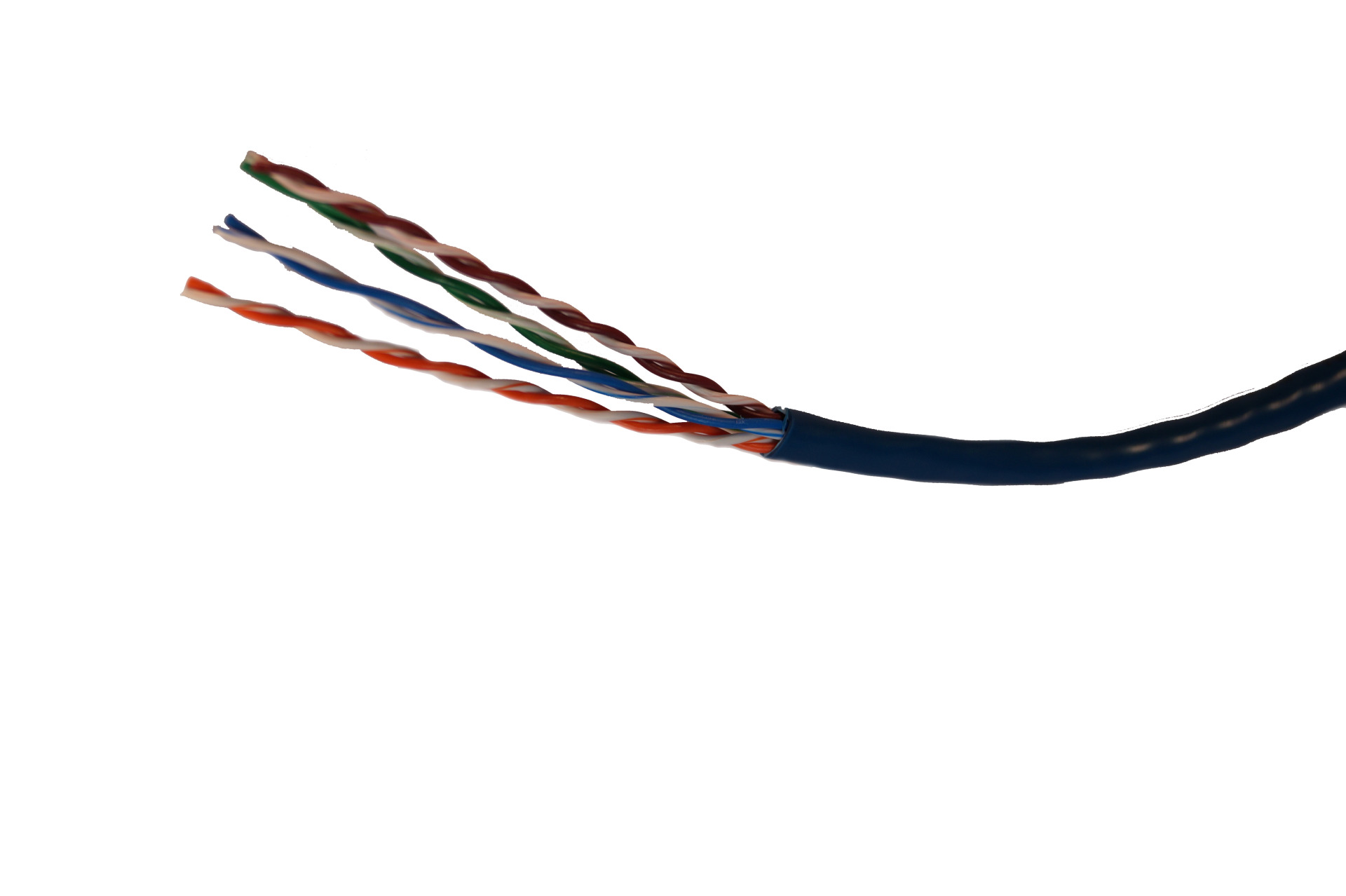

CABLE CAT5E U/UTP 4X2XAWG24 PVC BLUE,305 Mtr Box
Varenummer:
DK-PC5EUB.305
Produktinformationen für CABLE CAT5E U/UTP 4X2XAWG24 PVC BLUE,305 Mtr Box
Flexible patch Cable 4 x Twisted pairs, AWG24 stranded (7/0,2mm) in accordance to ISO/IEC 11801, EN-50173 & TIA568-C.2
Technische Eigenschaften
| AWG-size: | AWG24 |
|---|---|
| Conductor category: | Stranded (7/0,2mm) |
| Conductor material: | Cupper |
| Flame-retardant: | No |
| Halogen free (acc. EN 50267-2-2): | False |
| Jacket material: | PVC |
| Low smoke (acc. EN 61034-2): | False |
| NVP value: | 69% |
| Nominal cross section conductor: | 0.2mm |
| Operating temperature, fix: | -20C - +60C – |
| Operating temperature, flexible: | -20C - +60C – |
| Screen over stranding: | No |
Varianten
| Art. Nr. | Bezeichnung | Type | Length | Colour outer sheath | Outer diameter approx. | |
|---|---|---|---|---|---|---|
| DK-PC5EUB.305 | CABLE CAT5E U/UTP 4X2XAWG24 PVC BLUE,305 Mtr Box | Simplex | 305 m | blue | 5.5 mm | |

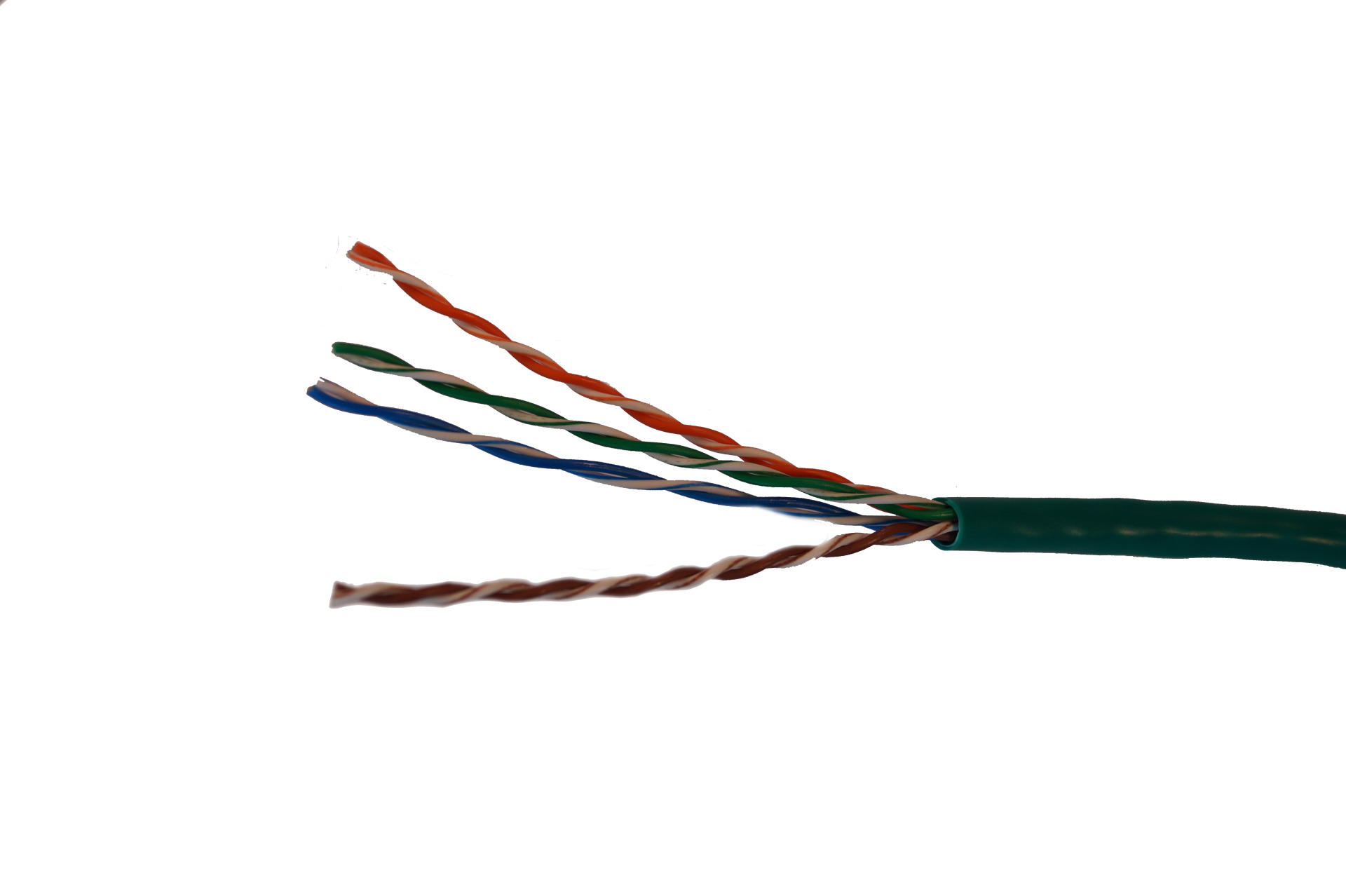

| DK-PC5EUG.305 | CABLE CAT5E U/UTP 4X2XAWG24 PVC GREEN,305 Mtr Box | Simplex | 305 m | green | 5.5 mm | |

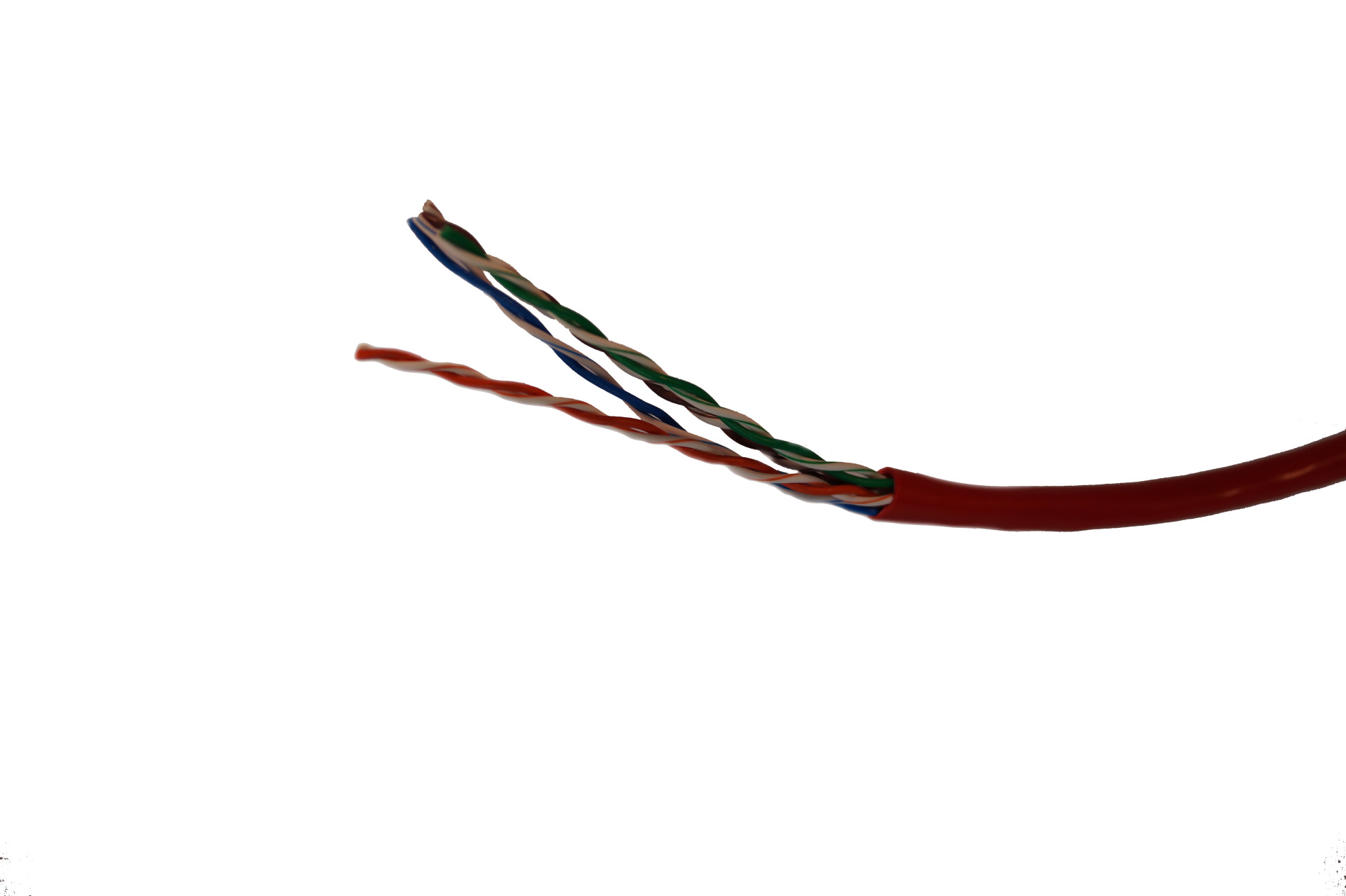

| DK-PC5EUR.305 | CABLE CAT5E U/UTP 4X2XAWG24 PVC RED,305 Mtr Box | Simplex | 305 m | red | 5.5 mm | |

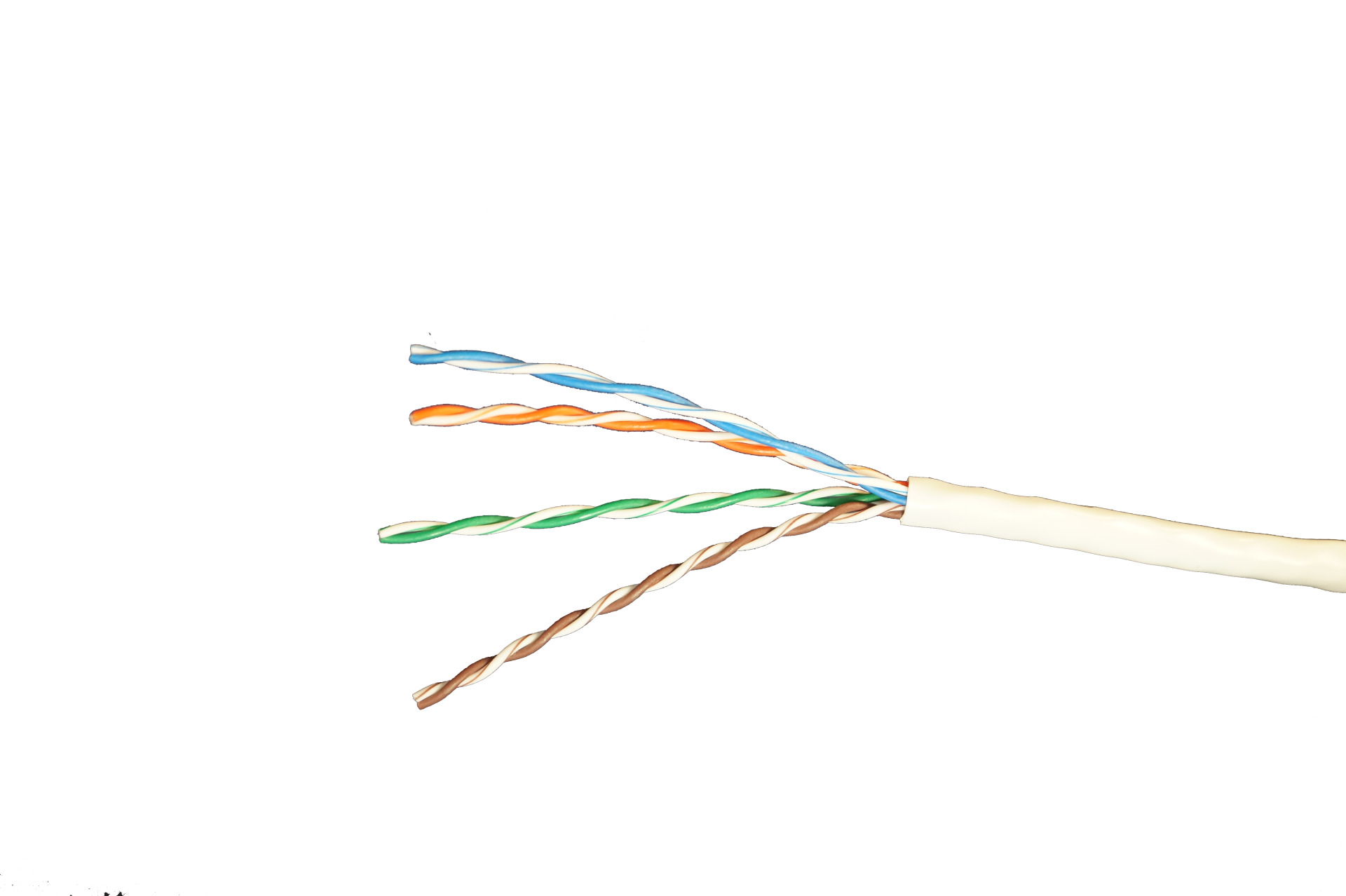

| DK-PC5EUW.305 | CABLE CAT5E 4X2XAWG24 U/UTP PVC WHITE,305 Mtr Box | Simplex | 305 m | white | 5.5 mm |
