Cat.5e Dätwyler 300 MHz S/UTP

Priser kun synlige for indloggede brugere

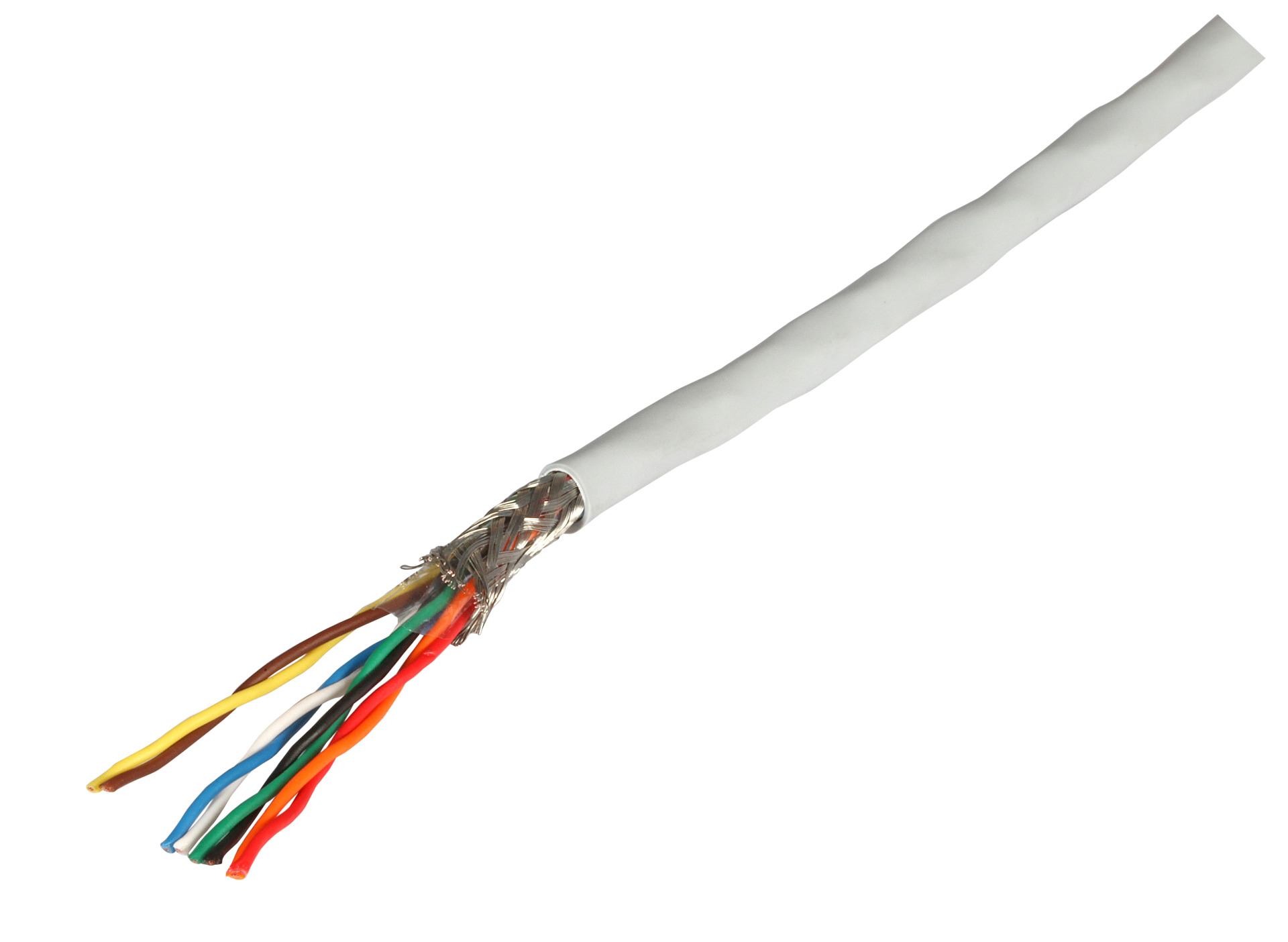

Cat. 5E Patch Cable DW S/UTP AWG26/7, 300MHz, grey
Varenummer: 98701.1
EAN nr.: 4049759074036
Meter

Produktinformation für Cat. 5E Patch Cable DW S/UTP AWG26/7, 300MHz, grey

Dätwyler Cables CU 5502 flex 4P. The structure is tuned to a fast and reliable packing! Electrically and mechanically high-quality 300 MHz patch cords - exceeds the highest expectations! Guaranteed limits according to Cat.5: ISO / IEC 11801 and EN 50173-1, EN 50288-2-2. As data jumper cables in patch panels and as Cord. For the transmission of digital and analogue voice, image and data signals. ISDN, Ethernet 10 BASE-T, 100 BASE-T Fast Ethernet, Gigabit Ethernet 1000 Base-T, Token Ring 16.4 Mbit / s, TP-PMD / TP-DDI 125 Mbit / s, ATM 155 Mbit / s. Especially suitable for all applications of class D.

Tekniske egenskaber

AWG-size: 26/7
Bending radius (static): 20 mm
Cable: EN 50288-2
Cable Construction: S/UTP
Cable type: Dätwyler CU 5502 flex
Cabling standards: EN 50173-1
ISO/IEC 11801
Category: 5E
Conductor category: Class 2 = stranded
Conductor material: Cu, tinned
Core identification: Colour
Core insulation: PVC
Delay skew: 1,5 ns/100m
Flame-retardant: According to IEC/EN 60332-1-2
Halogen free (acc. EN 50267-2-2): False
Impedance: 100 ± 15 Ohm
Installation standard: EN 50174
Jacket material: Polyvinylchlorid (PVC)
Loop resistance: 225 Ohm/km
Low smoke (acc. EN 61034-2): True
Max. Freuqency: 300 MHz
NVP value: 76 %
Nominal cross section conductor: 0.16 mm²
Operating temperature, fix: -20 – 60 °C
Operating temperature, flexible: 0 – 50 °C
PoE: acc. to IEEE802.3af PoE
acc. to IEEE802.3at PoE+

acc. to IEEE802.3bt 4PPoE
Resistance unbalance: 3 %
Screen over stranding: braiding
Screen over stranding element: without
Stranding element: Pairs
Transfer impedance at 1MHz: 25 mOhm/m
Transfer impedance at 10MHz: 25 mOhm/m
Transfer impedance at 30MHz: 25 mOhm/m
UV resistance: no

Varianter

Art. Nej. Betegnelse Number of cores Colour outer sheath Type Length Copper weight Weight Max. tractive force Outer diameter approx. Fire load
98701.100 Cat. 5E Patch Cable DW S/UTP AWG26/7, 300MHz, grey,100m 8 grey simplex 100.0 m 23.5 kg/km 34 kg/km 63 N 5.1 mm 0.382 MJ/m
98702.100 Cat. 5E Patch Cable DW S/UTP AWG26/7, 300MHz, yellow,100m 8 yellow simplex 100.0 m 23.5 kg/km 34 kg/km 63 N 5.1 mm 0.382 MJ/m
98703.100 Cat. 5E Patch Cable DW S/UTP AWG26/7, 300MHz, red, 100m 8 red simplex 100.0 m 23.5 kg/km 34 kg/km 63 N 5.1 mm 0.382 MJ/m
98704.100 Cat. 5E Patch Cable DW S/UTP AWG26/7, 300MHz, blue,100m 8 blue simplex 100.0 m 23.5 kg/km 34 kg/km 63 N 5.1 mm 0.382 MJ/m
98705.100 Cat. 5E Patch Cable DW S/UTP AWG26/7, 300MHz, black,100m 8 black simplex 100.0 m 23.5 kg/km 34 kg/km 63 N 5.1 mm 0.382 MJ/m
98706.100 Cat. 5E Patch Cable DW S/UTP AWG26/7, 300MHz, green,100m 8 green simplex 100.0 m 23.5 kg/km 34 kg/km 63 N 5.1 mm 0.382 MJ/m
98701.1 Cat. 5E Patch Cable DW S/UTP AWG26/7, 300MHz, grey 8 grey simplex 1.0 m 23.5 kg/km 34 kg/km 63 N 5.1 mm 0.382 MJ/m
98702.1 Cat. 5E Patch Cable DW S/UTP AWG26/7, 300MHz, yellow 8 yellow simplex 1.0 m 23.5 kg/km 34 kg/km 63 N 5.1 mm 0.382 MJ/m
98703.1 Cat. 5E Patch Cable DW S/UTP AWG26/7, 300MHz, red 8 red simplex 1.0 m 23.5 kg/km 34 kg/km 63 N 5.1 mm 0.382 MJ/m
98704.1 Cat. 5E Patch Cable DW S/UTP AWG26/7, 300MHz, blue 8 blue simplex 1.0 m 23.5 kg/km 34 kg/km 63 N 5.1 mm 0.382 MJ/m
98705.1 Cat. 5E Patch Cable DW S/UTP AWG26/7, 300MHz, black 8 black simplex 1.0 m 23.5 kg/km 34 kg/km 63 N 5.1 mm 0.382 MJ/m
98706.1 Cat. 5E Patch Cable DW S/UTP AWG26/7, 300MHz, green 8 green simplex 1.0 m 23.5 kg/km 34 kg/km 63 N 5.1 mm 0.382 MJ/m
