Cat.6A/ClassEA Installation link S/FTP PIMF
Cat.6A/classEA Installation link, S/FTP, 90m on drum
Varenummer:
K9201.90
EAN Nr.:
4049759010119
Produktinformation til Cat.6A/classEA Installation link, S/FTP, 90m on drum

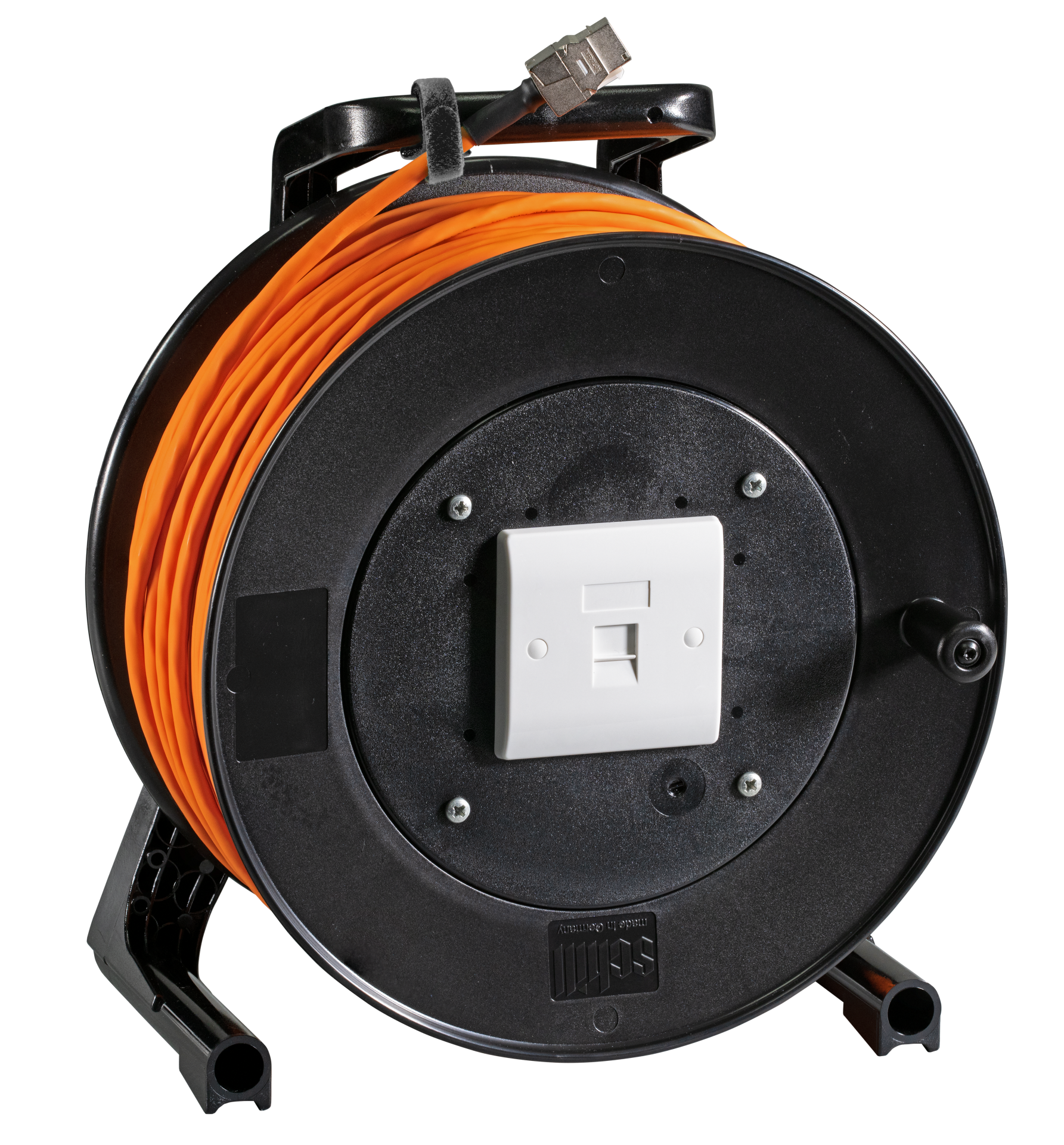

Robust special rubber cable drum, complete with Cat.7 S/FTP installation cable, integrated outlet Cat.6A 1 x RJ45 with dust cap and 1 x Cat.6A RJ45. Very well suited to mobile use, for exhibitions, presentations, outside broadcasting vans, measuring sections etc. A standardised installation section in accordance with structured cabling Cat.6A / Class EA.
Tekniske egenskaber
| (Halogenfree): | True |
|---|---|
| AWG-size: | 23 |
| Anti-kink sleeve: | moulded-on |
| Bending radius: | 4 x OD |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cabling Standard: | ISO/IEC 11801 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | black |
| Colour outer sheath: | orange |
| Conductor Material: | Copper |
| Dust cover: | True |
| Fire retardant version: | True |
| Flame-retardant: | acc. IEC60332-1 |
| Jacket Material: | FRNC |
| Locking lever: | False |
| Low smoke: | acc. IEC61034 |
| NVP value: | 79 % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Pin assignment: | 1:1 |
| Raw cable: | Cat.7 |
| Temperature Range (Installation): | 0 – 50 °C |
| Temperature Range (Operation): | -20 – 60 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
