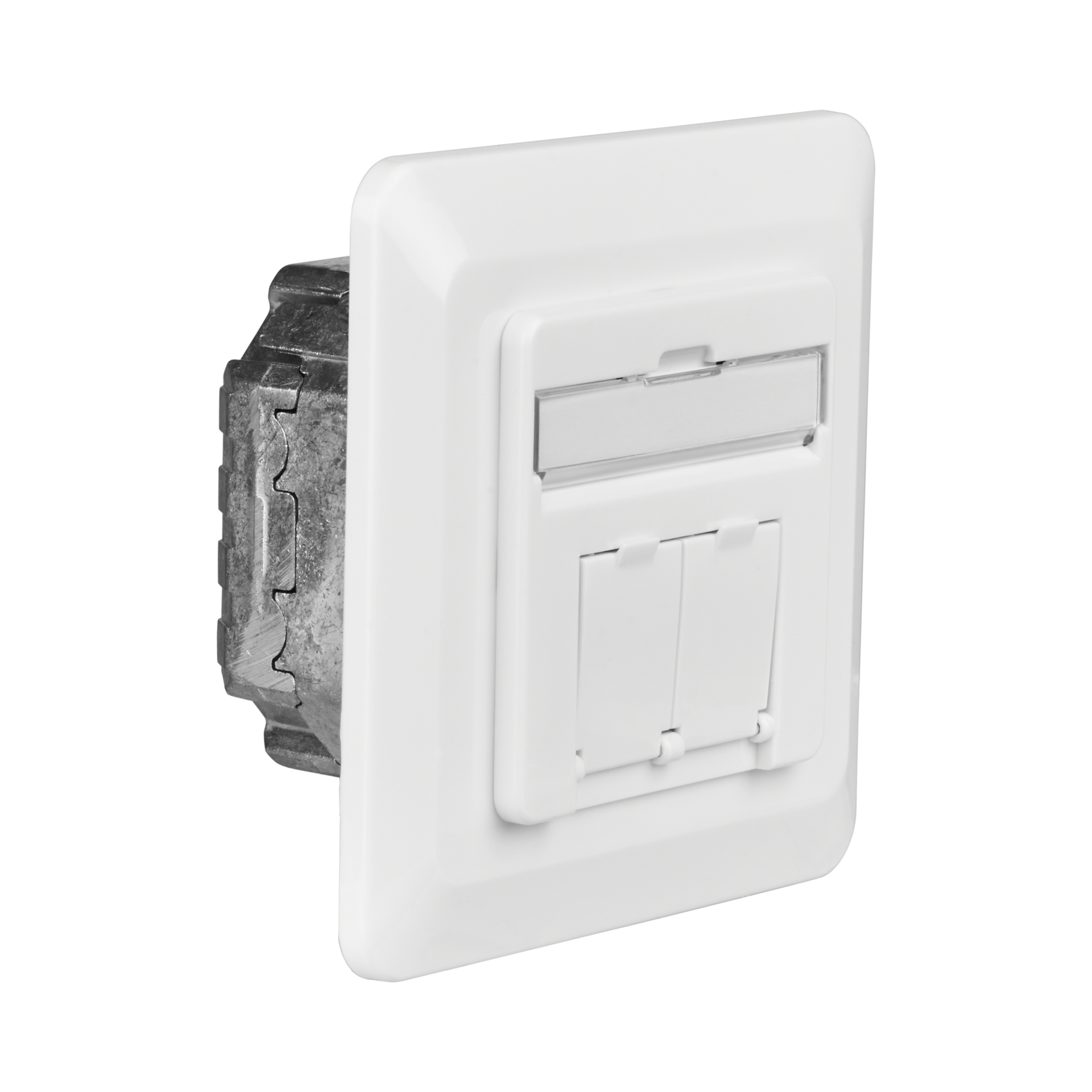

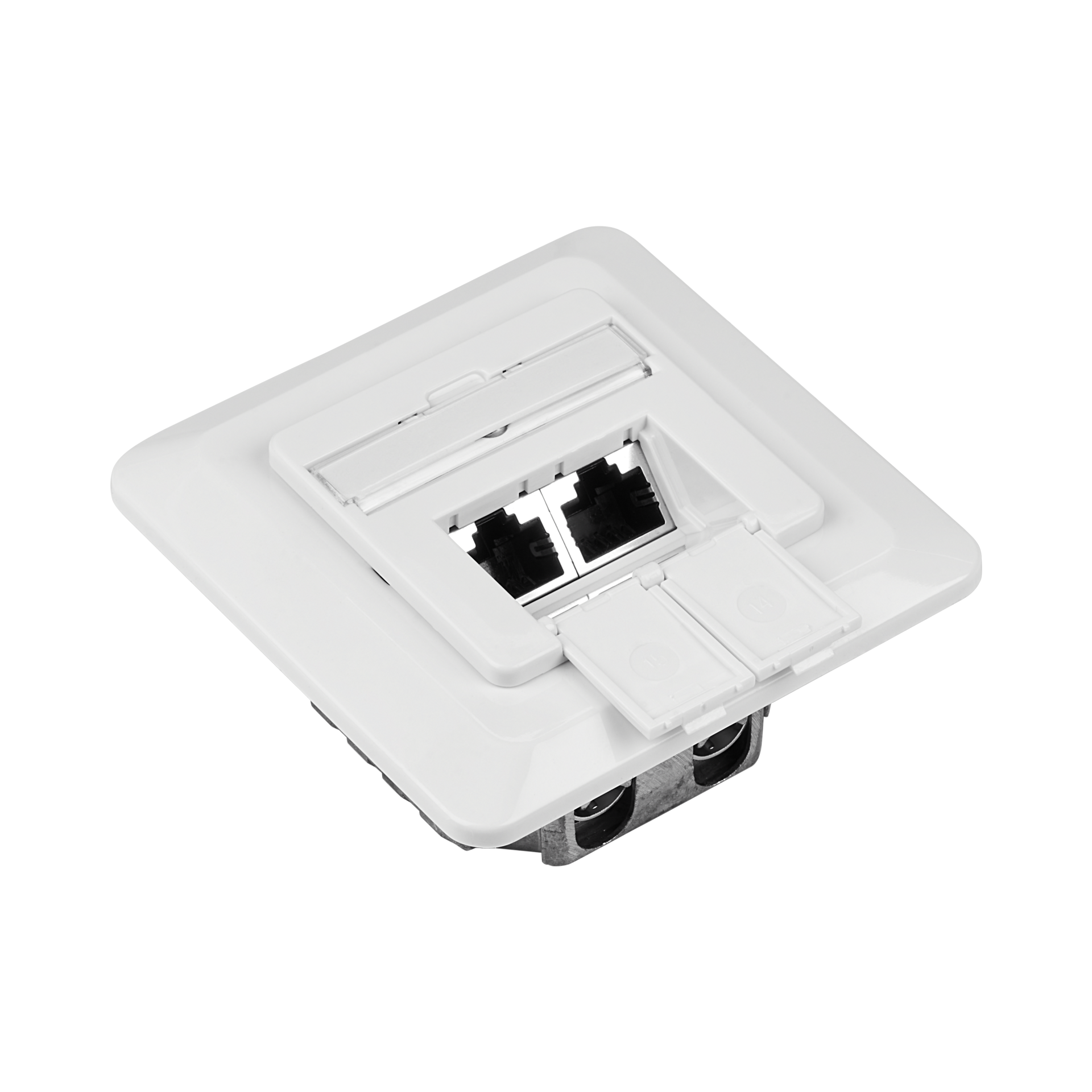

Data outlet Cat.6, Flush mounting

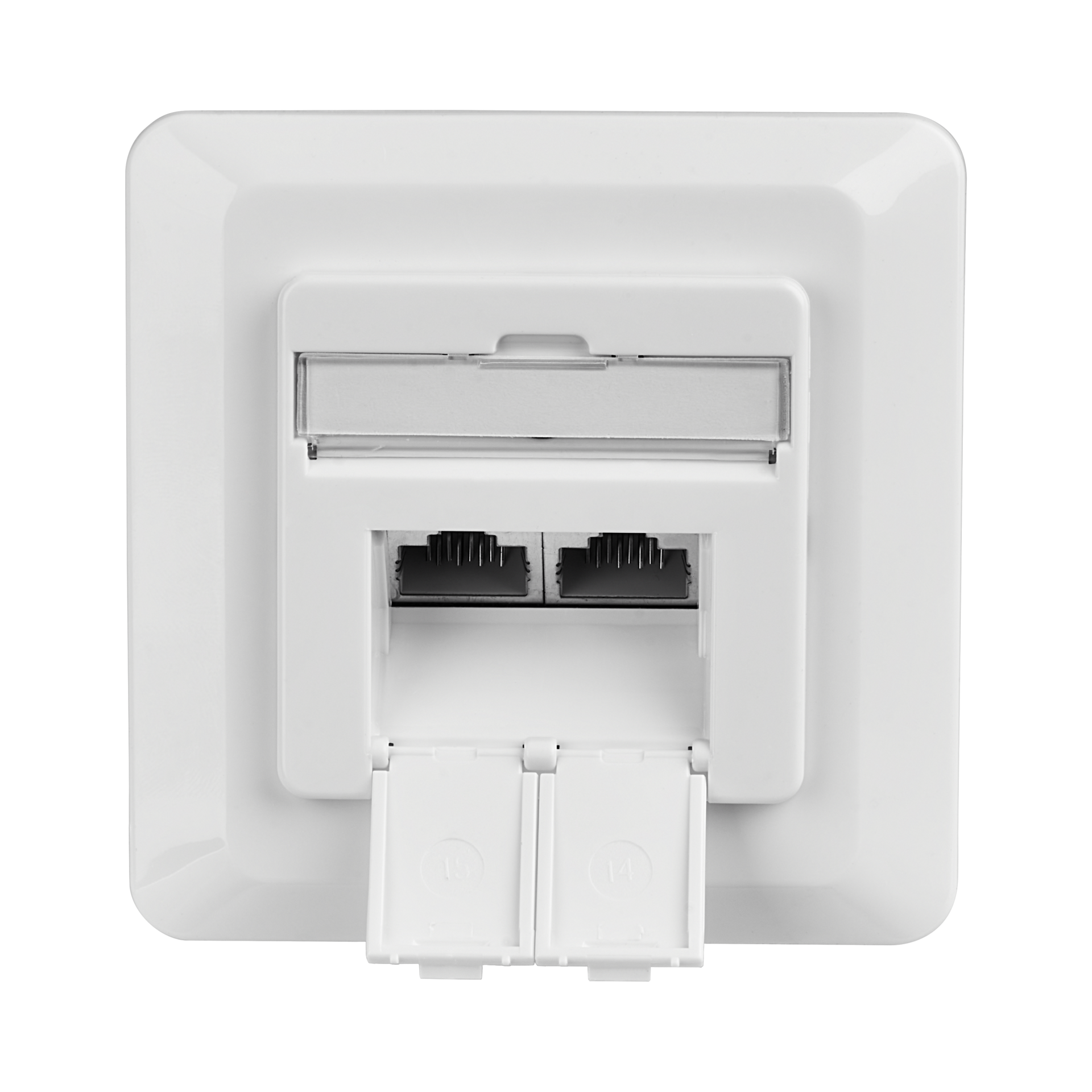

Data outlet Cat.6 250MHz, up/down, Flush, 2xRJ45, RAL9010
Varenummer:
ET-25211.1V1
EAN Nr.:
4049759149659
Produktinformation til Data outlet Cat.6 250MHz, up/down, Flush, 2xRJ45, RAL9010
Cat.6 (250 MHz) according to ISO/IEC 11801 and EN50173

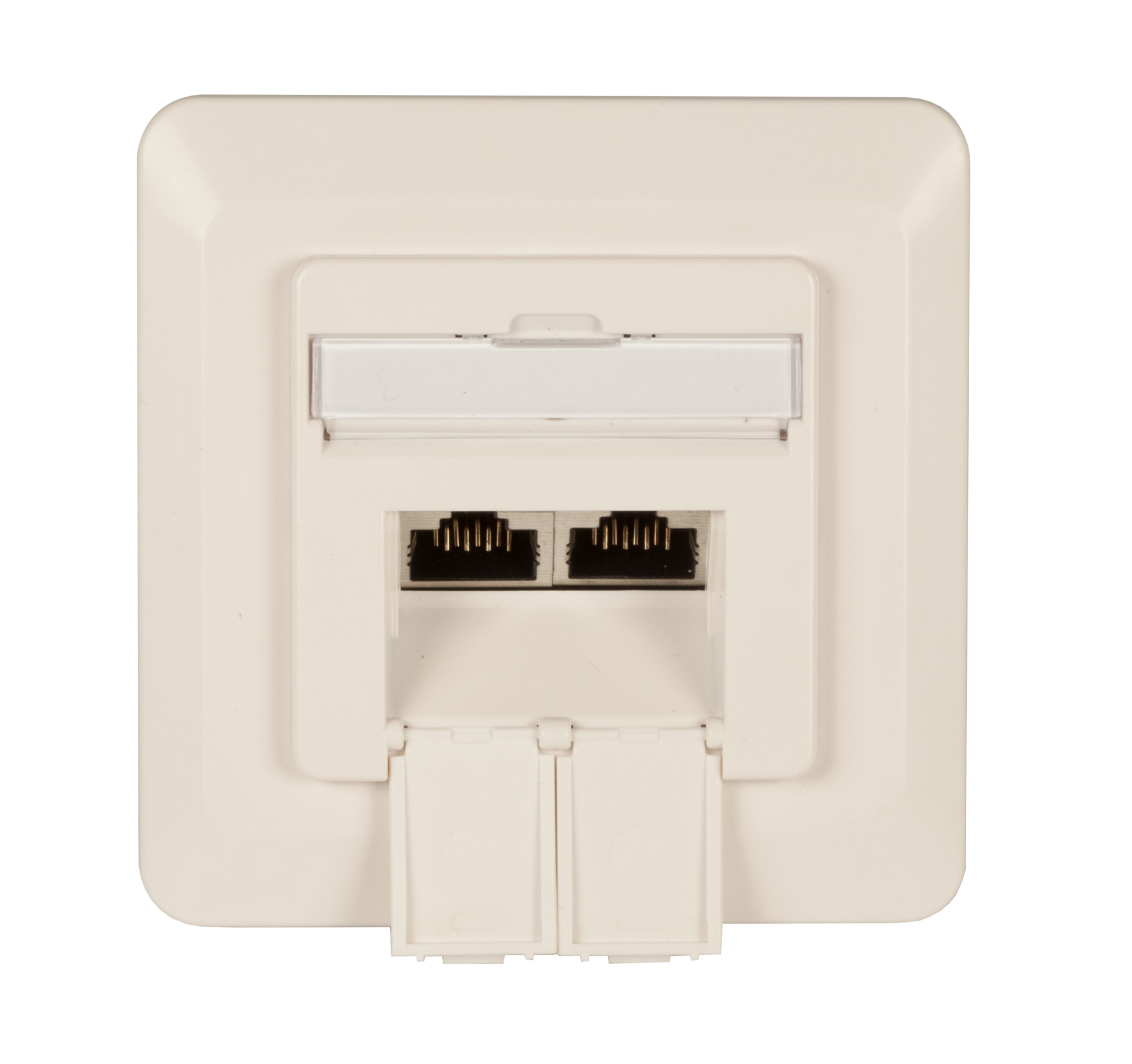

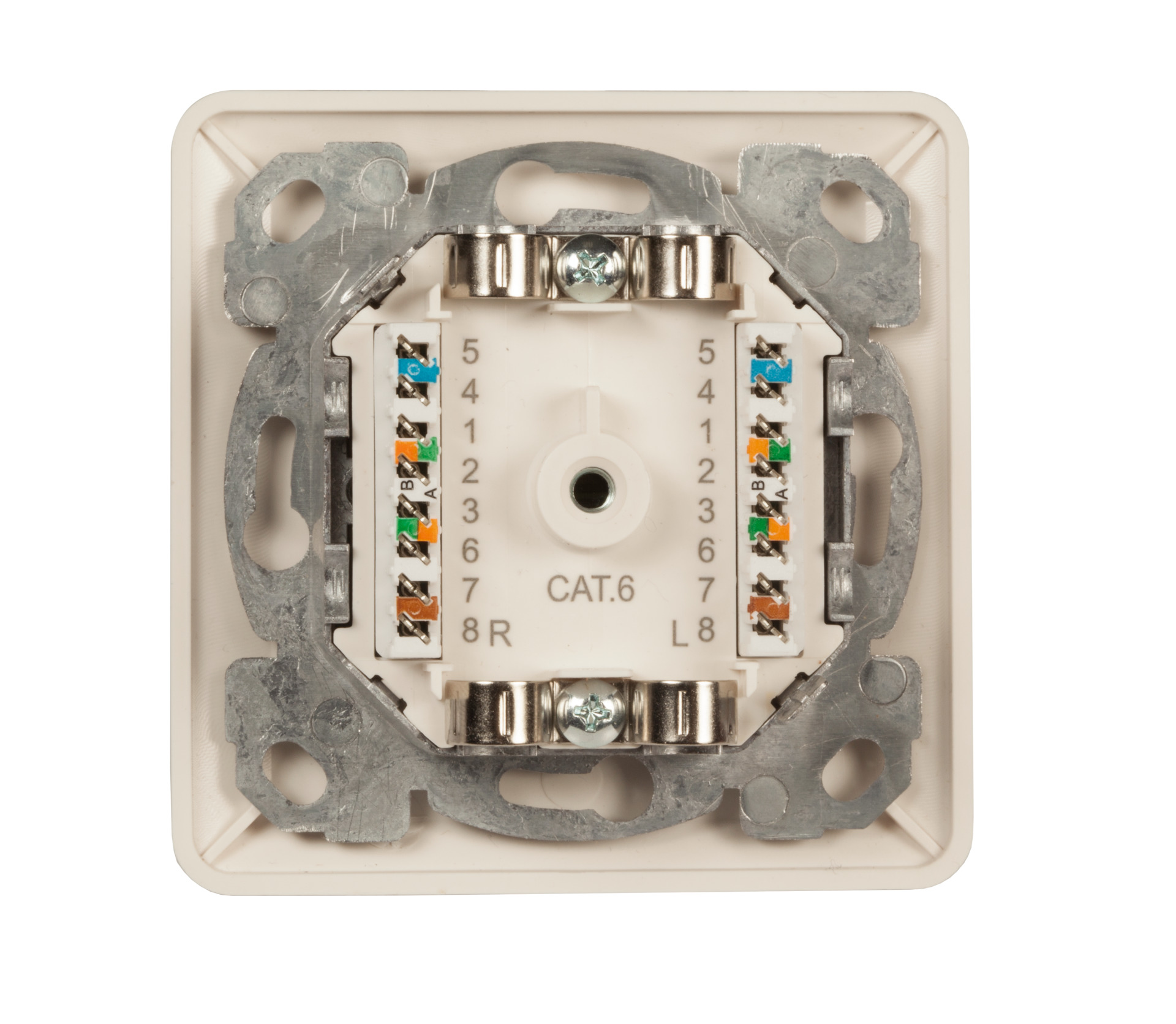

40° outlet, 8-pole IDC terminals

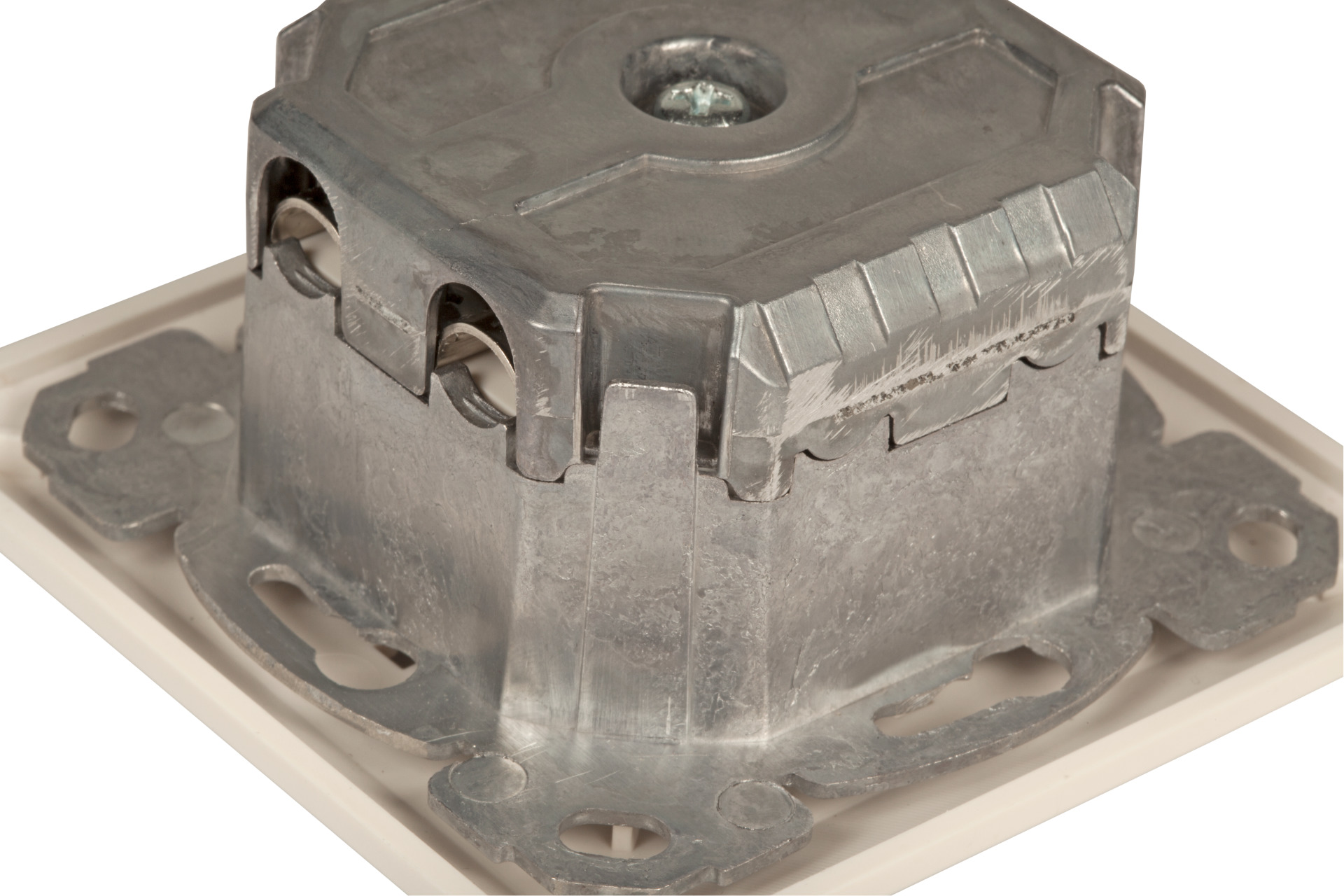

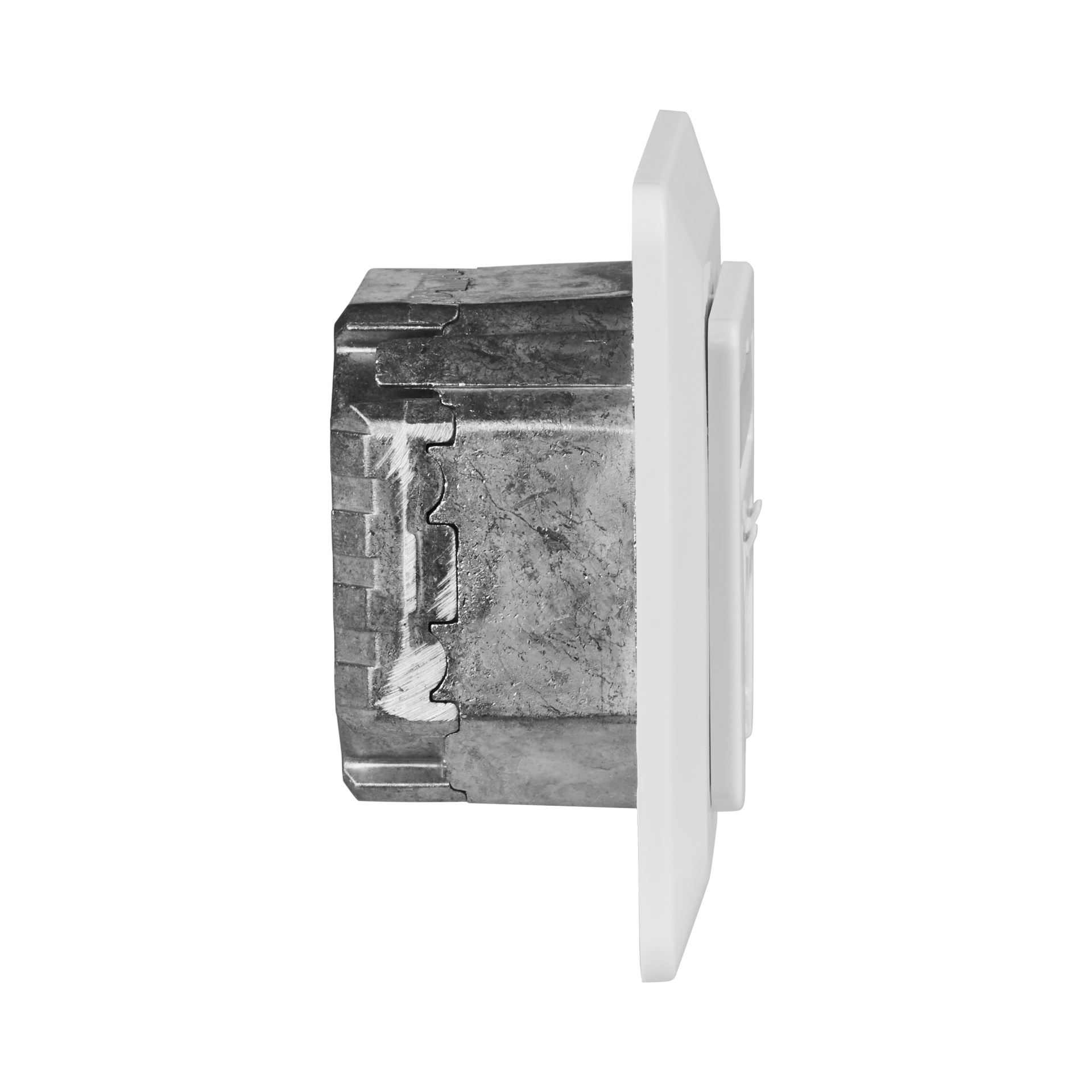

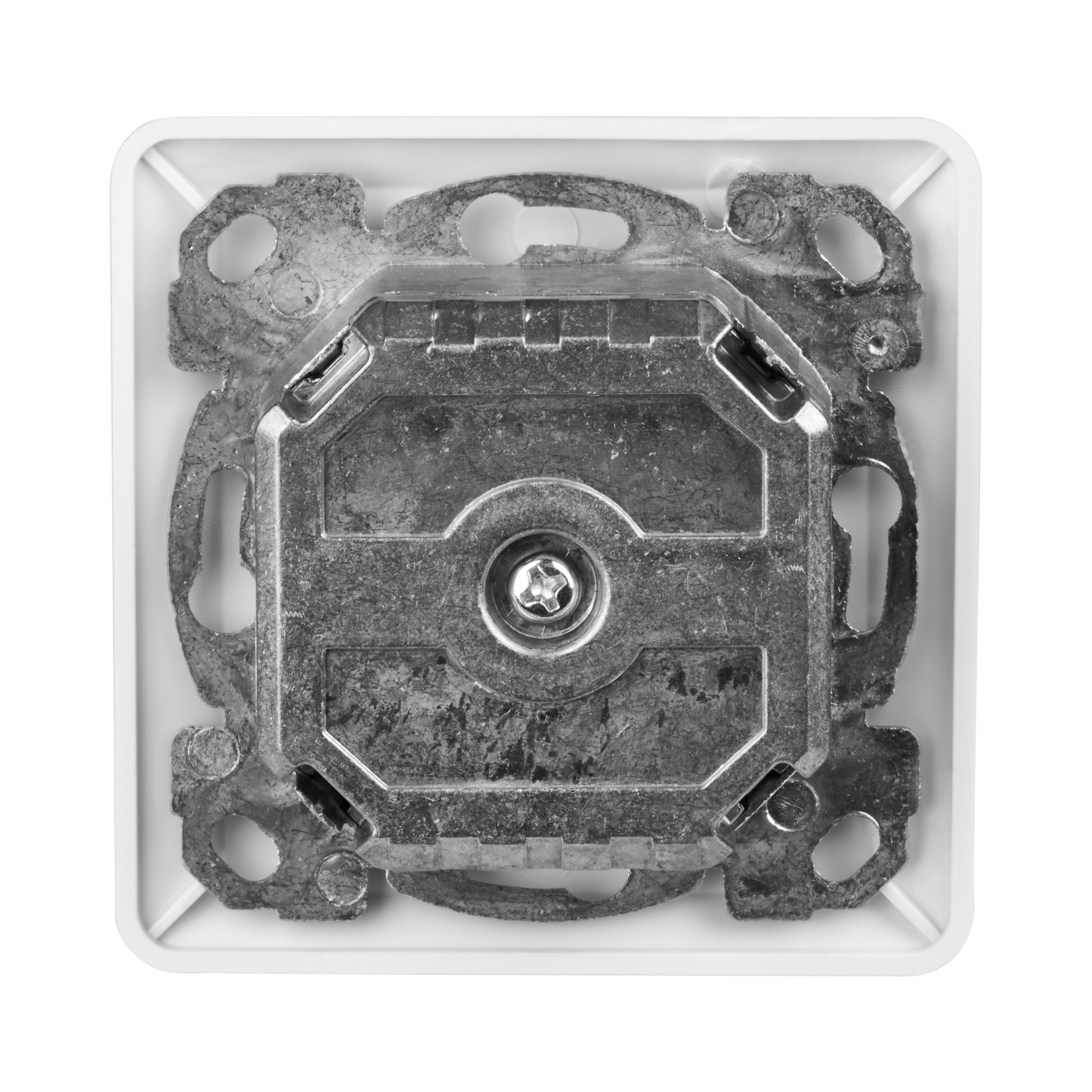

Fully shielded diecast housing
Labelling field with transparent cover
For installation in ducts and underfloor systems
Central plate according to DIN49075

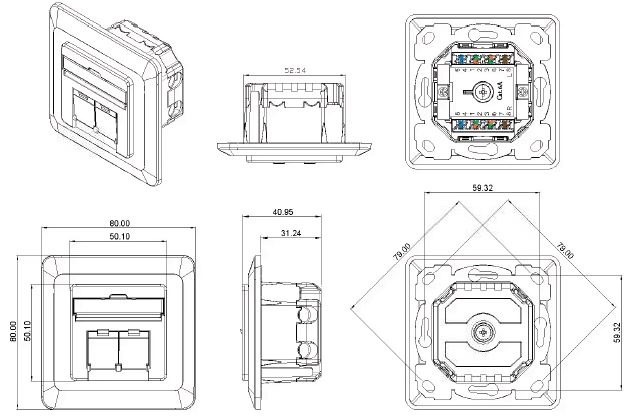

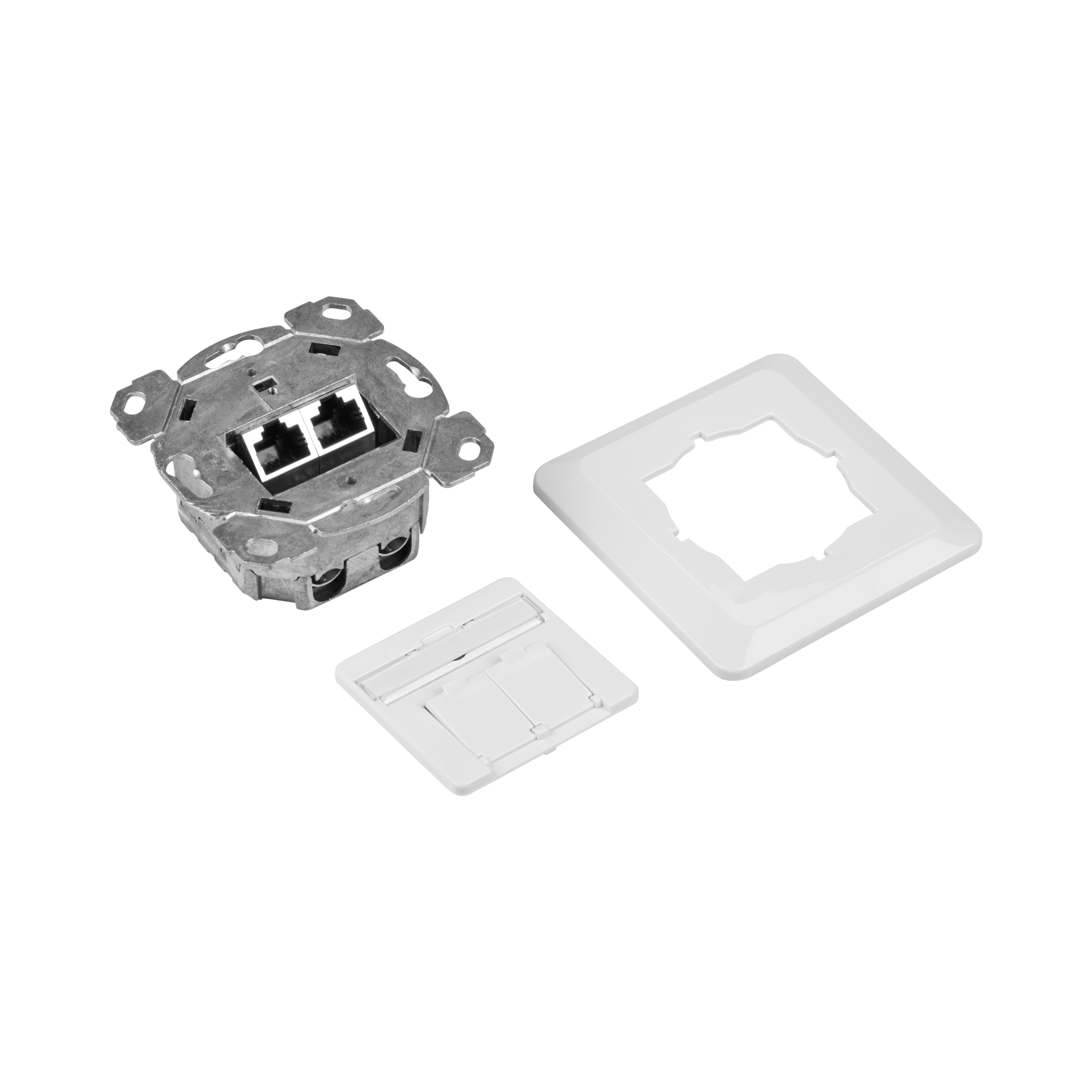

Central plate 50 x 50 mm, including cover plate 80 x 80 mm
Design capable, compatible with all common switch programmes
40° outlet, 8-pole IDC terminals
Fully shielded diecast housing
Labelling field with transparent cover
For installation in ducts and underfloor systems
Central plate according to DIN49075
Central plate 50 x 50 mm, including cover plate 80 x 80 mm
Design capable, compatible with all common switch programmes
Tekniske egenskaber
Abdeckrahmen: | Ja |
---|---|
Abschlusswiderstand: | Nein |
Anschlussart: | LSA |
Aufputzmontage: | Nein |
Auslassrichtung: | schräg |
Bandbreite: | 250 MHz |
Befestigungsart: | schrauben |
Bodentank/Unterflurmontage: | Ja |
Buchsen geschirmt: | Ja |
Designfähig: | Ja |
Farbcodierung: | Ja |
Geeignet für Anzahl Buchsen/Kupplungen: | 2 |
Gehäuse geschirmt: | Ja |
Kanaleinbau: | Ja |
Kategorie: | 6 |
Mechanische Codierung: | Nein |
Mit Buchsen/Kupplungen: | Ja |
Mit Staubschutz: | Ja |
Mit Textfeld: | Ja |
Montageart Schirmanschluss: | Schraube |
POE Standard: | POE |
POE Standard: | POE+ |
RAL-Nummer: | 9010 |
Schutzart: | IP20 |
Separate Kabelzugentlastung: | Ja |
Separater Erdungsanschluss: | Ja |
Steckverbindertyp: | RJ45 2x8(8) |
Temperaturbereich (Betrieb): | -10 – 60 °C |
Temperaturbereich (Lagerung): | -40 – 70 °C |
Unterputz: | Ja |
Zentralplatte: | Ja |
Übertragung: | 1 Gbit |
Übertragung: | 2,5 Gbit |
Übertragung: | 5 Gbit |
Varianten
Art. Nr. | Bezeichnung | Zusammenstellung | Unterputzmontage | Gerätebreite | Gerätetiefe | Mit Abschlusswiderstand | Zuleitung Verlegekabel | Gerätehöhe | Farbe | |
---|---|---|---|---|---|---|---|---|---|---|
ET-25211.1V1 | Data outlet Cat.6 250MHz, up/down, Flush, 2xRJ45, RAL9010 | Basiselement mit voller Abdeckplatte | Ja | 50 mm | 40,95 mm | Nein | oben/unten | 50 mm | white | |
ET-25211.2V1 | Data outlet Cat.6, Flush mounting | Basiselement mit voller Abdeckplatte | Ja | 50 mm | 40,95 mm | Nein | links/rechts | 50 mm | weiß |
