DisplayPort 1.1 to HDMI Connecting cable, black
DisplayPort 1.1 to HDMI Connecting cable, black, 2 m
Varenummer:
ICOC-DSP-H-020
EAN Nr.:
8057685304321
Produktinformation til DisplayPort 1.1 to HDMI Connecting cable, black, 2 m
• Converts the DisplayPort signal into a HDMI signal
• Provides a high quality digital video signal - ideal for the use of new sources with existing DisplayPort-/HDMI monitor
• Supports Deep Color as well as applications with bandwidth 10.8 Gbps and resolutions up to 1920x1200
• Integrated design for easy connection and eliminating cable clutter
Standards and Certifications
• UL 20276
Connections

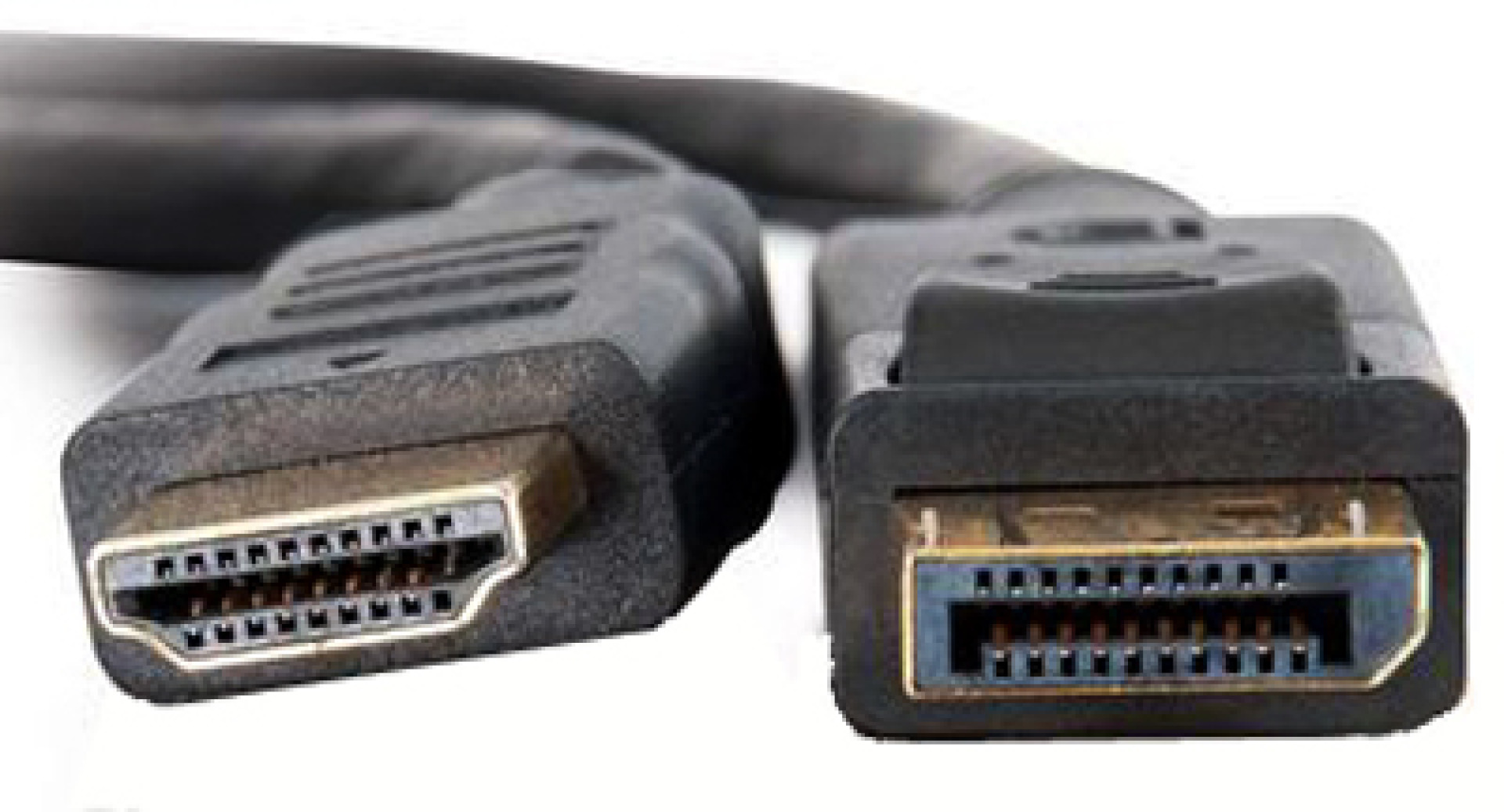

• 1x DisplayPort 20-pin male

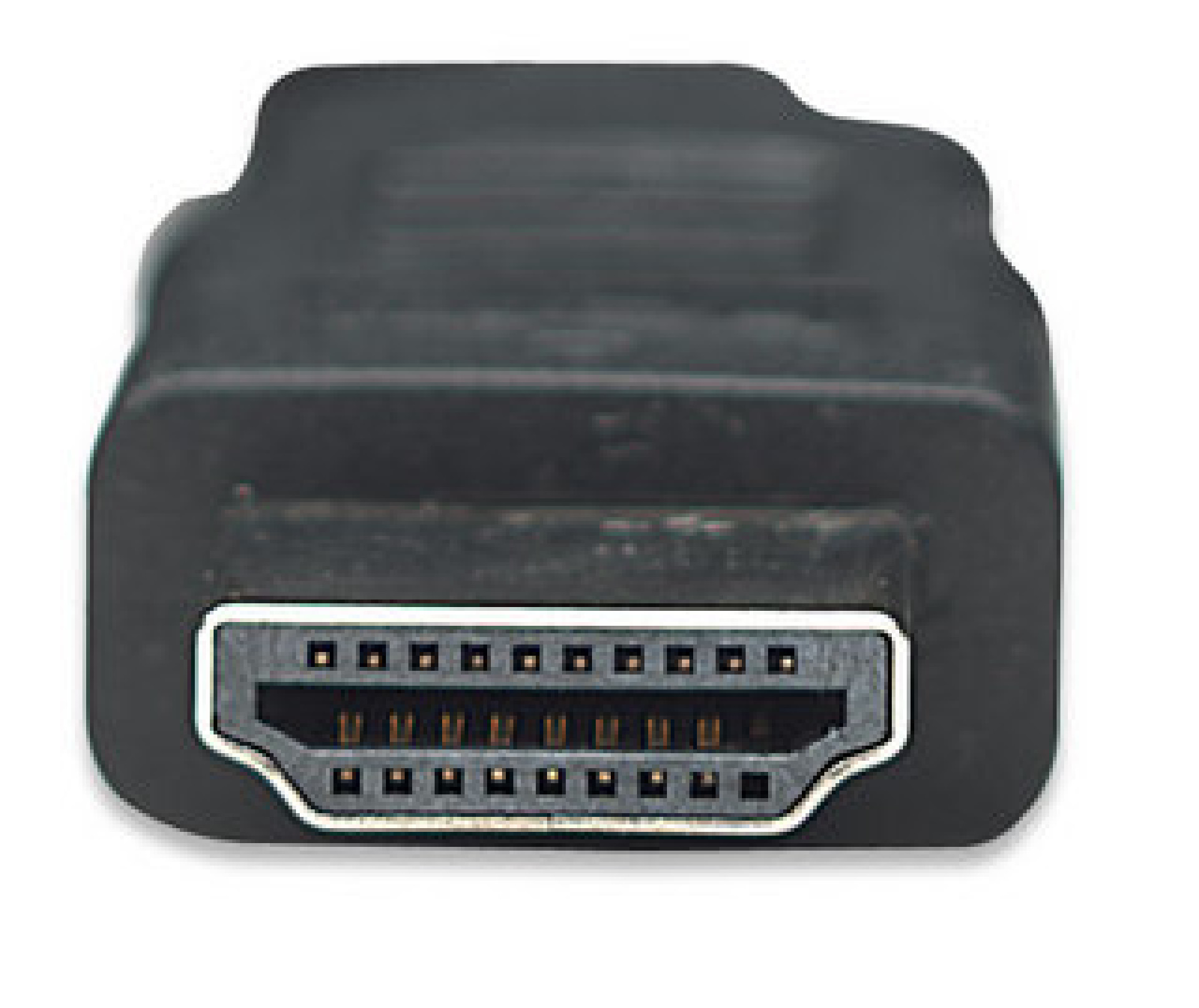

• 1x HDMI 19-pin male
• Material of contacts: nickel-plated
• Molded PVC boot with cable gland
Cable
• Inner conductor: AWG 30
• Withstanding voltage: 300 V DC
• Shielded
General information
• Supports 8-bit and 10-bit Deep Color
• Bandwidth 10.8 Gbps
• Supports connection 1-lane, one-direction
Package Contents
• 1x Converter cable DisplayPort to HDMI
• Provides a high quality digital video signal - ideal for the use of new sources with existing DisplayPort-/HDMI monitor
• Supports Deep Color as well as applications with bandwidth 10.8 Gbps and resolutions up to 1920x1200
• Integrated design for easy connection and eliminating cable clutter
Standards and Certifications
• UL 20276
Connections
• 1x DisplayPort 20-pin male
• 1x HDMI 19-pin male
• Material of contacts: nickel-plated
• Molded PVC boot with cable gland
Cable
• Inner conductor: AWG 30
• Withstanding voltage: 300 V DC
• Shielded
General information
• Supports 8-bit and 10-bit Deep Color
• Bandwidth 10.8 Gbps
• Supports connection 1-lane, one-direction
Package Contents
• 1x Converter cable DisplayPort to HDMI
Tekniske egenskaber
| Connection type connection 1: | Plug |
|---|---|
| Connection type connection 2: | plug |
| Connector 1 angulation: | 180° |
| Number of poles connection 1: | 20 |
| Number of poles connection 2: | 19 |
| Type of connector connection 1: | DisplayPort (DP) |
| Type of connector connection 2: | HDMI Type A |
Varianten
| Art. Nr. | Bezeichnung | Color | Length | |
|---|---|---|---|---|
| ICOC-DSP-H-010 | DisplayPort 1.1 to HDMI Connecting cable, black, 1 m | black | 1.0 m | |
| ICOC-DSP-H-020 | DisplayPort 1.1 to HDMI Connecting cable, black, 2 m | black | 2.0 m | |
| ICOC-DSP-H-030 | DisplayPort 1.1 to HDMI Connecting cable, black, 3 m | black | 3.0 m | |
| ICOC-DSP-H-050 | DisplayPort 1.1 to HDMI Connecting cable, black, 5 m | black | 5.0 m |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
