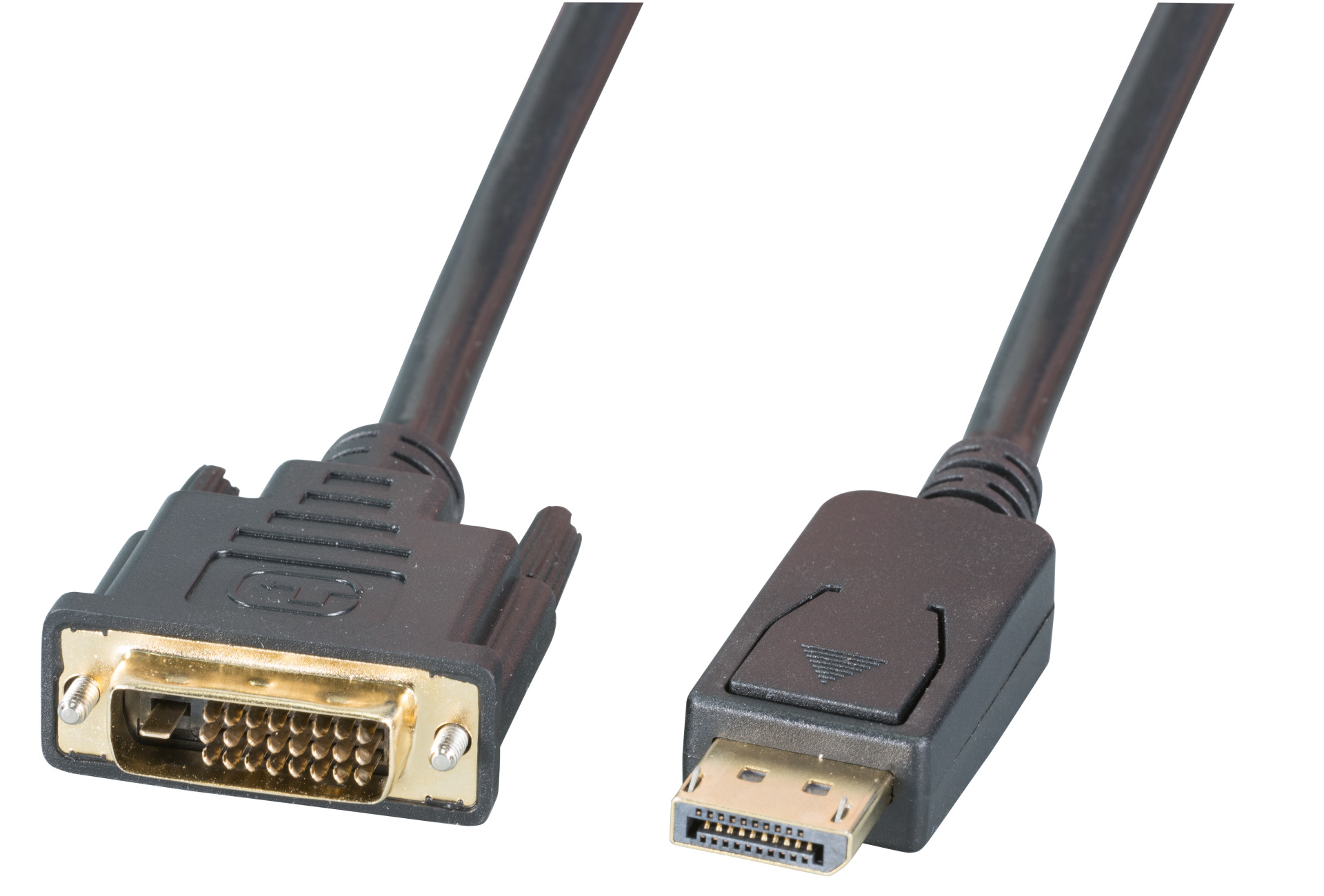

DisplayPort/DVI24+1 Cable, Full HD
DisplayPort/HDMI Cable Full HD, A-A M-M, 2m, black
Varenummer:
K5564SW.2V2
EAN-nr.:
4049759227593
Produktinformation til DisplayPort/HDMI Cable Full HD, A-A M-M, 2m, black
DisplayPort to DVI-I 24+1 adapter cable with one sided signal way DisplayPort => DVI-D 24+1 output device
Supports resolutions up to 1080P (Full HD)
Shielding: foil + braiding
Conductor: bare copper, Jacket: PVC
Plugs and contacts gold plated, DVI side moulded, DP mounted with locking protection
Supports resolutions up to 1080P (Full HD)
Shielding: foil + braiding
Conductor: bare copper, Jacket: PVC
Plugs and contacts gold plated, DVI side moulded, DP mounted with locking protection
Tekniske egenskaber
| 3D: | True |
|---|---|
| ARC: | True |
| Backwards compatible: | True |
| Beding radius (dynamic/static): | 40 mm |
| CEC: | True |
| Cable set: | False |
| Cable type (passive/active/optical): | passive |
| Chip: | True |
| Color depth: | 12-Bit |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | gold-plated |
| DSC: | False |
| Dust cover: | True |
| Enhanced Color: | Deep Color |
| HDCP Version: | HDCP 1.4 |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | True |
| Halogenfree: | No |
| Kink protection: | True |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | PVC molded |
| Material Inner Conductor: | BC |
| Material jacket: | PVC |
| Max. mating cycles: | 5000 |
| Max. resolution: | 1080p@60Hz |
| Model: | Round Cable |
| Number of poles connection 1: | 20 |
| Number of poles connection 2: | 20 |
| Number of shieldings: | triple |
| Operating temperature: | -5 – 45 °C |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 20*12*51mm |
| Plug dimensions Side 2: | 41*15.5*51.5mm |
| Printing: | Displayport Cable AWM STYLE 20276 80ºC 30V VW-1 www.efb-elektronik.de |
| Scope of delivery: | 1xDP-DVI Cable |
| Shielded: | True |
| Speed: | 10,2 Gbit/s |
| Storage Temperature: | -20 – 70 °C |
| Supported video standards: | HD - High Definition |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | DP |
| Type of connector connection 2: | DVI-D 24+1 |
| Type of locking: | Snap-in Locking |
| Type of packaging: | plastic bag |
| Type of signal: | Digital |
| VESA certified: | False |
| VRR: | False |
| Various lengths cable set: | 1x1m |
| Version: | HDMI Version 1.2 |
| Warranty: | 36 months |
| With termination resistor: | False |
| eARC: | False |
Variants
| ON | Label | Color | Length | Diameter | AWG | |
|---|---|---|---|---|---|---|
| K5564SW.1V2 | DisplayPort/HDMI Cable Full HD, A-A M-M, 1m, black | black | 1.0 m | 6.0 mm | 30AWG | |
| K5564SW.2V2 | DisplayPort/HDMI Cable Full HD, A-A M-M, 2m, black | black | 2.0 m | 6.0 mm | 30AWG | |
| K5564SW.3V2 | DisplayPort/HDMI Cable Full HD, A-A M-M, 3m, black | black | 3.0 m | 6.0 mm | 30AWG | |
| K5564SW.5V2 | DisplayPort/HDMI Cable Full HD, A-A M-M, 5m, black | black | 5.0 m | 6.0 mm | 30AWG |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
