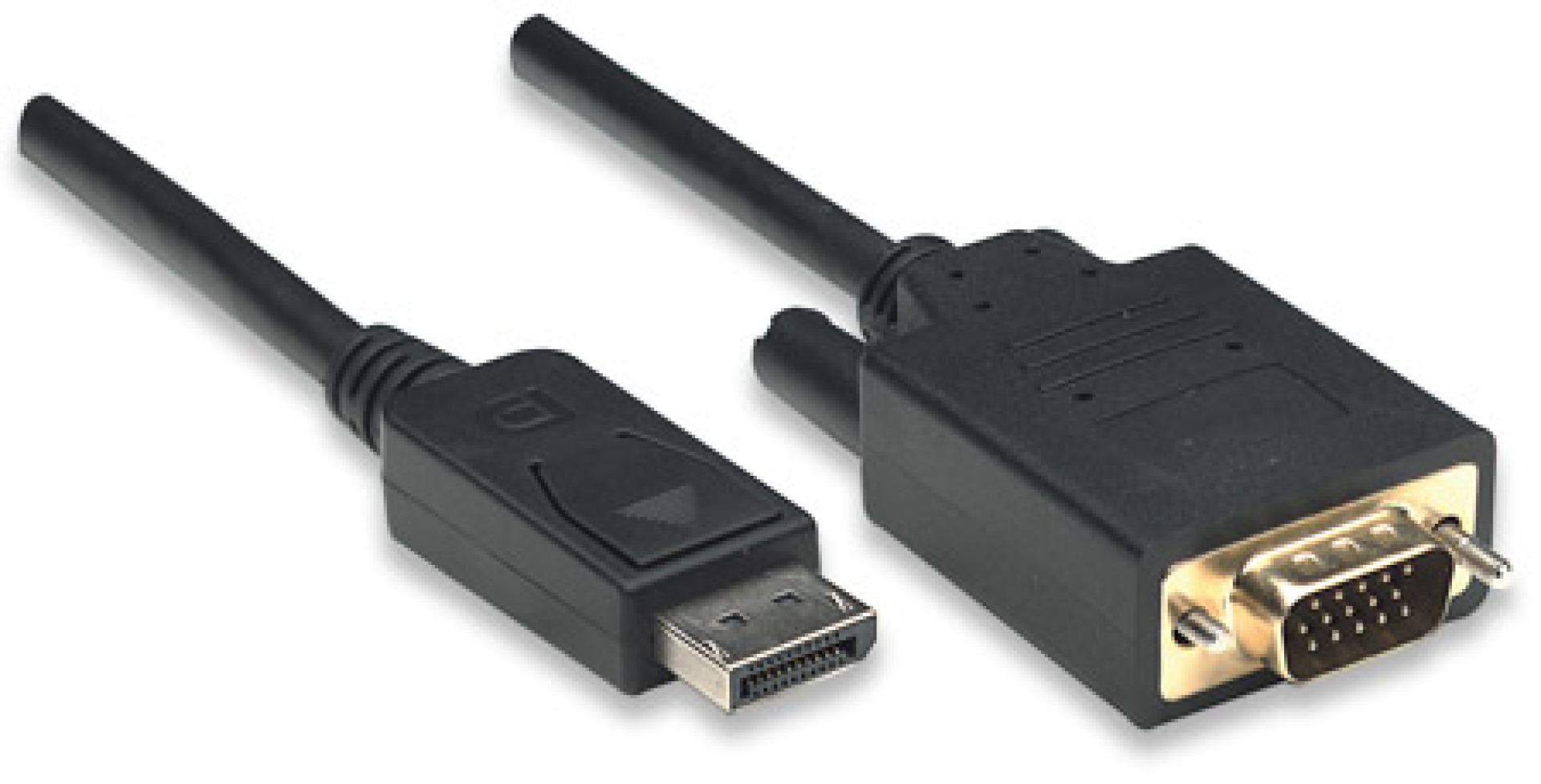

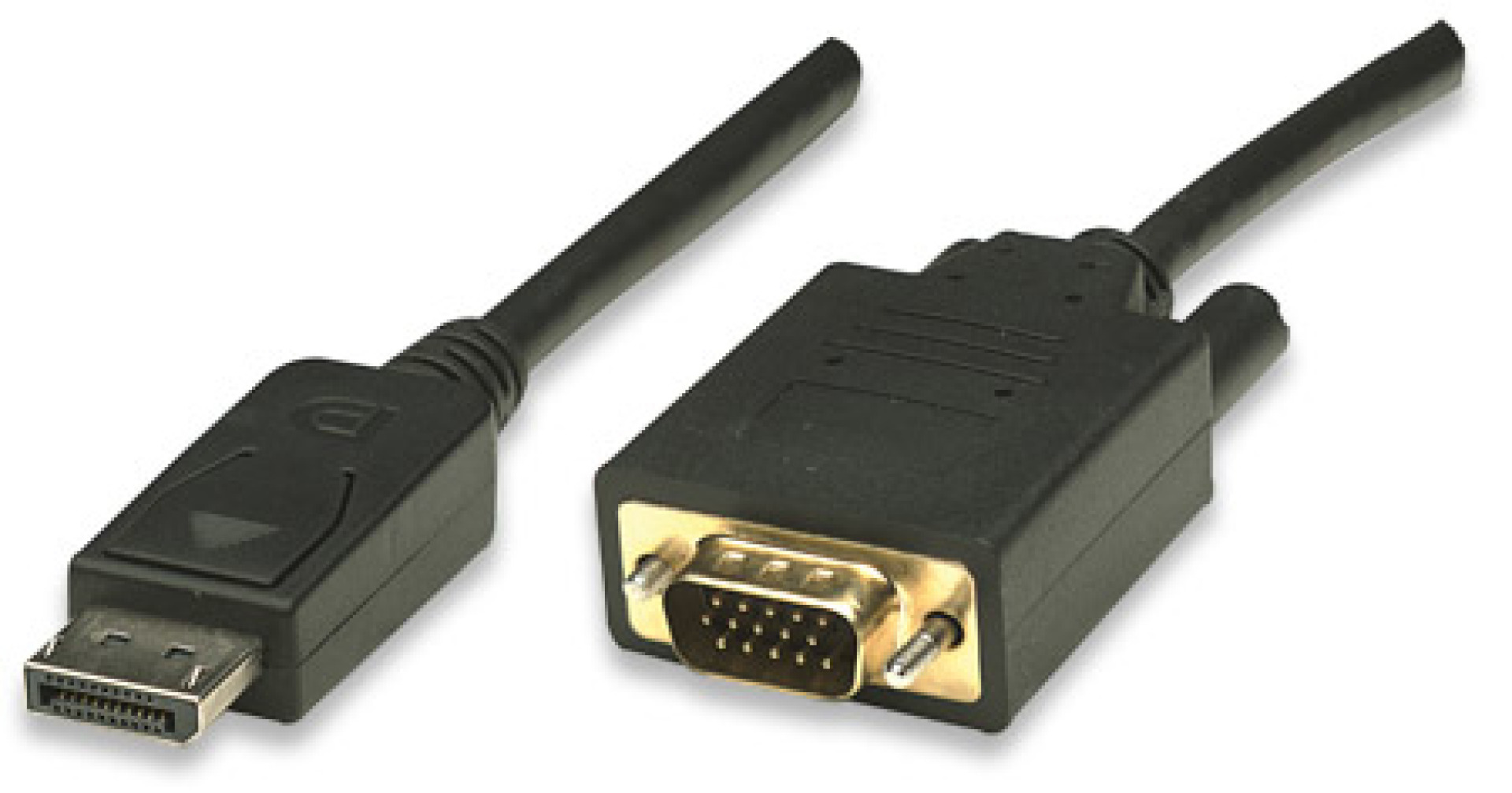

DisplayPort to VGA converter cable, black

DisplayPort to VGA converter cable, black, 3 m
DisplayPort to VGA converter cable, black, 3 m
DisplayPort to VGA converter cable, black, 3 m
DisplayPort to VGA converter cable, black, 3 m
DisplayPort to VGA converter cable, black, 3 m
DisplayPort to VGA converter cable, black, 3 m
DisplayPort to VGA converter cable, black, 3 m
DisplayPort to VGA converter cable, black, 3 m
DisplayPort to VGA converter cable, black, 3 m
Varenummer: ICOC-DSP-V-030
EAN Nr.: 8057685304352
Piece
Log ind som kunde
Beskrivelse

Produktinformation til DisplayPort to VGA converter cable, black, 3 m

  • Easy connection of computers equipped with DisplayPort connector to VGA monitors, projectors etc.
  • Provides a high-quality digital video signal - ideal for extending the life of the old devices with VGA connection
  • Supports color depth, applications with high frequency band to 10.8 Gbps and resolutions up to 1080p monitor 1920 x 1200 (WUXGA)
  • Integrated design for easy connection and eliminating cable clutter
  • Plug and Play
  • Compatible with Windows and Mac

    • Standards and Certifications
  • UL 20276

    • Connections

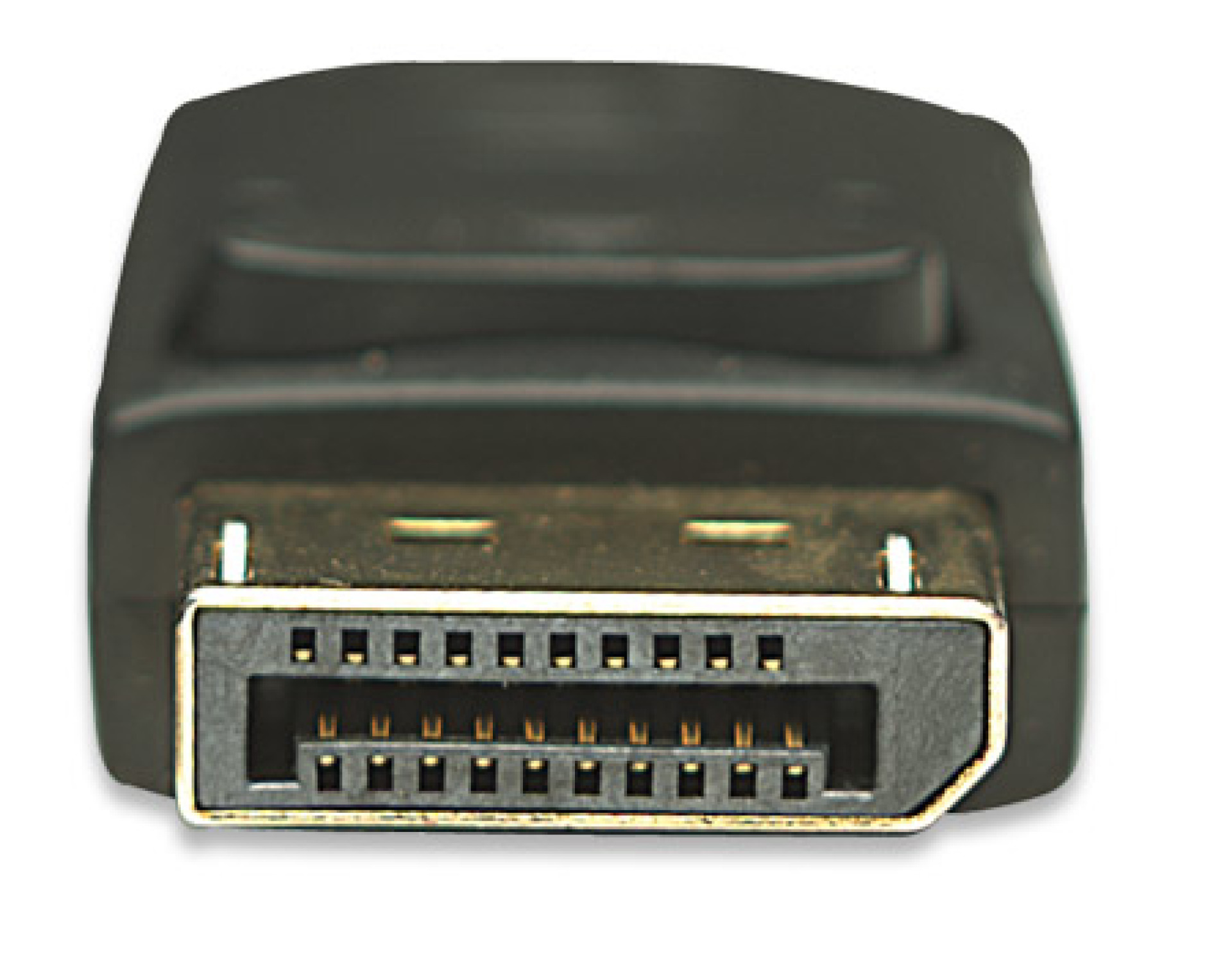

  • 1x DisplayPort 20-pin male
  • 1x VGA 15-pin male
  • Material: Nickel-plated
  • Material of contacts: Gold-plated
  • Molded PVC boot

    • Cable
  • Inner conductor: AWG 28
  • Withstanding voltage: 300 V DC
  • Thermal plastic casing
  • Shielded

    • General information
  • Maximum single link range: 1920x1200, 1080P
  • VGA resolution up to 1920x1200
  • Frequency: 154 MHz / 144 MHz

    • Package Contents
  • 1x Converter cable DisplayPort to VGA
    • Tekniske egenskaber

    Tekniske egenskaber

    Connection type connection 1: Plug
    Connection type connection 2: Plug
    Type of connector connection 1: Other
    Type of connector connection 2: Other
    Varianten

    Varianten

    Art. Nr. Bezeichnung Color Length
    ICOC-DSP-V-018 DisplayPort to VGA converter cable, black, 1.8 m black 1.8 m
    Vælg varianter
    ICOC-DSP-V-030 DisplayPort to VGA converter cable, black, 3 m black 3.0 m
    Vælg varianter
    Downloads

    Downloads

    Sikkerhedsanvisninger

    Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
