Distribution plates for for 53603.x
Distribution Plate, RAL7035 12 ST or FC (D-hole) Adapters
Varenummer:
53603.2
EAN Nr.:
4049759036409
Produktinformation til Distribution Plate, RAL7035 12 ST or FC (D-hole) Adapters
Distribution Plate
Tekniske egenskaber
| Depth: | 50.2 mm |
|---|---|
| EMC-version: | False |
| Height: | 41.8 mm |
| Note: | - |
| Type of plug-in connector system: | Fiber Optic |
| Width: | 144 mm |
| With buses/couplings: | False |
Varianten
| Art. Nr. | Bezeichnung | Number of connector holes | Suitable for adapter | Note | |
|---|---|---|---|---|---|

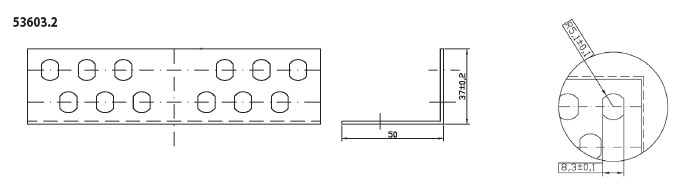

| 53603.2 | Distribution Plate, RAL7035 12 ST or FC (D-hole) Adapters | 12 | ST-Simplex | - | |

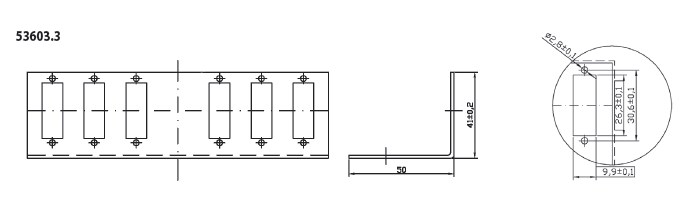

| 53603.3 | Distribution Plate, RAL7035 6 SC dpx or 6 LC quad Adapters | 6 | SC Duplex/LC Quad | vertical | |

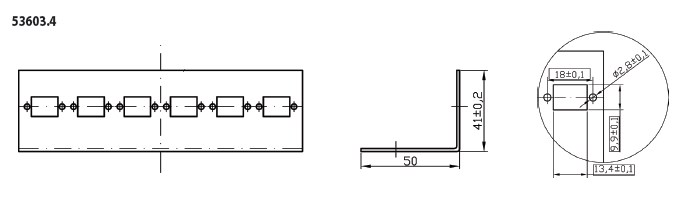

| 53603.4 | Distribution Plate, RAL7035 6 SC spx or 6 LC quad Adapters | 6 | SC Simplex/LC Duplex/E2000® | horizontally |
