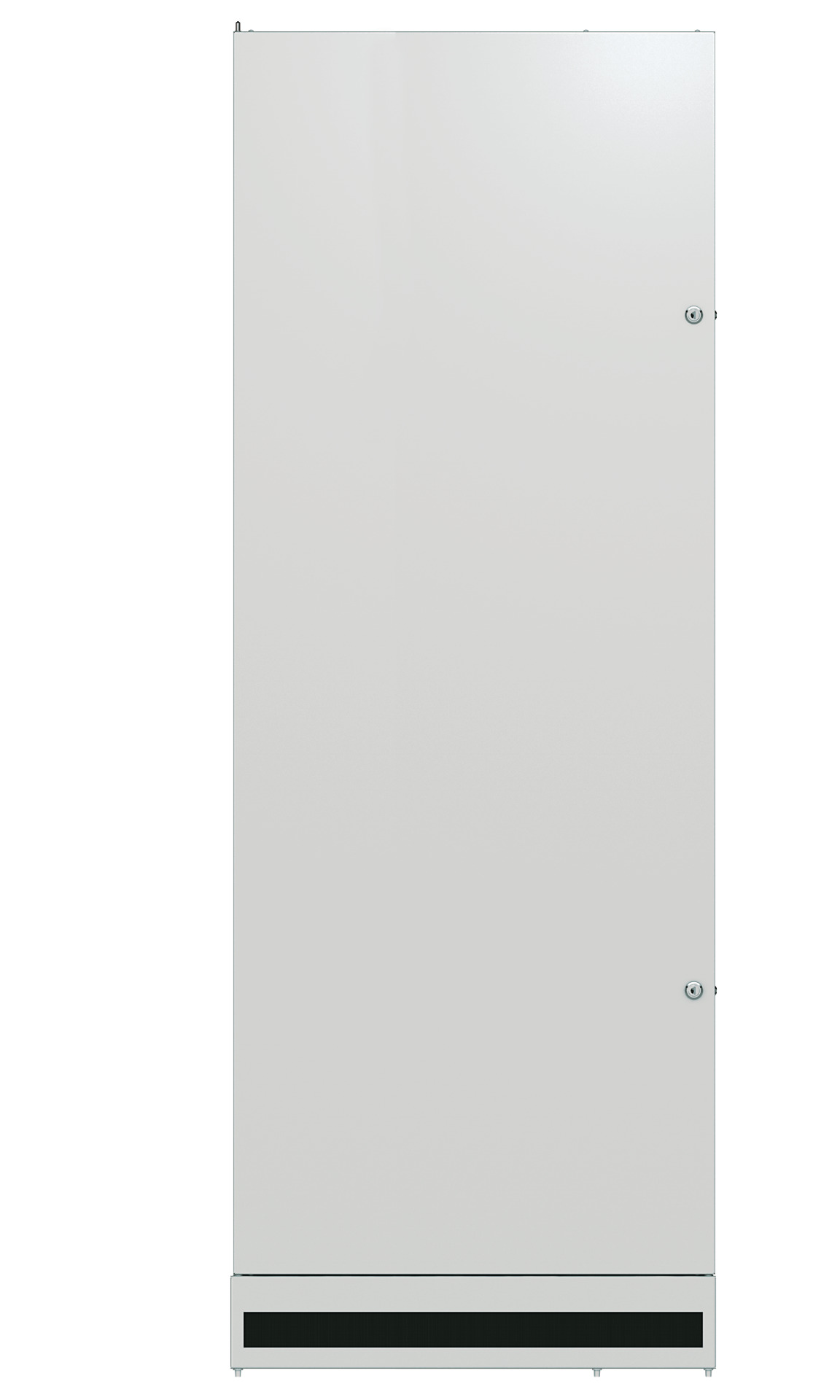

Steel Door 47U, 1-Part, Width 600 mm, 2 x Latch Locking
Door for PRO 47U, W=600, Steel, 1-Part, LL, RAL7035, Rear Door
Varenummer:
PRO-TUR476SV.GR
EAN Nr.:
4049759220952
Produktinformationen für Door for PRO 47U, W=600, Steel, 1-Part, LL, RAL7035, Rear Door
1-part steel door for 47U cabinets PRO in width 600 mm
For use as standard rear door, 3U panel for cable entry below the door
2 x latch locking (T3 / 1333)
Door opening angle 110°
Paint finish RAL7035, light grey / RAL9005, jet black
Delivery pre-assembled incl. all hinges, screws, 2 x key
For use as standard rear door, 3U panel for cable entry below the door
2 x latch locking (T3 / 1333)
Door opening angle 110°
Paint finish RAL7035, light grey / RAL9005, jet black
Delivery pre-assembled incl. all hinges, screws, 2 x key
Technische Eigenschaften
| Cabinet Series: | PRO |
|---|---|
| Degree of protection: | IP20 |
| Material: | Steel |
| Model: | Stop door |
| Profile half-cylinder exchangeable: | True |
| Surface finishing: | Powder coating |
| Type of locking: | Double-point latch locking |
| Version as glazed door: | True |
Varianten
| Art. Nr. | Bezeichnung | Building width for cabinet build in | Colour | Width | Height | RAL-number | EMC-version | Version as door for disconnecting switch interlocking | |
|---|---|---|---|---|---|---|---|---|---|
| PRO-TUR476SV.GR | Door for PRO 47U, W=600, Steel, 1-Part, LL, RAL7035, Rear Door | 600 mm | grey | 600 mm | 2186 mm | 7035 | True | True | |
| PRO-TUR476SV.TS | Door for PRO 47U, W=600, Steel, 1-Part, LL, RAL9005, Rear Door | 600 mm | black | 600 mm | 2186 mm | 9005 | True | True |
