Duplex Jumper SC-E2000®, 9/125µ, OS2

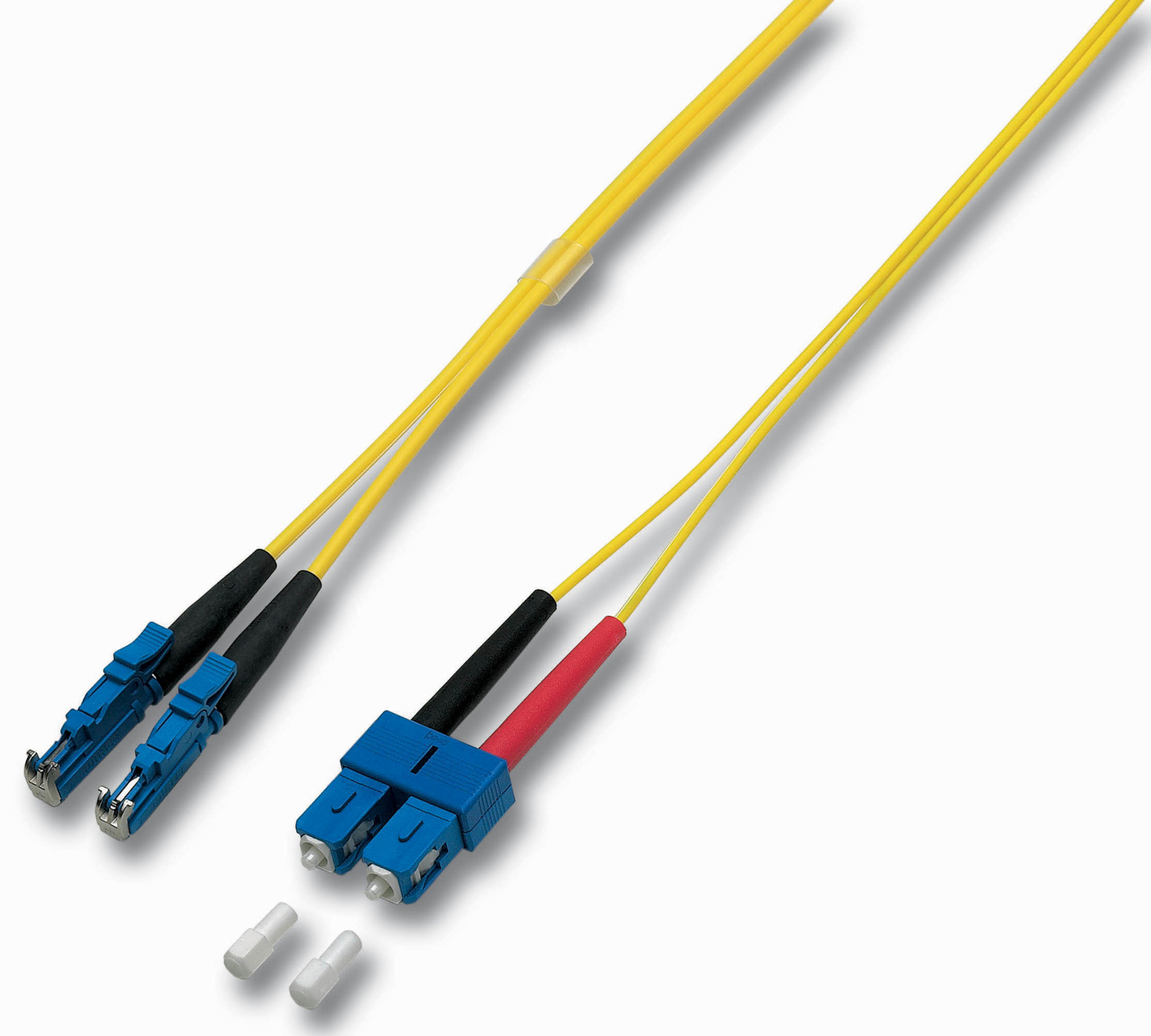

Duplex Jumper SC-E2000® 9/125µ, OS2, LSZH, yellow, 3.0mm, 0.5m
Varenummer:
O0940.0,5
EAN Nr.:
4049759046095
Produktinformation til Duplex Jumper SC-E2000® 9/125µ, OS2, LSZH, yellow, 3.0mm, 0.5m
Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
Tekniske egenskaber
(Halogenfree): | acc. IEC60754-1 |
---|---|
APC-version: | False |
Anti-kink sleeve: | put-on |
Cable Conform to Standard: | IEC 60793-2 |
Cable Construction: | Duplex |
Cable type: | I-V(ZN) H |
Cable Ø: | 3.0 mm |
Category: | OS2 acc. to ITU-T G.652.D |
Colour outer sheath: | yellow |
Connector colour 1: | blue |
Connector colour 2: | blue |
Fibre type: | Single mode 9/125 |
Flame-retardant: | According to EN 50265-2-1 |
Halogen free (according to EN 50267-2-3): | True |
Jacket material: | LSZH |
Low smoke: | acc. IEC61034-1 |
Max. Tension: | 160 N |
Min. Bending radius (Dynamic): | 20xOD |
Min. Bending radius (Static): | 10xOD |
Number of fibres: | 2 |
Operating Temperature: | -20 – 70 °C |
Storage Temperature: | -20 – 85 °C |
Type of connector connection 1: | E2000® |
Type of connector connection 2: | SC duplex |
Varianten
Art. Nr. | Bezeichnung | Length | Length tolerance | |
---|---|---|---|---|
O0940.0,5 | Duplex Jumper SC-E2000® 9/125µ, OS2, LSZH, yellow, 3.0mm, 0.5m | 0.5 m | ±5 % | |
O0940.1 | Duplex Jumper SC-E2000® 9/125µ, OS2, LSZH, yellow, 3.0mm, 1m | 1.0 m | ±5 % | |
O0940.2 | Duplex Jumper SC-E2000® 9/125µ, OS2, LSZH, yellow, 3.0mm, 2m | 2.0 m | ±5 % | |
O0940.3 | Duplex Jumper SC-E2000® 9/125µ, OS2, LSZH, yellow, 3.0mm, 3m | 3.0 m | ±5 % | |
O0940.5 | Duplex Jumper SC-E2000® 9/125µ, OS2, LSZH, yellow, 3.0mm, 5m | 5.0 m | ±5 % | |
O0940.10 | Duplex Jumper SC-E2000® 9/125µ, OS2, LSZH, yellow, 3.0mm, 10m | 10.0 m | ±5 % | |
O0940.15 | Duplex Jumper SC-E2000® 9/125µ, OS2, LSZH, yellow, 3.0mm, 15m | 15.0 m | ±5 % | |
O0940.20 | Duplex Jumper SC-E2000® 9/125µ, OS2, LSZH, yellow, 3.0mm, 20m | 20.0 m | ±5 % |
