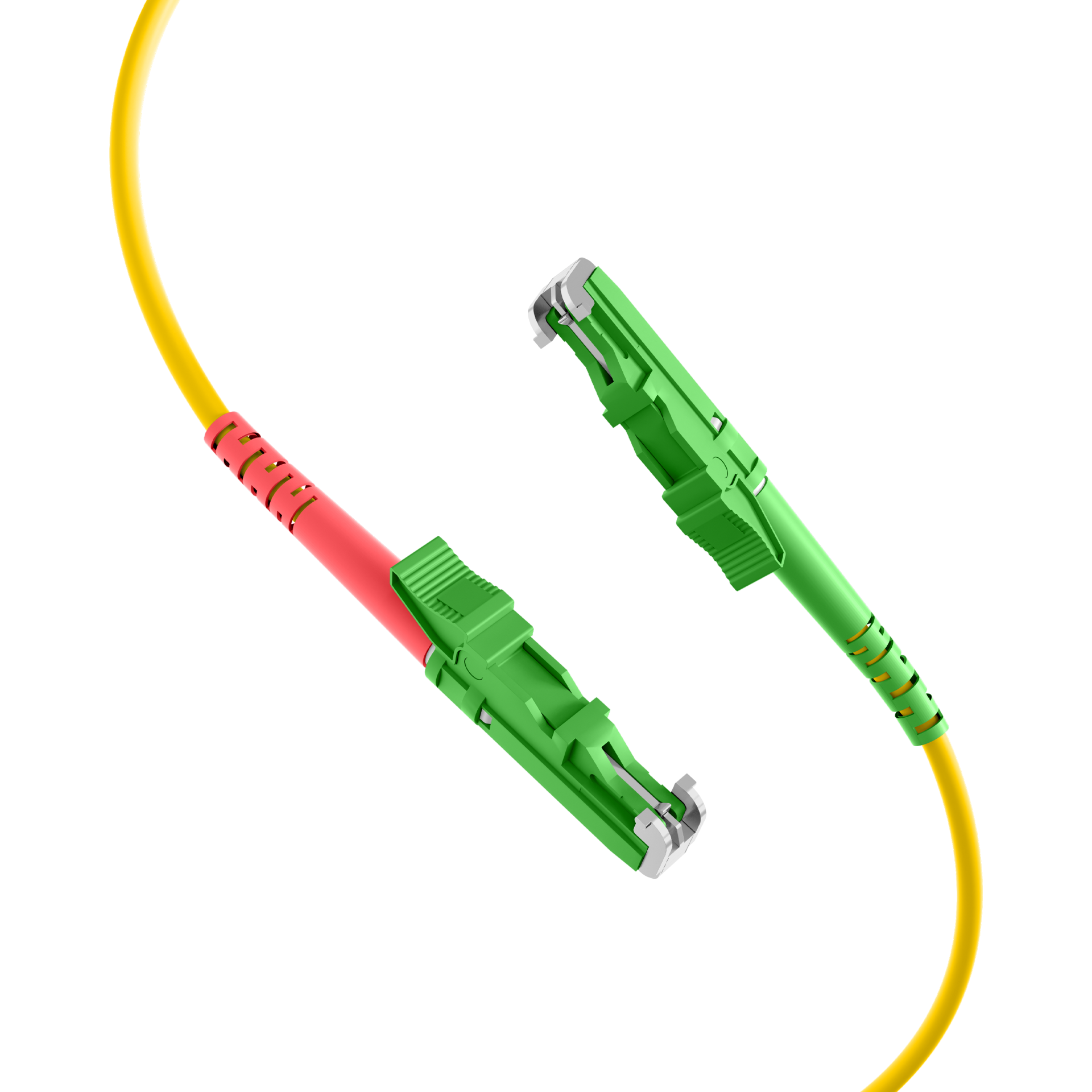

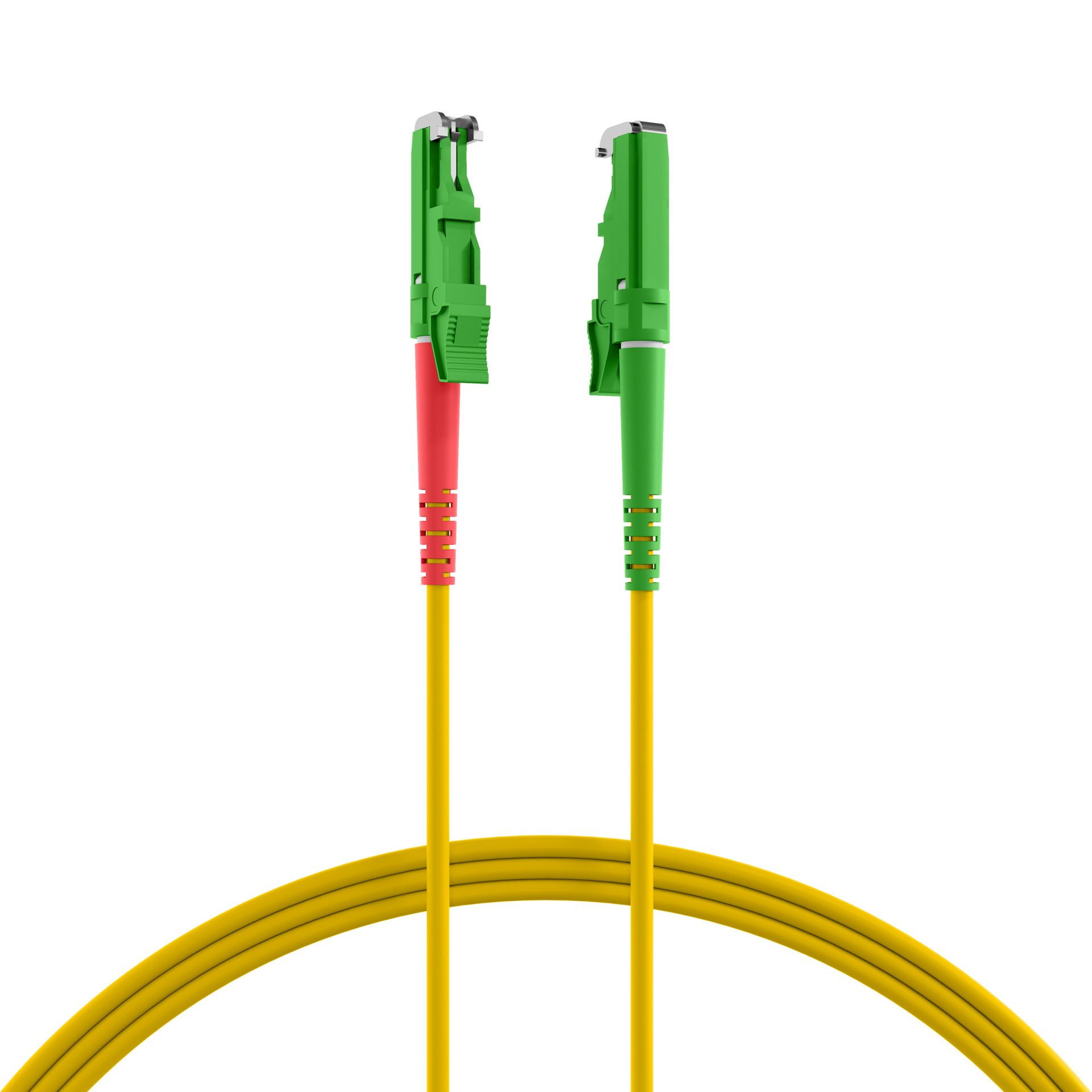

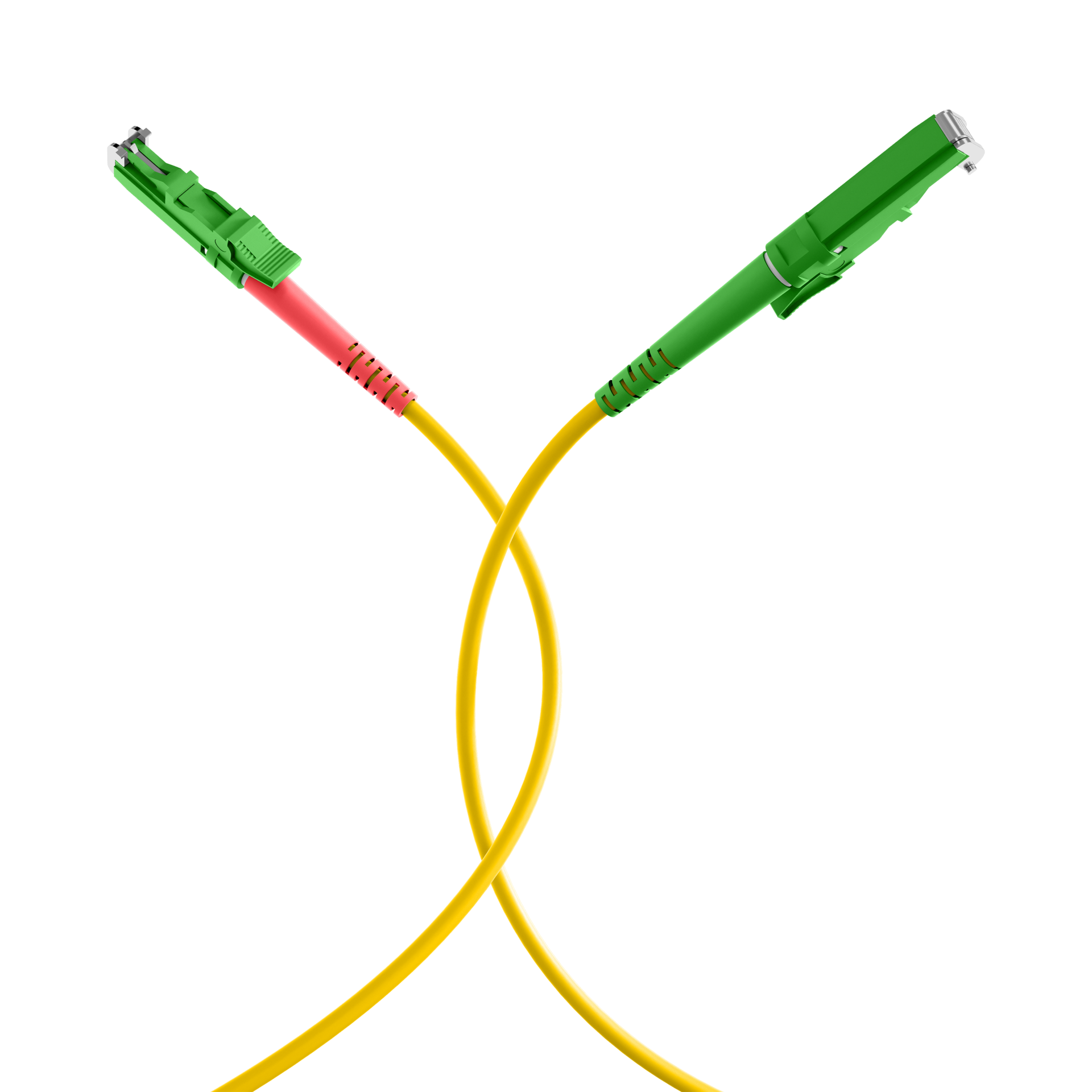

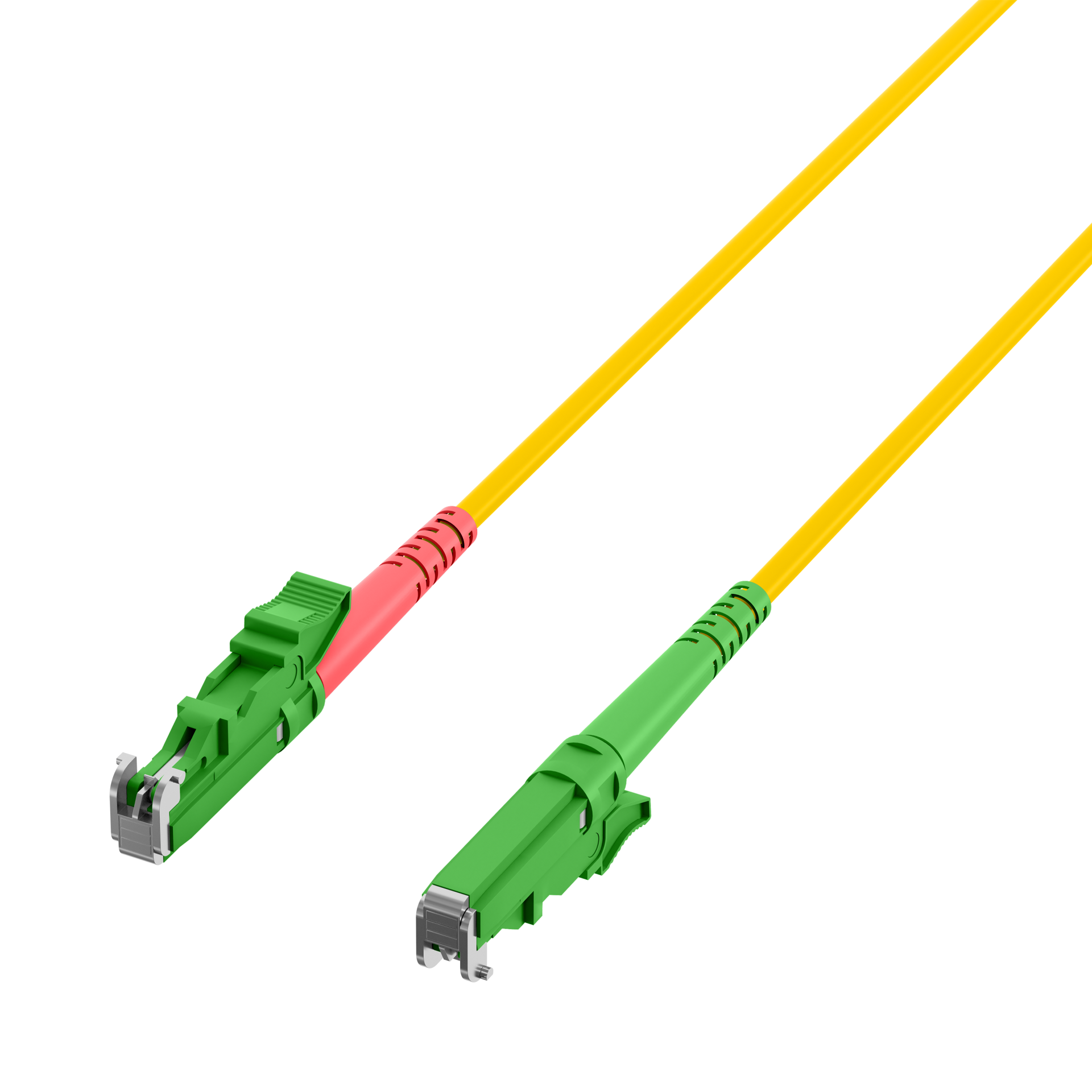

Duplex Patchcable E2000®/APC-E2000®/APC G657A 3,0mm yellow 9/125µm
Duplex Patchcable E2000®/APC-E2000®/APC OS2 G657A1 0,5m LSZH 3mm yellow
Varenummer:
O0933.0,5
EAN Nr.:
4049759025779
Produktinformation til Duplex Patchcable E2000®/APC-E2000®/APC OS2 G657A1 0,5m LSZH 3mm yellow
Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Tekniske egenskaber
| (Halogenfree): | acc. IEC60754-1 |
|---|---|
| APC-version: | True |
| APC version Connector 1: | 8° |
| APC version Connector 2: | 8° |
| Anti-kink sleeve: | put-on |
| Cable Conform to Standard: | IEC 60793-2 |
| Cable Construction: | Duplex |
| Cable type: | I-V(ZN) H |
| Cable Ø: | 3.0 mm |
| Cabling Standard: |
EN-50173-1 ISO/IEC 11801 |
| Category: | G657A1 acc. to ITU-T G.657 |
| Colour outer sheath: | yellow |
| Connector Conform to Standard: | IEC 61754-15 |
| Connector colour 1: | green |
| Connector colour 2: | green |
| Fibre type: | Single mode 9/125 |
| Flame-retardant: | According to EN 50265-2-1 |
| Halogen free (according to EN 50267-2-3): | True |
| Jacket Material: | LSZH |
| Low smoke: | acc. IEC61034-1 |
| Max. Tension: | 160 N |
| Min. Bending radius (Dynamic): | 20xOD |
| Min. Bending radius (Static): | 10xOD |
| Number of fibres: | 2 |
| Operating Temperature: | -20 – 75 °C |
| Quality class singlemode: | B/2 acc. IEC 61753-1 |
| Storage Temperature: | -20 – 85 °C |
| Type of connector connection 1: | E2000® |
| Type of connector connection 2: | E2000® |
Varianten
| Art. Nr. | Bezeichnung | APC-version connection 2 | APC-version connection 1 | Outer diameter sheath single fibre | Length | Length tolerance | |
|---|---|---|---|---|---|---|---|
| O0933.0,5 | Duplex Patchcable E2000®/APC-E2000®/APC OS2 G657A1 0,5m LSZH 3mm yellow | True | True | 3.0 mm | 0.5 m | ±5 % | |
| O0933.1 | Duplex Patchcable E2000®/APC-E2000®/APC OS2 G657A1 1m LSZH 3mm yellow | True | True | 3.0 mm | 1.0 m | ±5 % | |
| O0933.2 | Duplex Patchcable E2000®/APC-E2000®/APC OS2 G657A1 2m LSZH 3mm yellow | True | True | 3.0 mm | 2.0 m | ±5 % | |
| O0933.3 | Duplex Patchcable E2000®/APC-E2000®/APC OS2 G657A1 3m LSZH 3mm yellow | True | True | 3.0 mm | 3.0 m | ±5 % | |
| O0933.5 | Duplex Patchcable E2000®/APC-E2000®/APC OS2 G657A1 5m LSZH 3mm yellow | True | True | 3.0 mm | 5.0 m | ±5 % | |
| O0933.7,5 | Duplex Patchcable E2000®/APC-E2000®/APC OS2 G657A1 7,5m LSZH 3mm yellow | True | True | 3.0 mm | 7.5 m | ±5 % | |
| O0933.10 | Duplex Patchcable E2000®/APC-E2000®/APC OS2 G657A1 10m LSZH 3mm yellow | True | True | 3.0 mm | 10.0 m | ±5 % | |
| O0933.15 | Duplex Patchcable E2000®/APC-E2000®/APC OS2 G657A1 15m LSZH 3mm yellow | True | True | 3.0 mm | 15.0 m | ±5 % | |
| O0933.20 | Duplex Patchcable E2000®/APC-E2000®/APC OS2 G657A1 20m LSZH 3mm yellow | True | True | 3.0 mm | 20.0 m | ±5 % | |
| O0933.25 | Duplex Patchcable E2000®/APC-E2000®/APC OS2 G657A1 25m LSZH 3mm yellow | True | True | 3.0 mm | 25.0 m | ±5 % | |
| O0933.30 | Duplex Patchcable E2000®/APC-E2000®/APC OS2 G657A1 30m LSZH 3mm yellow | True | True | 3.0 mm | 30.0 m | ±5 % | |
| O0933.40 | Duplex Patchcable E2000®/APC-E2000®/APC OS2 G657A1 40m LSZH 3mm yellow | True | True | 3.0 mm | 40.0 m | ±5 % | |
| O0933.50 | Duplex Patchcable E2000®/APC-E2000®/APC OS2 G657A1 50m LSZH 3mm yellow | True | True | 3.0 mm | 50.0 m | ±5 % |
