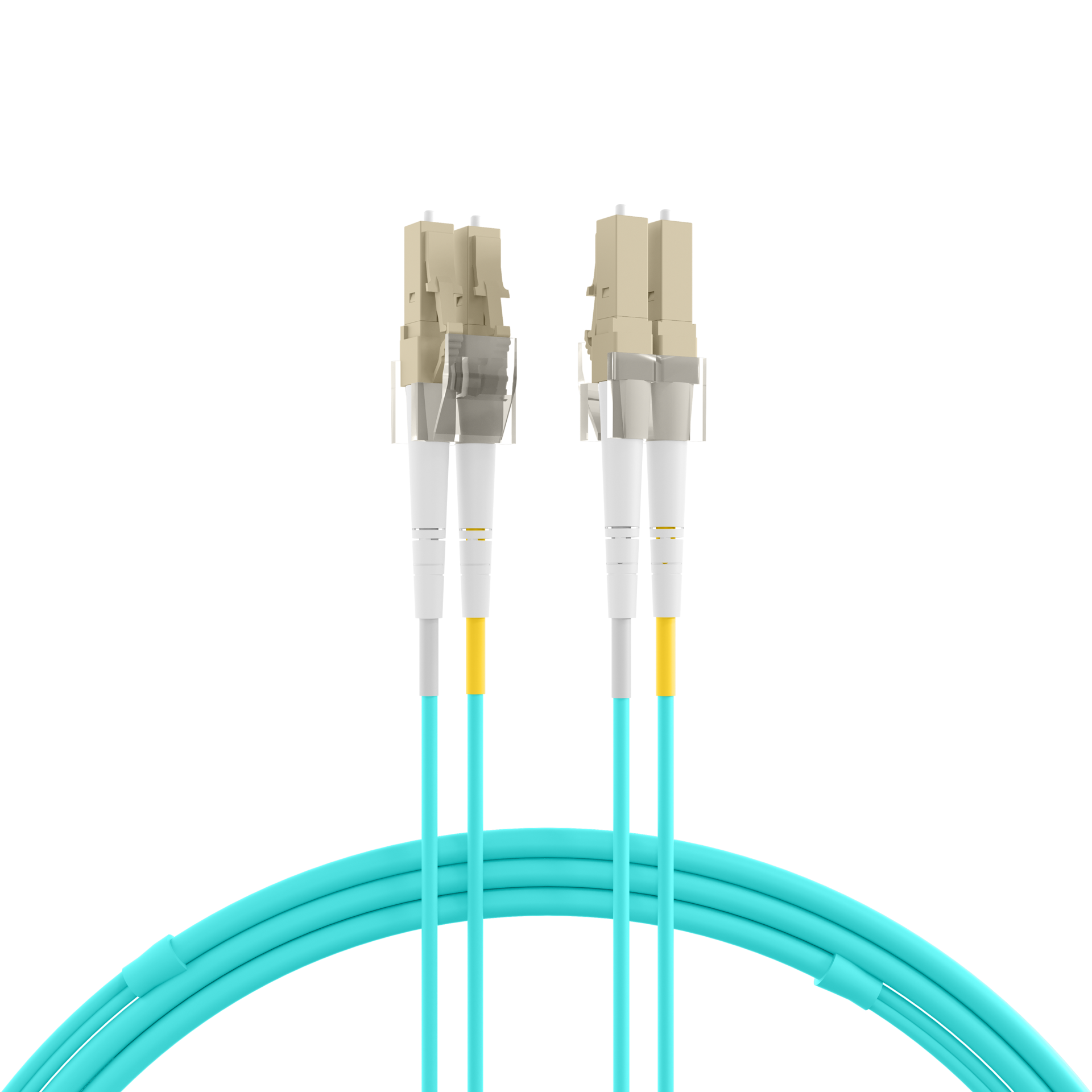

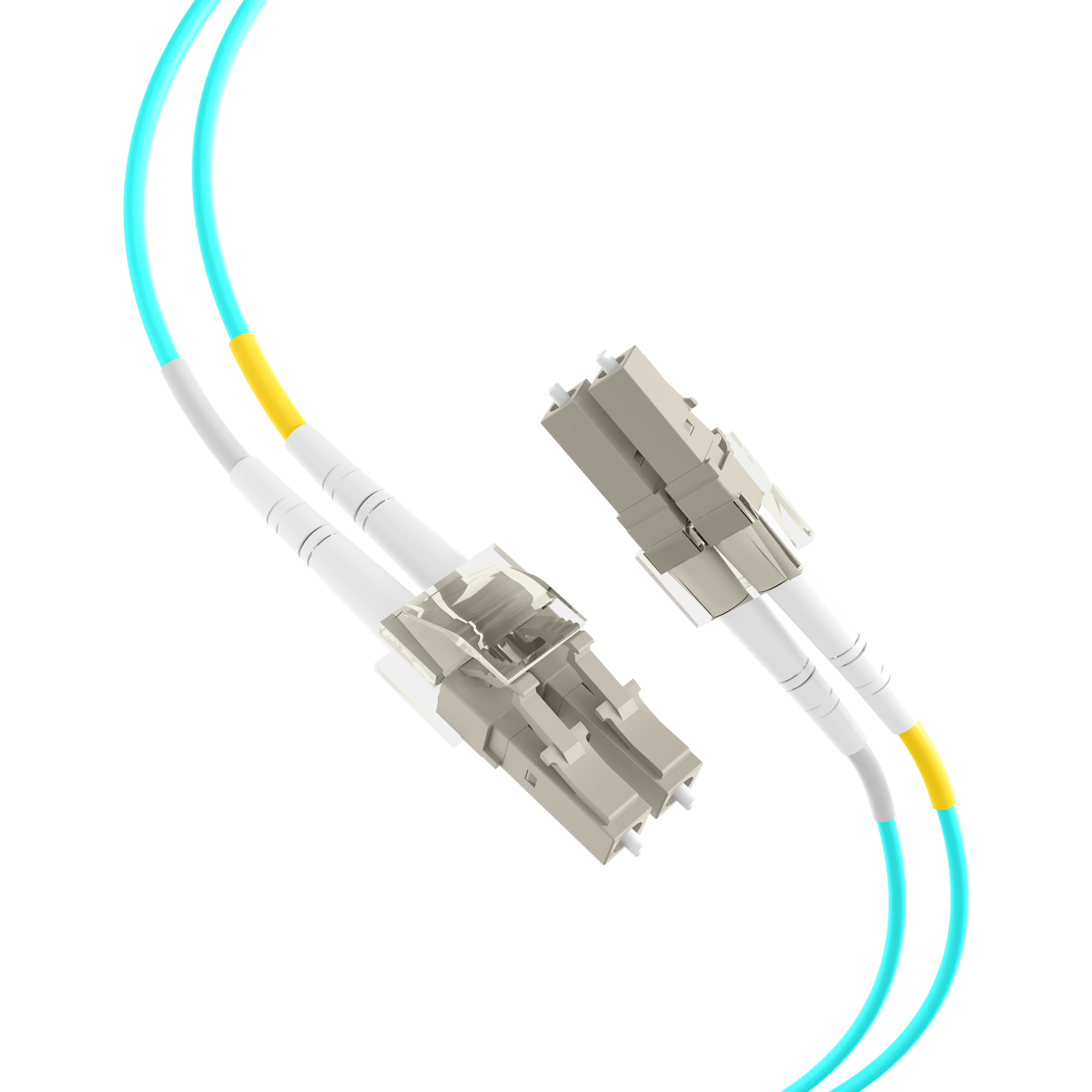

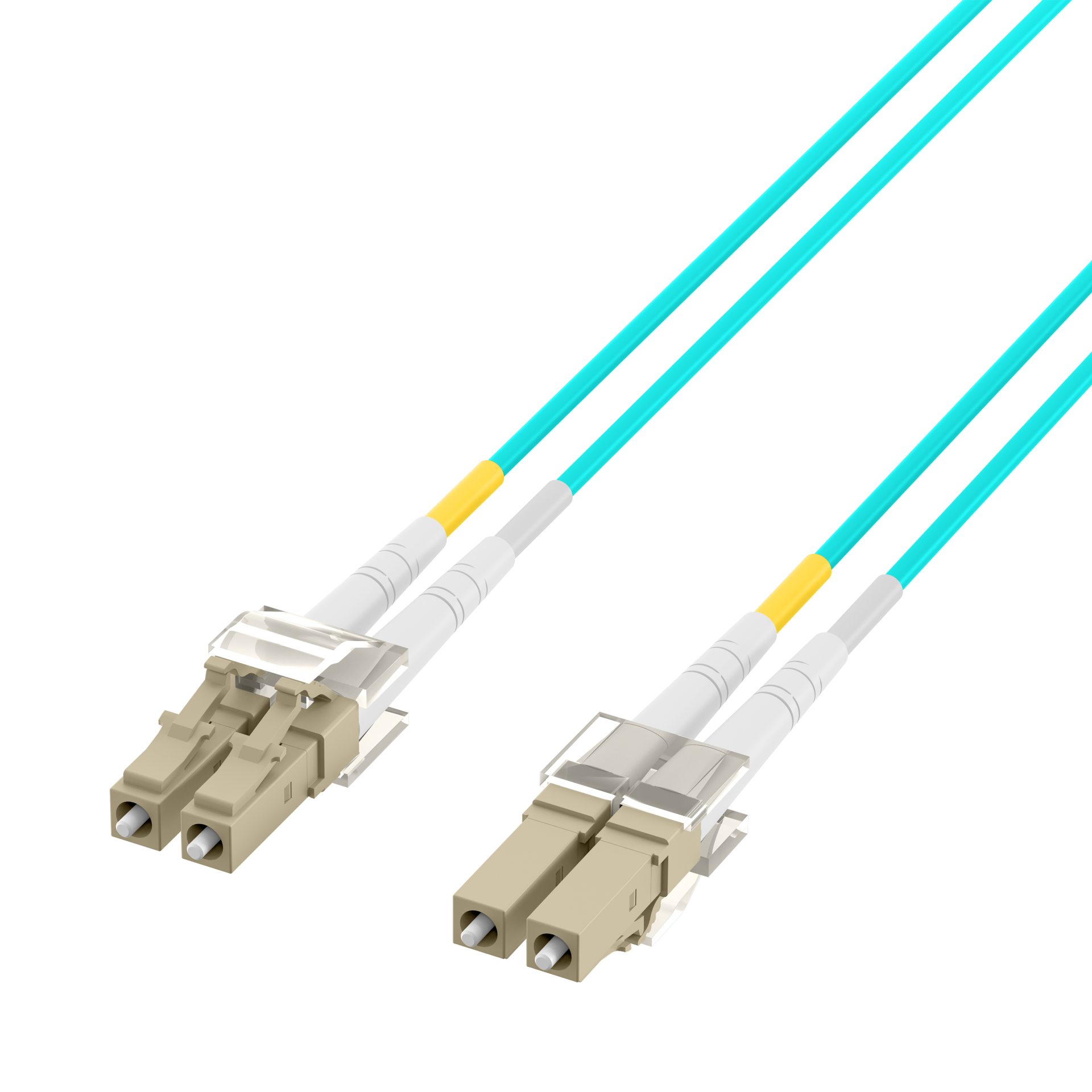

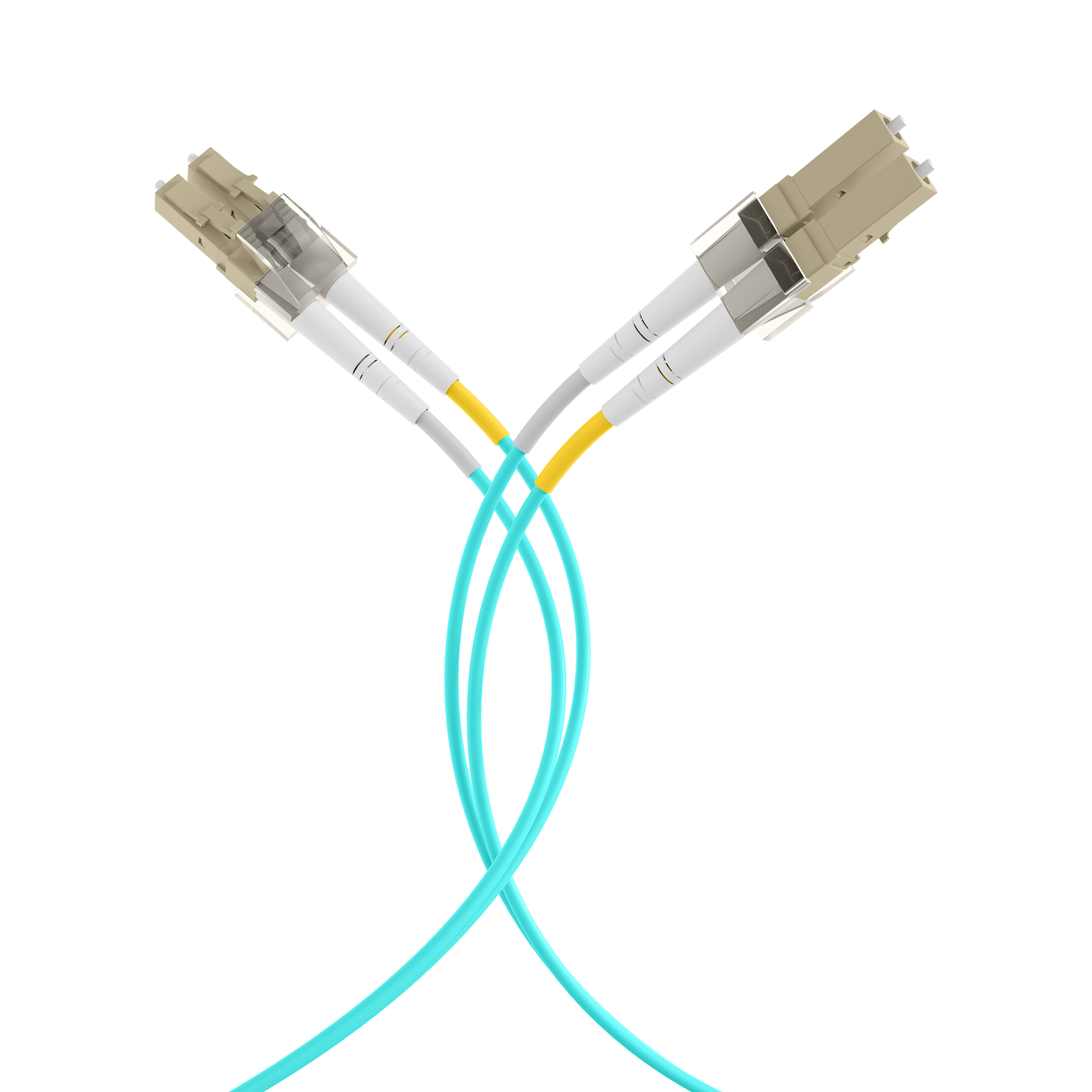

Duplex Patchcable LC-LC 50/125µ,OM3, Flat Twin
Duplex Patchcable Flat-Twin LC-LC OM3 0,5m LSZH 3x5mm aqua
Varenummer:
O0312FT.0,5
EAN Nr.:
4049759157531
Produktinformation til Duplex Patchcable Flat-Twin LC-LC OM3 0,5m LSZH 3x5mm aqua
The Flat Twin Duplex Jumper have a higher stability due to the additional added outer jacket and can be installed much easier than standard jumper. Also the jacket material is made of LSZH.
Characteristics
Additional outer jacket for higher stability and easier installation
Halogen free according to IEC-60754-2
Flame retardant according to IEC-60332-1
Low smoke according to IEC-61034

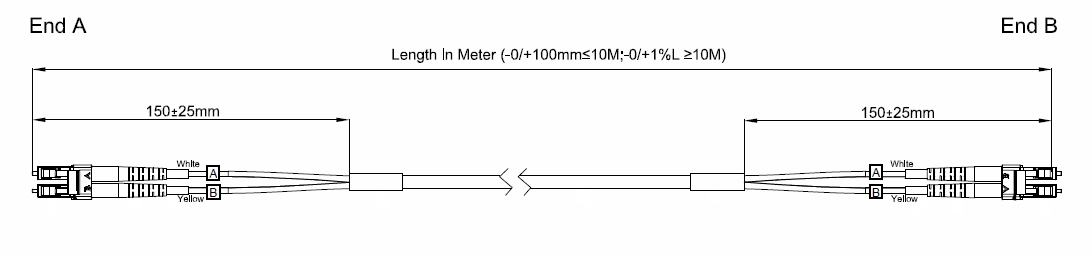

Cable whip length of 150 mm inclusive connector
Same colour of Cable whip and jacket material
Compact cable diameter of 3x5 mm
Simple allocation of the fibers with boots in different colours or A/B markers
Possibility of coding with clips enclosed to the delivery
Characteristics
Additional outer jacket for higher stability and easier installation
Halogen free according to IEC-60754-2
Flame retardant according to IEC-60332-1
Low smoke according to IEC-61034
Cable whip length of 150 mm inclusive connector
Same colour of Cable whip and jacket material
Compact cable diameter of 3x5 mm
Simple allocation of the fibers with boots in different colours or A/B markers
Possibility of coding with clips enclosed to the delivery
Tekniske egenskaber
APC-version: | False |
---|---|
Anti-kink sleeve: | put-on |
Bend optimized fiber: | OM3 acc. to IEC60793-2-10 type A1a.2 and A1a.3 |
Cable Conform to Standard: | IEC 60793-2 |
Cable Construction: | Duplex |
Cable type: | I-V(ZN) HH |
Cable Ø: | 3x5 mm |
Cabling Standard: |
EN-50173-1 ISO/IEC 11801 |
Category: | OM3 |
Colour outer sheath: | aqua |
Connector Conform to Standard: | IEC 61754-20 |
Connector colour 1: | beige |
Connector colour 2: | beige |
Fibre type: | Multi mode 50/125 |
Flame-retardant: | according to EN 50265-2-1 |
Halogen free (according to EN 50267-2-3): | True |
Insertion loss 850nm: | < 0.2 dB |
Jacket Material: | LSZH |
Number of fibres: | 2 |
Operating Temperature: | -40 – 70 °C |
Quality class Multimode: | A/1 according to IEC-61753-222-2 |
Storage Temperature: | -40 – 85 °C |
Type of connector connection 1: | LC-Duplex |
Type of connector connection 2: | LC-Duplex |
Varianten
Art. Nr. | Bezeichnung | Length | Length tolerance | |
---|---|---|---|---|
O0312FT.0,5 | Duplex Patchcable Flat-Twin LC-LC OM3 0,5m LSZH 3x5mm aqua | 0.5 m | ±5 % | |
O0312FT.1 | Duplex Patchcable Flat-Twin LC-LC OM3 1m LSZH 3x5mm aqua | 1.0 m | ±5 % | |
O0312FT.2 | Duplex Patchcable Flat-Twin LC-LC OM3 2m LSZH 3x5mm aqua | 2.0 m | ±5 % | |
O0312FT.3 | Duplex Patchcable Flat-Twin LC-LC OM3 3m LSZH 3x5mm aqua | 3.0 m | ±5 % | |
O0312FT.5 | Duplex Patchcable Flat-Twin LC-LC OM3 5m LSZH 3x5mm aqua | 5.0 m | ±5 % | |
O0312FT.7,5 | Duplex Patchcable Flat-Twin LC-LC OM3 7,5m LSZH 3x5mm aqua | 7.5 m | ±5 % | |
O0312FT.10 | Duplex Patchcable Flat-Twin LC-LC OM3 10m LSZH 3x5mm aqua | 10.0 m | ±5 % | |
O0312FT.15 | Duplex Patchcable Flat-Twin LC-LC OM3 15m LSZH 3x5mm aqua | 15.0 m | ±5 % | |
O0312FT.20 | Duplex Patchcable Flat-Twin LC-LC OM3 20m LSZH 3x5mm aqua | 20.0 m | ±5 % | |
O0312FT.25 | Duplex Patchcable Flat-Twin LC-LC OM3 25m LSZH 3x5mm aqua | 25.0 m | ±5 % | |
O0312FT.30 | Duplex Patchcable Flat-Twin LC-LC OM3 30m LSZH 3x5mm aqua | 30.0 m | ±5 % | |
O0312FT.35 | Duplex Patchcable Flat-Twin LC-LC OM3 35m LSZH 3x5mm aqua | 35.0 m | ±5 % | |
O0312FT.40 | Duplex Patchcable Flat-Twin LC-LC OM3 40m LSZH 3x5mm aqua | 40.0 m | ±5 % | |
O0312FT.45 | Duplex Patchcable Flat-Twin LC-LC OM3 45m LSZH 3x5mm aqua | 45.0 m | ±5 % | |
O0312FT.50 | Duplex Patchcable Flat-Twin LC-LC OM3 50m LSZH 3x5mm aqua | 50.0 m | ±5 % |
