Duplex Patchkabel LC-SC 50/125µ, OM2, Flat Twin

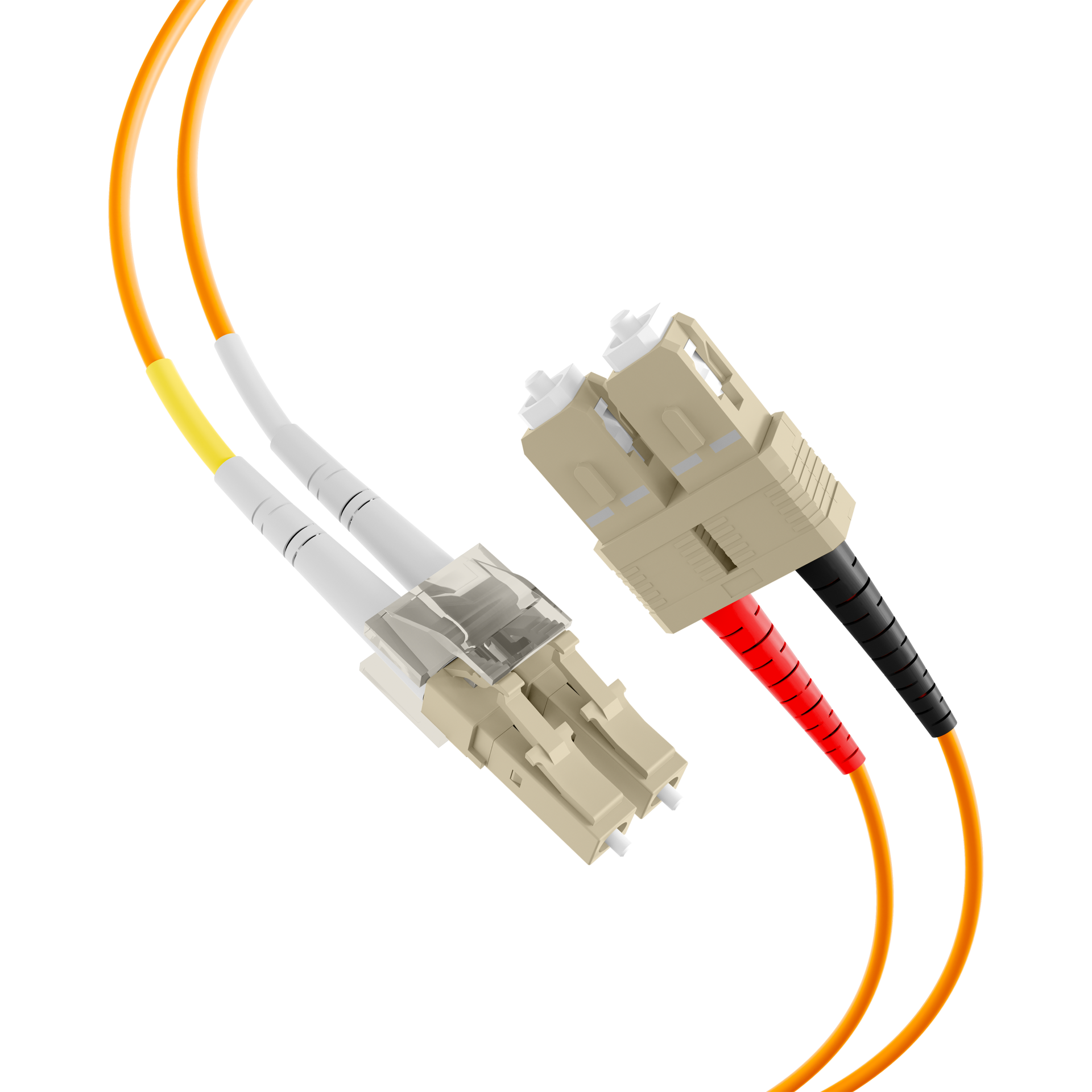

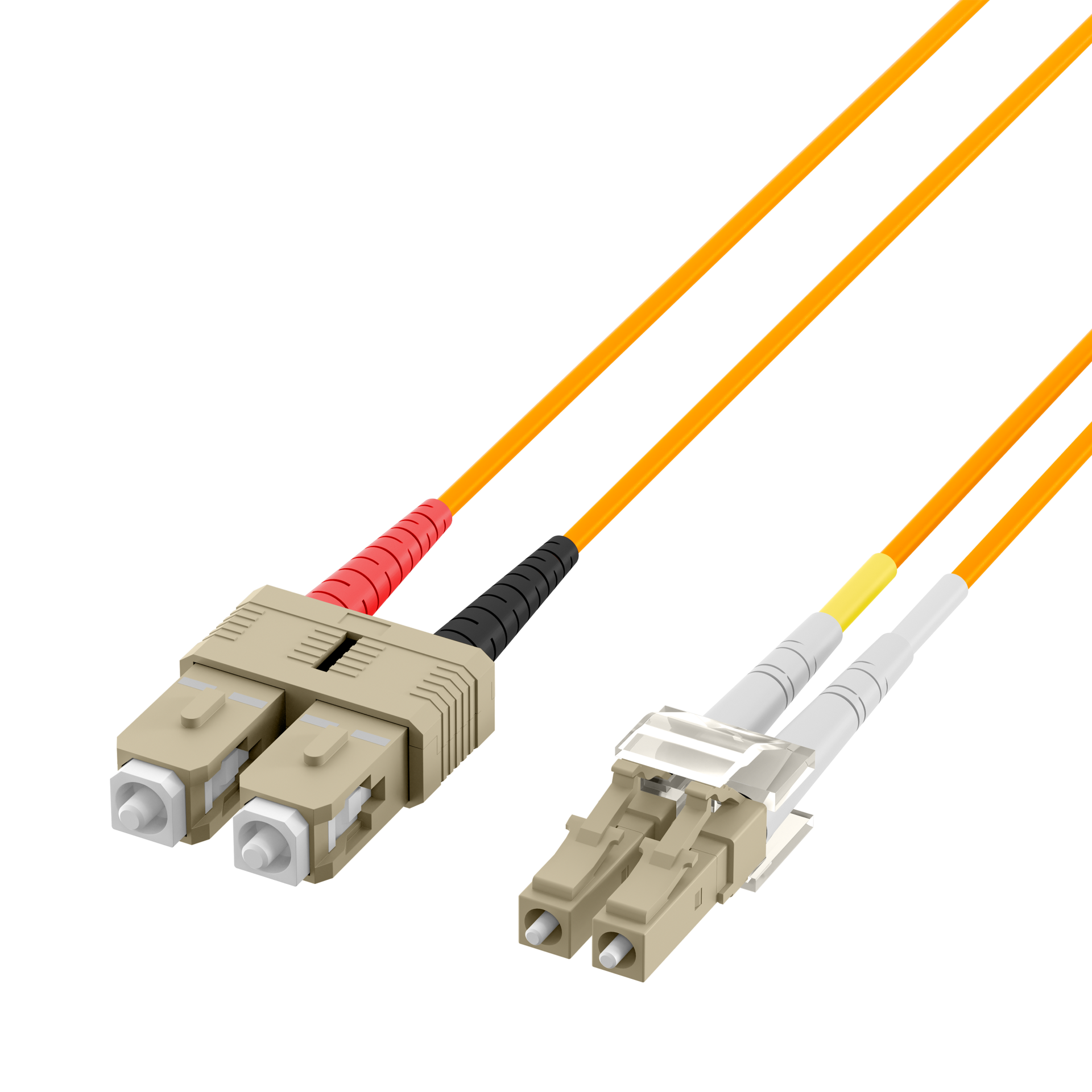

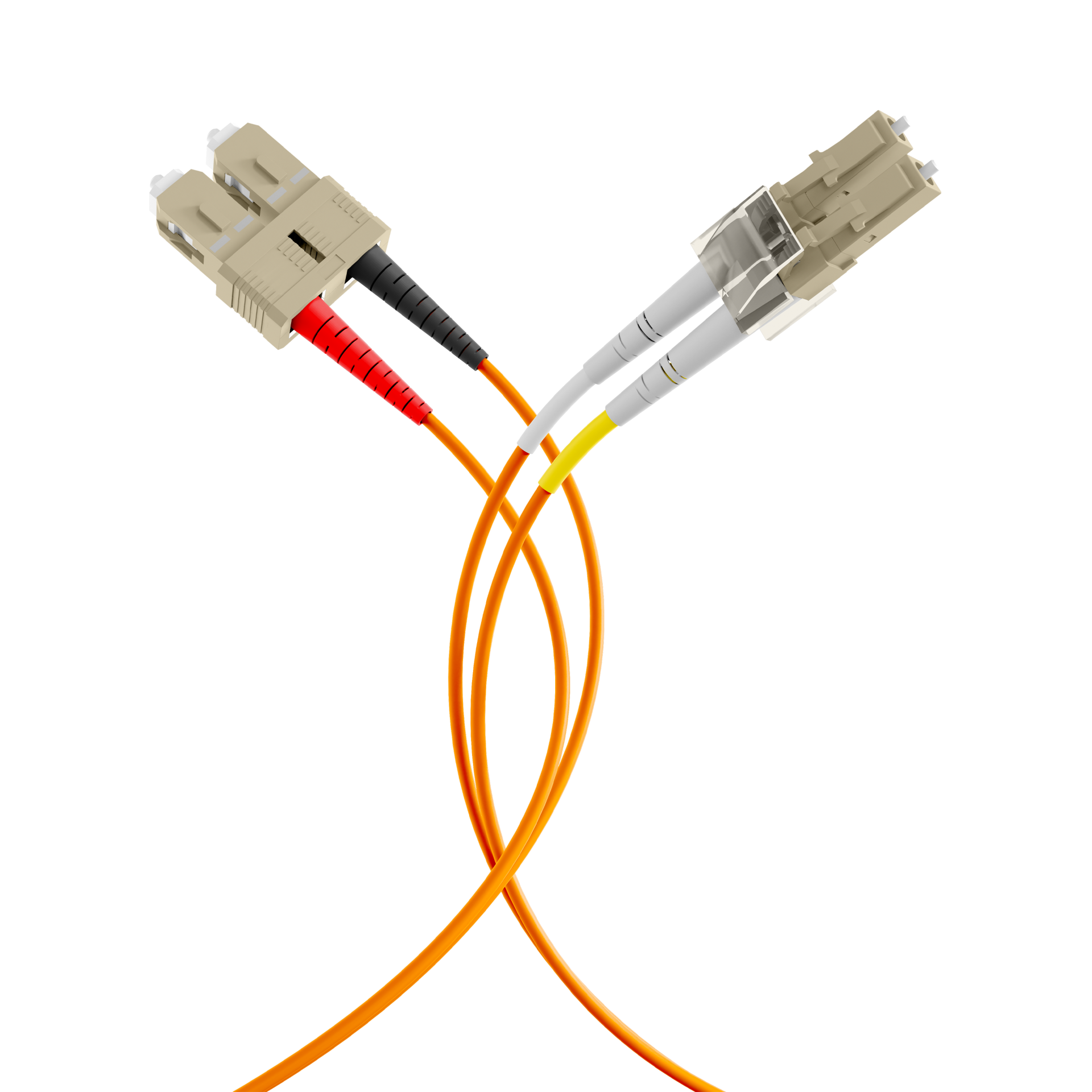

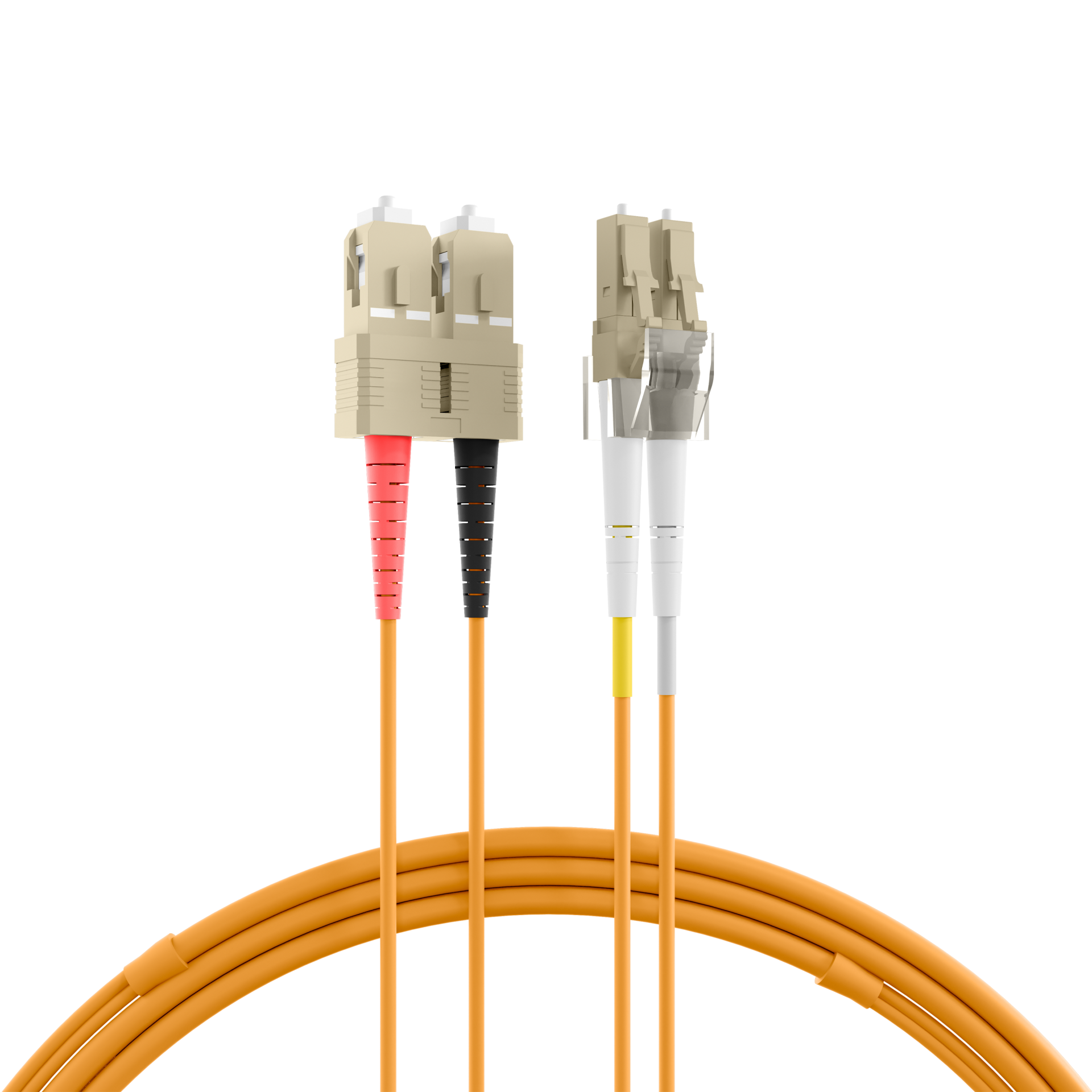

Duplex Patchcable Flat-Twin LC-SC OM2 50m LSZH 3x5mm orange
Varenummer:
O0320FT.50
EAN Nr.:
4049759224677
Produktinformation til Duplex Patchcable Flat-Twin LC-SC OM2 50m LSZH 3x5mm orange
The Flat Twin Duplex Jumper have a higher stability due to the additional added outer jacket and can be installed much easier than standard jumper. Also the jacket material is made of LSZH.
Characteristics
Additional outer jacket for higher stability and easier installation
Cable sheath consists of flame retardant LSZH material
Cable whip length of 150 mm inclusive connector
Same colour of Cable whip and jacket material
Compact cable diameter of 3x5 mm
Simple allocation of the fibers with boots in different colours or A/B markers
Possibility of coding with clips enclosed to the delivery
Characteristics
Additional outer jacket for higher stability and easier installation
Cable sheath consists of flame retardant LSZH material
Cable whip length of 150 mm inclusive connector
Same colour of Cable whip and jacket material
Compact cable diameter of 3x5 mm
Simple allocation of the fibers with boots in different colours or A/B markers
Possibility of coding with clips enclosed to the delivery
Tekniske egenskaber
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | OM2 acc. to IEC60793-2-10 type A1a.1 |
| Cable Conform to Standard: | IEC 60793-2 |
| Cable structure: | Duplex |
| Cable type: | I-V(ZN) HH |
| Cable Ø: | 3x5 mm |
| Cabling standard: | EN-50173-1 |
| Cabling standard: | ISO/IEC 11801 |
| Category: | OM2 |
| Colour outer sheath: | orange |
| Connector colour 1: | beige |
| Connector colour 2: | beige |
| Fibre type: | Multi mode 50/125 |
| Flame retardant: | according to EN 50265-2-1 |
| Halogen free (according to EN 50267-2-3): | True |
| Insertion loss 850nm: | < 0.2 dB |
| Jacket material: | LSZH |
| Number of fibers: | 2 |
| Operating Temperature: | -40 – 70 °C |
| Quality class multimode: | A/1 according to IEC-61753-222-2 |
| Storage Temperature: | -40 – 85 °C |
| Type of connector connection 1: | LC-Duplex |
| Type of connector connection 2: | SC duplex |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| O0320FT.35 | Duplex Patchcable Flat-Twin LC-SC OM2 35m LSZH 3x5mm orange | 35.0 m | ±5 % | |
| O0320FT.40 | Duplex Patchcable Flat-Twin LC-SC OM2 40m LSZH 3x5mm orange | 40.0 m | ±5 % | |
| O0320FT.45 | Duplex Patchcable Flat-Twin LC-SC OM2 45m LSZH 3x5mm orange | 45.0 m | ±5 % | |
| O0320FT.50 | Duplex Patchcable Flat-Twin LC-SC OM2 50m LSZH 3x5mm orange | 50.0 m | ±5 % |
Sikkerhedsanvisninger
Warning: Proper disposal of fiberglass residues! Fiberglass residues must be disposed of immediately and with due care in the containers provided for them. If handled improperly, there is a risk of injury due to fiber residues penetrating the skin.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
